Start with the equipment family, narrow into the right subtype, and compare available inventory using search terms, manufacturers, materials, and technical filters.
Choose whether you want to browse equipment, complete systems, or entire plants before narrowing the results.
This equipment family does not have a second browse level, so you can move straight into specifications and available listings.
These filters are based on the selected equipment category and subtype, so you can narrow the listings using the attributes that matter for this type of asset.
Use this setting to include or exclude equipment with this feature.
Select one or more values to narrow the current listings.
These options come from the current listings and highlight the manufacturers, materials, and other attributes most common in this equipment set.
Showing 21 of 21 matching Twin Shell & Double Cone Mixers.
Octagonal blender/mixer, with a Mirror Polish internal finish. Designed with GMP and sanitary construction, 625" shell diameter 615" shell length 2.5" shell thickness 250" Cone length, 2.5" cone thickness 6" bottom butterfly valve.
V blender openings: (2) diameter 455mm and (1) diameter 165mm driven by electrical motor Motor type HD7A Motor: 380/420 volt
twin shell blender system maximum density of 50 lbs./cu.ft Shell diameter is 54" (est.), manway diameter is 17 3/4"with air operated butterfly valve Brake supplied with motor Electrical requirements are 230/460, 3 ph, 60 hz
twin shell blender 90 lbs. cu.ft. maximum density shell diameter is 24", manway diameter is 17 & 3/4" with a air operated butterfly valve Electrical requirement is 208/230/460 volts, 3 ph, 60 hz. With brake
blender (2) 12" feed ports. 6" discharge with butterfly valve. General Electric gear reducer rated 13.99-1 ratio.
twin shell blender 36" shell diameter with 18" manway diameter with air operated butterfly valve Electrical requirements are 230/460, 3 ph, 60 hz
Porta Hopper double cone Blender with intensifier bar with (2) Hopper bottoms. Intesifier bar is set up for dry mixing, has liquid capabilities 56" diameter shell gear head motor for blender drive. Blend speed 13. 4 RPM-Maximum desity of charge 125 lbs./cu.ft.
1m diameter x 2200mm long stainless steel rotating granulation drum mixer Della (HFH Russig) Drum is hydraulically lifted for designed angles of -2/+10 degrees. Pellets are transported upwards thus presenting the following advantages: uniformally sized granulates, increased throughput, lower energy. Spray nozzles for material granulation With removable 316 stainless steel vibratory feeder system operating on rails.

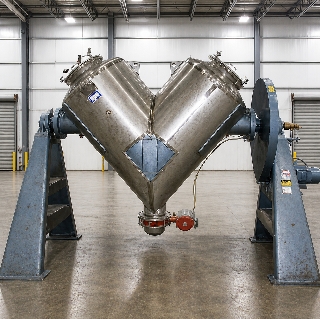

shell "V" blender with Intensifier Bar rated 75 Lbs/CuFt Designed for dry blending (2) 18" charge ports with covers, 8" discharge port with manual butterfly valve.
Maximum density of charge-65lbs.cu./ft Driven through a Patterson Helix reducer
double cone blender with intensifier bar rated 55 lbs/CuFt Has liquid addition capabilities Internal Finish #4 polish (20-25 Micro Inch) Pneumatic valve on blender f eed opening 2 HP gear head motor for blender drive Other general notes: Vessel speed(rpm), 14.6, Positioning speed (rpm) 1.46, Agitator speed (FPM) 4900 approx., Total Volume (CF) 53.3.
Job # I 46278" diameter with a 19" band, 45" to the cone. Top 15" man ways with mechanical seals. Bottom 15" butterfly valve.(6) 1" nozzles Separate lubrication system available for bearings. Motor in place for intensifier bar, but the bar has been removed.
with #4 finish for product contact, sanitary double cone blender, Rated for max. density 70 lbs./cu. ft., Rotation from drive side is clockwise, speed is 11.3 rpm. Agitator speed is 3300 rpm. With sanitary Gemcomatic assembly for discharge to drums. Auto loading, Chopper with out blade. 18" port. With NEMA 12 Control Panel, including circuit breaker and local controls. Agitator motor with 20 HP, 1800 rpm, 3 ph/60 Hz/ 230/460v. TEFC with a 256T frame. Drive motor is 7.5 HP,1800 RPM, 3 ph/60 Hz/ 230/460v. TEFC with a 213T frame main braking motor is 3 HP, 1800 rpm,3 ph/60 Hz/ 230/460v. TEFC with a 213T frame. Both drive and brake are tied in through a Symcyclo gear reduction drive at 17:1 ratio. Sanitary covers over drives and legs.
Type: Double cone mixer Cone dimensions: 2130mm diameter x 600mm straight side, with (2) 1020mm long cone sections Openings: cones 2-300mm, 1-36mm, 1-36mm, 1-12mm; straight side 1-36mm.
double cone blender 72" dia, 1-8" top, 1-8" btm, 1-12" on str side. Shell driven by 10 HP, 3/60/440 volt 1800 rpm motor thru Falk reducer, 100 rpm output Mtd on A-frame stands.
motor with chain and sproket drive. Unit enclosed in a plastic housing
twin shell "V" blender with Intensifier Bar. rated 75 Lbs/CuFt. Designed for dry blending. With 1/4 HP gear head motor for blender drive, 1.5 HP motor for intesifier bar. (2) 10" charge ports with covers, oval discharge port with cover.
double cone mixer CS Jacket rated 30 psi @ 275 deg F. 72" dia. Has rotary joint Packing gland UL label Has 16" quick open manway and 10" dia swing gate valve.
blender Maximum density 55 lbs/cubic feet. Shell 48" outer diameter Blender rotation 11 rpm, liquid/solids intensifier bar rotation 1174 rpm 1750 rpm output spped, with belt and drive with protective guard. Intensifier bar driven by 20 HP, 3/60/230/460 volt, 100 rpm output speed TEFC gear motor. 3/4" type RSP rotary union Mixer equipped with 3 7/16" Dodge type pillow block bearings Mixer has (2) 18" diameter access ports with quick openings. 1-20" outer diameter discharge port with air operated valve.
liquid/solid twin shell blender. Maximum density 55 lbs/cubic feet. Shell 48" outer diameter Blender rotation 11 rpm, liquid/solids intensifier bar rotation 1174 rpm. Mixer gear driven by 7.5 HP, 3/60/460 volt TEFC motor, 1750 rpm output speed with belt and drive with protective guard. Intensifier bar driven by 20 HP, 3/60/230/460 volt, 100 rpm output speed TEFC gear motor. 3/4" type RSP rotary union. Mixer equipped with 3 7/16" Dodge type pillow block bearings. Mixer has (2) 18" diameter access ports with quick openings. 1-20" outer diameter discharge port with air operated valve.
polished double cone jacket mixer. Internal rated full vacuum @ 200 degree F; jacket rated 15 psi @ 200 degree F. 59 lbs/cubic feet density. Full CS jkt 16" charge port, 8" discharge w/butterfly valve.
Used twin shell and double cone mixers are well-suited for gentle blending of powders, granules and free-flowing solids that require uniform mixing without shear. Their rotating vessel design ensures thorough intermingling of ingredients while maintaining product integrity, making them ideal for pharmaceutical, nutraceutical, food and chemical processes. With over 47 years of industrial equipment expertise, IPP supplies used, surplus and secondhand twin shell and double cone mixers from 20 global process plant locations and maintains a 15,000+ system inventory ready to ship.
IPP offers these mixers from leading manufacturers like Patterson-Kelley, Gemco, Munson, Paul O. Abbe, and American Process Systems.
Built for gentle, clean operation, these mixers are typically made from:
Explore how tumbling mixers improve dry powder uniformity at Powder & Bulk Solids.
Browse IPP inventory or contact IPP’s gentle blending experts to select the best used, surplus or secondhand twin shell or double cone mixer for your application. Save time and reduce risk with reliable, ready-to-ship equipment from a trusted source.
