Results 5 items found

Available equipment

Showing 5 of 5 matching equipment.

Stock Number: #207655
45.4 kg/h (100 lb/h) Rising/Falling Film Evaporator
Evaporation Rate: 100 lb/h
Total Heat Transfer Surface Area: 20 m²
Pressure: 50 psi
Temperature: 350 °F
Vapor Body #1: vapor body is a 500 gallon 316SS vessel
Additional Information: single effect evaporator 100 psi @ 350 degrees F in the jacket on the bottom 1/3 of straight side of tank only. 2097 liters.
More Details ⟶
Stock Number: #207653
559 mm (22 in) Stainless Steel 304 Packed Column
Diameter (1): 22 in
Length (overall): 300 in
Pressure: 70 psi
Temperature: 300 °F
Additional Information: Heads are 0.180" thick
More Details ⟶
Stock Number: #213075

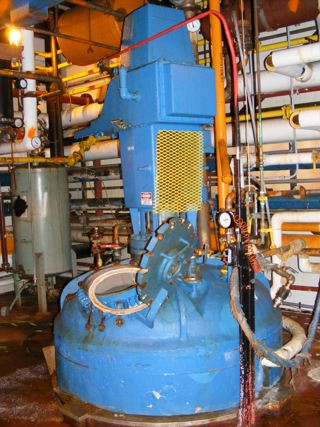

Stainless Steel 316 Batch-Type Agitated Reactor
Capacity (Design): 750 gallons
Internal Pressure: 150 psi
Internal Temperature: 300 °F
Jacket Pressure: 150 psi
Jacket Temperature: 300 °F
Jacket Material of Construction: Carbon Steel
Orientation: Vertical
Agitation: Yes
Diameter: 66 in
Straight Side Length: 57 in
Support Type: Lugs
Additional Information: • Top Head 9/16", Bottom Head 1 3/16"; CS jacket 9/16" thick.Top mounted Lightnin drive, Model 85-5-40, 9.33 to 1 ratio,Direct coupled to a 5 HP 3/60/230/460 volt 1765 rpm motor, 180 RPM output.(4) blade pitched paddle mid shaft, 4 blade flat turbine on bottom, (4) baffles on side wall.
More Details ⟶
Stock Number: #206640

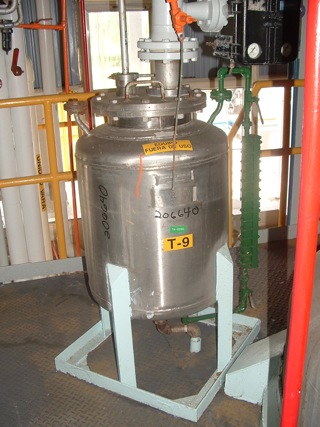

Stainless Steel 316 Tank
Capacity (Design): 50 gallons
Orientation: Vertical
Diameter: 24 in
Straight-side Length: 39 in
Internal Pressure: 50 psi
Internal Temperature: 650 °F
Vacuum: Yes
Support: Legs
Additional Information: • HSB number: 134
More Details ⟶
Stock Number: #213076

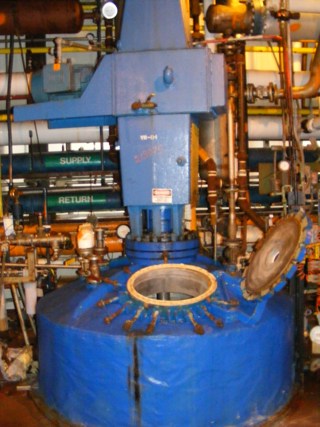

Monel Batch-Type Agitated Reactor
Capacity (Design): 750 gallons
Internal Pressure: 150 psi
Internal Temperature: 300 °F
Jacket Pressure: 150 psi
Jacket Temperature: 300 °F
Jacket Material of Construction: Carbon Steel
Agitation: Yes
Diameter: 60 in
Straight Side Length: 60 in
Support Type: Lugs
Additional Information: • Monel reactorTop Head 1/2", Bottom Head 1 1/16"; CS jacket 1/2" thick.Top mounted Lightnin drive, Model 85-5-40, 9.33 to 1 ratio,Direct coupled to a 5 HP 3/60/230/460 volt 1765 rpm motor, 180 RPM output.(4) blade pitched paddle mid shaft, 4 blade flat turbine on bottom, (4) baffles on side wall.
More Details ⟶
