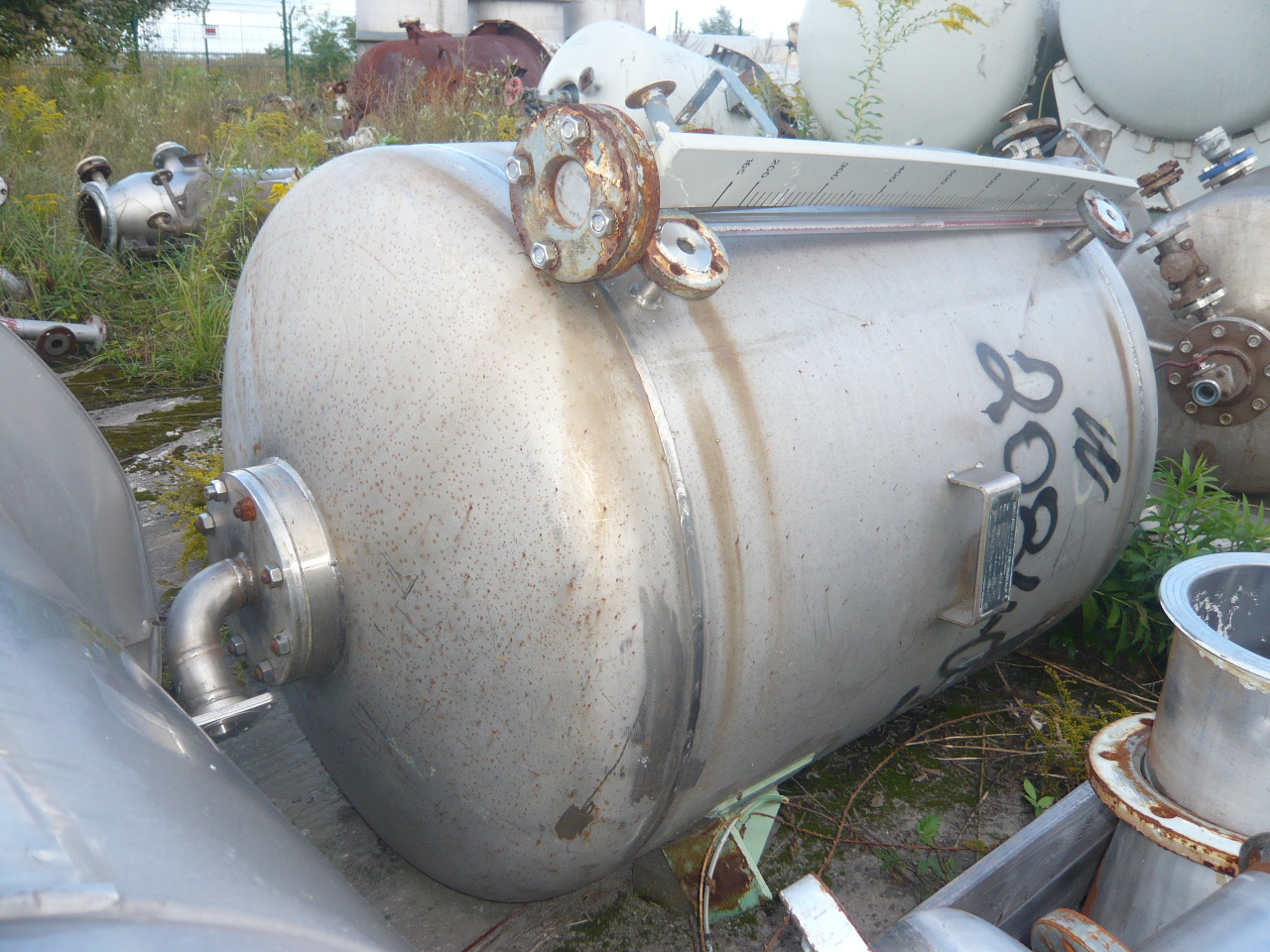

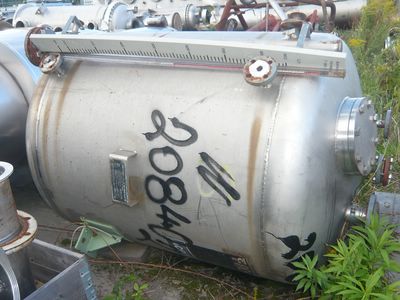

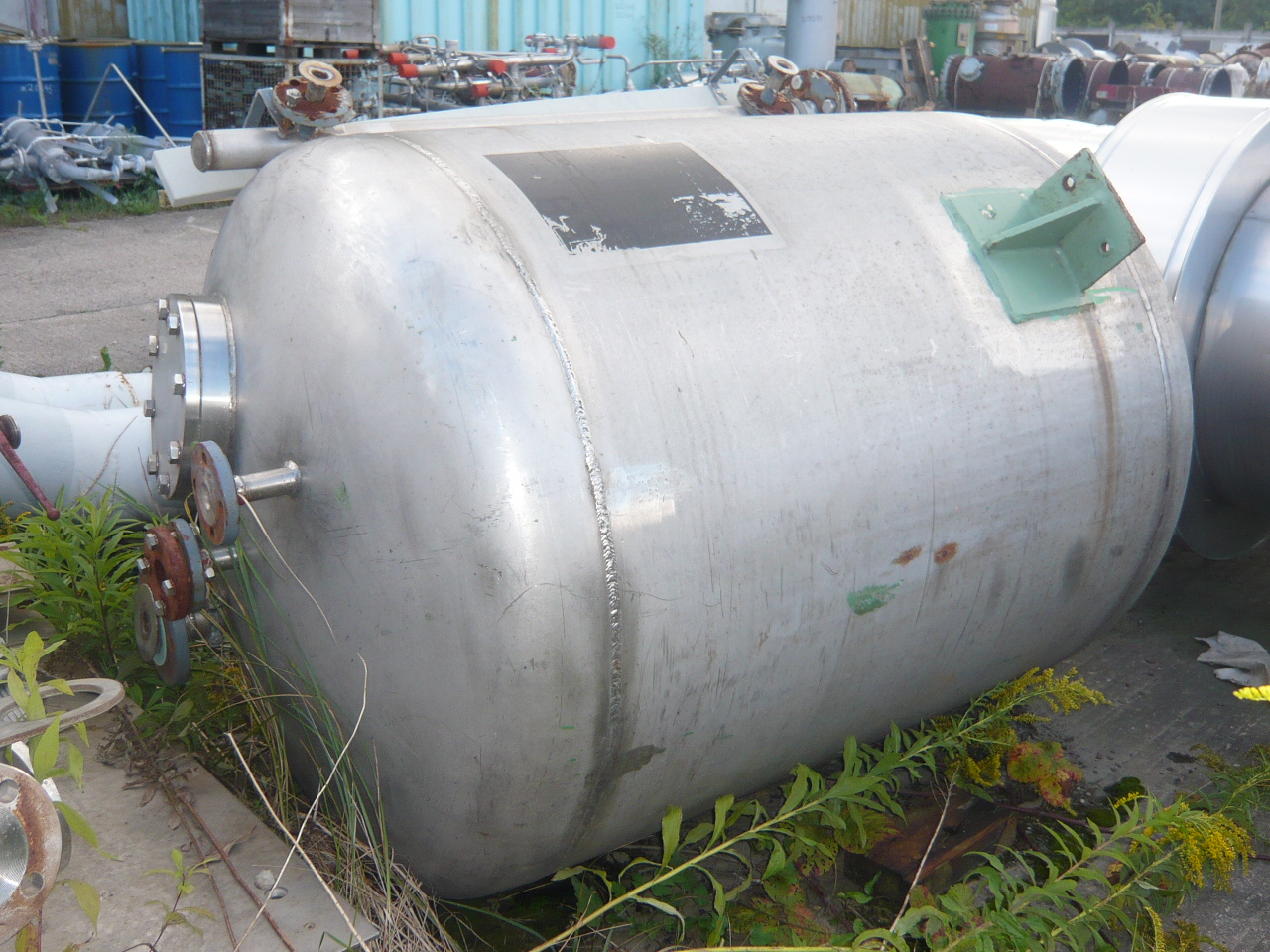

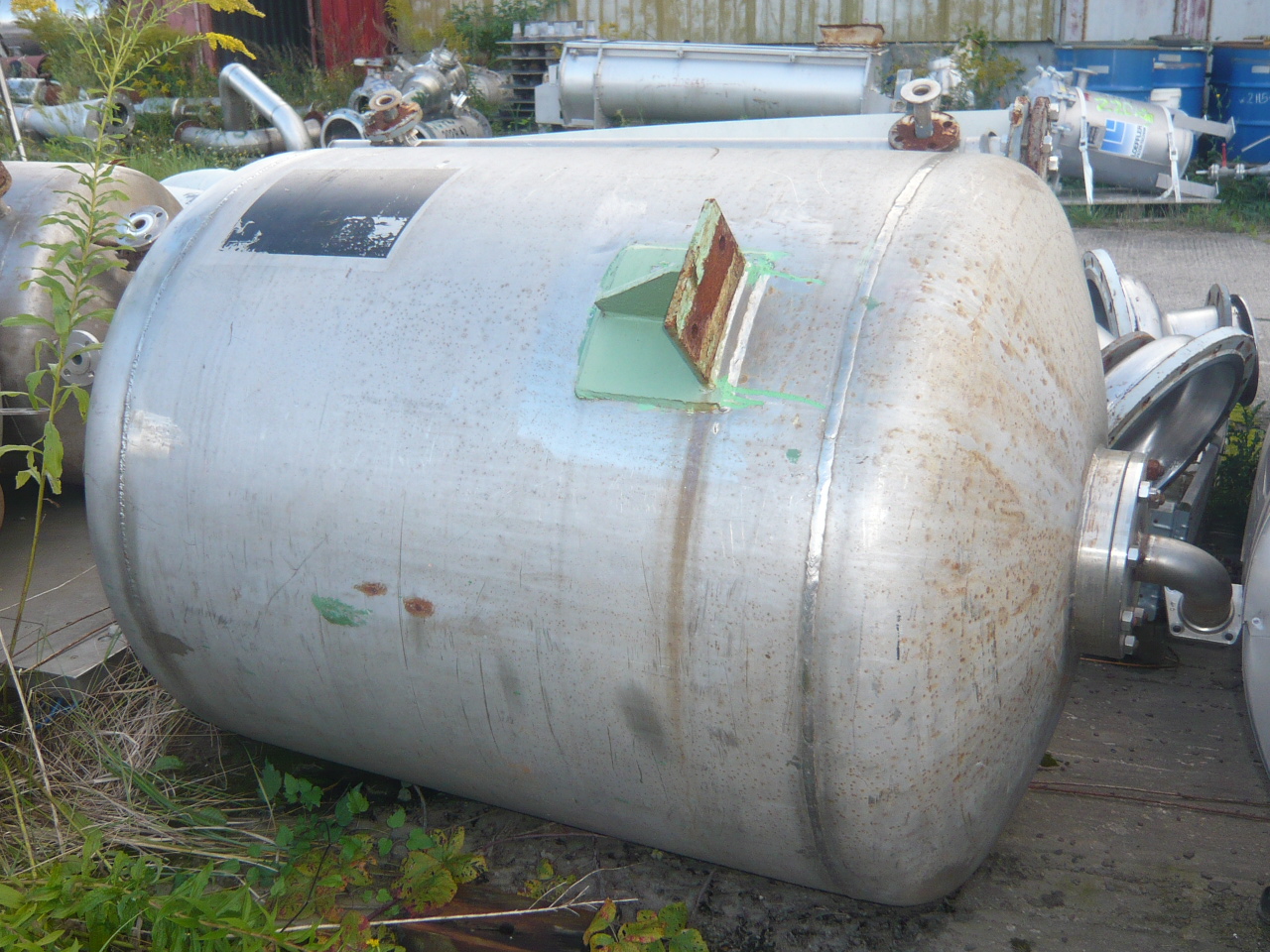

Stainless Steel 316 Gerhard & Rauh Tank - IPP# 208402

Type: Tank

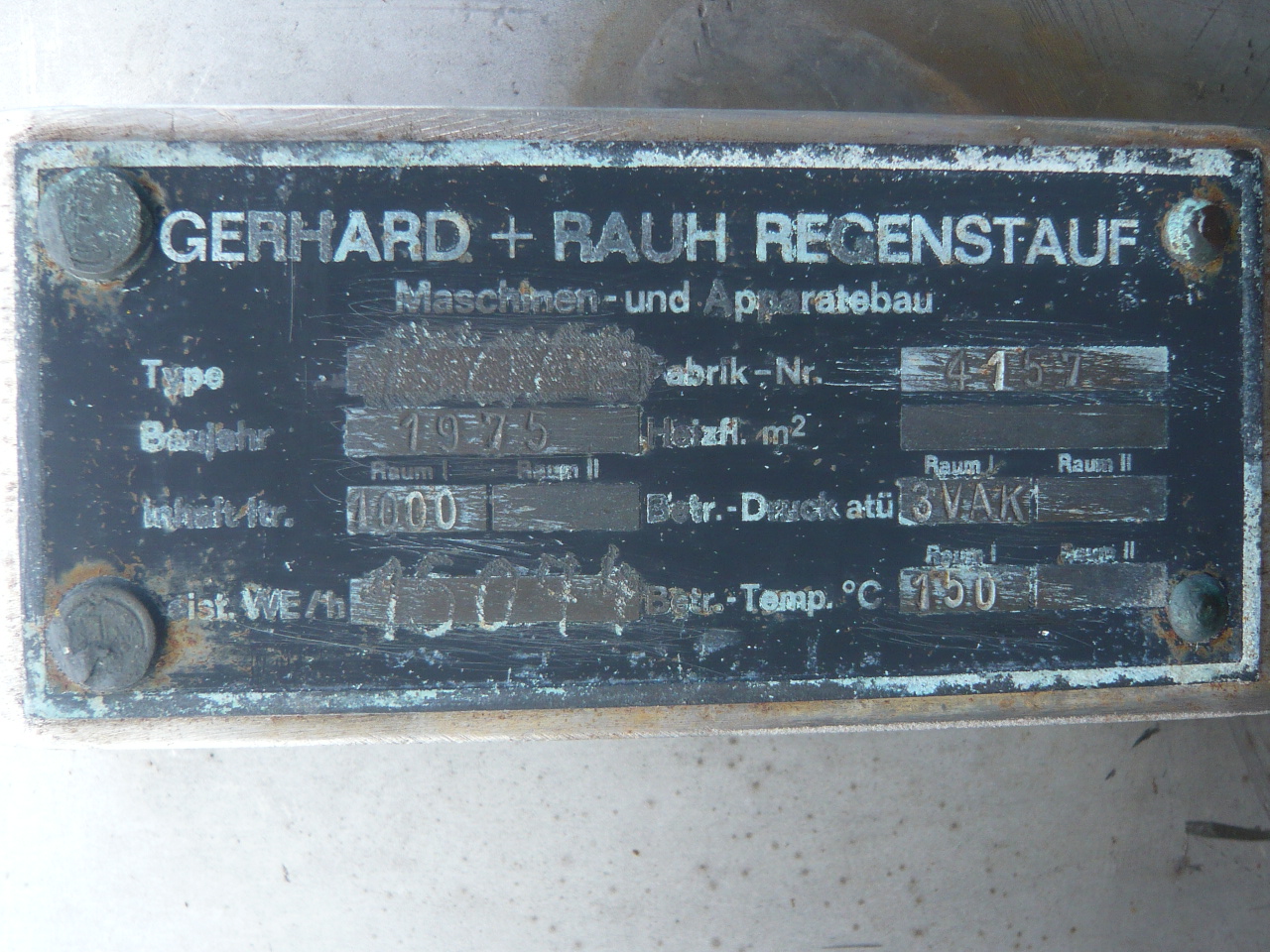

Manufacturer: Gerharb & Rauh

Condition: Used

Material: Stainless Steel Austenitic

Capacity (Design): 3,000 L (793 gallons)

Orientation: Horizontal

• heating coil under the vessel
• 50mm bottom outlet with 15mm off shoot

Diameter: 1,150 mm (44.9 in). Straight-side Length: 2,400 mm (94.5 in). Support: Legs.

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 378.5 L (100 gallons)

Orientation: Vertical

Diameter: 762 mm (30 in). Straight-side Length: 1,000 mm (40 in). Does it have Agitation ?: Yes.

Type: Tank

Manufacturer: Gardner

Model: ESPV00-700

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 621 L (164.1 gallons)

Orientation: Vertical

• With 279mm long x 761mm wide hinged lid on top head.

Diameter: 761 mm (30 in). Straight-side Length: 1,350 mm (53.9 in). Does it have Agitation ?: Yes. Support: Lugs.

Type: Tank

Manufacturer: J.M. Smith & Sons ltd

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 35,000 L (9,250 gallons)

Orientation: Vertical

• storage tank with internal coil
• Working pressure internal: 10" W.G + vacuum @ 60 degrees C.
• Coil pressure: 75 psig Internal coil: 316 s/steel (steam / hot water) on bottom
• Base mounted, Insulated with 50mm foam glass, and Cladded with aluminum.

Diameter: 2,900 mm (114.2 in). Straight-side Length: 5,500 mm (216.5 in). Internal Pressure: 0.02 bar (0.36 psi). Internal Temperature: 60 °C (140 °F). Does it have an Internal Coil?: Yes. Jacket Pressure: 5.2 bar (75 psi). Vacuum: Yes. Support: Base Mounted.
