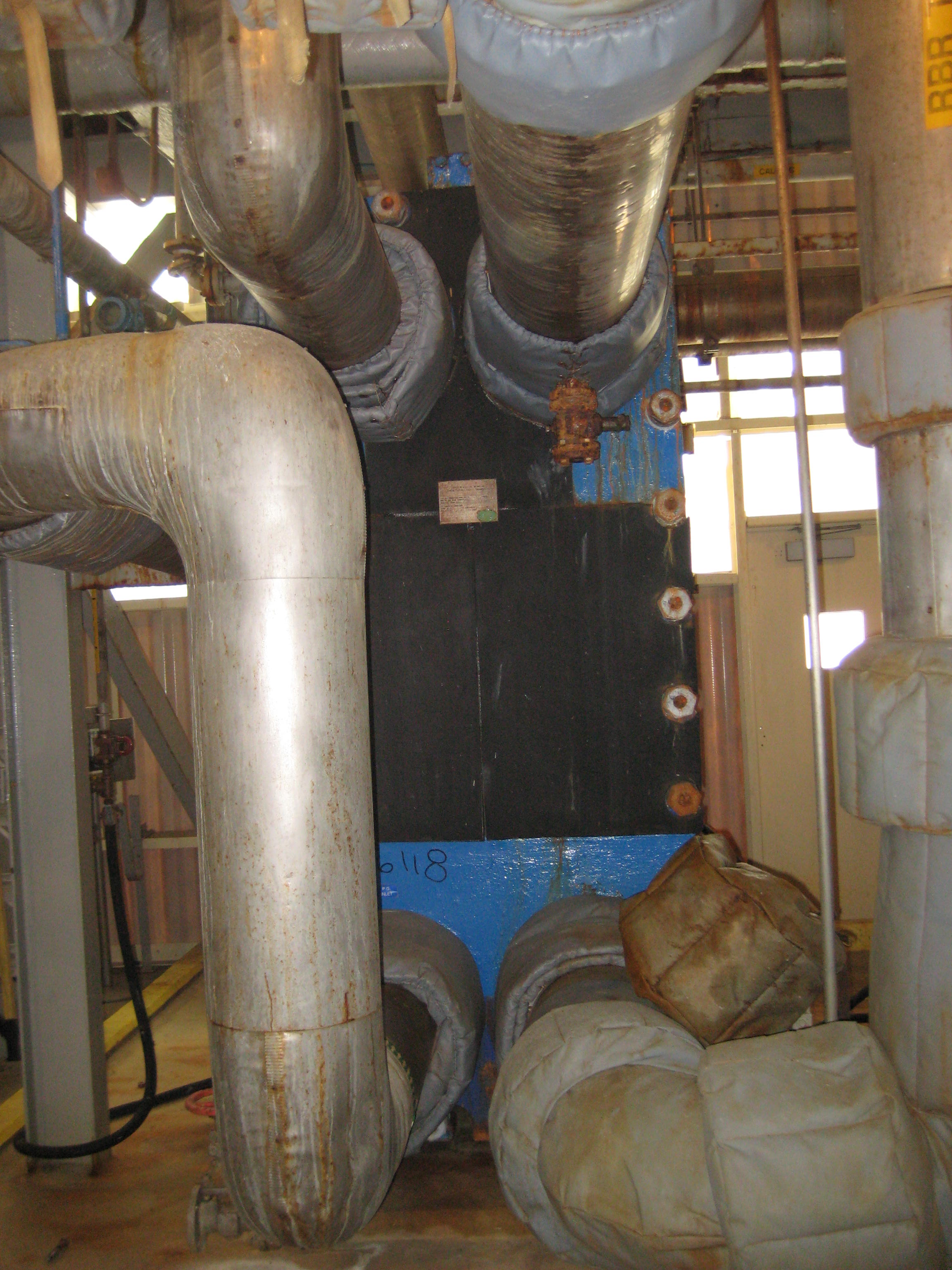

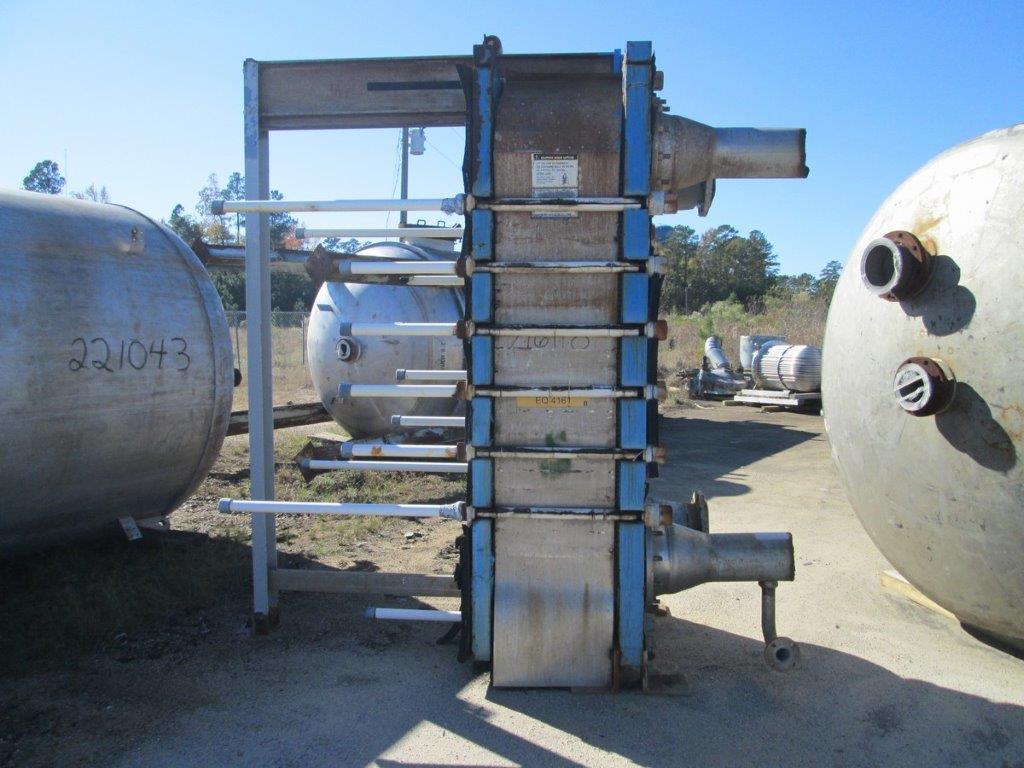

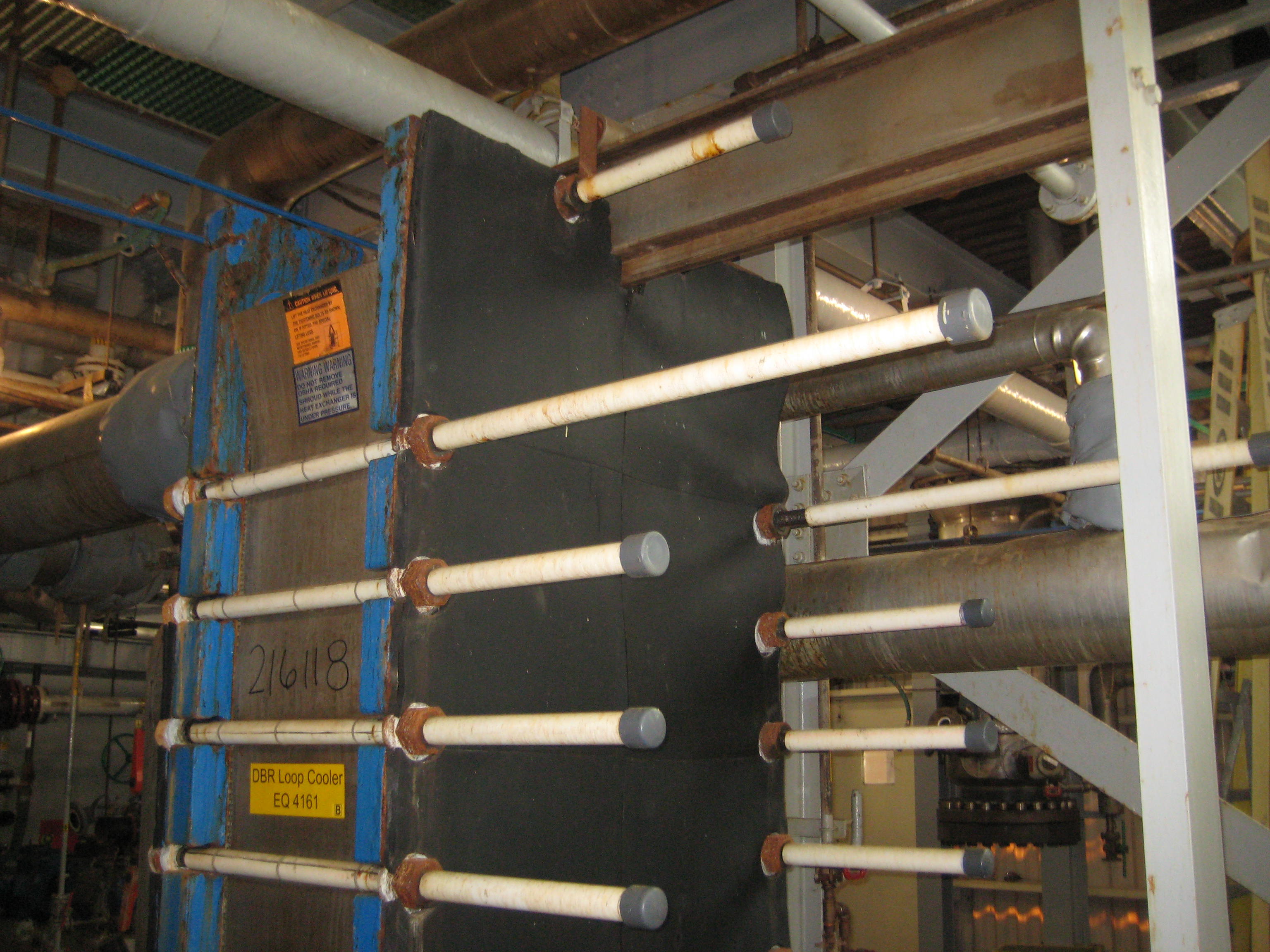

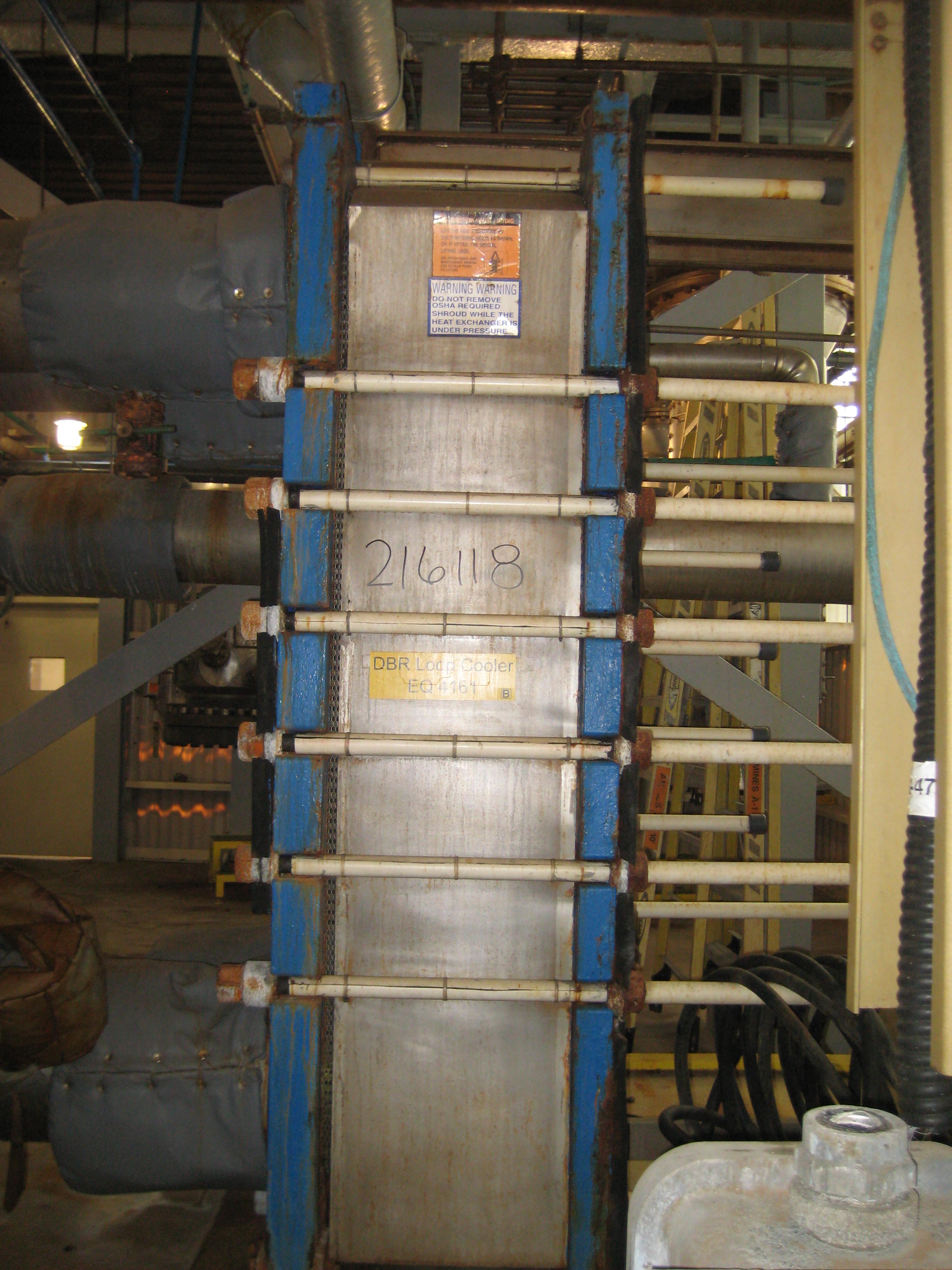

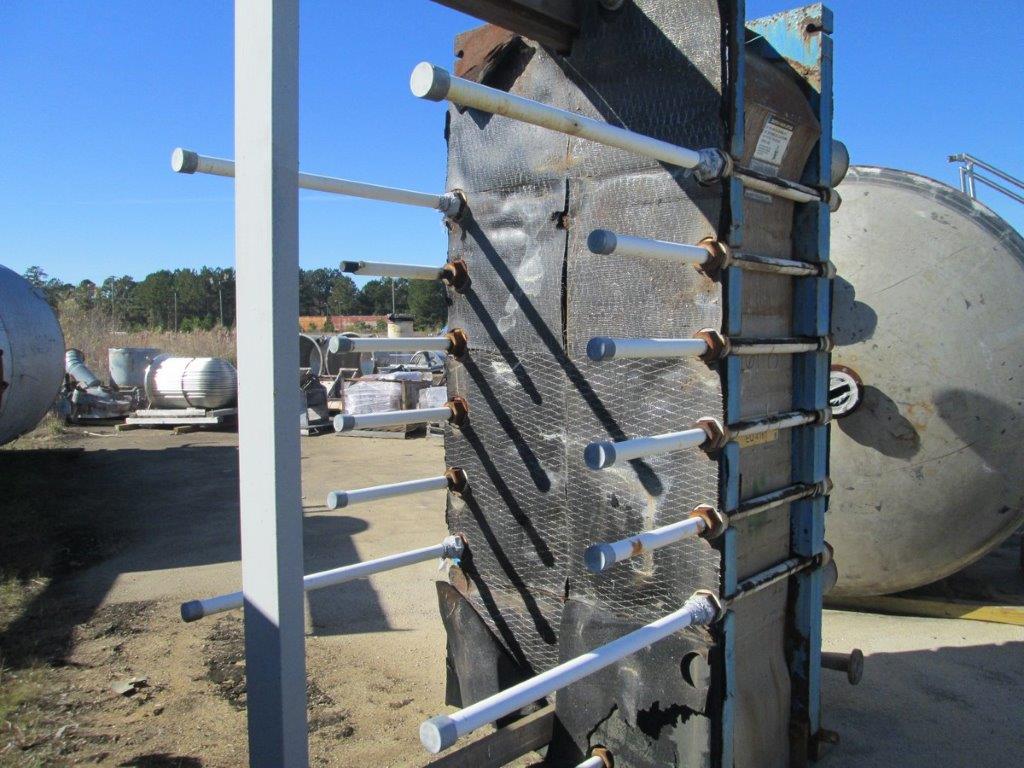

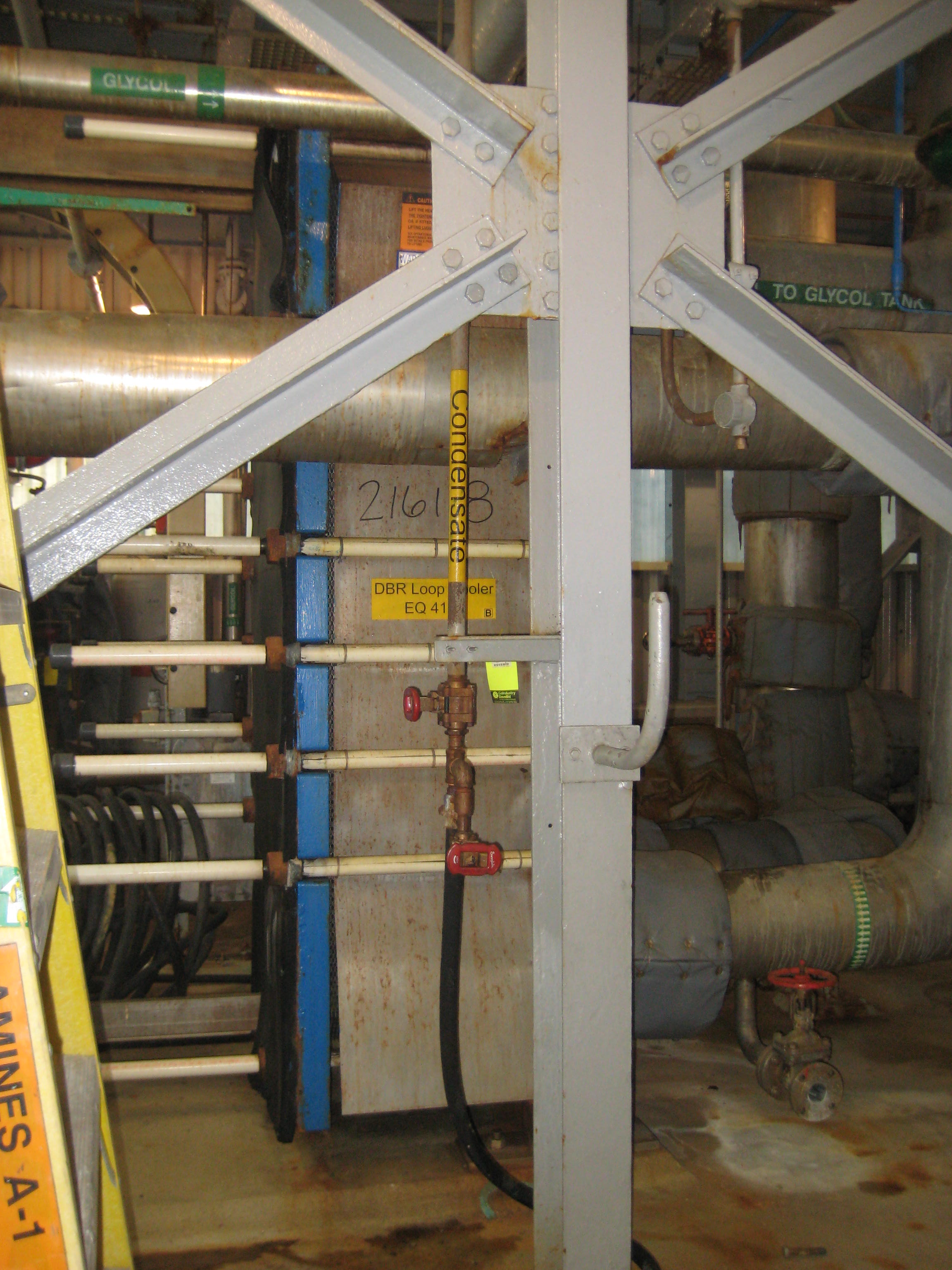

Hastelloy B-2 plates 59 plates at 33.36 sq.ft. per plate. Rated for kbtu/hr=4079 Hot Side Flow Rate: 3750 gpm Cold Side Flow Rate: 800 gpm 12" inlets/outlets both sides. Shipping Weight: 14,000lbs.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Alfa Laval
Model: P13-RB
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 9 m² (96.4 ft²)
Nozzle Schedule: 4-50mm openings, divider plate with 2-50mm
304 s/steel divider plate
Hot-side Pressure: 4 bar (58 psi). Housing Material: Stainless Steel Other. Number of Plates: 56.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Alfa Laval
Model: H7-RC
Condition: Used
Material: Stainless Steel 304
Heat Transfer Surface Area: 39.9 m² (429.5 ft²)
Hot-side Pressure: 10 bar (145 psi)
Divider plate: 1 x divider plate
Housing Material: Stainless Steel Other. Number of Plates: 105.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Alfa Laval
Model: M10/MFM
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 4.6 m² (49.5 ft²)
Hot-side Pressure: 10 bar (145 psi)
plate heat exchanger, manufacturers #30102-23402, stainless steel plates.
Hot-side Temperature: 100 °C (212 °F). Number of Plates: 21.
Type: Heat Exchanger
Subtype: Plate and Frame
Manufacturer: Alfa Laval
Model: M15-MFG8
Condition: Used
Material: Titanium
Heat Transfer Surface Area: 37.2 m² (400.4 ft²)
Nozzle Schedule: Openings (process side): 2- 125mm - Openings (service side): 2-125mm
Heat exchanged: 220 kw single pass both sides Flow rate (process side): 240 m3/hr Flow rate (service side): 63.31 m3/hr Inlet temperature (process side): 28 deg C Inlet temperature (service side): 24 deg C Outlet temperature (process side): 27.3 deg C Outlet temperature (service side): 27 deg C
Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 60 °C (140 °F). Housing Material: Carbon Steel. Number of Plates: 62.
