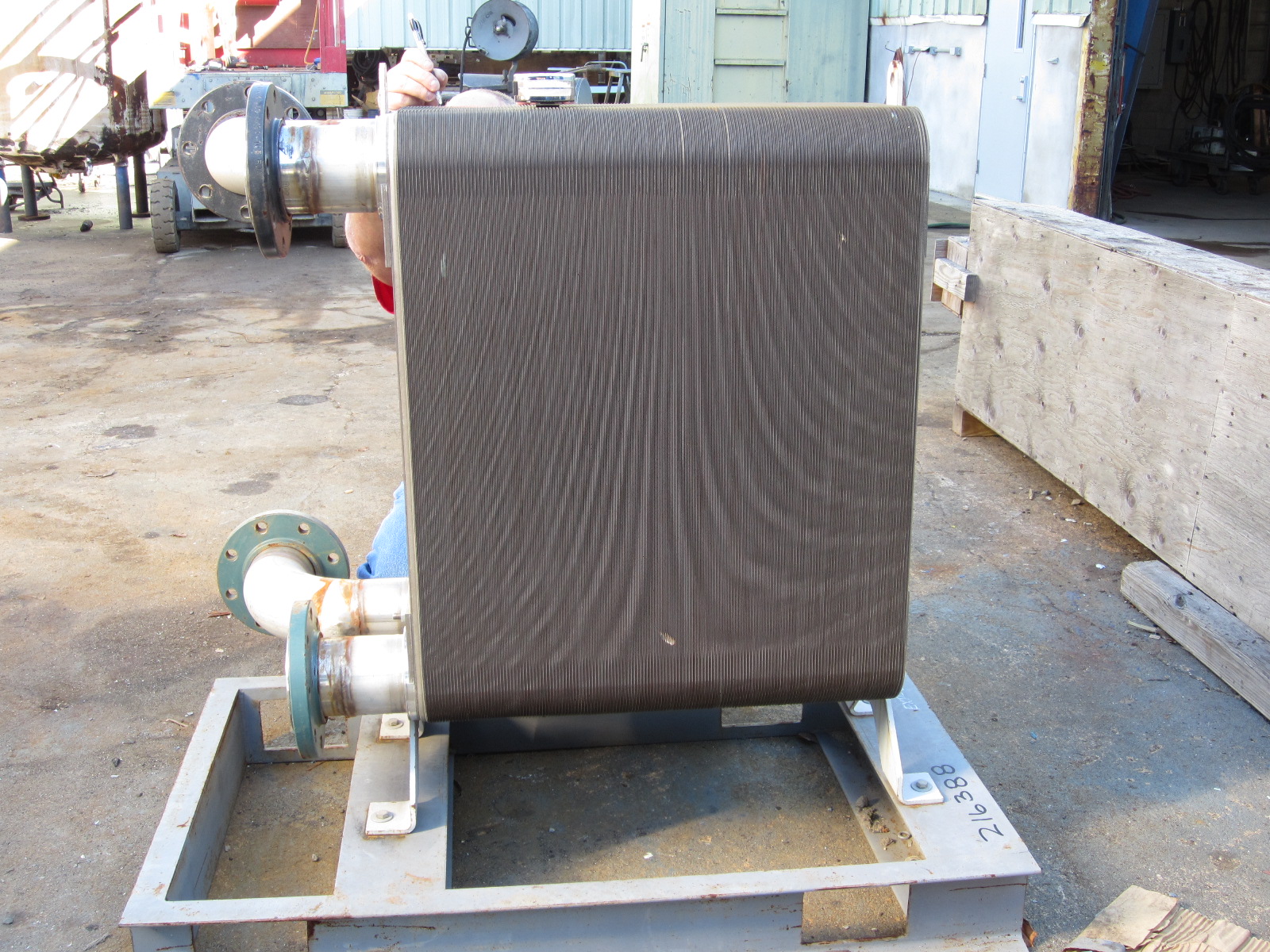

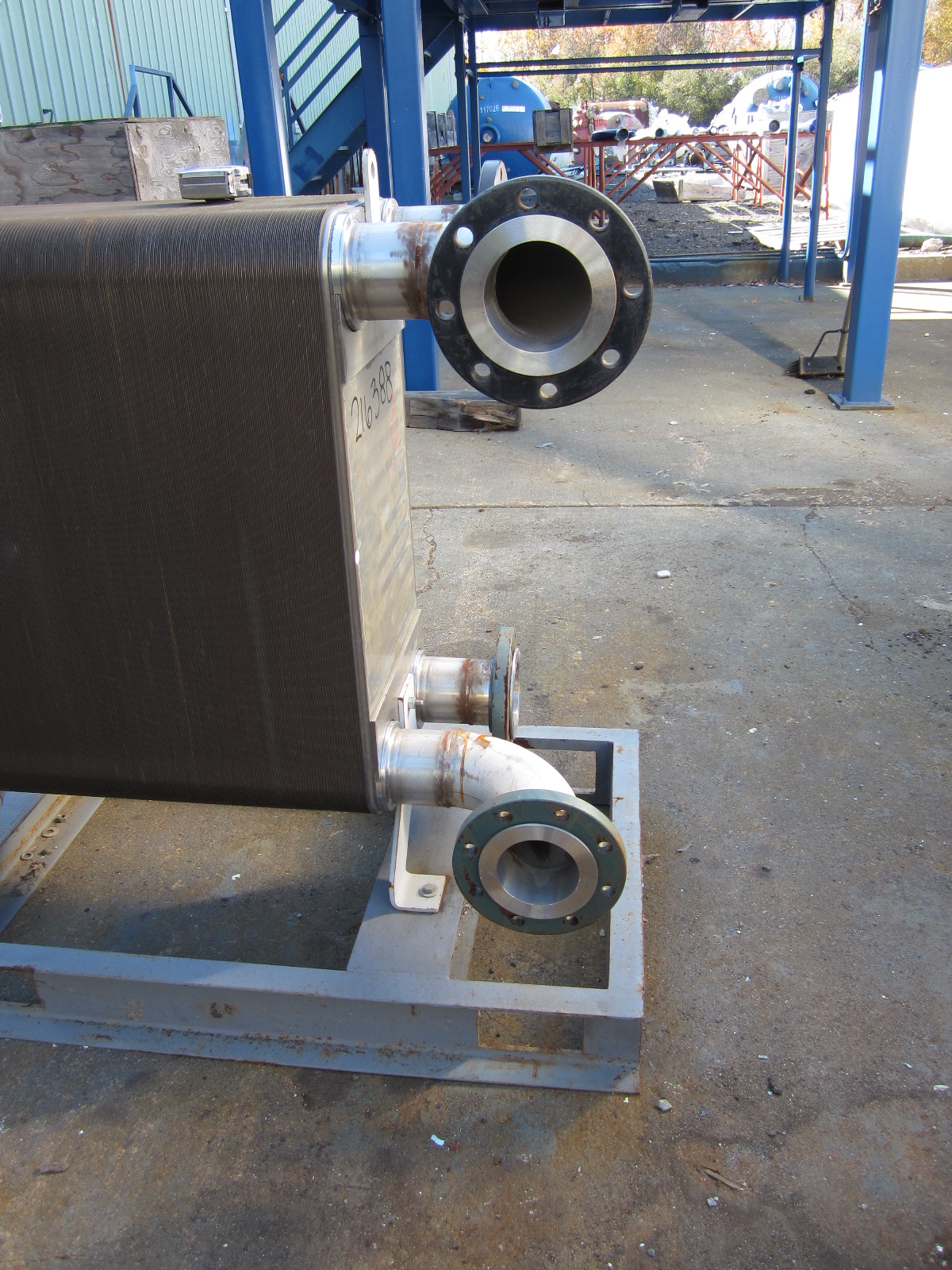

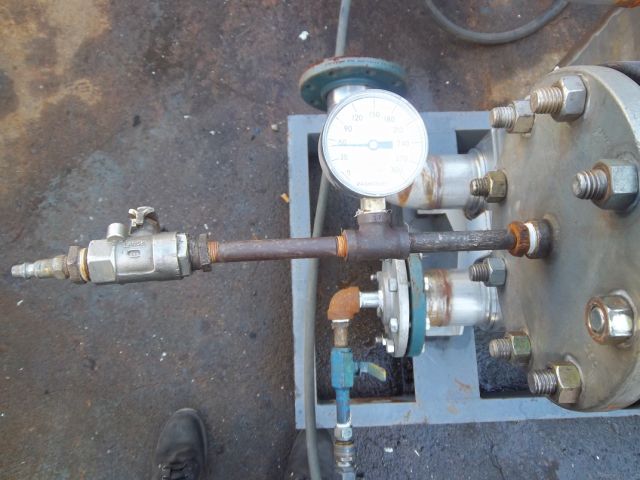

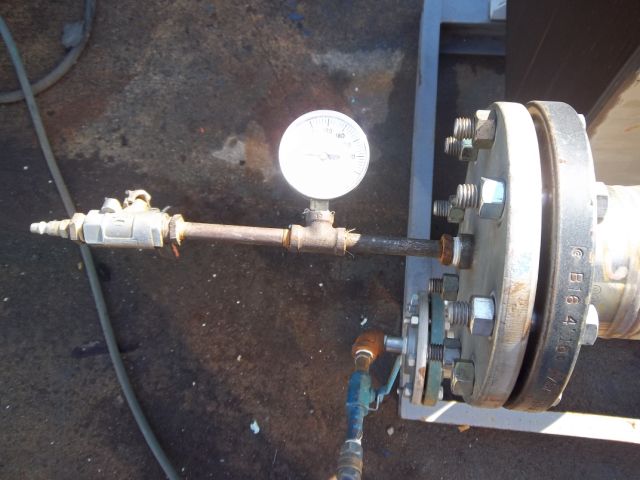

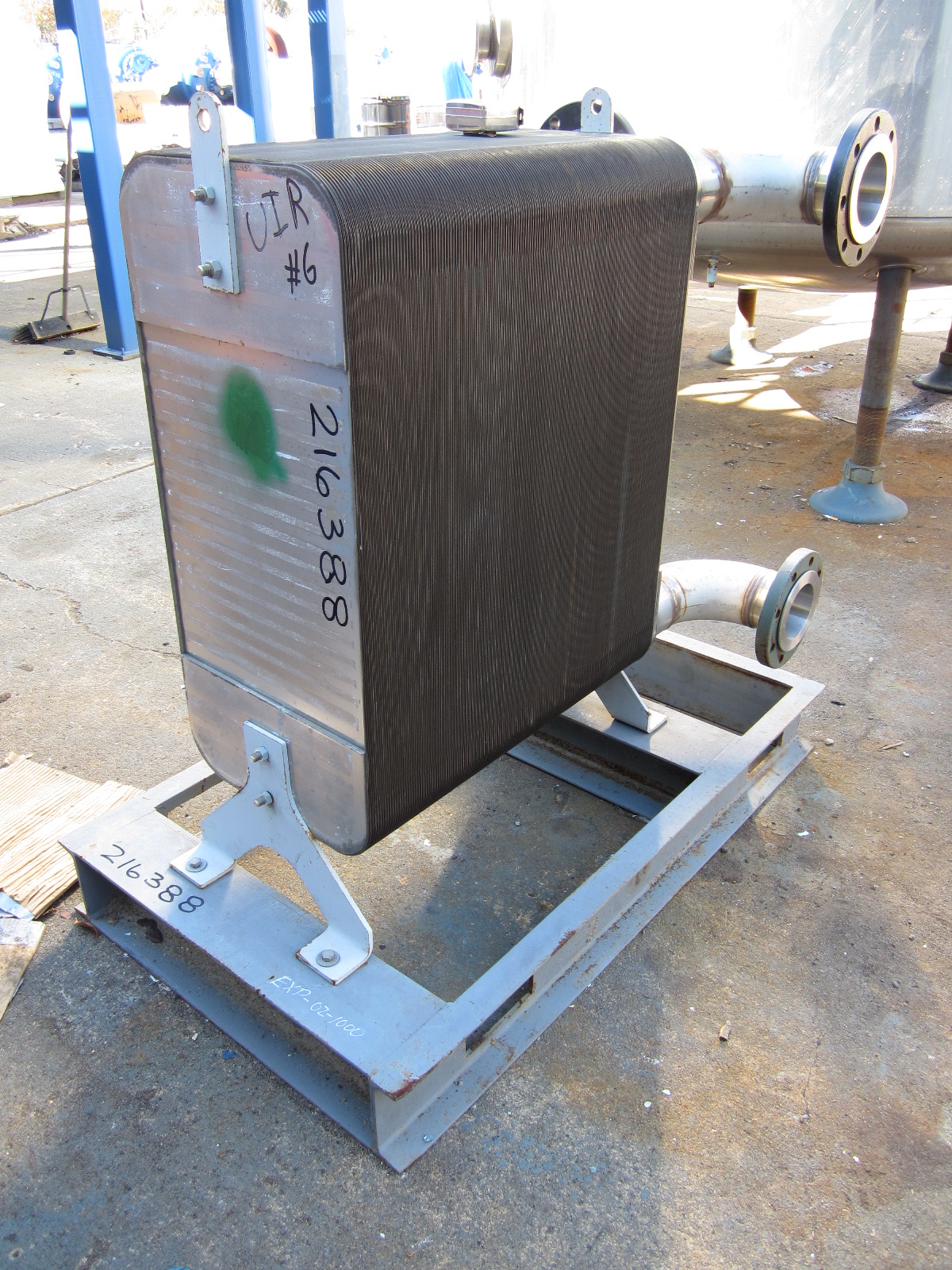

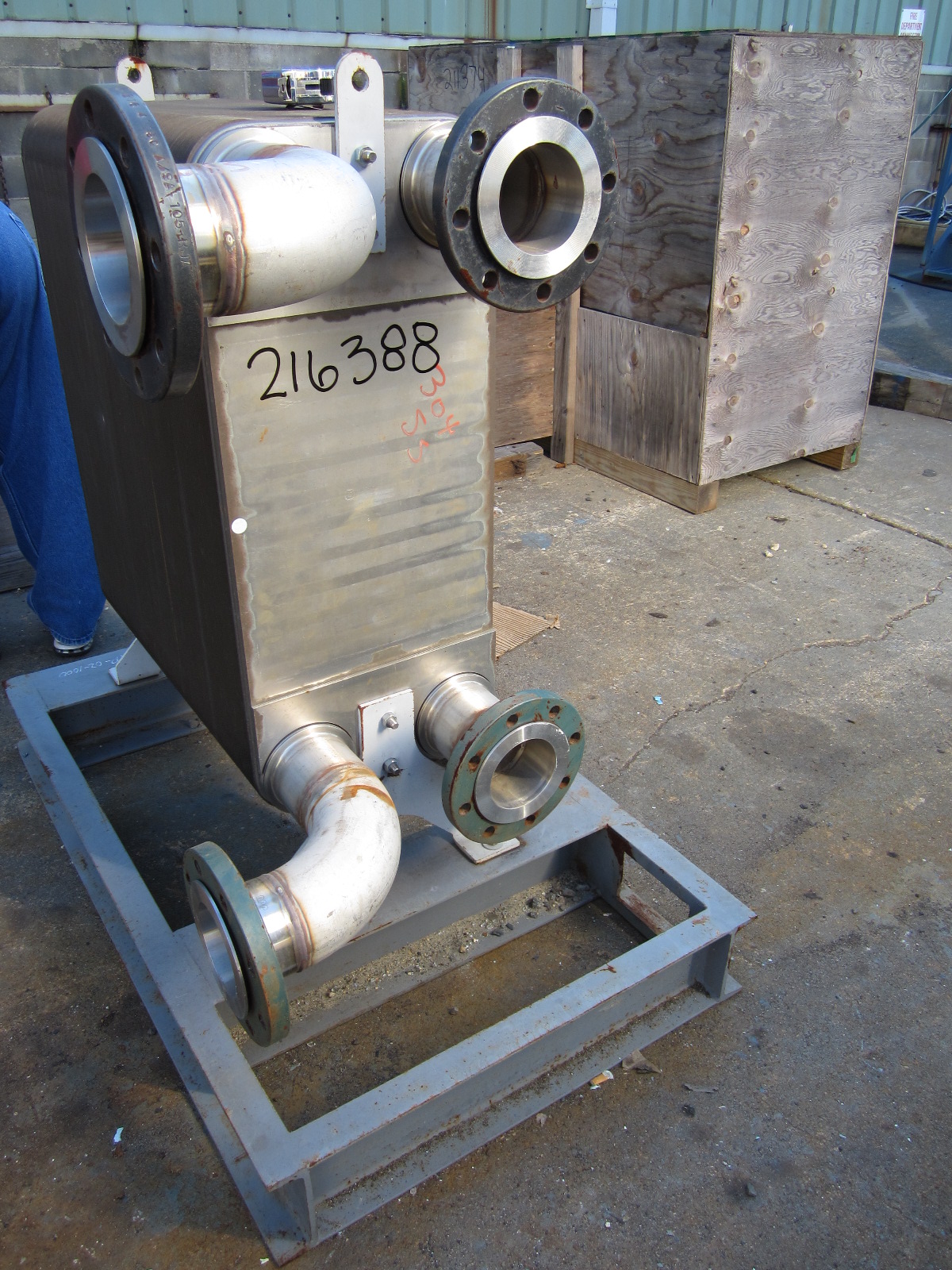

Stainless Steel 304 Plate and Frame Heat Exchanger - IPP# 216388

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Kyffhausehutte (Germany)

Model: PAH500/213

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 134.6 m² (1,450 ft²)

Number of Plates: 272

• Hot water flow rate: 50,000 liter/hr
• Plate assembly: (4) sections (61,113,49,49)
• Designed throughput: 20,000 liters/hr (milk)
• Temperature range: 5 degree C - 74 degrees C to minus 4 degrees C
• Steam flow rate: 320 Kg/hr @ 1.0-1.5 Kp/sq cm
• Cold water flow rate: 50,000 liter/hr @ 1 degree C

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Alfa Laval

Model: P13-RB

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 9 m² (96.4 ft²)

Nozzle Schedule: 4-50mm openings, divider plate with 2-50mm

304 s/steel divider plate

Hot-side Pressure: 4 bar (58 psi). Housing Material: Stainless Steel Other. Number of Plates: 56.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Pasilac

Model: 1020

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 11.1 m² (119.5 ft²)

Nozzle Schedule: Number of openings: 4-75mm and 4-50mm

Flow rate: 50 m3/hr

Hot-side Pressure: 6 bar (87 psi). Housing Material: Stainless Steel Other. Number of Plates: 30.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Pasilac

Model: 1020

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 7 m² (75.3 ft²)

Nozzle Schedule: Number of openings: 8 (4-75mm and 4-50mm)

plate heat exchanger Flow rate: 50 m3/hr

Hot-side Pressure: 6 bar (87 psi). Housing Material: Stainless Steel Other. Number of Plates: 19.
