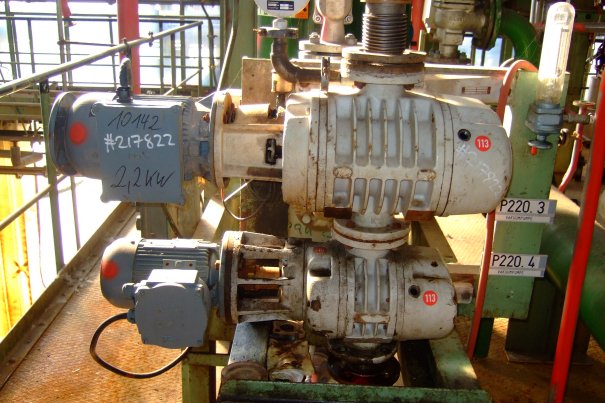

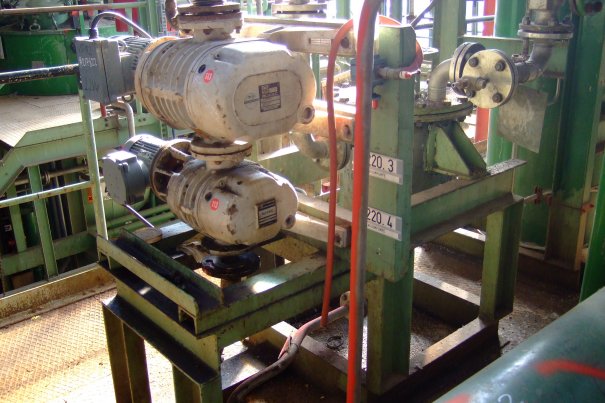

consisting of (2) Leybold Heraeus c/steel Roots blowers, (1) 55ltr 316l s/steel (1.4571) vertical pressure tank, manufactured by Dynamite Nobel, fabrik #573, pressure 6 + vak bar @ 150 deg C, 400mm diameter x 400mm straight side, bolt flat top, weld dished bottom, openings top: 2-50mm, straight side: 1-50mm, bottom: 1-25mm (1) 9.72 sqm 316L s/steel (1.4571) tube, shell and head horizontal heat exchanger, maunufactured by Dynamit Nobel, fabrik #348, pressure tube side 6 bar @ 165 deg C (48ltr), shell 10 bar @ 200 deg C (66ltr), (55) 25mm diameter x 2.5mm x 2.5m long 316L s/steel tubes, shell 450mm diameter x 3031mm overall length, 2-dished heads, openings tubeside: (1) dished head with 1-50mm, (1) dished head with 1-50mm, shell: 1-100mm, 2-50mm, all TUV certified
Type: Pump-Vacuum
Manufacturer: Leybold-Heraeus
Model: RUVAC WA 2001
Condition: Used
Material: Carbon Steel
Air Flow: 2,050 m3/h (1,200 CFM)
Inlet Diameter: 150 mm (5.9 in)
Outlet Diameter: 150 mm (5.9 in).
Type: Pump-Vacuum
Manufacturer: Leybold-Heraeus
Model: RUVAC WA 2000
Condition: Used
Material: Carbon Steel
Orientation: Horizontal
Inlet Diameter: 150 mm (5.9 in)
rotary lobe vacuum pump motor type eAM160MS2Ex, ExeG3 openings (2) 150mm inside
Outlet Diameter: 150 mm (5.9 in).
Type: Pump-Vacuum
Manufacturer: Leybold-Heraeus
Model: RUVAC WA 2000
Condition: Used
Material: Carbon Steel
Orientation: Horizontal
Inlet Diameter: 150 mm (5.9 in)
rotary lobe vacuum pump motor type eAM160MS2Ex, ExeG3 openings (2) 150mm inside
Outlet Diameter: 150 mm (5.9 in).
Type: Pump-Vacuum
Manufacturer: Leybold-Heraeus
Model: RUVAC RA 5001
Condition: Used
Material: Carbon Steel
Orientation: Horizontal
Inlet Diameter: 200 mm (7.9 in)
rotary lobe vacuum pump motor type eAM180MZ2Ex, ExeG3 openings (2) 200mm inside diameter
Outlet Diameter: 200 mm (7.9 in).
