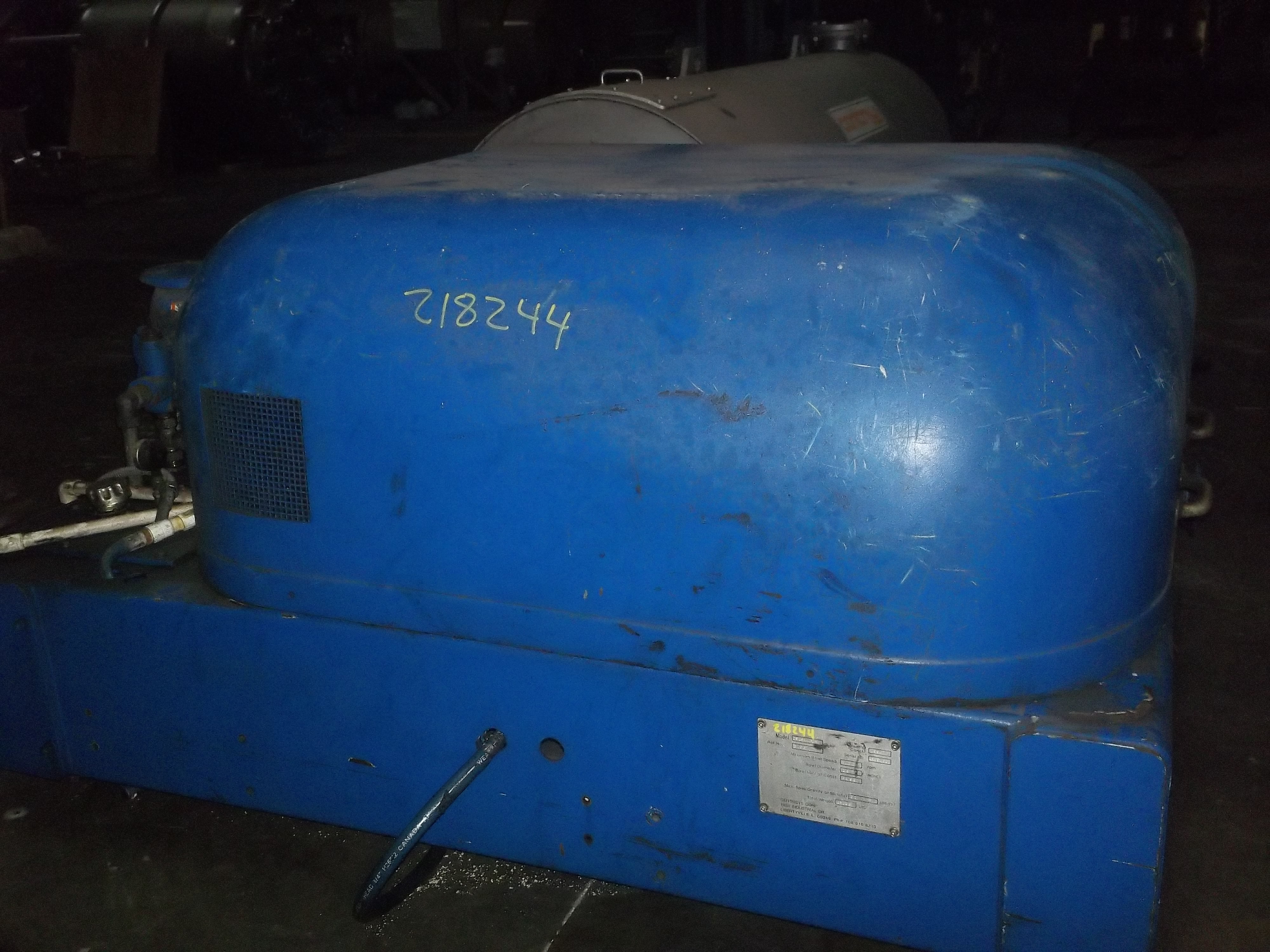

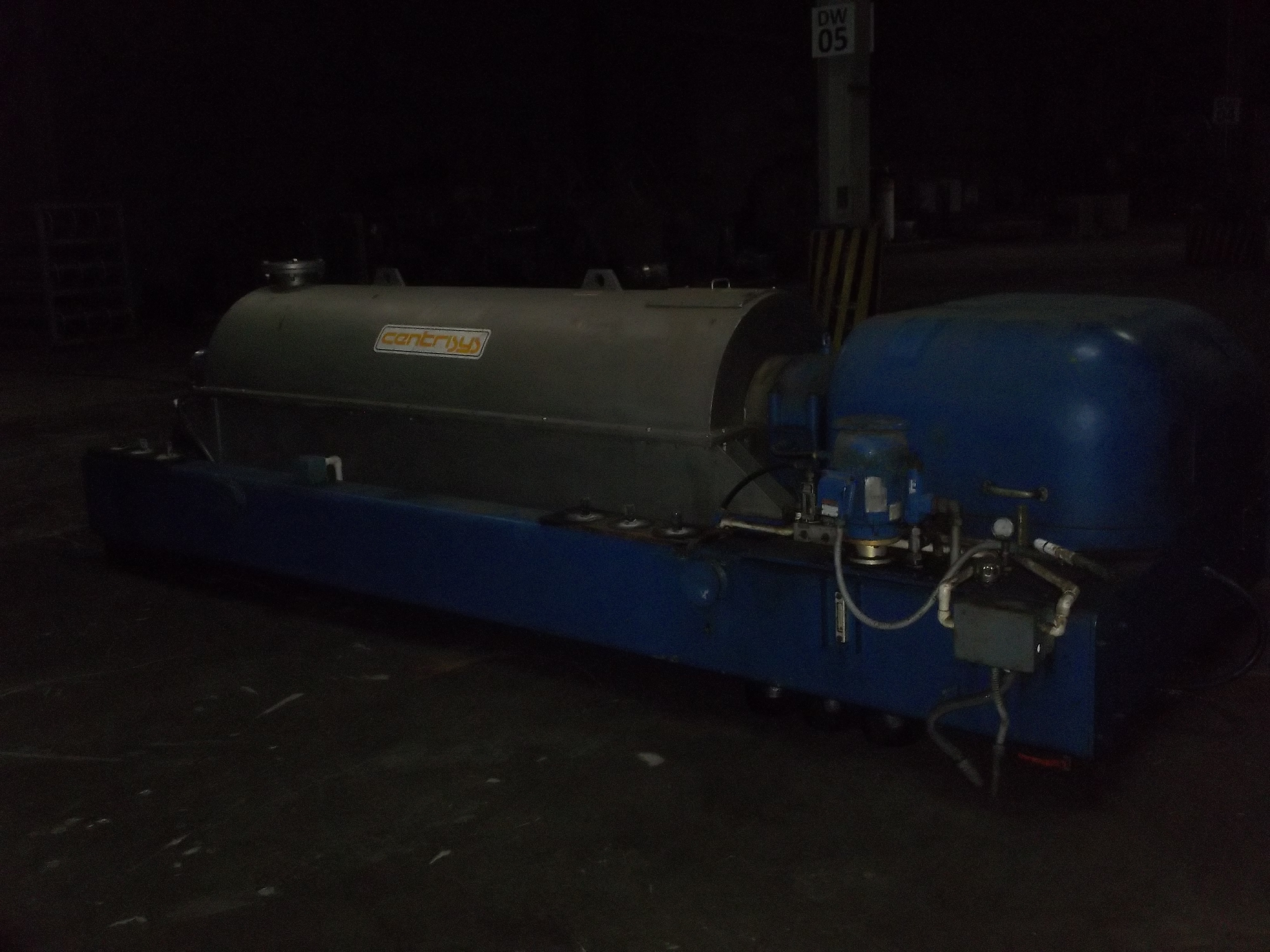

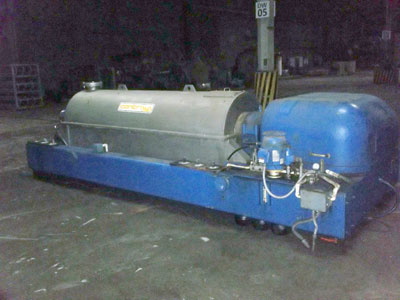

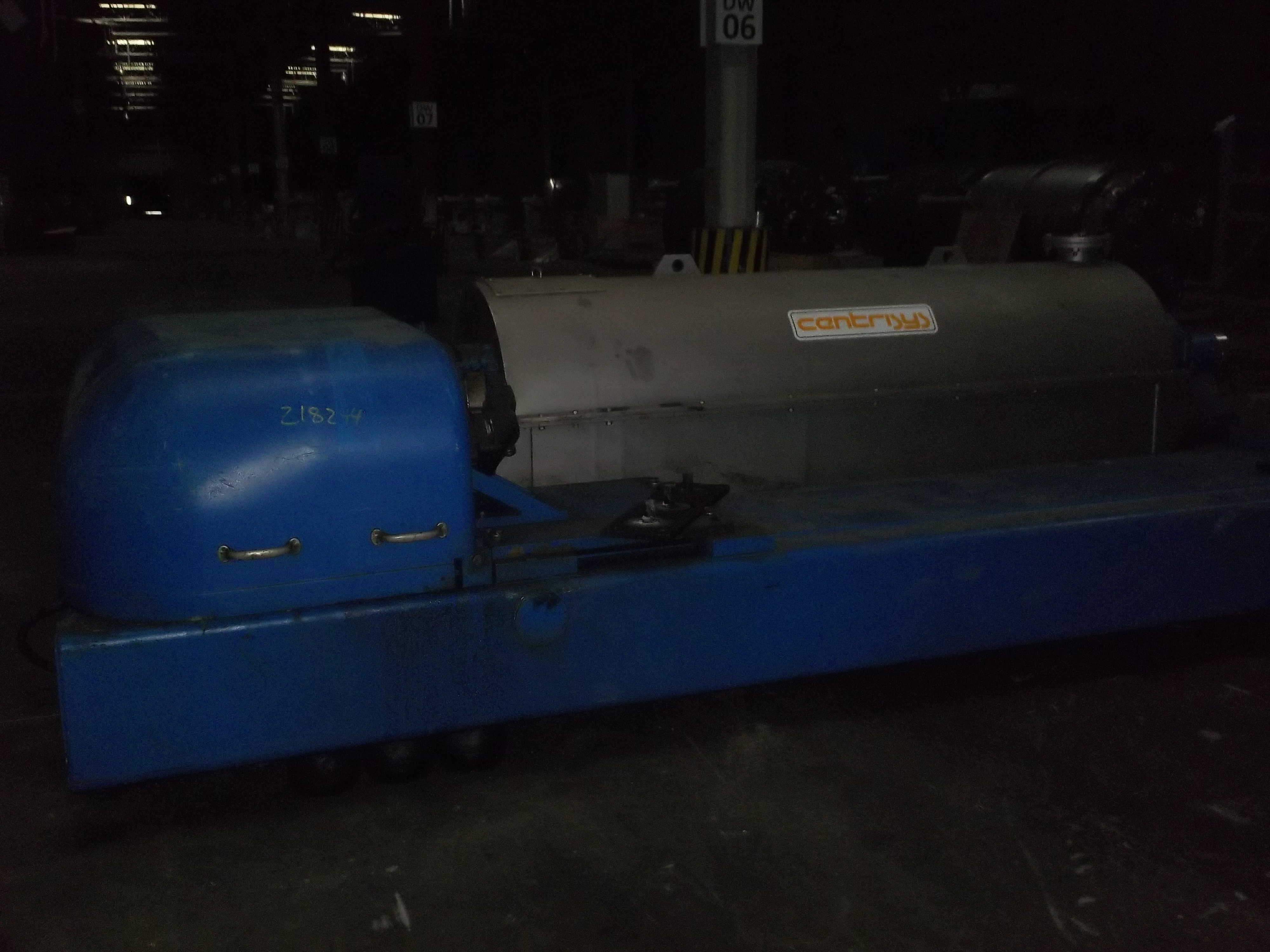

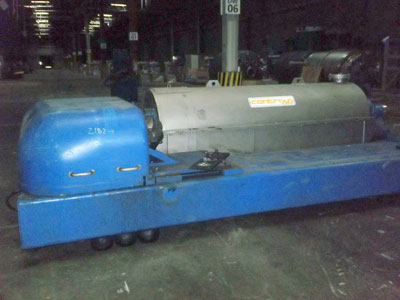

Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244

  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244 Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244 Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244 Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244 Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244 Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244 Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
  • Stainless Steel Other Centrisys CS26-4/Z62-4 Centrifuge-Solid Bowl-Decanter - IPP# 218244
Overview
Centrifuge-Solid Bowl-Decanter
Centrisys
CS26-4/Z62-4
Used
Stainless Steel Other
Other Specifications
660 mm (26 in)
2,850 mm (112 in)
3,100
3,000
Capacity
93.2 kW (125 HP)

duplex stainless, solid bowl decanter with back drive, 2-phase separation 360 degree solids outlet Manufacturer specified flow rate in GPM is 200 to 400 Designed for 81 lbs/Cubic foot specific gravity of material. Main rotating assembly components are centrifugally cast Duplex Stainless Steel type 4462 Main drive is a 125 HP 3/60/230/460 volt and hydraulic power pack Scroll is driven by a 40 HP 3/60/230/460 volt TEFC motor. (2) Liquid discharge flanges, 1060 mm wide x 309.45 mm each. Solids discharge flange is 1060mm wide x 460 mm. Overall Dimensions: 5700.68 mm Long X 1406.6 mm wide x 1561.20 mm high. Rotating Assembly 8,054 lbs; complete centrifuge with filling (1.0 S.G.) 18,100 lbs Manufactures states the flight pitch is 9-10 degrees.
