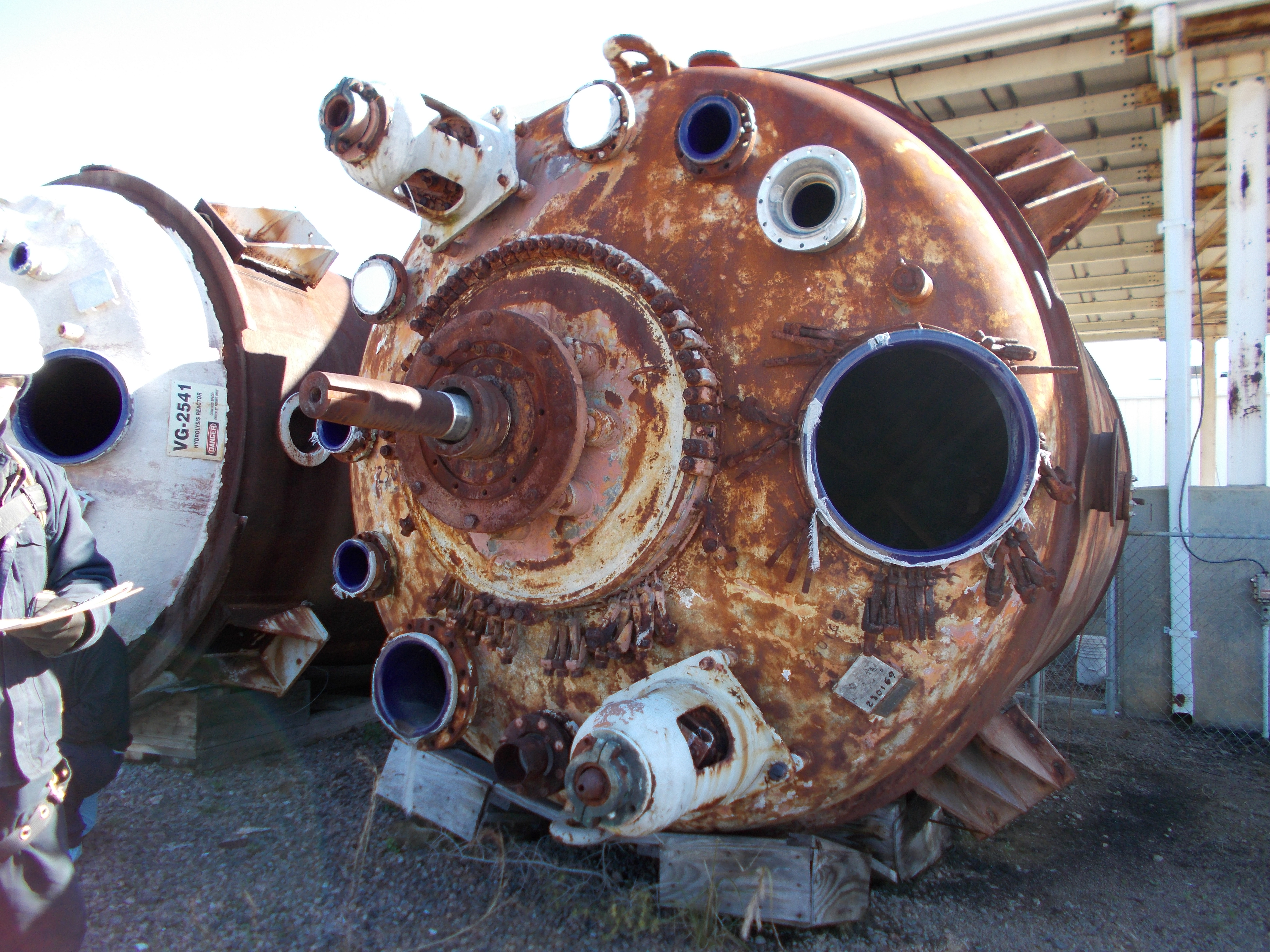

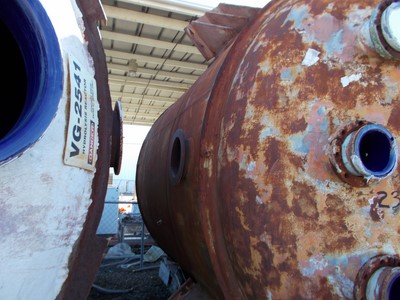

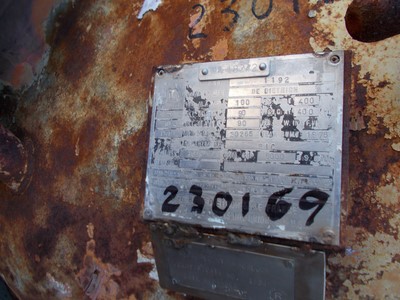

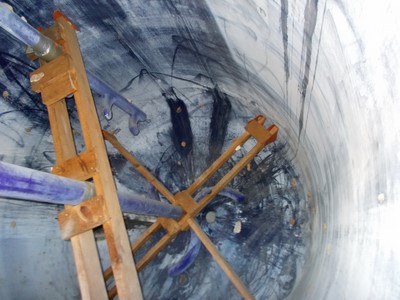

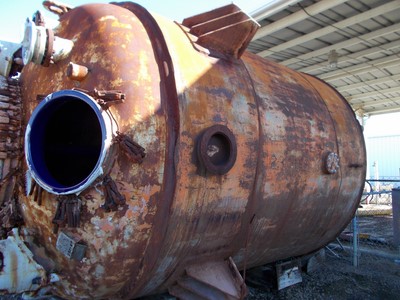

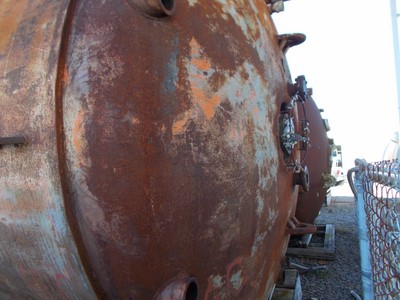

Glasslined DeDietrich SA Batch-Type Agitated Reactor - IPP# 230169

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 1,150 L (300 gallons)

Internal Pressure: 6 bar (87 psi)

approve NJ Spec #103-157 Glass #9100. (*)

Internal Temperature: 200 °C (392 °F). Jacket Pressure: 4.5 bar (65.3 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,200 mm (48 in). Straight Side Length: 813 mm (32 in). Support Type: Legs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 30,300 L (8,000 gallons)

Internal Pressure: 2.8 bar (40 psi)

Philadelphia drive system with (3) sets of three blade propellers 3008 Glass.

Internal Temperature: 204.4 °C (400 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 204.4 °C (400 °F). Orientation: Vertical. Diameter: 3,050 mm (120 in). Straight Side Length: 3,650 mm (144 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 15,150 L (4,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

SA Series

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,450 mm (96 in). Straight Side Length: 2,750 mm (108 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: DeDietrich

Model: SA

Condition: Used

Material: Glasslined

Capacity (Design): 15,150 L (4,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 260 °C (500 °F). Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96 in). Straight Side Length: 2,750 mm (108 in).
