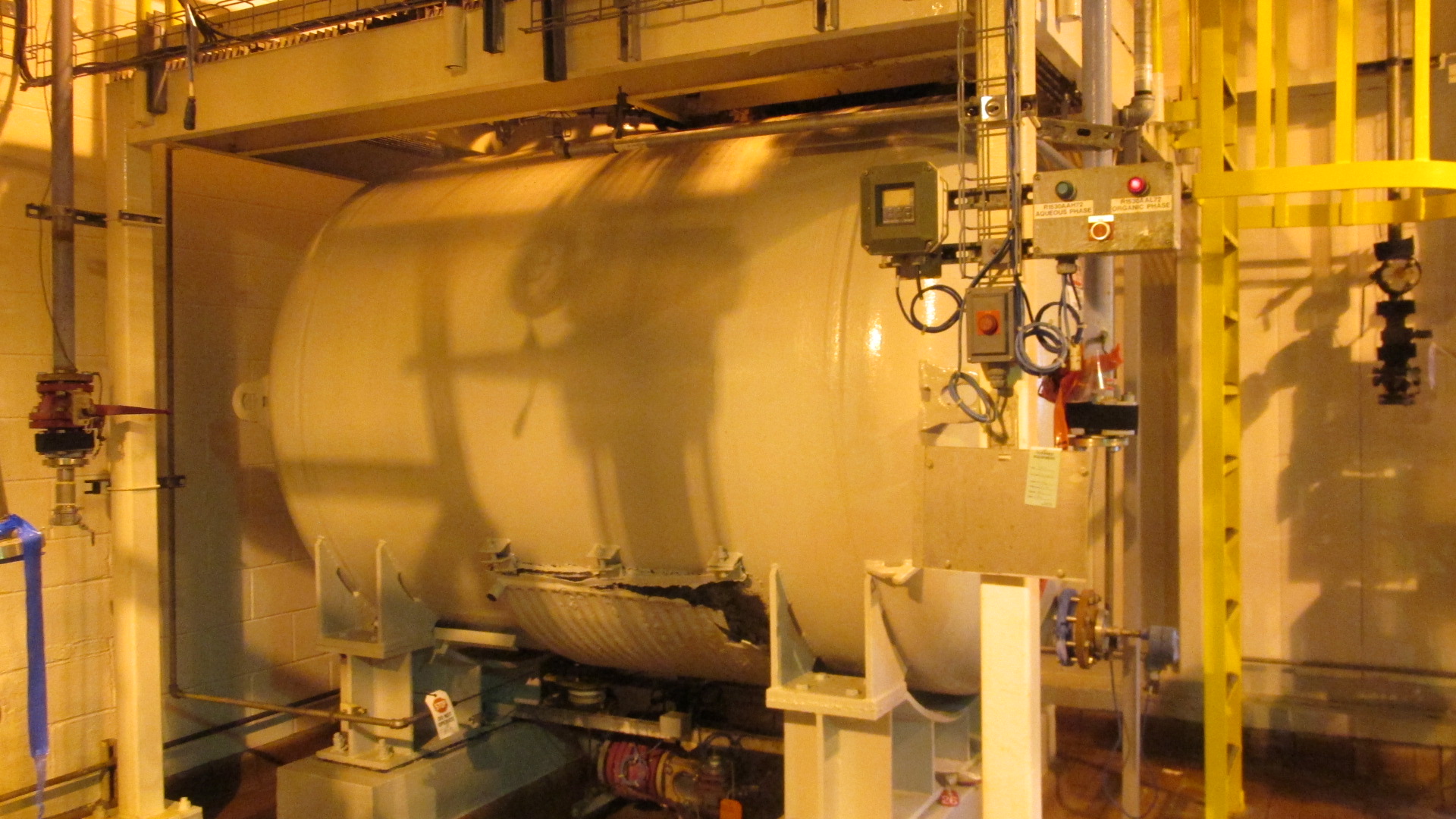

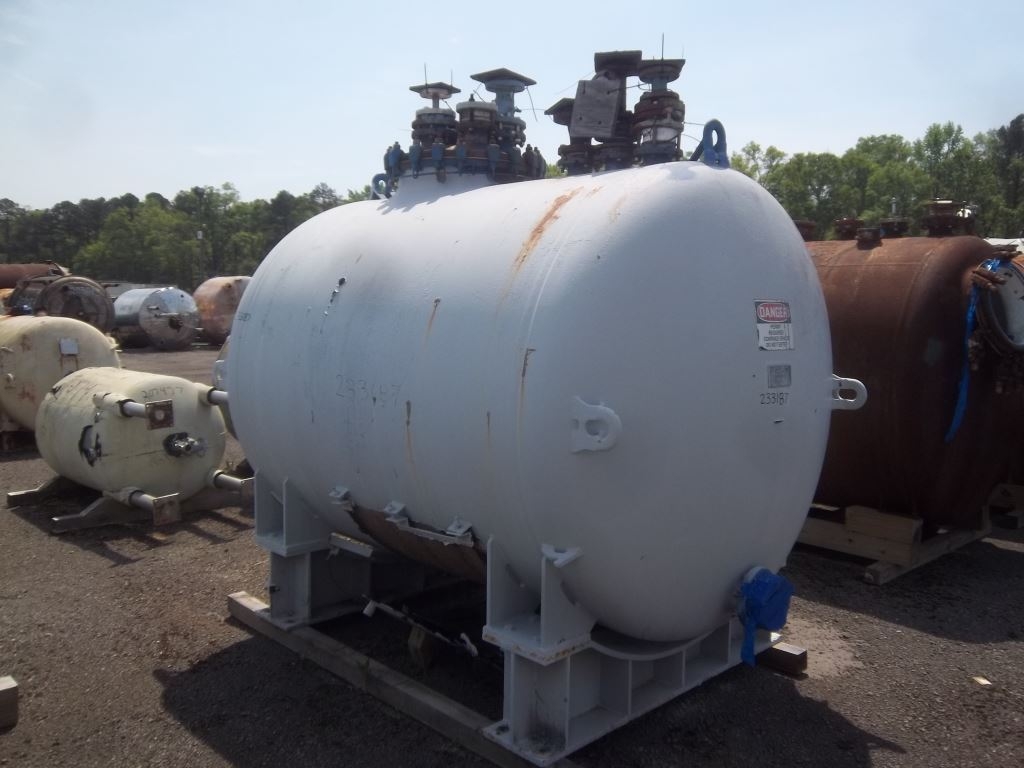

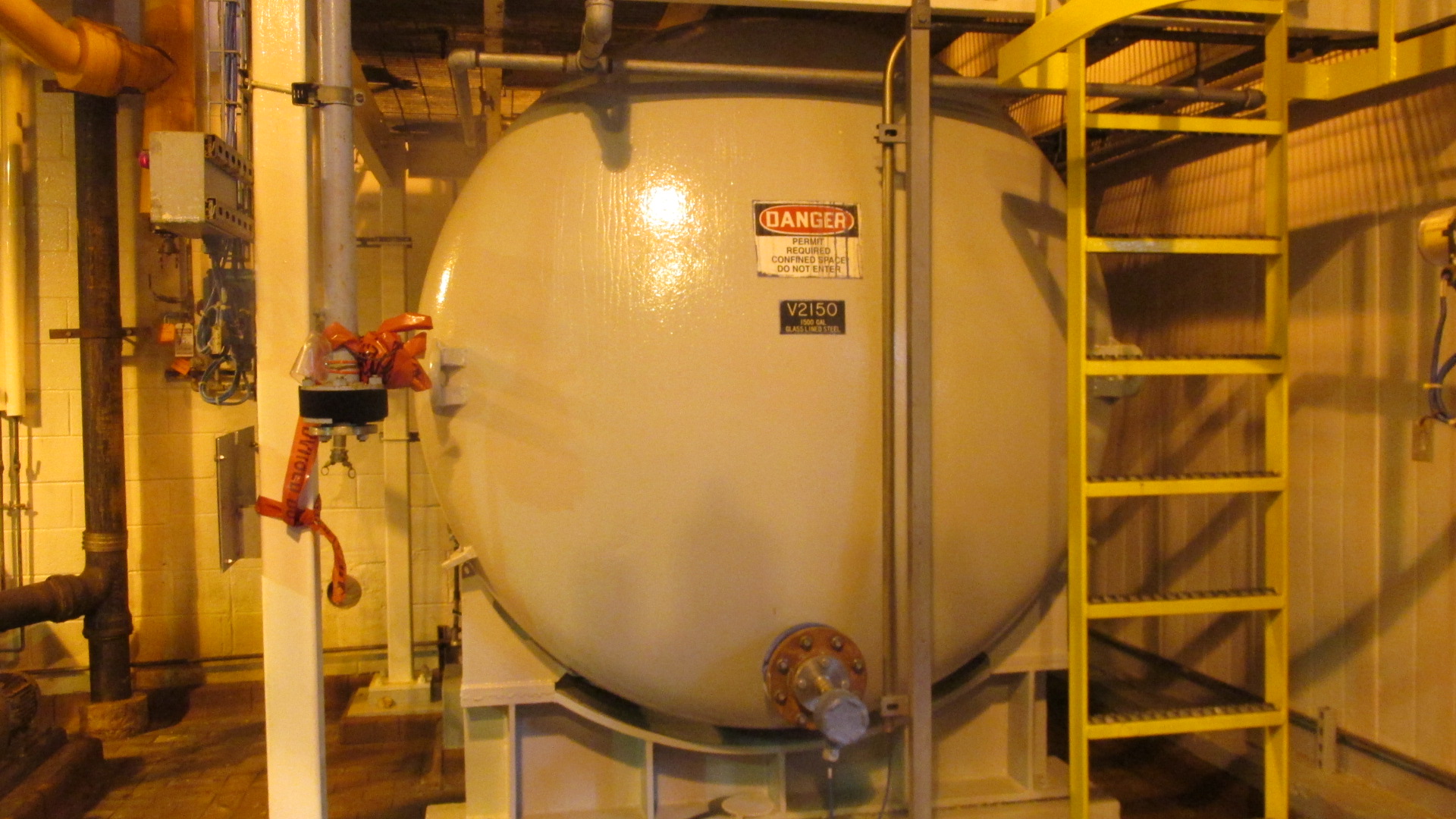

Glasslined DeDietrich HT-1500 Tank - IPP# 233187

Type: Tank

Manufacturer: DeDietrich

Model: VR36-200-25

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 757 L (200 gallons)

Orientation: Vertical

• Lined with C 2317 glass.

Diameter: 914 mm (36 in). Straight-side Length: 1,150 mm (46 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 176.7 °C (350 °F). Support: Sockets for pipe legs.

Type: Tank

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 2,850 L (750 gallons)

Orientation: Vertical

approval NJ Spec #103-213 Internal Test pressure: 150 psi Jacket testing pressure: 90 psi test pressure 90 psi

Diameter: 1,500 mm (60 in). Straight-side Length: 1,850 mm (72 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 204.4 °C (400 °F). Jacket Material: Carbon Steel. Jacket Pressure: 4.1 bar (60 psi). Jacket Temperature: 204.4 °C (400 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: DeDietrich

Condition: Used

Material: Glasslined

Capacity (Design): 94.6 L (25 gallons)

Orientation: Vertical

Diameter: 508 mm (20 in). Straight-side Length: 610 mm (24 in). Internal Pressure: 6.9 bar (100 psi). Internal Temperature: 260 °C (500 °F). Vacuum: Yes. Support: Legs.

Type: Tank

Manufacturer: DeDietrich

Model: CHS-800-005

Condition: Used

Material: Glasslined

Capacity (Design): 1,000 L (264.2 gallons)

Orientation: Horizontal

Diameter: 800 mm (31.5 in). Straight-side Length: 1,200 mm (47.2 in). Internal Pressure: 2 bar (29 psi). Internal Temperature: 200 °C (392 °F). Vacuum: Yes. Support: Saddle.
