Overview

Type:

Pump-Vacuum

Condition:

Used

Material:

Stainless Steel 316

Capacity

Air Flow:

1,000 m3/h (600 CFM)

Other Specifications

Discharge Pressure:

0.04 bar (0.65 psi)

Inlet Diameter:

50.8 mm (2 in)

Outlet Diameter:

50.8 mm (2 in)

Seal Type:

Liquid Ring

Dimensions

Orientation:

Horizontal

Additional Info:

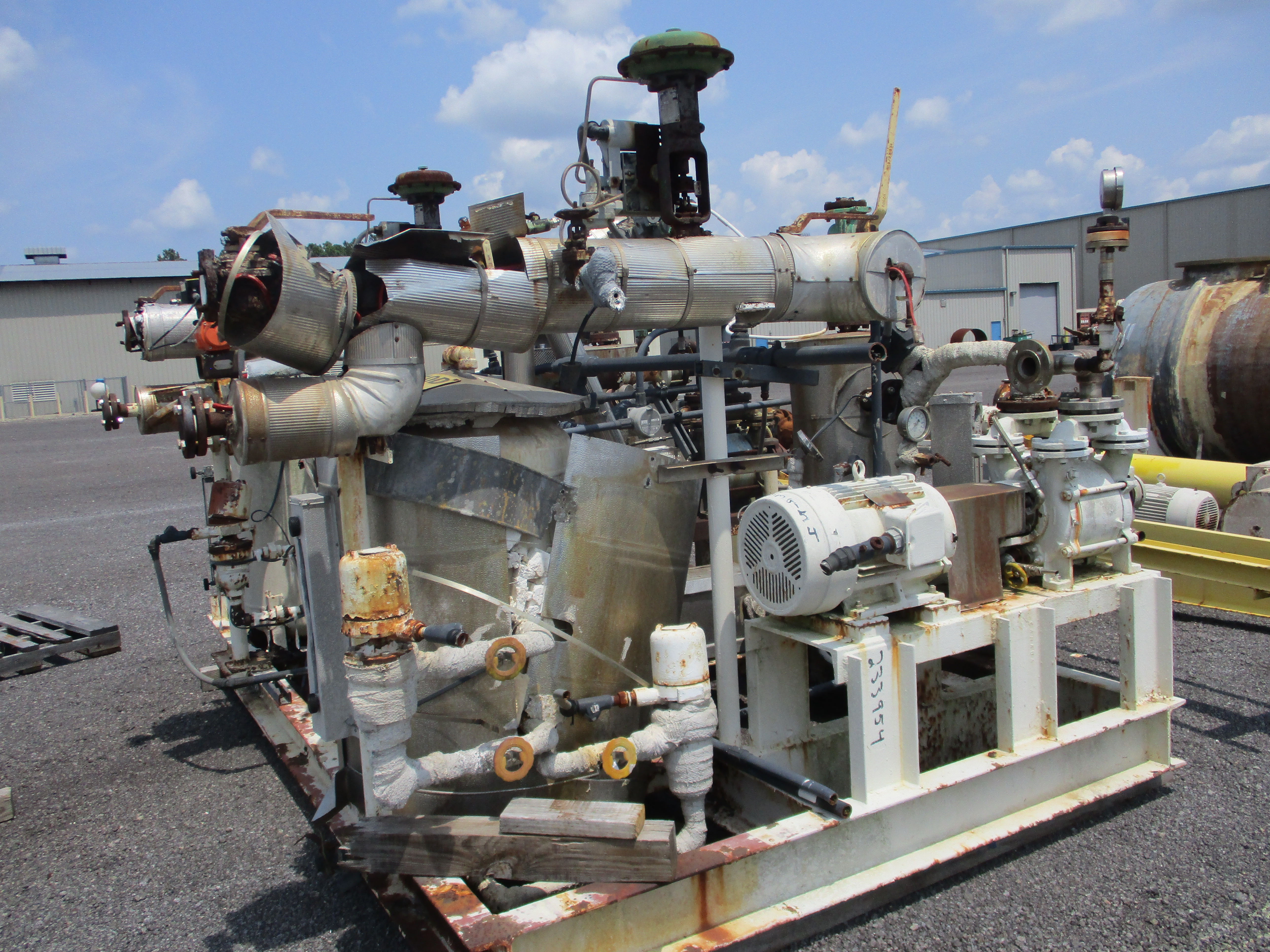

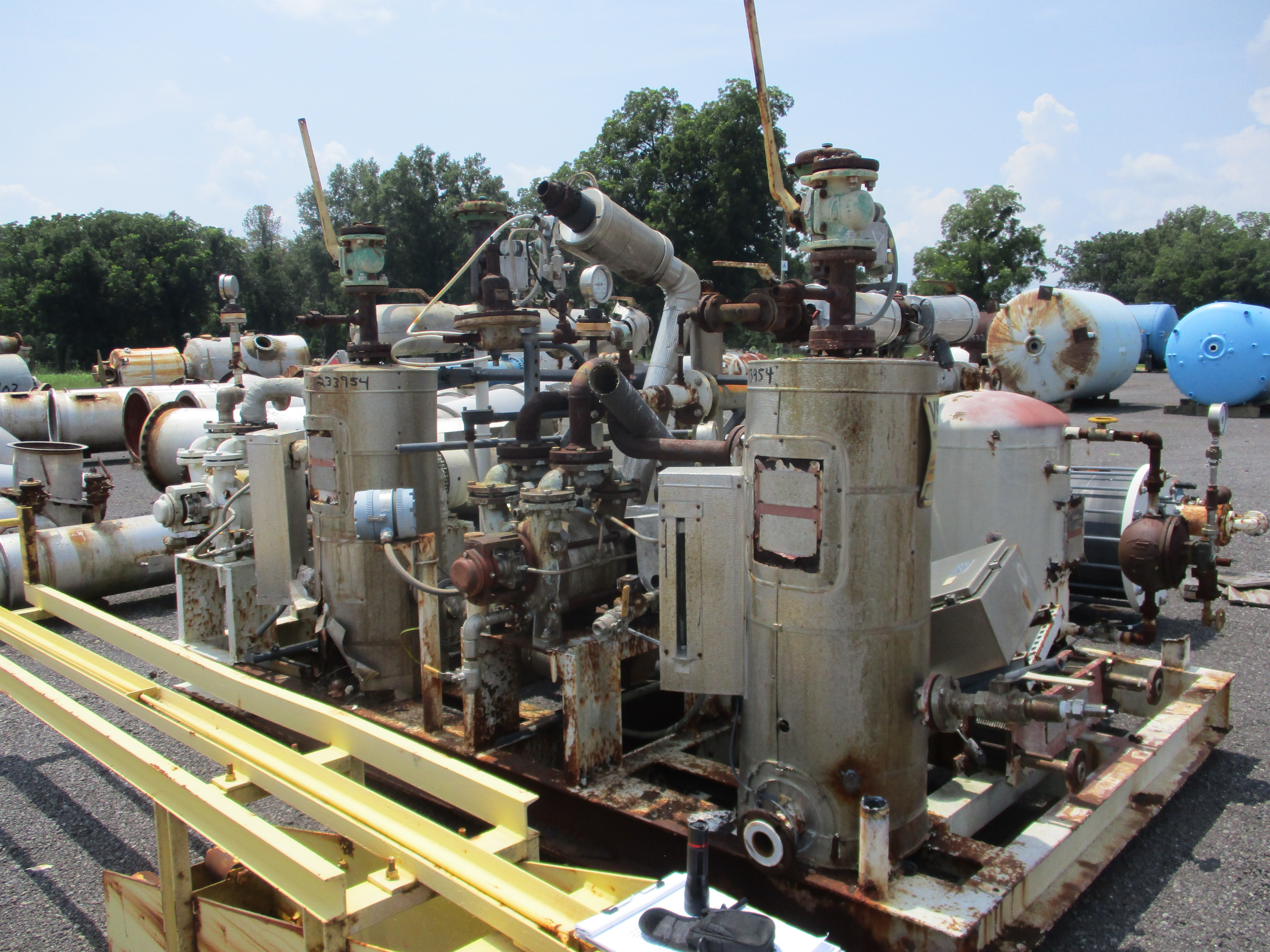

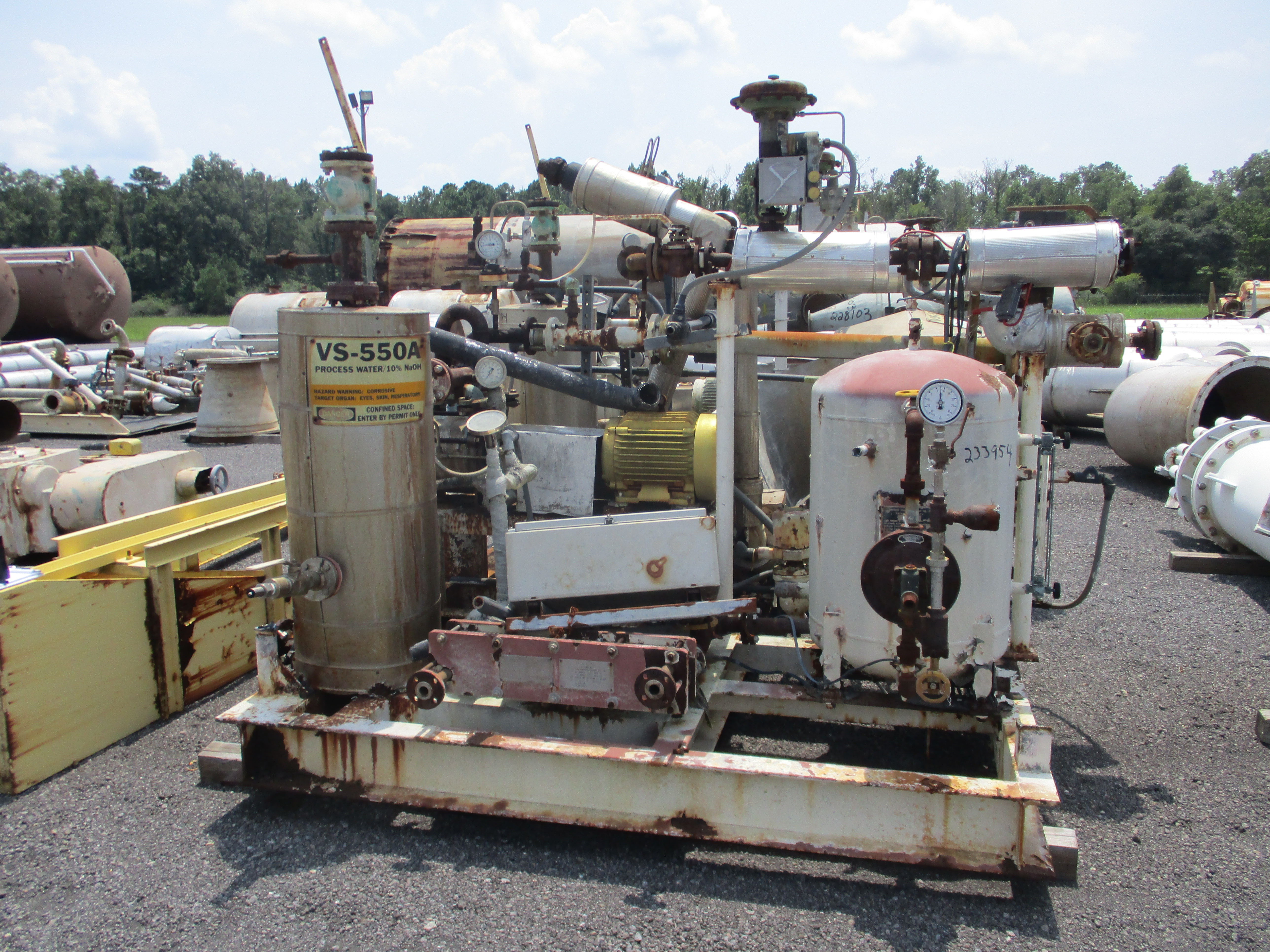

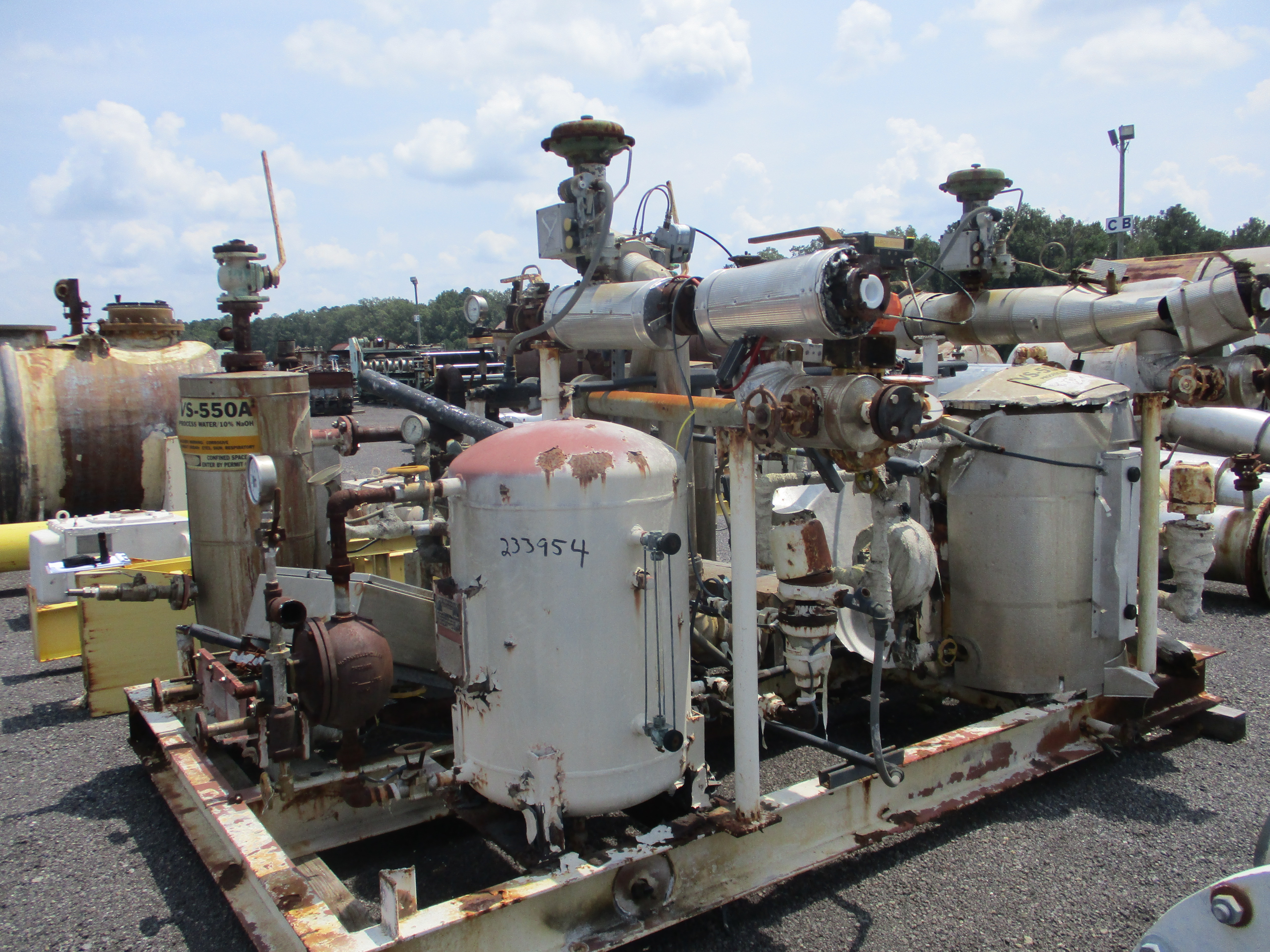

Equipment included:

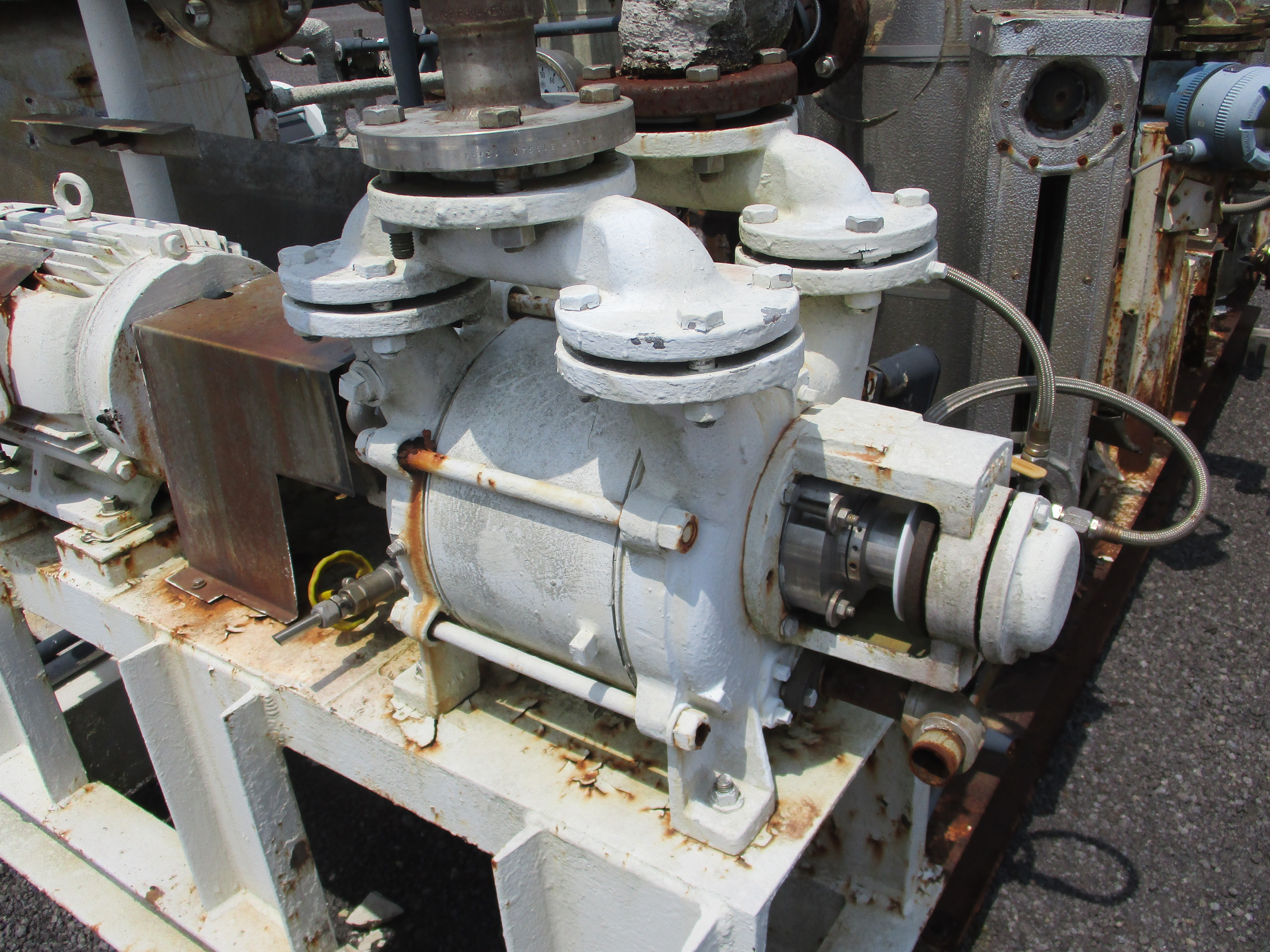

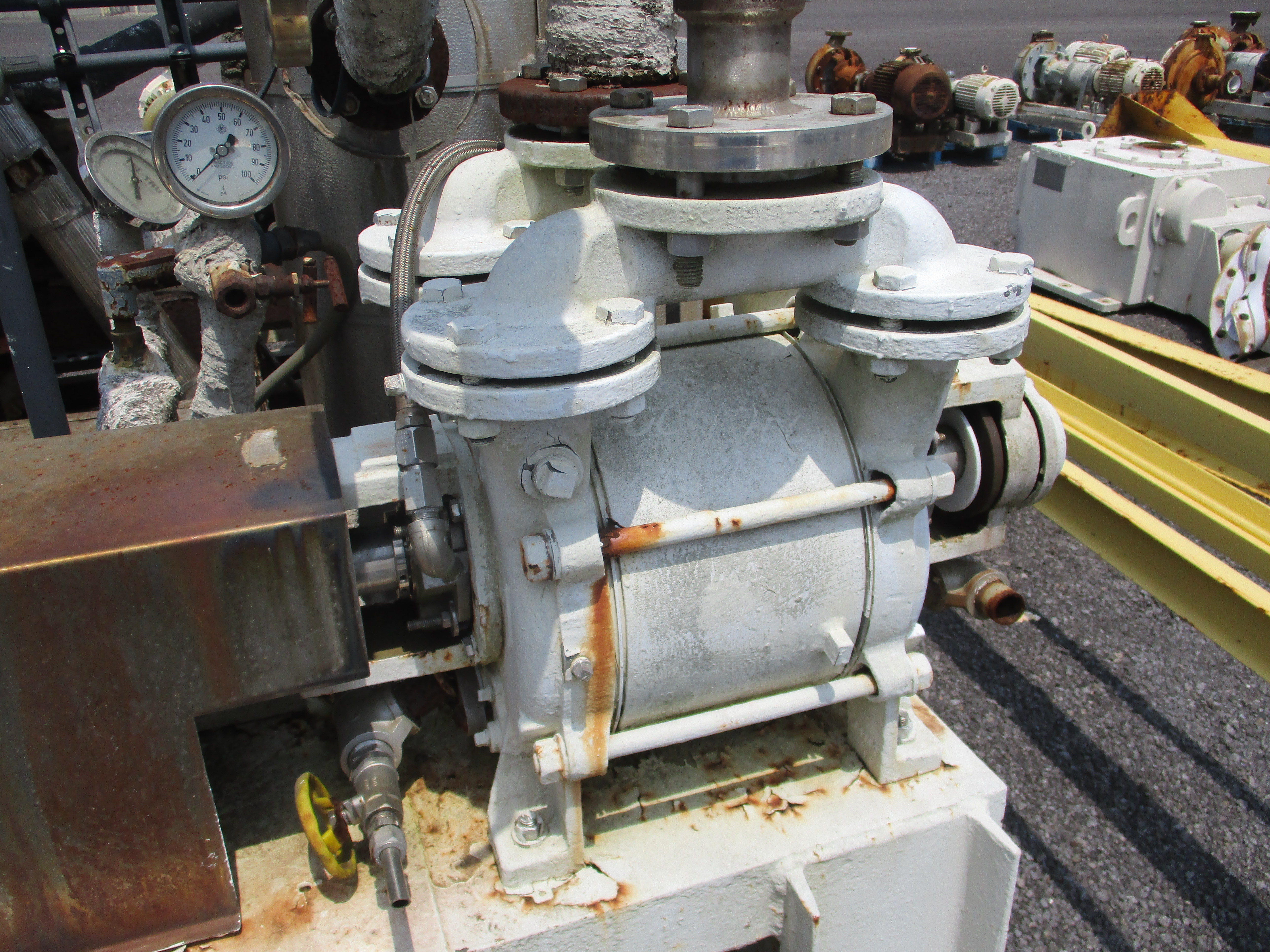

Two liquid ring vacuum pumps (600 CFM each)
Water seal
2 x 2 rated for 4" Hg at 658 mmbar absolute
Each pump contains a Graham 14" separator
Rated for FV/30 psi at 500 degrees F
NB # 1874, 14" diameter x 43" straight side
Each pump includes a 24" Graham surge tank
Rated for FV/30 psi at 500 degrees F
NB # 18069, size 24" diameter x 24" straight side, serial # 76442-4
Each pump is equipped with a Graham seal water cooler
22 Sq. Ft. 316 SS plate and frame heat exchanger with 316 SS plates and 1" inlets and outlets
Heat exchanger rated for Hot side 125 psi at 150 degrees F, cold side rated for 125 psi at 150 degrees F
NB # 18065, serial # 76442-2
Includes piping interconnecting on the skid

703 m3/h (414 CFM) Stainless Steel 316 Pump-Vacuum

Type: Pump-Vacuum

Manufacturer: Graham Precision

Model: 2PV61255/CH

Condition: Used

Material: Stainless Steel 316

Air Flow: 703 m3/h (414 CFM)

Discharge Pressure: 6.5 bar (94.6 psi)

193 mm/hg water seal vacuum pump Openings: 4-3"

Orientation: Horizontal. Inlet Diameter: 76.2 mm (3 in). Outlet Diameter: 76.2 mm (3 in). Seal Type: Liquid Ring. Temperature: 32.2 °C (90 °F). Cooling or Seal Water: Yes. Cooling or Seal Water Flow: 4,550 L/h (20 GPM).
