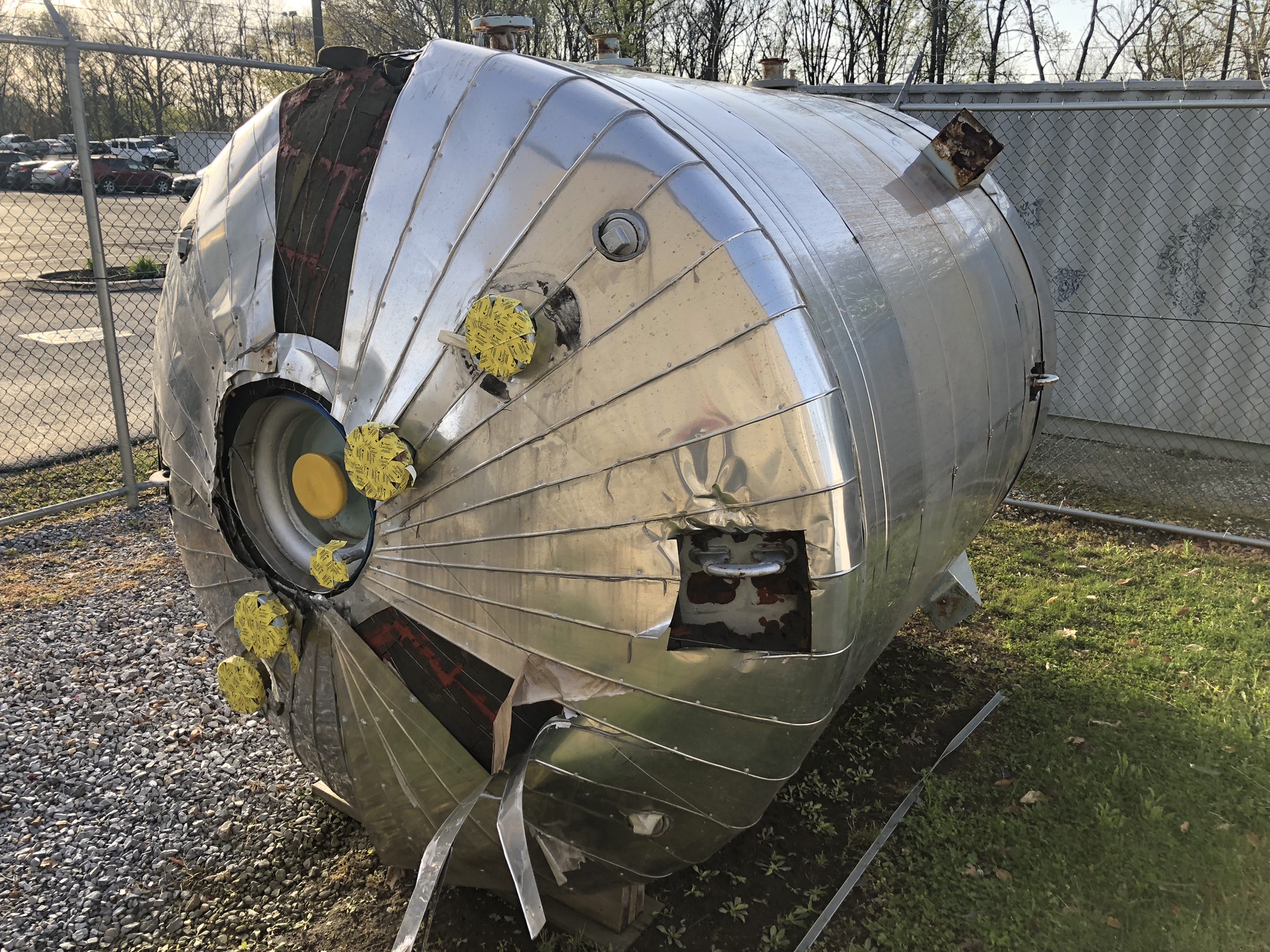

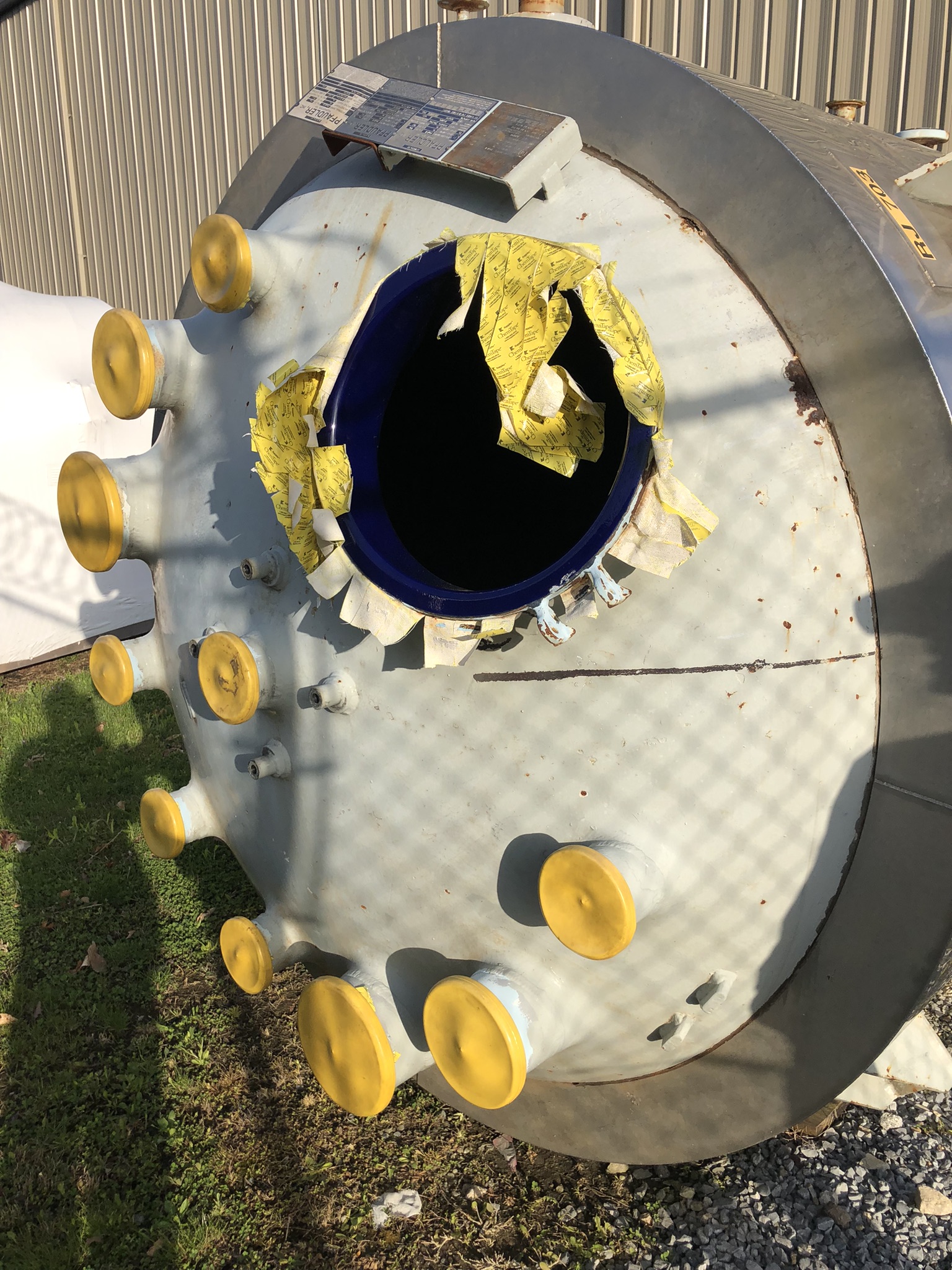

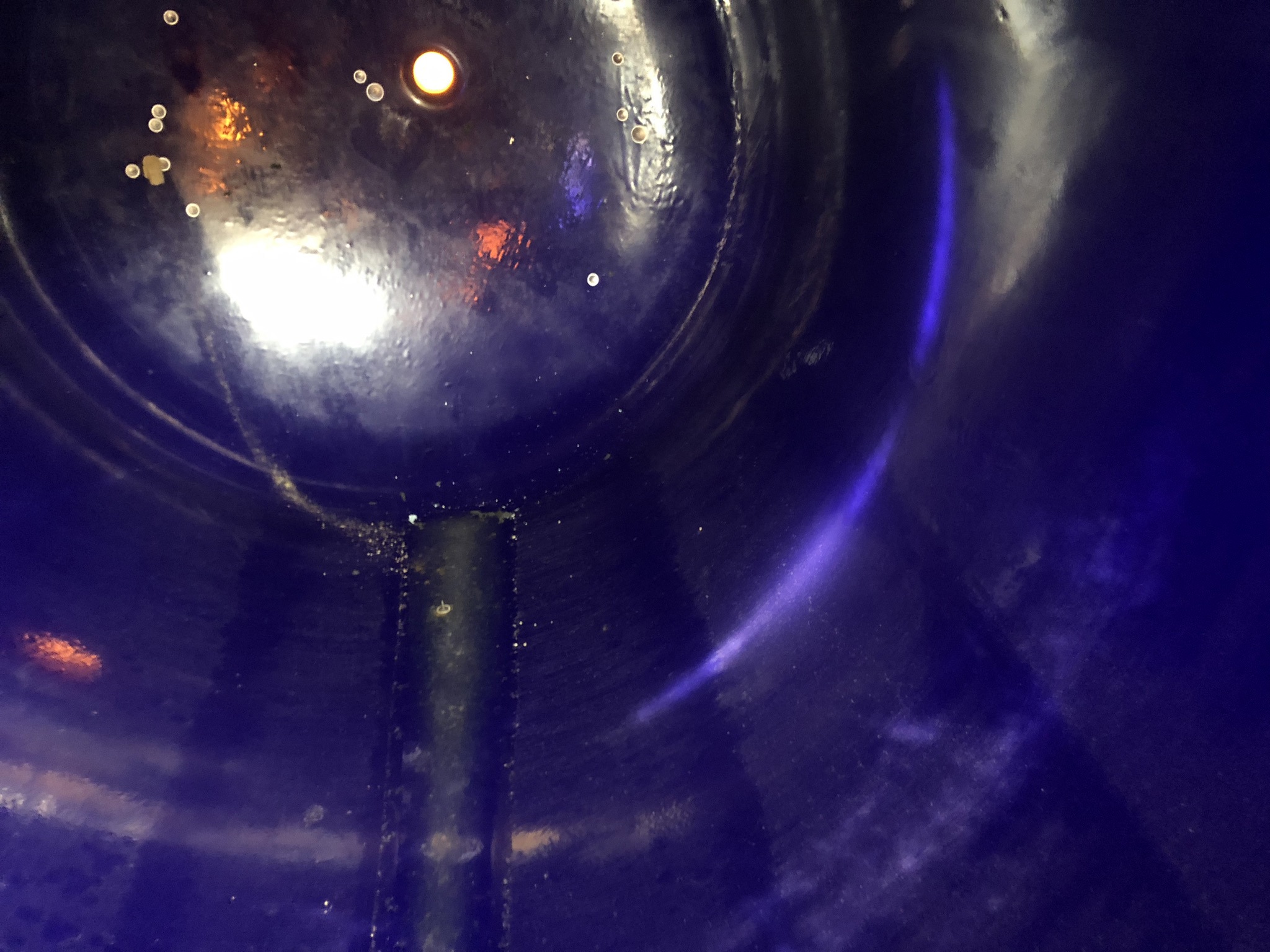

Glasslined Pfaudler RS Batch Type Body Only Reactor - IPP# 235279

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Used

Material: Glasslined

Capacity (Design): 11,350 L (3,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Shell=0.75", heads= 1.313", jacket = 0.75".
• Glass lined thermowell,
• PTFE dip tube, with calibration lines on body and mixer.
• 24" manway with pro ring, and sight glass assembly and man way assist.
• This is a base reactor

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,450 mm (96 in). Straight Side Length: 1,850 mm (73 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Used

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Shell=1 & 1/8", Heads=1.125", jacket=0.75".
• PTFE dip tube.
• 24" man way with pro ring and man way assist. With sight glass assembly.
• This is a base reactor

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,000 mm (78 in). Straight Side Length: 2,050 mm (80 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Used

Material: Glasslined

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Heads=0.813", Jacket =0.5"

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 1,200 mm (48 in). Straight Side Length: 1,400 mm (56 in). Support Type: Legs.

Type: Reactor

Subtype: Batch Type Body Only

Manufacturer: Pfaudler

Model: RS

Condition: Unused

Material: Glasslined

Capacity (Design): 11,350 L (3,000 gallons)

Internal Pressure: 10.3 bar (150 psi)

• Can be sold as an assembly, see comments.
• Dual rated 150 psi and full vacuum at +450 f/ 72psi and full vacuum at -50 F internal.
• Dual rated jacketed for150 psi and full vacuum at 450 f/ 72 psi and full vacuum at -50F
• 9119 glass

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Jacket Pressure: 10.3 bar (150 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Carbon Steel. Body Only: Yes. Orientation: Vertical. Diameter: 2,450 mm (96 in). Straight Side Length: 1,850 mm (73 in). Support Type: Lugs.
