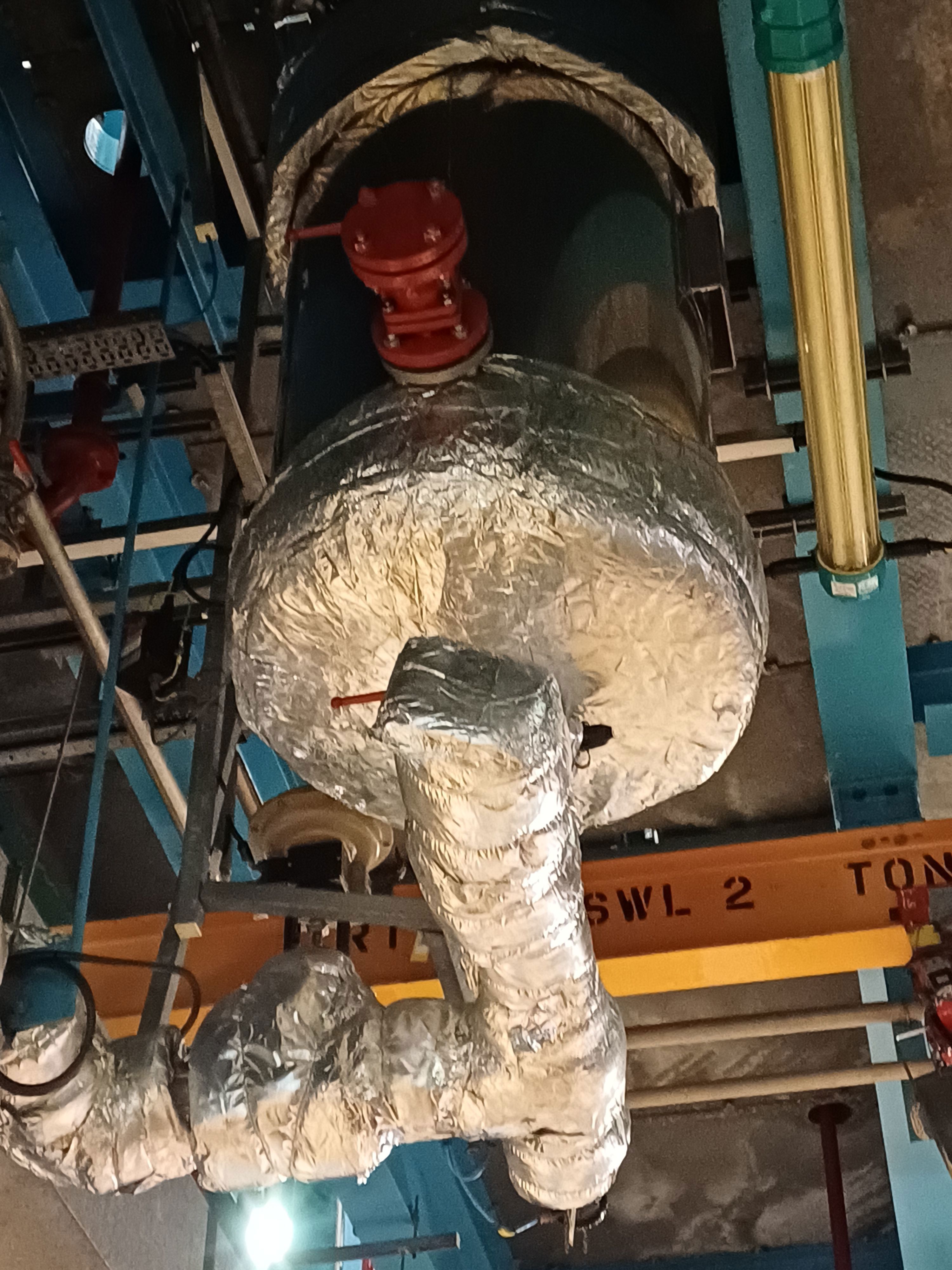

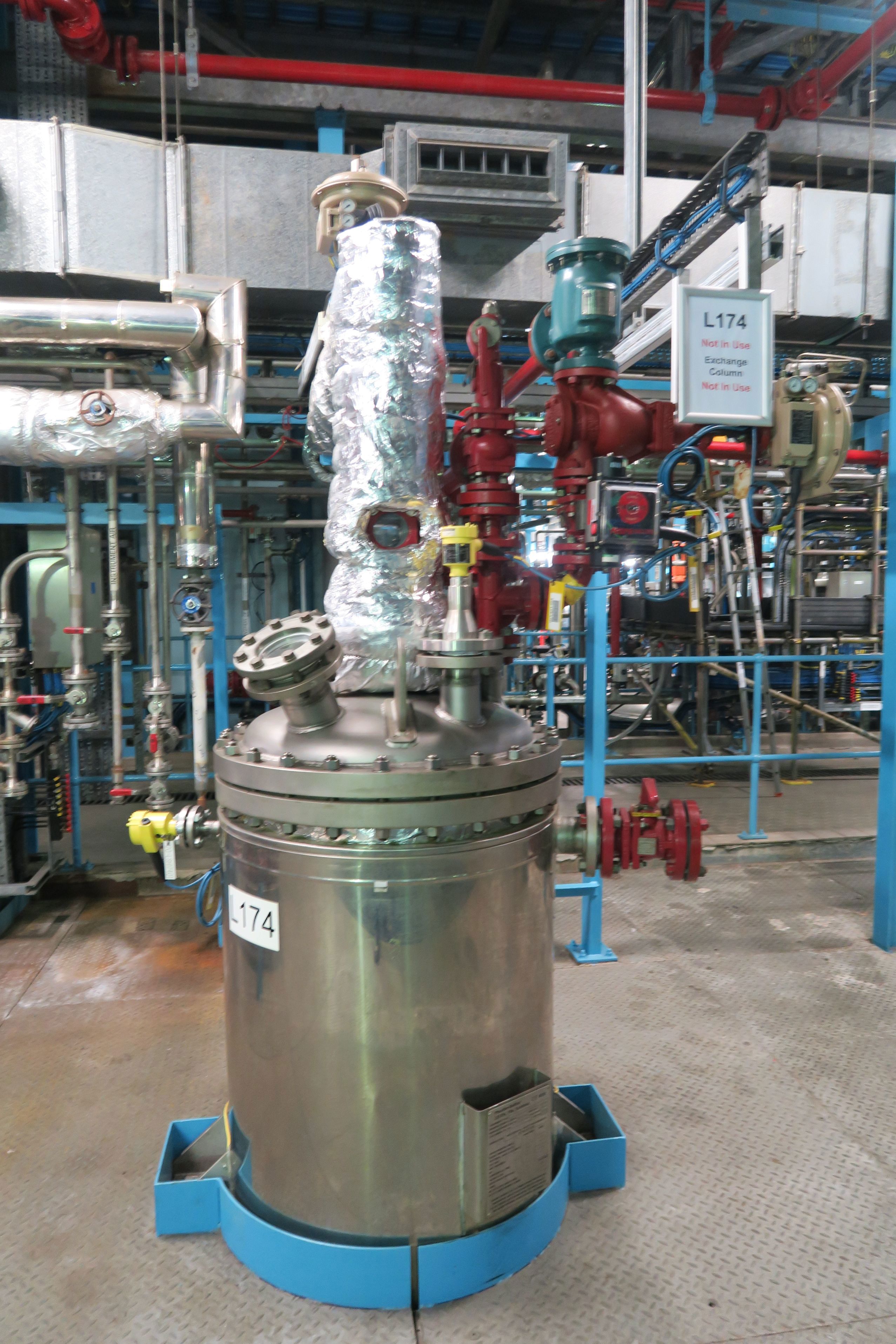

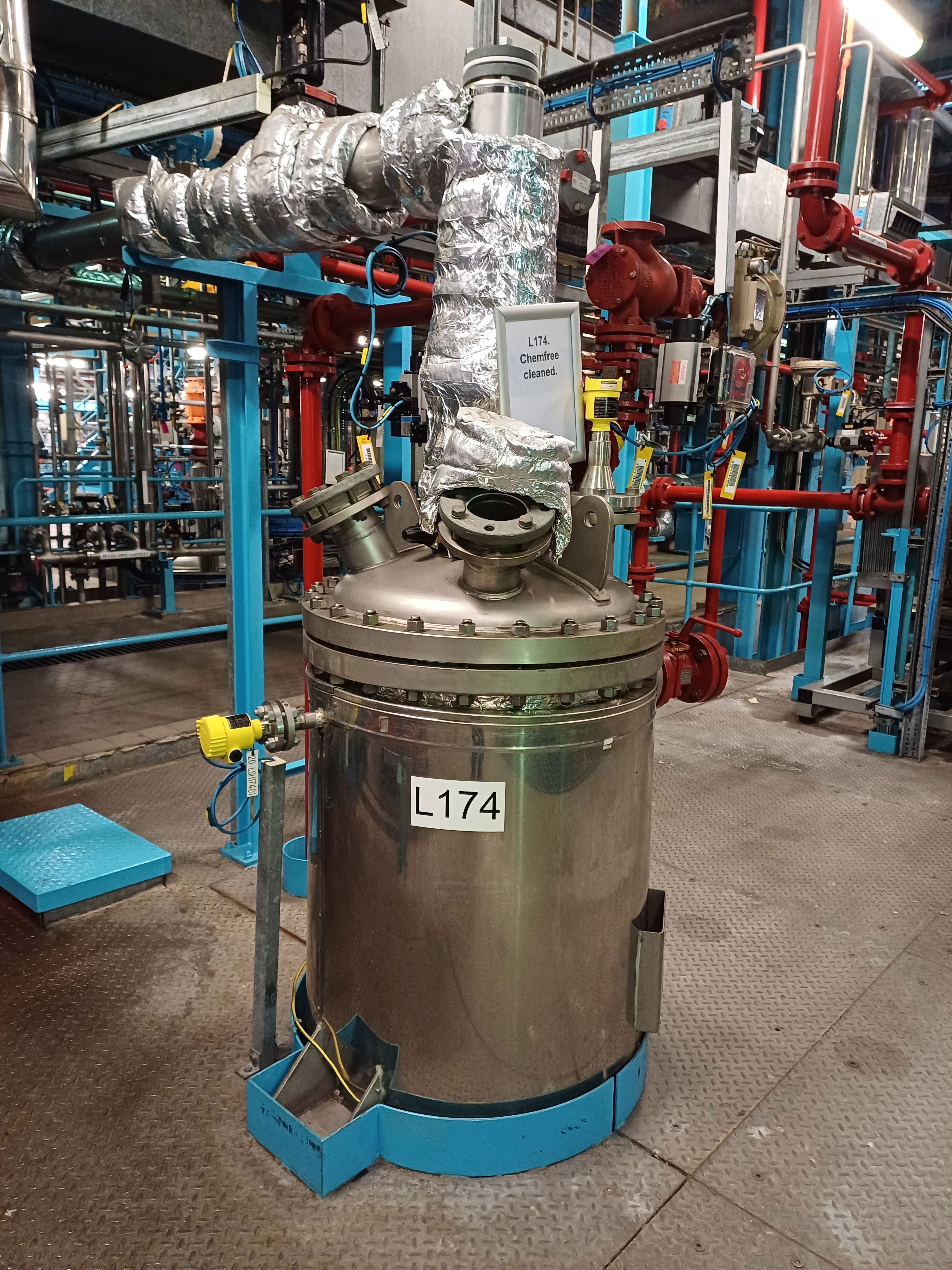

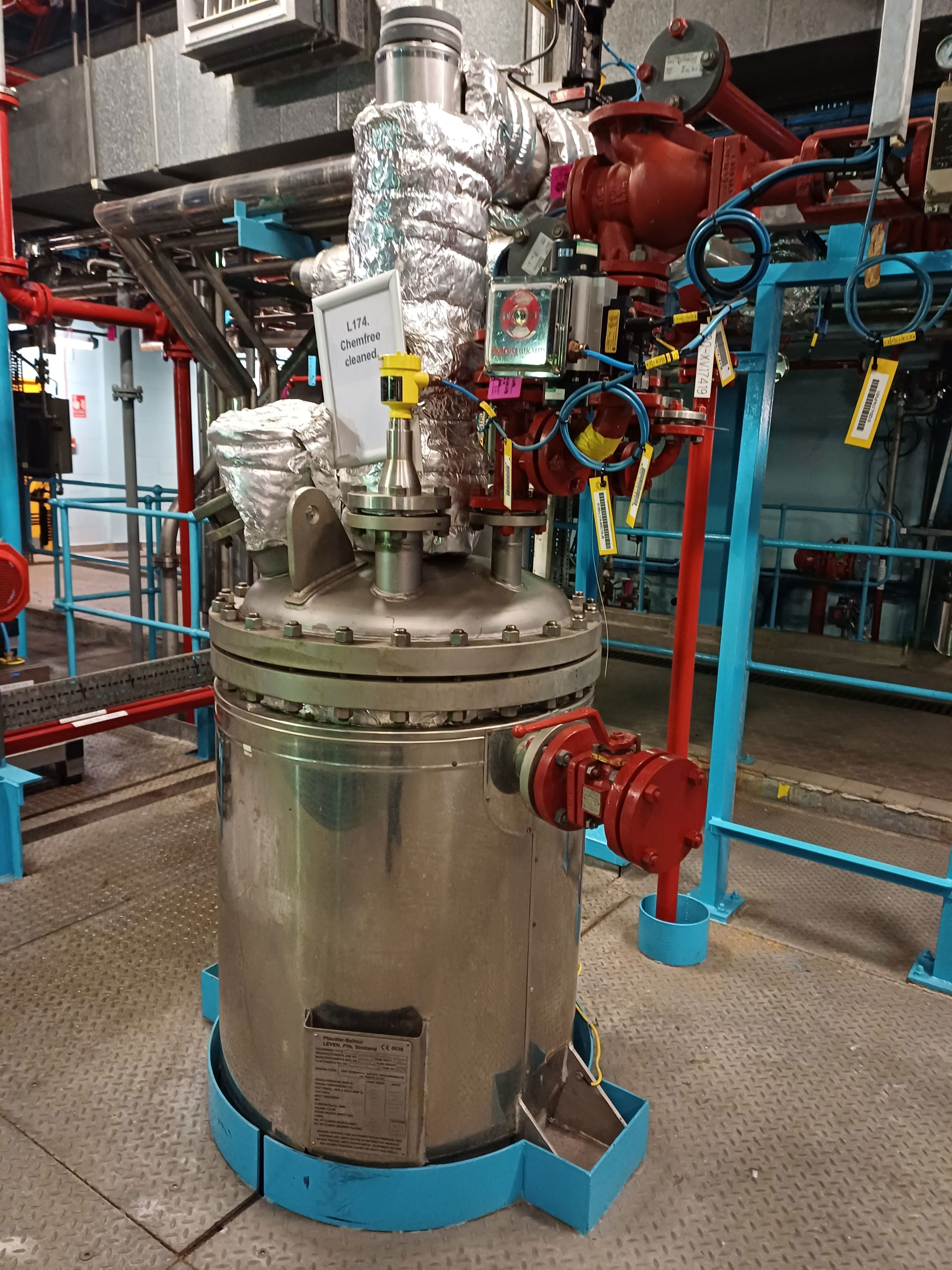

Hastelloy - C22 Pfaudler Ion exchanger resin Column - IPP# 242543

Overview

Type:

Column

Manufacturer:

Pfaudler

Model:

Ion exchanger resin

Condition:

Used

Material:

Hastelloy - C22

Capacity

Diameter (1):

700 mm (27.6 in)

Dimensions

Length (overall):

2,000 mm (79.5 in)

Other Specifications

Pressure:

6 bar (87 psi)

Temperature:

90 °C (194 °F)

Nozzle Schedule:

top: 1-100mm, straight side: 2-80mm, 1-40mm, 1-25mm, bottom: 1-50mm,

Additional Information

Ion Exchange resin column,
distributor plate max differential pressure 2 bar,
column has resin bed inside,
design code: ASME VIII DIV 1 and essential safety requirements of PED/97/23/EC,CE0038
