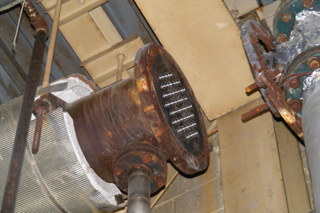

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Pfaudler
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 11.4 m² (123 ft²)
Orientation: Horizontal
(48) 1" OD welded tubes. (2) Glass lined heads.
Shell Pressure: 3.4 bar (50 psi). Shell Temperature: 232.2 °C (450 °F). Shell Material: Carbon Steel. Tube Pressure: 1.72 bar (25 psi). Tube Temperature: 232.2 °C (450 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Head Material: Carbon Steel. Tube Number: 48. Tube Diameter: 25.4 mm (1 in).

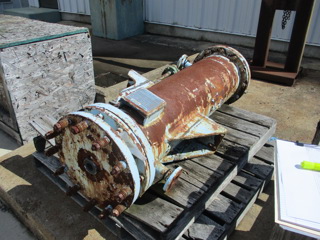

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Pfaudler
Condition: Used
Material: Graphite
Heat Transfer Surface Area: 4 m² (43 ft²)
Orientation: Vertical
Graphite with CS shell Impervite modular cross bore inserts with 99 service holes and 118 process holes per module
Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 171.1 °C (340 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 171.1 °C (340 °F). Length: 1,400 mm (55 in). Nozzle Schedule: Shell side nozzles are 1/2", process side nozzles are 3" and 1.5".

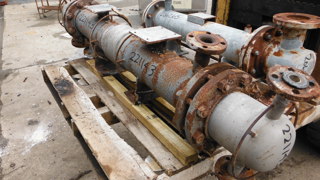

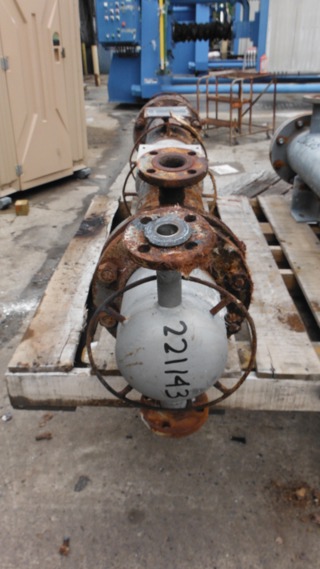

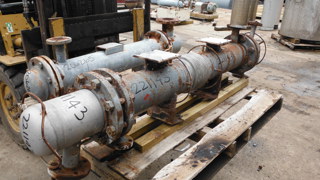

Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Pfaudler
Condition: Used
Material: Tantalum
Heat Transfer Surface Area: 2.4 m² (26 ft²)
Orientation: Horizontal
2.5% Tung tubes (Non code) with TA liner silver brazed to tube sheet, glass lined carbon steel heads (tubes are roller expanded into grooves and seal welded to tube sheet face) 8 x 4 concentric reducer on one end and 8 x 4 eccentric reducer on other end. 4" thick foam glass insulation covered with 12 GA 316 L sheathing on the shell side only. Sheathing has a 50 RA finish with vent & drain. Six, PTFE Teflon (1/4" thick) baffles @8" spacing face to face.
Shell Pressure: 6.9 bar (100 psi). Shell Temperature: 176.7 °C (350 °F). Shell Material: Carbon Steel. Tube Pressure: 6.9 bar (100 psi). Tube Temperature: 176.7 °C (350 °F). Tube Material: Tantalum. Tubesheet Material: Tantalum. Vacuum: Yes. Shell Diameter: 219.1 mm (8.6 in). Head Material: Glasslined. Length: 2,100 mm (82.1 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 26. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 1,450 mm (57 in). Tube Thickness: 0.38 mm (0.015 in). Nozzle Schedule: Nozzle schedule : (1) 3" top left. (1) 3" nozzle bottom right. 8 5/8" diameter x 82 1/8" overall length. 8 x 4 concentric reducer on one end and 8 x 4 eccentric reducer on other end..
Type: Heat Exchanger
Subtype: Shell and Tube
Manufacturer: Pfaudler
Model: 06048
Condition: Used
Material: Stainless Steel 316
Heat Transfer Surface Area: 0.37 m² (4 ft²)
Orientation: Horizontal
Shell Pressure: 6.2 bar (90 psi). Shell Temperature: 148.9 °C (300 °F). Shell Material: Carbon Steel. Tube Pressure: 6.2 bar (90 psi). Tube Temperature: 148.9 °C (300 °F). Tube Material: Stainless Steel 316L. Tubesheet Material: Stainless Steel 316L. Vacuum: Yes. Shell Diameter: 168.3 mm (6.6 in). Head Material: Stainless Steel 316L. Length: 490.5 mm (19.3 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 14. Tube Diameter: 19.1 mm (0.75 in). Tube Length: 38.1 mm (1.5 in). Tube Thickness: 1.65 mm (0.07 in). Nozzle Schedule: shell side nozzles are 1.5", tube side nozzles are 1.5" and 2" with a 1" drain..
