Plate and Frame Heat Exchanger 202.7 m² (2,200 ft²) Stainless Steel 304 For Sale - IPP# 245828

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Alfa Laval

Model: M15-MFG8

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 37.2 m² (400.4 ft²)

Nozzle Schedule: Openings (process side): 2- 125mm - Openings (service side): 2-125mm

Heat exchanged: 220 kw single pass both sides Flow rate (process side): 240 m3/hr Flow rate (service side): 63.31 m3/hr Inlet temperature (process side): 28 deg C Inlet temperature (service side): 24 deg C Outlet temperature (process side): 27.3 deg C Outlet temperature (service side): 27 deg C

Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 60 °C (140 °F). Housing Material: Carbon Steel. Number of Plates: 62.

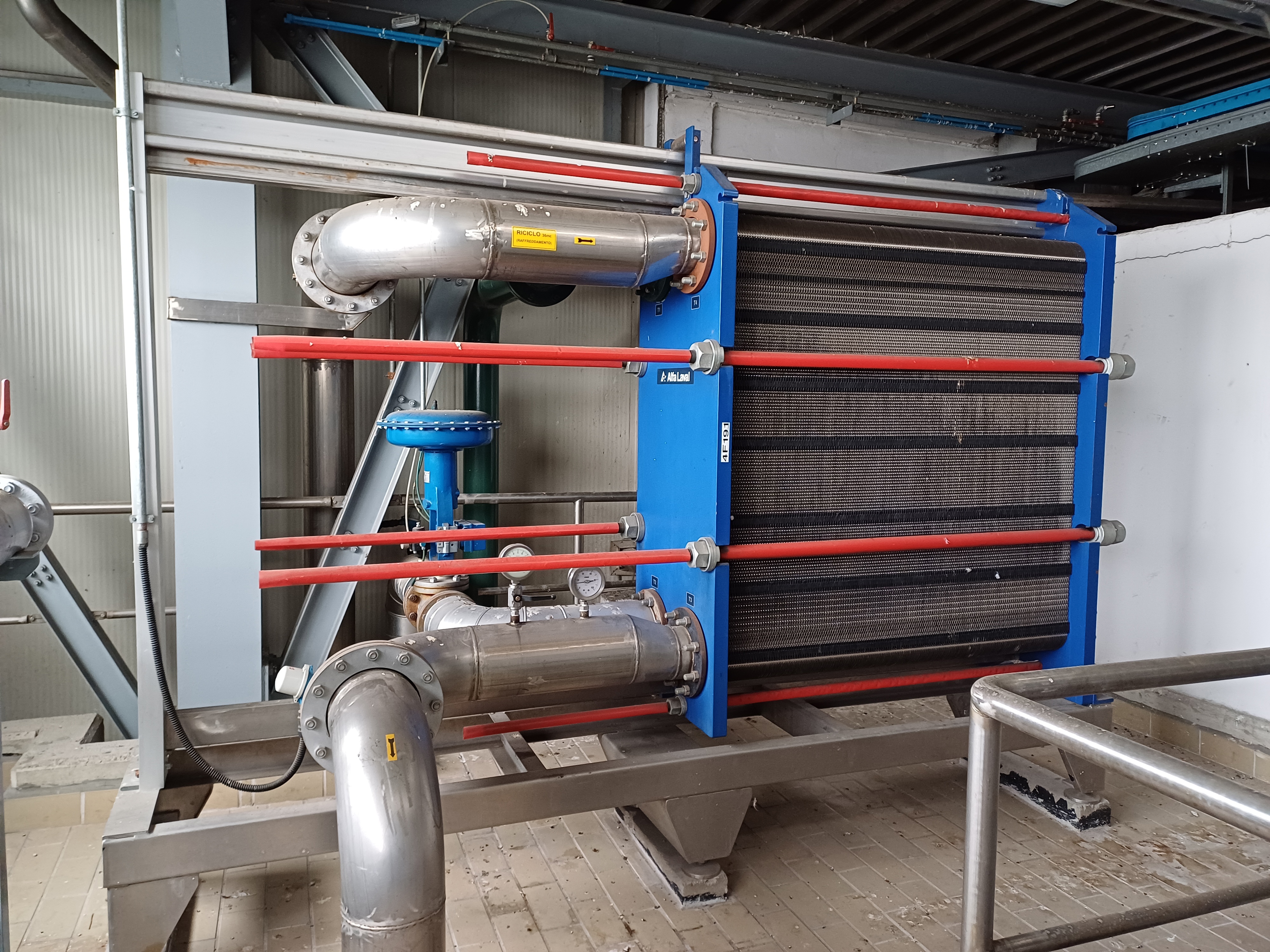

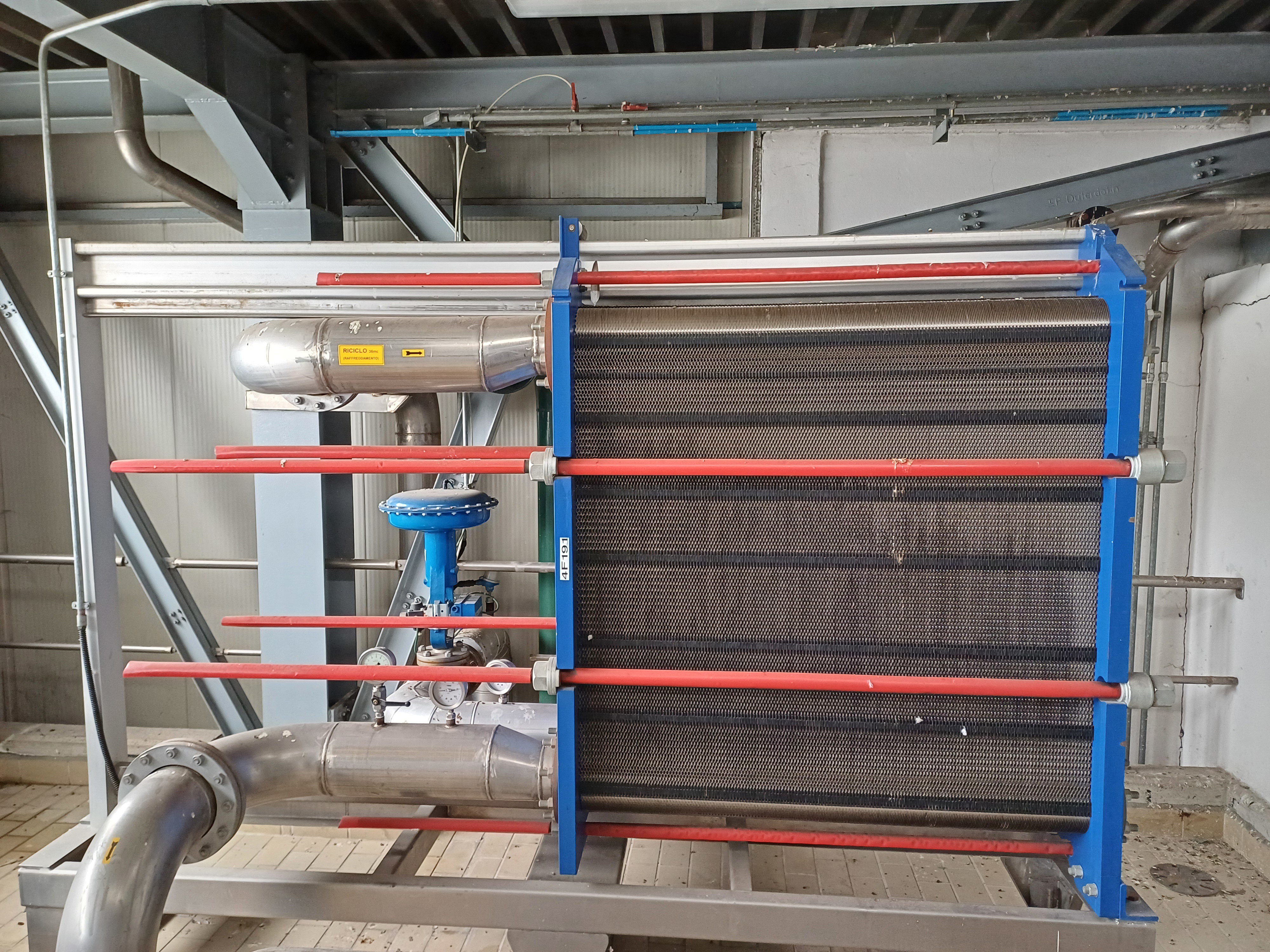

Type: Heat Exchanger

Subtype: Plate and Frame

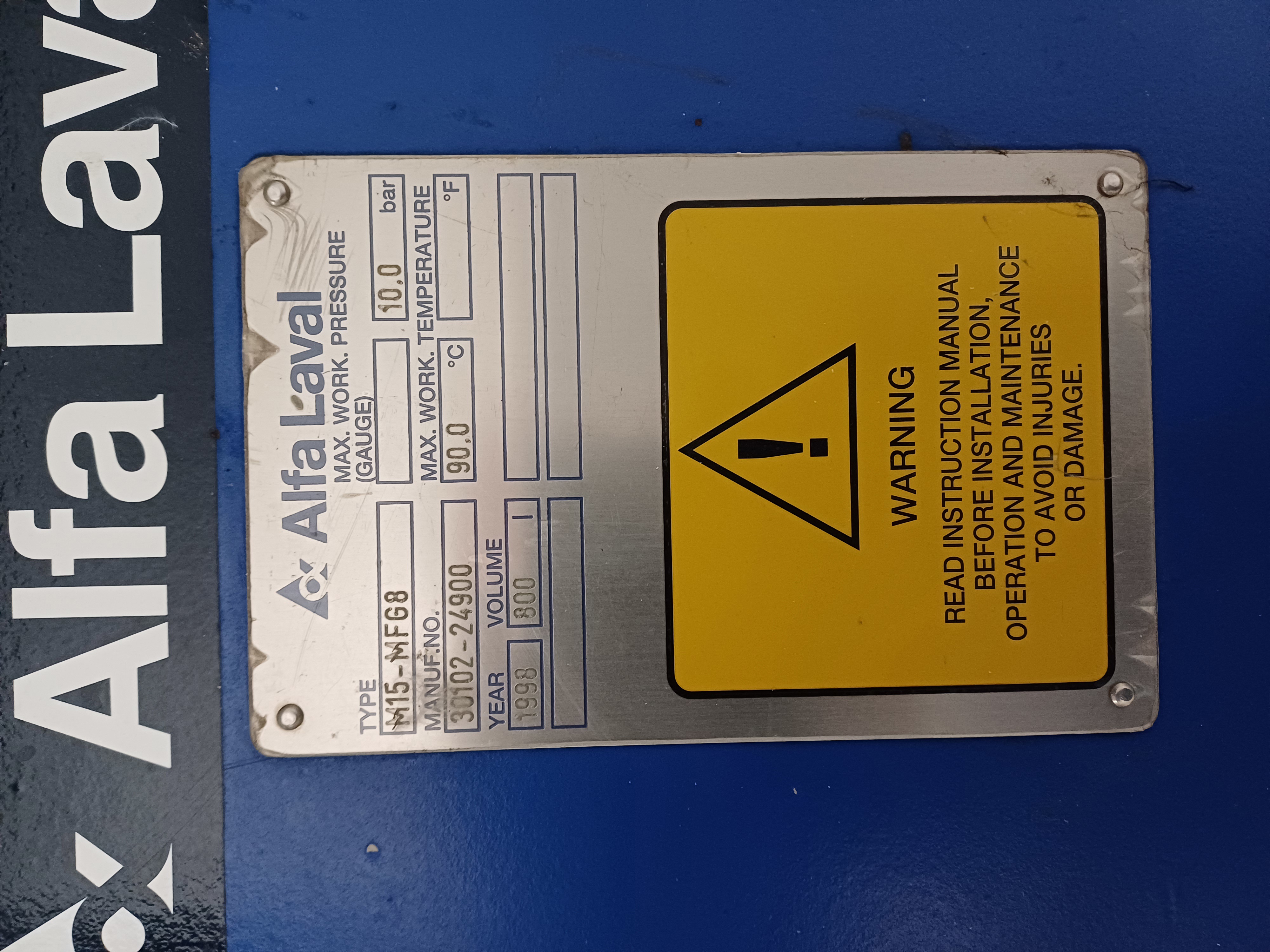

Manufacturer: Alfa Laval

Model: M15-MFG8

Condition: Used

Material: Titanium

Heat Transfer Surface Area: 37.2 m² (400.4 ft²)

Nozzle Schedule: Openings process side: 2-125mm - Openings service side: 2-125mm

Heat exchanged: 220 kw single pass both sides

• Flow rate process side: 240 m3/hr
• Flow rate service side: 63.31 m3/hr
• Inlet temperature process side: 28 deg C
• Inlet temperature service side: 24 deg C
• Outlet temperature process side: 27.3 deg C
• Outlet temperature service side: 27 deg C

Hot-side Pressure: 10 bar (145 psi). Hot-side Temperature: 60 °C (140 °F). Housing Material: Carbon Steel. Number of Plates: 62.

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Kyffhausehutte (Germany)

Model: PAH500/213

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 134.6 m² (1,450 ft²)

Number of Plates: 272

• Hot water flow rate: 50,000 liter/hr
• Plate assembly: (4) sections (61,113,49,49)
• Designed throughput: 20,000 liters/hr (milk)
• Temperature range: 5 degree C - 74 degrees C to minus 4 degrees C
• Steam flow rate: 320 Kg/hr @ 1.0-1.5 Kp/sq cm
• Cold water flow rate: 50,000 liter/hr @ 1 degree C

Type: Heat Exchanger

Subtype: Plate and Frame

Manufacturer: Alfa Laval

Model: P13-RB

Condition: Used

Material: Stainless Steel 304

Heat Transfer Surface Area: 9 m² (96.4 ft²)

Nozzle Schedule: 4-50mm openings, divider plate with 2-50mm

304 s/steel divider plate

Hot-side Pressure: 4 bar (58 psi). Housing Material: Stainless Steel Other. Number of Plates: 56.
