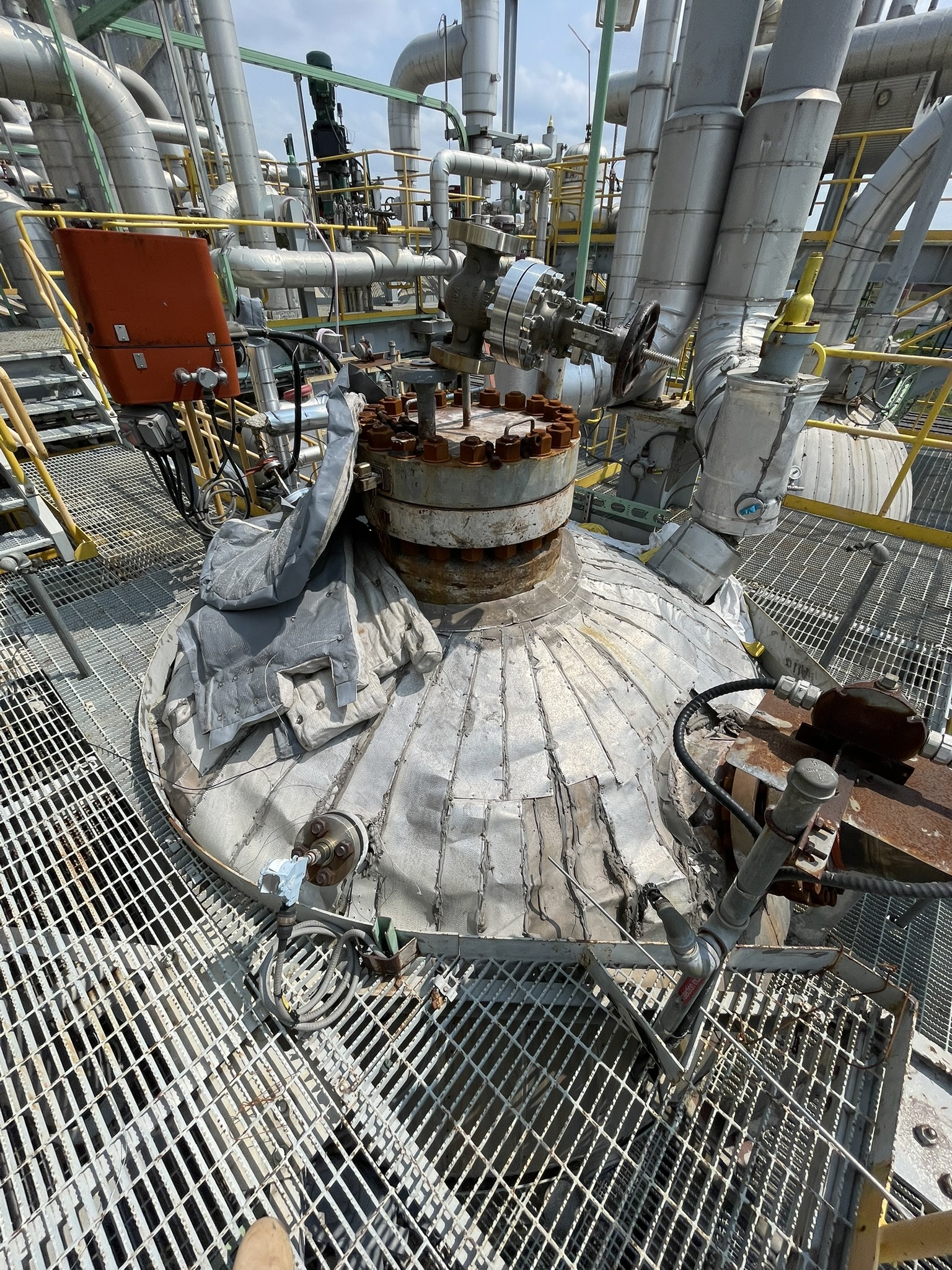

Name: Hastelloy - C276 Hydrogenation Reactor
Brand: Coek Engineering N.V -Geel Belium
SKU: 247218

Overview

Type:

Reactor

Subtype:

Hydrogenation

Manufacturer:

Coek Engineering N.V -Geel Belium

Condition:

Used

Material:

Hastelloy - C276

Clad:

Yes

Capacity (Design):

70,000 L (18,500 gallons)

Internal Finish:

Mill 2B

Pressure Vessel

Internal Pressure:

98 bar (1,400 psi)

Internal Temperature:

315 °C (599 °F)

Dimensions

Orientation:

Vertical

Diameter:

2,900 mm (114.2 in)

Straight Side Length:

8,700 mm (342.5 in)

Heads

Top Head Type:

Hemi

Top Head Material:

Hastelloy - C276

Bottom Head Type:

Hemi

Bottom Head Material:

Hastelloy - C276

Other Specifications

Manway:

Yes

Support Type:

Lugs

Inlets & Outlets

Nozzle Schedule:

One 24" man way, one 20" man way, two 10" nozzles two 3" nozzles, one 2" nozzle and two 1" nozzles.

Hastelloy - C276 Hydrogenation Reactor - IPP# 247218
