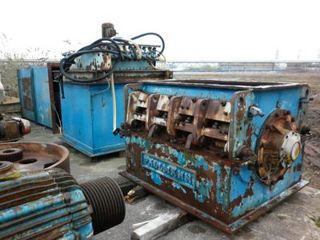

Stainless Steel 316 Granulator/Disintegrator Pulverizer For Sale - IPP# 704179

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Pallman

Model: PS8-126

Condition: Used

Material: Carbon Steel

Inlet Diameter: 1,300 mm (51.2 in)

Motor Power (Design): 110 kW (147.5 HP)

Type PS8-12/6 granulation system 800mm diameter x 1200mm long rotor with 6 removable blades, 6 removable stator knives. Rotor speed 315RPM. With (2) access doors 1280 mm x 650 mm Rotor speed 340 rpm. Feed 1300 mm x 600 mm with steel chute, discharge with steel chute. System includes an Aerzner blower type GL16.12, SR# 81013, pressure difference 5 PSI. Blower was driven by 50 HP 3/50/380/440V, 1470 RPM motor. (1) rotary lock valve on granulator discharge, SR# 5928, belt driven by 0.75 kW 3/50/220/250/380/440V, 1400 RPM motor via gearbox. With steel dust collector with fan and associated blower.

Speed (RPM): 340. Orientation: Horizontal.

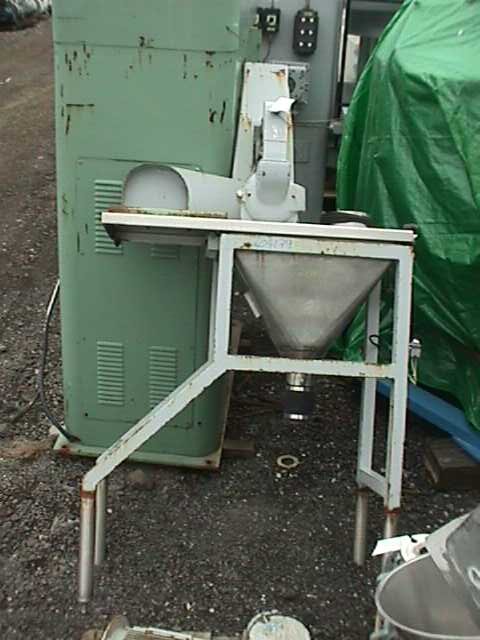

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Condux

Model: CST 250/G

Condition: Used

Material: Stainless Steel 316

Motor Power (Design): 11 kW (14.8 HP)

Orientation: Vertical

14 hp 380-660 volt, IP54, vibrating pan feeder magnetic separator driven by 0.25 kw, 3/50/380-220 volt 1370 rpm, ex proof motor. Gear box of the Mill is water cooled

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: GEA

Model: Pharmadule PMA Advance 60

Condition: Unused

Material: Stainless Steel 316

Capacity: 48 m3 (1,695 ft3)

Outlet Discharge Diameter: 50.8 mm (2 in)

20 kg typical batch weight (Polished to a 0.1 Ra Min finish) high shear granulator Designed for cGMP production, it is a contained system, and can be used for other process’ such as food agglomeration Standard capacity range is 24-48 liters This granulator features a through the wall design where the utilities are located outside the clean room It has a jacket for the base and bowl with temperature sensor and ¾” BSP connections The loading chute and is 4” CPC and designed for Hyco Flex loading. The main impeller is an M-8 and is capable of being raised and lowered The side chopping system is driven by a 4-kw motor with variable speed control. The discharge and transfer chute is 2” CPC. Discharge is into a through the wall mill, Comil, model U-10, with a 0.1 Ra finish. The mill is driven by a 1.8 k-w motor with variable speed control. The Granulator features sanitary design and features clean in place. It has the ability for solutions addition, and is fully automated. This multipurpose machine can process dry powders, aqueous and solvent granulations, effervescent products, and melt palletization applications. It is designed for rapid change overs and easy cleaning. This machinery is electronically controlled and can be operated by a local operations station. The Advance 60 mill can be part of an integrated system with upstream and downstream equipment. This mill can be used with Fluid bed dryer IPP stock # 233966. And a CIP skid is available at additional cost, see IPP stock number 234966.

Inlet Diameter: 101.6 mm (4 in). Motor Power (Design): 4 kW (5.4 HP). Orientation: Horizontal. Choppers: Yes.

Type: Pulverizer

Subtype: Granulator/Disintegrator

Manufacturer: Nederman MikroPul

Model: 2DH

Condition: Used

Material: Stainless Steel 316

Motor Power (Design): 11.2 kW (15 HP)

Orientation: Horizontal

mil body without hammer/rotor assembly. Requires a 15 HP 3510 RPM motor Designed for a twin screw feed - no feeder with mill.
