• Cooling water lines: two 8" lines. 2 pass design Tube Type: Straight Tube. Tube Number: 250. Tube Diameter: 1.25 in. Tube Length: 192 in. Tube Thickness: 0.06 in. Nozzle Schedule: - Inlet: 18" vapor inlet - Outlet: 4" vapor outlet.

Heads are CS faced with 316 L SS Spiral Material: Stainless Steel 316L.

tube pressure rated by -1/10bar @-10/200 degrees C (volume 66 liter), shell pressure rated by -1/10bar @ -10/200 degrees C (volume 180 liter) Length: 188.5 in. Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 121. Tube Diameter: 0.55 in. Tube Length: 165.4 in. Tube Thickness: 0.06 in. Nozzle Schedule: shell side: (1) DN100, (2) DN200, (1) DN300; tube side: (1) DN150, (1) DN200. Capacity: 65 gallons. Heat Exchanger Tube Capacity: 17.4 gallons.

side A = 550 ltr, side B = 570ltr

pressure both sides -1/10 bar @ -50/150 degrees C (18 liter/17 liter) fully insulated, CE-0036,

Rated FV/300 psi @ -20 to 425 degrees tube side; FV/50 psi @ -20 to 425 degrees F shell side.
with glass lined clamped heads Tube Number: 18. Tube Diameter: 0.75 in. Tube Length: 216 in.

2-stage (2) 450 Sq Ft condensers bolted together, end to end, with same configuration and material in both stages, Upper stage and lower stage each have a 316LSS shell, CS heads. Shell is 0.135" thick, Heads are 1.12" thick CS. Spiral Material: Stainless Steel 316.

AL6XN channel heads with R-Stamp(1994) Tube Diameter: 1.25 in. Tube Length: 144 in. Tube Thickness: 0.02 in. Nozzle Schedule: - Nozzle Schedule: - Two 32" tube side nozzles (brine inlet & outlet) - One 18" steam inlet - One 4" condensate outlet - One 3" drain - Two 1" drain/vents.

• Type: Horizontal graphite spiral block heat exchanger
• Weight: 210 KG Product Side -1/3 bar@ -20 to +165 degrees C 17 liters

(2) 300mm high cone sections,

Process sidde rated 45 PSI @ -30/+122 degrees F. Service side rated 30 PSI @ -30/+122 degrees F.

cubic block heat exchanger process side is 2-pass with (2160) slots, 9.5mm x 3mm, service side is multi-stage with (756) 9.5mm diameter tubes can be used vertical or horizontal.

319.5m² compabloc 1.4404 stainless stell plate and carbon steel frame Compabloc heat exchanger, manufactured by Alfa Laval, serial number CP75-5479, Side A pressure rated by -1/15bar @ -10/250 degrees C (volume 1180 liter), Side B pressure rated by -1/15bar @ -10/250 degrees C (volume 1185 liter), (500) 1.4404 stainless steel plates, openings: Side A (2)DN200, (1)DN25 drain, (1)DN25 vent; Side B (2)DN200, (1)DN25 drain, (1)DN25 vent.

Tubes rated FV Length: 23.9 in. Shell-side Passes: 1. Tube-side Passes: 1. Tube Type: Straight Tube. Tube Number: 55. Tube Diameter: 0.75 in. Tube Length: 23.9 in. Tube Thickness: 0.05 in. Nozzle Schedule: Two 2", two 1.5".

41.9m² 1.4547 stainless steel plate and carbon steel frame Compabloc heat exchanger, CE confirm, manufactured by Alfa Laval, serial number CP50-2776, Side A pressure rated by -1/16bar @ -40/180 degrees C (volume 151.2 liter), Side B pressure rated by -1/16bar @ -40/180 degrees C (volume 165.5 liter) (150) 1.4547 stainless steel plates, openings: Hot side (2)DN25, (2)DN100; Cold side (2)DN25, (2)DN200. as per drawing * new plate pack in SMO * new baffle system in SMO * new gaskets * design temp. increase from 150 to 180 degrees C

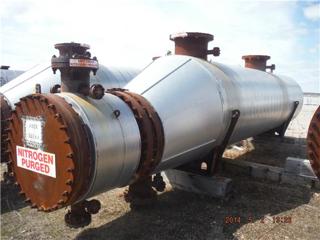

• TP405 Stainless Steel tubes (SA268-TP405)
• Carbon Steel Channel Head (SA516 70)
• CS floating Head (SA266-2N)
• Carbon Steel shell (SA516 70)rated for FV/425 psi at -20 to 650 degrees F;tubes rated for FV/500 psi at -20 to 650 degrees F.
• Canadian Registration Number: U2511.2
• TEMA Type: AES
• Size: 52 x 288
• 1.25" pitch
• Design heat exchanged 114.1 mm/BTU/hr.
• Tube Bundle weight 28,000 lbs. Length: 288 in. Shell-side Passes: 1. Tube-side Passes: 8. Tube Type: Straight Tube. Tube Number: 108. Tube Diameter: 1 in. Tube Length: 288 in. Tube Thickness: 0.06 in. Nozzle Schedule: Openings include: (2) Shell side nozzles are 16" NPS, (2) tube side nozzles are 10" NPS in the channel head.

• Number of SS tubes: 405
• SS tube material: SA268-TP405
• Channel head material: SA516-70 + TP410
• Floating head material: SA516-70 + TP410
• Shell material: SA516 + TP410
• CRN #: U5053.2Shell rated for FV/365 psi @ -20 to 650 degrees F; tubes rated for FV/350 psi @ -20 to 680 degrees F.
• TEMA Type: AKT
• TEMA Size: 57/70 x 264
• Reboiler type: kettle1.25" pitch. 410 Clad SS tube sheet (SA765-2 + 410SS Clad), 63.13" diameter x 7.28" + 0.47" thick. With internal floating head. Shell is CS, 57" diameter expanding to 70" diameter x 264 " long Length: 264 in. Tube Type: Straight Tube. Tube Number: 1,008. Tube Diameter: 1 in. Tube Length: 264 in. Tube Thickness: 0.65 in. Nozzle Schedule: - Openings: Channel Head (2) 16"; Shell (1) 4", (2) 12".

• 316LSS tubes (SA213 - 316L), 316L SS Clad Shell (SA516-70N + 316L Cladding), 316L SS Clad Channel head (SA516-70N + 316L Cladding),
• Horizontal kettle type reboiler. NB "U" stamped. Canada Registration Number U5325.2. Shell rated for FV/106 psi @ -20 to 350 degrees F: Tubes rated for FV/195 psi @ -20 to 680 degrees F. TEMA Type AKU
• ASME Code Construction 316L SS clad tube sheet (SA516-70N + 316L Cladding) 42" diameter x 3.4375" Thick with (1124) tube holes.
• Removable tube bundle has 316LSS skid bars for bundle removal. CS Channel Head 43" diameter with flat bolted cover316L SS Clad Shell is 69.25" OD/68"ID diameter x 27' 3" long, 33" Overall Length125" to .1875" thick cladding Length: 327 in. Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 562. Tube Diameter: 0.75 in. Tube Length: 240 in. Tube Thickness: 0.06 in. Nozzle Schedule: Openings Include: Shell Side - (2) 24"" shell outlets, (1) 14" shell inlet (1) 12" liquid outlet; Channel Head - (1) 12" (1) 6".

• 321 SS U-Tube (SA213 TP321), 321SS tube sheet (SA336 F321), SS Clad heads (SA387 Cr.22 + CRO TP347), SS Clad shell, horizontal heat exchanger (SA387 Cr.22 + CRO TP347) TEMA type DEU size 42 x 216
• Canada Registration Number U8145.2
• Shell rated for FV/2226 @ -20 to 740 degrees F; tubes rated for FV/1994 @ -20 to 840 degrees F.
• 321SS tube sheet, 43.7" diameter x 5.70" thick (with 706 holes for tubes).SS Clad shell is 42" diameter x 20'10.23" straight side with one welded dished head. SS Clad Channel head is 2' 11.31" long with flat bolted cover.
• Crate of commissioning parts -see parts tab. Length: 216 in. Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 353. Tube Diameter: 1 in. Tube Length: 216 in. Tube Thickness: 0.08 in. Nozzle Schedule: Openings Include: shell side (2) 10" NPS, (1) 2"; tube side (2) 12" NPS (1) 2" in channel head.

Inlets and outlets are 3", with a separate 2" inlet and outlet

Bolted heads with Tantalum lining Top head is 9" long, bottom head is 13" long. Nozzle Schedule: Shell side openings are two 2", tube side in is 3" tube side out is 1"..

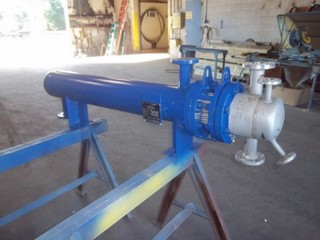

• Type: Tube and shell horizontal heat exchanger
• pressure tube side: 62bar @ 0/200 degrees C (volume 30 liter),
• pressure shell side: 13bar @ 0/200 degrees C (volume 67 liter),
• bolt bonnet flat head, CE stamped Nozzle Schedule: openings head: (2) DN100, openings side wall (shell) : (4) 70mm. .

Job #: Y102099C1 shell MDMT is rated for -20 degrees F at 185/FV. tubes MDMT is rated for -20 degrees F at 152/FV psi. U bend tubes, 0.375" od X 0.049" thick. Tube Type: U-Tube. Tube Number: 72. Tube Diameter: 0.37 in. Tube Thickness: 0.04 in. Nozzle Schedule: - Nozzles: Shell has two 2" nozzles, Head has two 2" nozzles with two 1" drains..

• N2 Vaporizer, ambient air vaporizer for cryogenic applications.
• Ambient air vaporizers require only the heat transfer between the product & the outside air. No need for fans, heating, hot water, steam, compressed air, etc.
• Zero Moving Parts: reliable construction with minimal failure points.
• Rated 500 PSI, Manufactured by Finnco
• 20,000 SCFH, service to -425 degrees F.
• 24 center-bored aluminum extrusions with 8 fins each.
• Arranged in frame with legs, mounted in 6 x 4 array with extrusions equally spaced.
• 1.5" inlet/outlet flanges.
• Start-Up Pressure Drop: 2.5 psi.
• Operating Pressure Drop: 1.8 psi.

• 321SS U-tubes (SA213 TP321), 321 SS tube sheets, SS Clad channel head (SA387 Gr.22 + CRO TP347), SS Clad shell (SA387 Gr.22 + CRO TP347)
• TEMA type DEU Canadian Registration Number U8421.2
• Shell rated for FV/2163.5 psi @ -20 to 775 degrees F; tubes rated for FV/2006 psi at -20 to 840 degrees F. (approx. 40' total length)321SS tube sheet (SA336 F321), 40.70" diameter x 5.11" thick with (600) tube holes One Channel head, CS with flat bolted cover, CS construction, 3'8" long.
• Spare Parts are available. Length: 240 in. Shell-side Passes: 1. Tube-side Passes: 2. Tube Type: U-Tube. Tube Number: 300. Tube Diameter: 1 in. Tube Length: 240 in. Tube Thickness: 0.08 in. Nozzle Schedule: Openings include: Shell side (2)10" NPS, (1) 2"; Tube side (2) 12", (1) 2" in the channel Head.
