• Falling film evaporator with mechanical vapor recompression, part of a Zero Discharge System (ZLD). The Evaporator includes the following major components: the evaporator, a circulation pump, a compressor, the deaereator, a distillate system, the feed heaters, and associated pumps. Each evaporator shares a common feed tank and seeding system.
• This evaporation system was previously used in a Zero Discharge System by a major Utility company. It was designed and engineered by Bechtel, and utilizes a seed-slurry process to maintain heat transfer tubes in a scale controlled manner. The process has been maintained in excellent shape.
• The main evaporator (Plant # BC-1/2) is a Model 130T designed by RCC and manufactured by Plant Maintenance Services, and has 13,000 square foot of surface area in the tube section. The construction Alloys are Titanium, AL6XN, and 316 SS. The design conditions for the condenser shell are 8 psig internal and 2 psig external at 250 degrees F. The condenser tubes are rated for full flooding and 8 psig external at 250 degrees F. The floor and sump are rated for full flooding and 2 psig at 250 degrees F. The evaporators dimensions are 88" OD at the condenser, 106" OD in the mid section and 134"OD at the sump/skirt. Overall height is 54' 11". The unit is skirt mounted. The tubes are 2" OD x 0.028" wall thickness x 24' long with a titanium top tube sheet and a AL6XN bottom tube sheet. The vessel includes two 30" manway for top and side access, and structural steel with stairs and platforms.*The recirculation pump(Plant # P-034-A/B) is an AC/ITT single stage, open impeller, horizontal centrifugal pump. It is a model # 150, size 14 x 12 x 21 PWO, with packing on the main shaft. It is rated for 5000 GPM at 40' TDH. The material of construction is Austenitic SS (CD4MCU). It is a base mounted direct coupled pump, driven by a 75 HP AC motor. The motor is rated for 60 Hz, 3 ph, TEFC with a 497 T frame.Mechanical Vapor recompression is provided by a Roots centrifugal blower( Plant # C-002-A/B), in a skid mounted package with an electrical driver. The blower is a Type 360IB, serial # HA3352. It is rated for 1233 lbs./minute, with an inlet volume of 30,003 ACFM, at 14.82 psi, with a specific gravity of 0.622. The inlet temperature is rated for 217 degrees F and the discharge pressure is 20.2 psi. It operates at 7309 RPM. It has a Lufkin gear increaser, and is driven by a Siemens 1000 HP ac motor. The motor is rated for 3/60 1460 volts. The skid mounted unit includes controls, oil system, and oil cooler.

• 130 gal (500 liter), Open top, dish bottom. No bottom outlet.

98.6% water evaporation4-effect falling film evaporator system Designed by Fritz Voltz sohn feed rate 3.4m3/hr, product 1.3 m3/hr Feed to 1st evaporator is 3.4 m3/hr @ 34.8% concentration and @ 104 deg C vacuum @ 4th evaporator 130 mbar Evaporator concentrations are: 1st = 42.1% @ 116 deg C2nd = 55.8% @ 107 deg C, 3rd = 91.3% @ 81 deg C, 4th = 98.6% @ 98 deg C System consists of:(3) 46 square meter 316 stainless steel tube, head and shell falling film evaporator (1st , 2nd, 3rd effects), manufactured by APV, design pressure tubeside 0.69 bar + full vacuum @ 130 degrees C, shell 3.10 bar + full vacuum @ 140 degrees C, working pressure tubeside 0.207 bar @ 120 degrees C, shell 2.07 bar @ 130 degrees C, (44) 50mm diameter x 18 SWG X 7m long 316 stainless steel tubes, 316 stainless steel tube sheets, 560mm diameter 316 stainless steel shell with expansion joint, (1) 316 stainless steel bonnet head, (1) bolt dished bottom head, mounted on a carbon steel skirt(1) 6 square meter 316 stainless steel tube, head and shell falling film evaporator (4th effect), manufactured by APV, design pressure tubeside 2.5 bar + full vacuum @ 150 degrees C, shell 2.5 bar + full vacuum @ 150 degrees C, (14) 44mm diameter x 16G x 3.5m long 316 stainless steel tubes, 323.9mm diameter 316 stainless steel shell with expansion joint, 4295mm overall height, (1) 316 stainless steel flat bonnet head, (1) weld coned bottom, effect attached on top of a 720 liter 316 stainless steel vertical pressure separator/tank, manufactured by APV, design pressure 2.5 bar + full vacuum @ 250 degrees C, 792mm diameter x 1.5m straight side, weld dished top and bottom, mounted on legs(3) approx 600 liter 316 stainless steel vertical separators, manufactured by APV, design pressure 10 psig + full vacuum @ 130 degrees C, 775mm diameter x 1219mm straight side, weld slight coned top, weld coned bottom,(1) 10.6 square meter 316 stainless steel tube and shell horizontal condenser (1st stage), manufactured by APV, design pressure tubeside 2.5 bar + full vacuum @ 150 degrees C, shell 2.5 bar + full vacuum @ 150 degrees C, (34) 25mm diameter x 16G x 4m long 316 stainless steel tubes, (2) 316 stainless steel flat heads, 406mm diameter 316 stainless steel shell, 4.5m overall length, mounted on saddles(1) 11 square meter 316 stainless steel tube and shell horizontal condenser (2nd stage), manufactured by APV, working pressure tubeside 2.07 bar @ 35 degrees C, shell -0.9 bar + full vacuum @ 50 degrees C, (76) ¾” x 18 swg x 4145mm long 316 stainless steel tubes, (2) 316 stainless steel flat heads, 300mm diameter 316 stainless steel shell, overall length 4523mm, mounted on saddles,(3) approx 132 liter 316 stainless steel vertical pressure tanks (flash vessel), manufactured by APV, design pressure 2.5 bar + full vacuum @ 150 degrees C, 400mm diameter x 750mm straight side, bolt dished bonnet head, weld dished bottom, mounted on legsProcess operationThe first 3 evaporators are falling film and tube (shell & tube) evaporators, where the product flows up and down through a series of tubes which are surrounded by a heating medium, steam @ 1.8 bar is used as the heating mediumThe hot liquid from each evaporator is fed to its associated “separator” in which the vapour separates from the liquid and is drawn off,The 4th evaporator uses a “once-through” falling film concentrator, the unit is similar to that of a shell & tube heat exchanger except that the product falls down the unit through a number of pipes which are surrounded by a heating medium, steam @ 1.8 bar is used as the heating medium, Vacuum @ 130mbar is applied to the 4th evaporator, which draws the vapour through the first 4 evaporators.After the 4th evaporator the product is fed through a heat exchanger, where it cools the product to between 50 deg C and 70 deg C, water is used as a cooling medium, from there the product goes to storage tanks (not available)

• 300 GPM, Zero Discharge System brine evaporator/crystallizer system (ZLD)System includes a falling film evaporation system, with mechanical vapor recompression, and a forced circulation crystallizer.
• Previously used by a major utility company. This process has been maintained to an excellent standard. The overall system is designed to concentrate 300 GPM flow rate Reverse Osmosis reject stream to essentially dry, land fillable solids. Distillate produced in the evaporator / crystallizer is of high quality ( less than 10 mg/l TDS excluding volatiles) and suitable to recycle.There are two 150 GPM, MVR falling film Brine Evaporators followed by a 50 GPM feed flow rate, steam driven, forced circulation type Brine evaporative crystallizer. A centrifuge is integrated with the crystallizer to produce solids suitable for a landfill.
• All major and minor components are included including some but not all field instrumentation. The evaporator uses "seeding" crystals in the slurry in order to prevent scale up on the tubes. Major items are as follows: Two (2) 150 GPM falling film evaporators with titanium tubes, and flood box/sump constructed of AL6XN and 316 SS. Each evaporator has a MVR system with a mechanical compressor provided by Dresser-Rand, and a recirculation pump by ITT rated for 5000 gpm. ( IPP stock numbers 228146 & 228148) ; One 50 GPM crystallizer, previously had a rubber lined vessel, but was removed due to bad rubber. (vessel can be re fabricated from either SS or CS). Also with a 3,500 sq.ft. shell and tube heat exchanger, and a recirculation pump rated for 19,000 GPM. The heater has wetted parts of AL6XN, and the pump alloy is CD4MCu. ( IPP stock numbers 228100 through 228110) Dry product is discharged through a Bird centrifuge rated for 18,000 lbs./hr. (IPP stock number 228101)

• CS, with rubber lining, Vapor Body, with Alloy support accessories, forced circulation crystallizer, part of a Zero Discharge System (ZLD). The system's major equipment consists of a shell and tube evaporator heater, Vapor body, recirculation pump and centrifuge. Rated for 50 GPM flow10% moisture) and consumes 20 psi steam at 25,00 lbs./hr. Following is a short process description: The feed from Brine Evaporator enters the recirculation piping above the recirculation pump. The feed is mixed with recirculating brine slurry and pumped through the heater where it increases in temperature and is sent to the vapor body. The hot brine flashes down to the saturation pressure inside the vessel, producing vapor and the cycle is repeated. Crystals are formed continuously in crystallizer vapor body and have to be removed. Concentrated product is removed from the system, passed through a centrifuge to remove the solid crystals and is returned to the evaporator recirculation line. The crystals are sent to a landfill. Vapor from the crystallizer is sent to a small barometric condenser using cooling water to condense the vapors. Condensate is mixed with incoming cooling water and is discharged back to the cooling tower. Vent from the condenser is vented by a CS ejector, through a silencer, and out to the atmosphere. Prime condensate from the condensed plant stream is sent back to the primary feed heater to assist in heating incoming Brine Evaporator feed. The following are main components of the system: Stock #228100- crystallizer heater is 5,700 Ft2 of surface area, with 1040 straight tubes, 1.25”OD x 0.028” wall thickness x 12 Feet long, and are constructed of Titanium. The tube sheets are SS316 Ti clad. Heads are made of SS alloy AL6XN & Shell of SS316L. The Crystallizer stock # 228156 is 16’ Dia. x 30’ Overall Height with 60” cone bottom. It is made of rubber lined Carbon steel. (the crystallizer vessel was removed , we have a drawing so a new vapor body can be constructed.) The Crystallizer recirculation pump, stock #228104 is 19,000 GPM with 150 HP motor and fabricated from SS alloy. The centrifuge stock #228101 is Bird Bowl type, 24" diameter x 38" long, rated for 18,304 Lbs./hr. with SS316L contact parts, 30 HP Motor with SS alloy product contact parts.

double effect evaporation system. See video of system operating at http://www.youtube.com/watch?v=Y6J52r-maPE. Capacity based on a brine stream at 24% to 50% strength. Feedstock of 32,000 lbs/hr(normal operating) or up to 50,000 lbs./hr. brine at ~ 20-25% NaBr is sent to the first effect, where it is strengthened to ~ 35% NaBr. The steam generated from this effect is used for heating on the second effect. Final target for brine leaving the second effect is 45-50% NaBr. The first effect (IPP Stock # 216077) (drum type)t is 2,000 gallon, and is manufactured by Paget. With a 400 sq.ft. "U" tube heater, this unit is operaing at 310 degrees F using 150# steam. The second effect is a modular, forced circulation system, designed by Swenson and manufactured by Four Corp. This effect is operating at atmospheric pressure and using the steam generated from the first effect to heat the second effect 838 sq. ft shell and tube heater(reboiler, IPP Stock # 216082). Overheads are condensed (IPP Stock # 216085). Product at ~ 50% NaBr is sent to storage. Circulation is acheived by a Goulds 6,000 gpm centrifugal pump. The first effect is a stand alone unit, the second effect is a modular system with all equipment mounted with in it's own framework. Instrumentation by Rosemount.

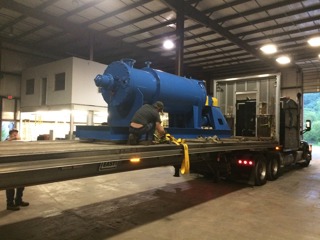

• Gouda Cooling Disc Crystallizer
• Internal plated for crystallizing the product, with wipers driven by the rotating shaft.
• Body OAL(no Motor or shaft) 118" long x 82" high x 60" wide.

Feed Heating: 316 SS plate & Frame Alfa Laval 27 Sq.Ft. & 51 Sq.Ft..

• External condenser, see below.
• 1050 lbs. weight unit only, no accessories.
• Belt driven by a Reliance AC motor -Haz C1,D1 Gpc & D-NEMA frame.
• 2" foam glass insulation with 304 SS seal welded sheathing polished to a 42Ra finish.
• Stainless steel belt guard.
• With the following : 50 Sq. Ft. shell and tube condenser 316 L SS, shell 150 psi at 400 degrees F., tubes FV 25 psi at 305 Degrees F.. One-10 Gallon concentrate tank 316 SS, one 25 Gallon distillate tank 316 L SS, and pumps.
• Product specific evaporation rate- 25 lbs/hr Mechanical Seal on Shaft: Yes. Drive Type: Electric Motor.

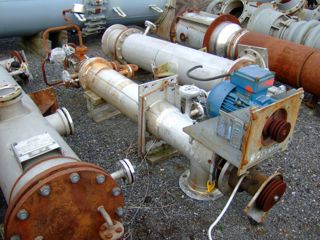

Short Path wiped film evaporator system with internal condensor includes SS seperator tank Rated 2000 liter 95 liter in the jacket. Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor, Graphite wipers on rotor. Evaporator has a side bottom discharge for product. Vessel weight empty, 2600 kg; motor and rotor 800 kg.

Short Path wiped film evaporator system with internal condensrr includes SS seperator tank Rated 2000 liter 95 liter in the jacket. Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor, graphite wiper on rotor. Evaporator has a side bottom discharge for product. Vessel weight empty, 2600 kg; motor and rotor 800 kg.

Short Path wiped film evaporator system with internal condensor includes SS seperator tank. Rated 2000 liter 95 liter in the jacket. Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor, Graphite wipers on rotor. Evaporator has a side bottom discharge for product. Vessel weight empty, 2600 kg; motor and rotor 800 kg.

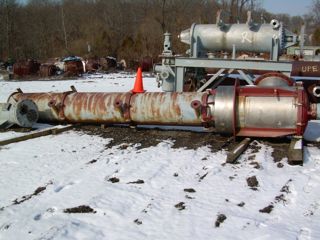

304 ELC SS 40% clad on Carbon steel (for product contact), thin film evaporator system Mfd by Buflovak 165 psi @ 400 deg F jkt. NB stamped 5931. Rotor was under driven by 20 HP, 3/60/220/440 volt mtr w/UL label, 480 rpm rotor speed. (motor for drive not available). Unit has external upper & lower bearings, mech seals on shaft. Unit has 3" feed port and 10" x 24" discharge into centrifugal vapor/liquid separator. 36" deep cone btm. W/system is 565 sq ft, 304LSS shell side, CS head, horiz condenser with 3/4" OD x 18 bwg, 304LSS tubes, 143" long. 6 pass tube side. 18" dia 304ELC SS shell 161" overall length. CS channels. Unit designed for 30 psi & full vac @ 400 deg F shell side; 100 psig @ 400 deg F tube side. Openings: shell 1-10", 1-3"; channels 2-4" one head, (2) 3/4" other head. Mfd by Patterson Kelly. Also w/unit is an 81 sq ft aftercondenser. Mfd by Graham, 304SS shell side, CS tube side. Unit rated 50 psig/full vac @ 150 deg F shell side; 75 psig @ 150 deg F tube side. Asme code constructed. 8" dia shell, 8' long tubes, 9'11" overall length.

Mfd by Balfour/Sybron Order #48621 Lined w/glass #3115 CS jkt 98 psi @ 392 deg F Has glass covered int rotor w/graphite wipers. Retaining pins and rotor shaft are titanium. jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.Has 3-sections: clamped dish entrainment section, 48" dia x 42" str side; jkt body section, 48" dia x 9'10" str side; and clamp jkt cone btm.

Drive is Pfaudler Type VS80-U21983, belt driven by approx 10 HP motor w/mech seal on shaft.

jkt rated 16 kg/sq cm @ 200 deg C. 9 gal capacity W/(2) rows of str blades and (2) rows of positive pitched blades @ 25 deg angle on central core. Driven by 20 HP, 1170 rpm Reeves variable speed drive, 6.2:1 ratio, 64 rpm min, 428 rpm max. C-configuration. Has air operated valve positioner w/mech seal. Has jkt btm cone; rotor extension (removable product propelling rotor section).

(3) evaporator sections Separator section 48" dia. Int rated full vac, jkt rated 150 psi @ 393 deg F. Cone btm not jkt. 4-blade rotor. Belt driven by 15 HP, 3/60/220/440 volt, 1140 rpm motor, UL label. Rotor 380 rpm.

with 316 SS rotor, Jacket rated for 218 psi at 482 degrees F. Heating surface area 150.7 Sq. Ft., Serial numbers: Lower Body Serial Number 1400/56, National Board Number 717; Interm body Serial Number 1400/56, National Board Number 716; Upper Body Serial Number 1400/56, National Board Number 715; Lower cone Serial Number 1400/56, National Board Number 718. Body is 850 mm inside diameter x 6320 mm to bottom of cone. Rotor assembly is 4 blade 316 SS construction, bottom cone is solid Hastelloy, shell is Hastelloy Clad. Unit driven by a 25 hp, 3 phase, 60 cycle, 230/460 volt motor, with Class 1 Group D label, Rotor speed is 880 rpm.

• Falling film evaporator with mechanical vapor recompression, part of a Zero Discharge System (ZLD). The Evaporator includes the following major components: the evaporator, a circulation pump, a compressor, the deaereator, a distillate system, the feed heaters, and associated pumps. Each evaporator shares a common feed tank and seeding system.
• This evaporation system was previously used in a Zero Discharge System by a major Utility company. It was designed and engineered by Bechtel, and utilizes a seed-slurry process to maintain heat transfer tubes in a scale controlled manner. The process has been maintained in excellent shape.
• The main evaporator (Plant # BC-1/2) is a Model 130T designed by RCC and manufactured by Plant Maintenance Services, and has 13,000 square foot of surface area in the tube section. The construction Alloys are Titanium, AL6XN, and 316 SS. The design conditions for the condenser shell are 8 psig internal and 2 psig external at 250 degrees F. The condenser tubes are rated for full flooding and 8 psig external at 250 degrees F. The floor and sump are rated for full flooding and 2 psig at 250 degrees F. The evaporators dimensions are 88" OD at the condenser, 106" OD in the mid section and 134"OD at the sump/skirt. Overall height is 54' 11". The unit is skirt mounted. The tubes are 2" OD x 0.028" wall thickness x 24' long with a titanium top tube sheet and a AL6XN bottom tube sheet. The vessel includes two 30" manway for top and side access, and structural steel with stairs and platforms.*The recirculation pump(Plant # P-034-A/B) is an AC/ITT single stage, open impeller, horizontal centrifugal pump. It is a model # 150, size 14 x 12 x 21 PWO, with packing on the main shaft. It is rated for 5000 GPM at 40' TDH. The material of construction is Austenitic SS (CD4MCU). It is a base mounted direct coupled pump, driven by a 75 HP AC motor. The motor is rated for 60 Hz, 3 ph, TEFC with a 497 T frame.Mechanical Vapor recompression is provided by a Roots centrifugal blower( Plant # C-002-A/B), in a skid mounted package with an electrical driver. The blower is a Type 360IB, serial # HA3352. It is rated for 1233 lbs./minute, with an inlet volume of 30,003 ACFM, at 14.82 psi, with a specific gravity of 0.622. The inlet temperature is rated for 217 degrees F and the discharge pressure is 20.2 psi. It operates at 7309 RPM. It has a Lufkin gear increaser, and is driven by a Siemens 1000 HP ac motor. The motor is rated for 3/60 1460 volts. The skid mounted unit includes controls, oil system, and oil cooler.

jacketed wiped thin film evaporator with column and condenser pressure internal -1/3 bar @ 250/350 deg C (38ltr) jacket 29.6/26.9 bar @ 250/350 deg C (6ltr) s/steel jacket on straight side only, rotor belt driven by 1.5 kw 3/50/500 volt 710rpm Exd 3nG5 motor, Crane 109 mechanical seal, evaporator with (1) 300mm diameter x 1.8m high 316L s/steel jacketed packed column, manufactured by Dynamite Nobel, fabrik #521, pressure internal: 13 bar + vak @ 200 deg C (140ltr), jacket: 8 bar @ 200 deg C (30ltr), internal coil 8 bar @ 200 deg C (2.5ltr), bolt flat top, weld dsihed bottom, 300mm diameter x 1020mm high packing section, Sulzer packing, (1) 1.2 sqm 316L s/steel (1.4571) tube, shell and head vertical jacketed heat exchanger, pressure tube side: 6 bar @ 200 deg C (40ltr), shell side: 3 bar + vak @ 200 deg C (50ltr), jacket: 8 bar @ 200 deg C 925ltr), (34) 25mm diameter x 2mm x 2.5m long 316L s/steel tubes, shell 250mm diameter x 2140mm total length, (1) dished head, (1) flat bonnet head, all parts are TUV certified

Short Path wiped film evaporator system with internal condensor Includes 2.9m² SS cold trap Rated 2000 liter 95 liter in the jacket Top mounted rotor drive with a 3.7 kw, 50 Hz gear motor with mechanical seal on rotor Evaporator has a side bottom discharge for product Vessel weight empty 2600 kg; motor and rotor 800 kg.

wiped film evaporator/filmtruder body only.

jkt rated 227 psi @ 392 deg F.

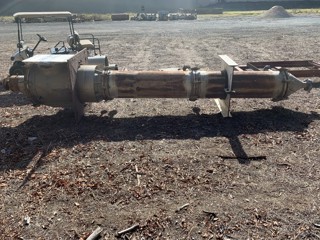

wiped film evaporator. Jacket rated for Rated for 150 psi at 381 degrees F. Stainless steel rotor belt driven by a pully and motor. Diameter of body section jacket 19.2". Shell wall thickness 0.393 thick, Jacket wall thickness is 0.275" thick. Empty weight 3,400 lbs.

• Jacketed tank, open top. Ground clearance: 12"
• Height 24" from top to jacket
• No bottom outlet

• Built to ASME code
• Drive Type: Electric.

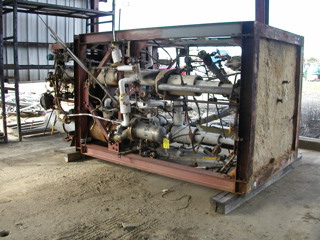

24 psig @ 482 degrees F in the jacket, All product wetted parts stainless steel. Mechanical seal on Rotor. Rotor driven by a 3 hp 1800 rpm 3 phase 60 cycle 230/460 volt. Entire system mounted in CS framework, with approximately 50 square foot condensor, 8" x 12" receiever under evaproator, Wilden diamphram pump, and demister.
