Reconditioned, 4 RW gearbox,

13 KW Rhenania drive1000 U/min reduction 63:15 motor 13,2 kW 3/50/500V/ 21,5A/ 965 rpm Flender gear type: SVRF 140

7/10.5 Kw AE-CE6300 Drive System driven by 7/10.5 kW725/1445 rpm Crane type MCT 100 mechanical seal with 6 liter lubricator pot, mounting stool coupling for shaft 880mm diameter with grate cover

7/8 RW Baseplate with 6" diameter glass lined bore

• Agitator shaft and blades 3.5" wide 0.25" thick Shaft is 1.5" diameter with Woods coupling on drive end.

2-1/2" diameter x 117.5" long CS hub/flange. OAD 146"L X 17"W X 17"T.

Drive system with VSO 16/80 complete with Drive stool Gear box VSO 16 Belt drive motor 9A

5DTW gear box with Pharaoh nameplate, Primary ratio 1.5 - 1, secondary ratio 10 - 1, service factor 1.

Pfaudler 3.5 gearbox only

CS hub/flange

agitator drive with grate cover, for a CE-10000ltr, VSO-64/021616 gearbox, serial #177945/12 mechanical seal with lubricator

base is 26" x 37" with a CS outlet flange (12") Motor: 3 phase

6 RW adaptor plate fits 6" nozzle

type ASRC160-2RCAE22 reduction gearbox,

2340-583:120-30 rpm,

stool and 3-finger retreat curve agitator shaft.

shaft 145mm diameter x 4950mm total length,

125 diameter x 75mm wide seal area,

125mm diameter x 500mm long carbon steel stub end, approx 1360mm span,

wetted parts with shaft and impeller with 4' 316 SS shaft Clockwise rotation 115/230 v motor Mounting flange 11" OD x 9.5" BC fits standard 8" 150 # flange

7-8 RW drive adapter plate

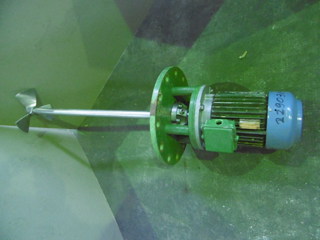

Fluid agitator drives vari-speed drive Motor: 3 phase 290/500 volt Stober type R37-0000-NK-135-4 352/1763 rpm vari-speed gearbox 25mm diameter x 1.5m long 1.4571 s/steel quick release shaft 3-blade marine type impellor drive with adjustable shaft angle and rotation

250-1750 rpm SS vertical portable agitator mixer (3-blade) with electrical motor Mixer mounted on rack Motor data: 500V/ 0,75kW/ 1,33A/ 50Hz/ 2790 rpm mfd by HEW

hydraulic driven agit drive 15 HP Gyrol hydraulic drive SN -1, 7712106 230/460 volt 25 rpm final output -1 rated 68.6 ratio Heavy duty

agitator drive for an CE2500 glass lined reactor 230-400 volt Crane type MDL 80 mechanical seal with 6 liter lubricator pot mounting stool, coupling for shaft, 880mm diameter grate cover with 450mm x 350mm manway (with cover)

Agitator is 600mm long, diameter 85mm, Driven by a 11 kW E-Motor 400V/44 A/50Hz/1440 rpm motor.

Agitator is 865mm long, diameter 35mm, Driven by a 1,1 kW E-Motor 220/380V/8,1/3,5 A/50Hz/700 rpm motor.

agitator drive with mechanical seal Agitator is 900mm long, diameter 35mm Motor 230/ 400V/7,2/4,2 A/50Hz/700 rpm motor.

Agitator is 860mm long, diameter 40mm E-Motor 220/380V/1/3,5 A/50Hz/700 rpm motor.

order #811648-1 Service factor 1.25. With GE 30 HP AC electric motor.
