C 3-stage reciprocating Boil-off-gas (BOG) compressor system maximum allowed rod. Load 100kN, rated discharge pressure of final stage 69 barg, suction pressure 1st stage 0.05 bar @ 30 degrees C, 2nd stage 4.6 bar @ 45 degrees C, 3rd stage 27.7 bar @ 45 degrees C, discharge pressure 1st stage 4.7 bar @ 176 degrees C, 2nd stage 27.9 bar @ 190 degrees C, 3rd stage 69 bar @ 160 degrees C, driven by a 250kw, 3/50/400 volt, 594 rpm ATEX 1022 EExd II B T4Loher motor, (1) 550 liter stainless steel vertical pulsation dampner vessel, manufactured by Nadoba Stabilini, serial #954, pressure 0.05 bar @ -118/+30 degrees C, 610mm diameter x 1740mm straight side, weld dished top and bottom, (1) 125 liter carbon steel horizontal pulsation dampner, manufactured by Tlakova Nadoba Stabilini, serial #955, pressure 10.7/69.6 bar @ 57/159 degrees C, weld dished ends, (1) carbon steel tube and shell horizontal 1st stage intercooler, manufactured by APL Apparatebau AG, serial #W8227/EC22601, tubeside pressure 10 barg @ -10/200 degrees C (27 liter), shell 10 barg @ -10/200 degrees C (53 liter), (1) carbon steel tube and shell horizontal 2nd stage intercooler, manufactured by APL Apparatebau AG, serial #W8228/EC22602, tubeside pressure 29 barg @ -10/200 degrees C (20 liter), shell 10 barg @ -10/200 degrees C (55 liter), (1) carbon steel tube and shell horizontal 3rd stage intercooler, manufactured by APL Apparatebau AG, serial #W8229/EC22603, tubeside pressure 78 barg @ -10/200 degrees C (9 liter), shell 10 barg @ -10/200 degrees C (42 liter), system also includes interconnecting pipework, valves, etc, ALL CE MARKED

IP55 motor, water cooled, with integrated air dryer, mounted in an acoustic cabinet,

pressure compressor cooling medium R717 Motor current: 144A

115 to 125 max. psi Rotary Screw Air Compressor Oil Free, packaged design, with microprocessor controls, cooler and lubricator

Wet Gas Compressor Radial Split case two stage compressor motor through a Lufin gear reducer

The Datum compressor is an 18 frame size(inside case diameter) with a radial split case, six impellers and a back to back rotor design. The machine features a lube skid that supports the compressor, motor and gear, a gas skid for the double Dry Gas seals, and instrumentation for vibration and temperature detection.

MMSCFD Dry: 49.73; Lbs/Hr Wet: 224,820; Inlet PSIA: 20.9; Inlet Temp: 106 Degree F; Inlet ACFM Wet: 24,183 Designed for Outdoor Use, Under roof.
All Electricals are Class 1, Group CD, Division 2. Speeds: Maximum Continuous 5,653 RPM, Trip Speed 5,719, CCW rotation from drive end. With one piece shaft. Motor, Gear reducer, and Compressor skid mounted.
Lufkin Gear reducer, 3.178:1 ratio, rated 10,300 HP. The Oil control system is by Cobey, and skid mounted. The Seal gas system and skid are by Flowserve.

Ammonia Compressor C/T 20571. Inlet Casing Design Pressure 2500 PSIG, Outlet Casing Design Pressure 2500 PSIG; Outlet casing Design Temperature 450 Degrees F 1sr Critical speed 5300 RPM, Maximum Operating Temperature 380 Degrees F; Test Inlet Pressure 3750 PSIG; Test Discharge Pressure 3750 PSIG. NOTE: Used in train with turbines #206300 & 206301, and Compressor # 206303

• Variable speed motor based on load.

air cooled oil free rotary screw compressor This is a twin shaft screw compressor, positive displacement type 55 psia @ 60 degrees F outlet pressure The compressor is a type WQ 40-12/55, 1.2 kg/cu M, 20 degrees C, 75 cuM/minute 321 amps General Electric Energy Saver AC motor The intake flange is 8" and discharge flange is 6" and both are mounted at the top of the machine, and the instrumentation for monitoring the unit are mounted on the side as a panel. This unit is mounted in complete sound proof enclosure.

air cooled rotary screw compressor oil free This is a twin shaft screw compressor This is a twin shaft 55 psia @ 60 degrees F outlet pressure The compressor is a type WQ 40-12/55, 1.2 kg/cu M, 20 degrees C, 75 cuM/minute General Electric Extra Severe Duty AC motor The intake flange is 8" and discharge flange is 6" and both are mounted at the top of the machine, and the instrumentation for monitoring the unit are mounted on the side as a panel. This unit is mounted in complete sound proof enclosure.

• Centrifugal compressor C/T # 20967-AHP=14438Ratio; 3.68.Down Nozzle, set up for a turbine drive.

Two stage, oil flooded, rotary, air compressor Single stage screw compressor, with all accessories piped, wired and base plate mounted in a packaged design with sound proof housing. Equipped with IR "Intellisys" digital controls, for operation of the entire system and allowing for modification of 12 variables in the controller logic. 3 inch NPT air discharge line, 2" NPT cooling water inlet and outlet ports, 0.5" NPT condensate drain line. Total package amps 310

Flow rate: 910 Nm3/hr 100/165 deg C Hydrogen 3-stage V-type compressor system aspiration flow 1010 m3/hr suction pressure stage 1 = 1/1.1 bar @ 20-40 deg C, stage 2 = 3.6 bar @ 140 deg C, stage 3 = 10.76 bar @ 40 deg C, pressure side stage 1 = 3.8 bar @ 165 deg C, stage 2 = 10.8 bar @ 160 deg C, stage 3 = 17 bar @ 100 deg C, ambient temperature -20/+10 deg C, water cooled compressor, performance 134kw 1500 rpm motor (missing) system also includes heat exchanger (gas cooler), pulsation dampers, separators, pipework, pressure gauges etc

Air end compressor head Part # 1616 6551 GA55 GBD- part # 2901-0844-00.

no ex proof System included (2) separator tanks (1) separate 4 cm³/U oil pump, type KF1/4 D10K POA ODD1 with 0.56 kW, 220-380, 50 Hz, 1.380 rpm electrical motor (1) separate control panel

• CE0038,
• MAWP 9 barg,
• input power 84.1kW,
• 3400 rpm shaft speed,
• built on controls,

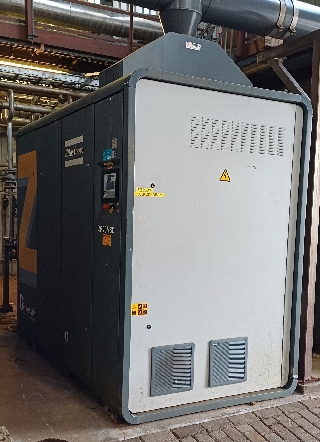

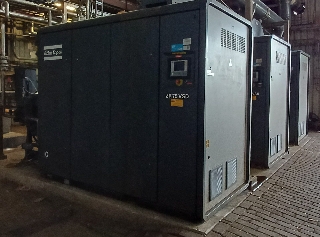

• contained in a soundproof cabinet,
• (1) Atlas Copco type MD200 VSD air dryer,

• CE0038,
• MAWP 9 barg,
• input power 101.6kW,
• 3400 rpm shaft speed,
• built on controls,
• contained in a soundproof cabinet,
• (1) Atlas Copco type MD200 VSD air dryer,

• CE0038,
• MAWP 9 barg,
• input power 84.1kW,
• 3400 rpm shaft speed,
• built on controls,
• contained in a soundproof cabinet,
• (1) Atlas Copco type MD200 VSD air dryer,

• Air compressor single stage screw compressor, with all accessories piped, wired and base plate mounted in a packaged design with sound proof housing. Equipped with IR "Intellisys" digital controls, for operation of the entire system and allowing for modification of 12 variables in the controller logic. 3 inch NPT air discharge line, 2" NPT cooling water inlet and outlet ports, 0.5" NPT condensate drain line. Total package amps 310

• Single stage diaphragm hydrogen compressor
• 400mm diameter metal diaphragm size 3
• Manufactured by (SERA) Seybert & Rahier - Germany
• Belt driven

rotary screw single stage air compressor With a 120 gallon receiver. with air cooling The compressor is belt driven The skid has analog controls.

two stage compressor SO # 60.5-7315

low pressure hydrogen compressor, vertical,two stage. V-belts Hydrogen humidity 100% compressor, capacity 65 kW, suction pressure, 1 stage 1.05 bar,30 C; 2nd stage 3,0 bar/34 C; discharge pressure abs 1 st stage 3.2 bar/145 C; 2nd stage 7.1 bar/122 C. 1st stage cylinder dia 370mm; 2nd stage 220mm. Cylinder material Ni-resist. Safety valve on 1st stage react at 3.5 bar; on 2nd stage 7.5 bar. Cooling water 5 cbm inlet temp 24 C@3 bar.

650 Nm3/hr Hydrogen single stage compressor system mass flow 62.2 kg/hr, suction pressure 16 bar @ 35 – 40 deg C, ambient temperature -20/+40 deg C, water cooled compressor performance 41kw, single stage, 85mm stroke, speed 780 rpm, average piston speed 2.21 m/sec, V-belt driven by 51kw, system also includes (1) horizontal heat exchanger (gas cooler), (2) pulsation dampers (1 for suction, 1 for discharge), pipework, pressure gauges etc

Rotary screw compressor system oil flodded, variable speed drive, contained in soundproof cabinet, conpressor with: (1) ingersoll rand "thermal mass" TMS250 cycling refrigerated air dryer, SN: TMS250-0503/3863, max allowable pressure 16 bar, refigerant 5.8kg of R134A, electric's 3/50/380-420 volt, min ambient temperature 0-43 degrees c, max inlet temperature 55 degrees c, (2) ingersoll rand IRGP/IRHE 706 high efficiency pre-filters, (1) domnick hunter CP375 activated carbon tower filter (oil vapor removal > 0.003ppm)
