Stock Number:
#247130
Capacity:
79.3 gal
Agitation:
Yes
Diameter:
22.8 in
Length:
66.5 in
Jacket:
Dimple
Orientation:
Vertical
Pressure:
0.5 psi
Temperature:
104 °F
Jacket MOC:
Stainless Steel 304
Number of Jacket Zones:
1
Jacket Pressure:
150 psi
Jacket Temperature:
150 °F
Additional Information:
Single Use Fermenter
- 5:1 Turndown Ratio, 3:1 Height to Diameter ratio.
- Jacket area 7.77 Sq. Ft., Jacket volume 10.85 liters
- 4 Tank Baffles, Internal impeller 2 HP drive motor with 5:1 Gear reduction
- Max rotation speed 375 RPMs. Internal Finish: Buff Polish. External Finish: Buff Polish .
Stock Number:
#705876
Capacity:
3,300 gal
Agitation:
Yes
Diameter:
86.6 in
Length:
98.4 in
Orientation:
Vertical
Pressure:
58 psi
Temperature:
320 °F
Vacuum:
Yes
Jacket Pressure:
58 psi
Jacket Temperature:
320 °F
Additional Information:
fermenter Tankki OY agitator drive, serial # 8420, driven by Sew-Eurodrive, type FAF80-DV160-M4, 11kw, 3/50/400/690 volt, 1440-105 rpm geared motor, (3) 6-blade turbine type agitators, dry running mechanical seal,
Stock Number:
#706846
Capacity:
113.6 gal
Agitation:
Yes
Diameter:
25.6 in
Length:
42.5 in
Pressure:
43.5 psi
Jacket MOC:
Stainless Steel 321
Additional Information:
321 stainless steel jacket on straight side only, 4-blade turbine impellor, under belt driven by 7.5 kw, 3 phase, 50Hz, 380/660 volt, 1450/118/472 rpm SEW-Usocome geared motor, Burgmann mechanical seal, includes pipework, valves, filter, pump.
Stock Number:
#245645
Capacity:
35,000 gal
Agitation:
Yes
Diameter:
144 in
Length:
588 in
Jacket:
Half Pipe/Limpet
Orientation:
Vertical
Pressure:
50 psi
Temperature:
300 °F
Jacket MOC:
Stainless Steel 304
Jacket Pressure:
150 psi
Jacket Temperature:
300 °F
Additional Information:
- Do not have motors/drive systems, No manway cover .
Stock Number:
#245646
Capacity:
35,000 gal
Agitation:
Yes
Diameter:
144 in
Length:
588 in
Jacket:
Half Pipe/Limpet
Orientation:
Vertical
Pressure:
50 psi
Temperature:
300 °F
Jacket MOC:
Stainless Steel 304
Jacket Pressure:
150 psi
Jacket Temperature:
300 °F
Additional Information:
- Do not have motors/drive systems, No manway cover .
Stock Number:
#201484
Capacity:
79.3 gal
Agitation:
Yes
Diameter:
24.8 in
Pressure:
36.3 psi
Temperature:
302 °F
Jacket Pressure:
36.3 psi
Jacket Temperature:
302 °F
Additional Information:
under driven vessel on carbon steel frame with a 4kw/3/50/300-380V/1200rpm motor and controls Motor: 4kw/3/50/300-380V/1200rpm
Stock Number:
#247098
Capacity:
79.3 gal
Agitation:
Yes
Diameter:
22.8 in
Length:
66.5 in
Jacket:
Dimple
Orientation:
Vertical
Pressure:
0.5 psi
Temperature:
104 °F
Jacket MOC:
Stainless Steel 304
Number of Jacket Zones:
1
Jacket Pressure:
150 psi
Jacket Temperature:
150 °F
Additional Information:
- See Legacy description
- 5:1 Turndown Ratio, 3:1 Height to Diameter ratio.
- Jacket area 7.77 Sq. Ft., Jacket volume 10.85 liters
- Internal impeller 2 HP drive motor with 5:1 Gear reduction
- Max rotation speed 375 RPMs. Internal Finish: Buff Polish. External Finish: Buff Polish.
Stock Number:
#45489
Capacity:
39.6 gal
Agitation:
Yes
Diameter:
15.7 in
Length:
34.4 in
Jacket:
Standard
Orientation:
Vertical
Pressure:
43.5 psi
Temperature:
266 °F
Jacket Pressure:
43.5 psi
Additional Information:

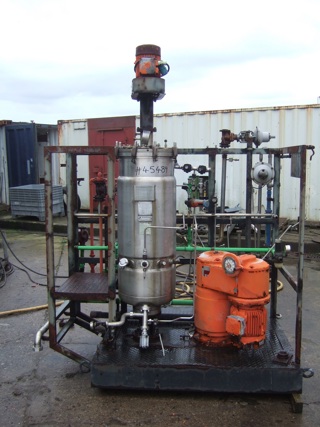

Has top mtd Funda foam separator driven by 2 KW, 3/60/220/380 volt motor. Separator rated 3 bar. Bottom entering agitator belt driven by 5 KW, 220 volt, 1440 rpm varidrive.
Stock Number:
#247096
Capacity:
79.3 gal
Agitation:
Yes
Diameter:
22.8 in
Length:
66.5 in
Jacket:
Dimple
Orientation:
Vertical
Pressure:
0.5 psi
Temperature:
104 °F
Jacket MOC:
Stainless Steel 304
Number of Jacket Zones:
1
Jacket Pressure:
150 psi
Jacket Temperature:
150 °F
Additional Information:
- See Legacy description
- 5:1 Turndown Ratio, 3:1 Height to Diameter ratio.
- Jacket area 7.77 Sq. Ft., Jacket volume 10.85 liters
- 4 Tank Baffles, Internal impeller 2 HP drive motor with 5:1 Gear reduction
- Max rotation speed 375 RPMs. Internal Finish: Buff Polish. External Finish: Buff Polish.
Stock Number:
#245643
Capacity:
35,000 gal
Agitation:
Yes
Diameter:
144 in
Length:
588 in
Jacket:
Half Pipe/Limpet
Orientation:
Vertical
Pressure:
50 psi
Temperature:
300 °F
Jacket MOC:
Stainless Steel 304
Jacket Pressure:
150 psi
Jacket Temperature:
300 °F
Additional Information:
- Do not have motors/drive systems, No manway cover .
Stock Number:
#247131
Capacity:
79.3 gal
Agitation:
Yes
Diameter:
22 in
Length:
66.5 in
Jacket:
Dimple
Orientation:
Vertical
Pressure:
0.5 psi
Temperature:
104 °F
Jacket MOC:
Stainless Steel 304
Number of Jacket Zones:
1
Jacket Pressure:
150 psi
Jacket Temperature:
150 °F
Additional Information:
- See Legacy description
- 5:1 Turndown Ratio, 3:1 Height to Diameter ratio.
- Jacket area 7.77 Sq. Ft., Jacket volume 10.85 liters
- 4 Tank Baffles, Internal impeller 2 HP drive motor with 5:1 Gear reduction
- Max rotation speed 375 RPMs. Internal Finish: Buff Polish. External Finish: Buff Polish .
Stock Number:
#247097
Capacity:
79.3 gal
Agitation:
Yes
Diameter:
22.8 in
Length:
66.5 in
Jacket:
Dimple
Orientation:
Vertical
Pressure:
0.5 psi
Temperature:
104 °F
Jacket MOC:
Stainless Steel 304
Number of Jacket Zones:
1
Jacket Pressure:
150 psi
Jacket Temperature:
150 °F
Additional Information:
- See legacy description
- 5:1 Turndown Ratio, 3:1 Height to Diameter ratio.
- Jacket area 7.77 Sq. Ft., Jacket volume 10.85 liters
- 4 Tank Baffles, Internal impeller 2 HP drive motor with 5:1 Gear reduction
- Max rotation speed 375 RPMs. Internal Finish: Buff Polish. External Finish: Buff Polish.
Stock Number:
#245650
Capacity:
3,450 gal
Body Only:
Yes
Diameter:
86 in
Length:
235 in
Jacket:
Dimple
Orientation:
Vertical
Pressure:
43.5 psi
CIP:
Yes
Jacket MOC:
Stainless Steel 304
Number of Jacket Zones:
3
Jacket Pressure:
43.5 psi
Jacket Temperature:
4 °F
Additional Information:
Insulated and classed/sheathed Internal Finish: Normal Polish.
Stock Number:
#247790
Capacity:
52.8 gal
Agitation:
Yes
Orientation:
Vertical
Pressure:
43.5 psi
Temperature:
266 °F
Jacket Pressure:
58 psi
Jacket Temperature:
266 °F
Additional Information:
- Clamps 10 x M16-K
- Vessel volume 302 Liters, Jacket volume 40 Liters
Stock Number:
#247791
Capacity:
171.7 gal
Agitation:
Yes
Diameter:
33.5 in
Length:
63 in
Jacket:
Standard
Orientation:
Vertical
Pressure:
43.5 psi
Temperature:
266 °F
Vacuum:
Yes
Jacket MOC:
Stainless Steel 304L
Number of Jacket Zones:
1
Jacket Pressure:
58 psi
Additional Information:
- Clamps 8x M20-K
- Volume vessel 650 Liter, volume Jacket 48 Liter
- CE0045 confirm
- SEW Eurodrive 5.5kW/50Hz/230-400V/2880rpm, bottom mounted. Jacket Temperature: 266 °F.
Stock Number:
#247792
Capacity:
171.7 gal
Agitation:
Yes
Diameter:
33.5 in
Length:
63 in
Jacket:
Standard
Orientation:
Vertical
Pressure:
43.5 psi
Temperature:
266 °F
Vacuum:
Yes
Jacket MOC:
Stainless Steel 304L
Number of Jacket Zones:
1
Jacket Pressure:
58 psi
Additional Information:
- Clamps 8x M20-K
- Volume vessel 650 Liter, volume Jacket 48 Liter
- CE0045 confirm
- SEW Eurodrive 5.5kW/50Hz/230-400V/2880rpm, bottom mounted. Jacket Temperature: 266 °F.
Stock Number:
#247092
Capacity:
7.9 gal
Agitation:
Yes
Diameter:
10.5 in
Length:
31 in
Jacket:
Dimple
Orientation:
Vertical
Pressure:
0.5 psi
Temperature:
40 °F
Jacket MOC:
Stainless Steel 304
Number of Jacket Zones:
1
Jacket Pressure:
150 psi
Jacket Temperature:
150 °F
Additional Information:
- See Legacy Description
- Agitator drive Brother 3 phase induction motor, CE certified. F3S3055-WF4AENX Rated for ambient to 40 degrees C. o.5 HP, 5:1 Ratio 208V 60 Hz,1.80 a, 1700 rpm. MFR # 72D96232002. Internal Finish: Buff Polish. External Finish: Buff Polish.
Stock Number:
#701889
Capacity:
89.8 gal
Agitation:
Yes
Diameter:
18 in
Length:
81 in
Orientation:
Vertical
Additional Information:
Model ESRV agitator drive, 2.55:1 ratio. bottom driven by 4 HP, 1440 rpm motor.
Stock Number:
#705854
Capacity:
5.3 gal
Agitation:
Yes
Diameter:
7.9 in
Length:
20.5 in
Pressure:
43.5 psi
Temperature:
302 °F
Vacuum:
Yes
Jacket Pressure:
43.5 psi
Jacket Temperature:
302 °F
Additional Information:
Stainless steel jacket on straight side only, 4-blade marine agitator, underdriven by 0.25 kw, 3/50/220/380 volt, 2800 rpm motor via gearbox, level glass on straight side,
Stock Number:
#247041
Capacity:
17,250 gal
Diameter:
122 in
Length:
366.6 in
Jacket:
Standard
Orientation:
Vertical
Pressure:
58 psi
Temperature:
298.4 °F
Vacuum:
Yes
CIP:
Yes
Jacket MOC:
Stainless Steel 316
Number of Jacket Zones:
3
Jacket Pressure:
50.8 psi
Additional Information:
Jacket Temperature: 203 °F. Internal Finish: Ra0.8 um. External Finish: Insulation 2B. Welds pickled. Top, legs, and handrails glass blasted..
Stock Number:
#247042
Capacity:
17,250 gal
Diameter:
122 in
Length:
366.6 in
Jacket:
Standard
Orientation:
Vertical
Pressure:
58 psi
Temperature:
298.4 °F
Vacuum:
Yes
CIP:
Yes
Jacket MOC:
Stainless Steel 316
Number of Jacket Zones:
3
Jacket Pressure:
50.8 psi
Additional Information:
Jacket Temperature: 203 °F. Internal Finish: Ra0.8 um. External Finish: Insulation 2B. Welds pickled. Top, legs, and handrails glass blasted..
Stock Number:
#247043
Capacity:
17,250 gal
Diameter:
122 in
Length:
366.6 in
Jacket:
Standard
Orientation:
Vertical
Pressure:
58 psi
Temperature:
298.4 °F
Vacuum:
Yes
CIP:
Yes
Jacket MOC:
Stainless Steel 316
Number of Jacket Zones:
3
Jacket Pressure:
50.8 psi
Additional Information:
Jacket Temperature: 203 °F. Internal Finish: Ra0.8 um. External Finish: Insulation 2B. Welds pickled. Top, legs, and handrails glass blasted..
Stock Number:
#247245
Capacity (Design):
50 gallons
Internal Pressure:
50 psi
Internal Full Vacuum:
Yes
Internal Temperature:
350 °F
Jacket Pressure:
100 psi
Jacket Temperature:
350 °F
Jacket Material of Construction:
Stainless Steel 304L
Orientation:
Vertical
Agitation:
Yes
Diameter:
19 in
Straight Side Length:
28 in
CIP:
Yes
Additional Information:
- Mettler Toledo HMI with Automation Direct Productivity 2000, in a SS NEMA type 4 enclosure (UL Listed).
- Skid includes heat exchangers: 5 Sq. Ft., NB # 79171, manufactured by ITT both sides rated for 150 psi at 375 degrees F. Also included, Allegany Bradford, serial # 8553-21-2 (built 2001) Both sides rated for 100 psi at 300 degrees F.
- Skid includes a vertical recirculation pump manufactured by Grundfos. 7.5 HP with Allen Bradley VFD mounted in a separate NEMA enclosure. (480 V, 3 phase, 60 Hz)
- Designed for product specific Gravity of 1.1
- Estimated weight is for vessel only-Not for skid. Support Type: Skid.
