• DISHO Vacuum Mixing Dispersing and Homogenizing Unit. Vessel manufactured by Hebold, rated FV/36 psi at 356 degrees F internal; with a 24" cone bottom. It has a flanged and bolted dish top head. Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1".
• Fully insulated with SS shroud over insulation. Mounted on legs with Top mounted double motion agitator with wide sweep with perforated pitched blades and side wall scrapers, and center shaft with perforated pitched blades that intermesh with counter rotating wide sweep agitator blades.
• 3/60/230/460 volt motor Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 51 KW 3/60/230/460 volt motor. Complete skid mounted system with approx. 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.

Jaygo vacuum dispersion and homogenizing mixer system Mixing chamber rated 20 psi and full vacuum @ 350 degree F to -20 degree F minimum. All fittings sanitary. Unit measures 20" diameter x 20" straight side x 8" cone bottom clamped dished top. Gate design agitator with teflon scraper blades 5 rpm minimum, 34 rpm maximum. Drive has automatic hydraulic lift mechanism with 24" lift capacity System includes: (1) 3 HP Nash brass vacuum pump, Model #AT34. (1) 1 HP Moyno pump, Model #IFF4SSV, driven by 1 HP Reeves varidrive. (1) approx 5 HP inline disperser. Includes all controls and power box, temperature probes and capacitance probes.

jacketed Trusioma high intensive mixer Aluminum cover Mixer max 450 rpm. Max working capacity 300 liter. 2-tier, 2-blade impellors with baffle. Hinged cover with pneumatic opening. 8" pneumatic discharge valve. switch gear cabinet.

clamped top with davit carbon steel jacket, Pneumatically operated discharge valve

polished sanitary jacketed high intensity mixer highly polished, (3) sets of 2-blade on rotor manual s/steel plow non-flameproof motor. manual variable speed drive 1800 rpm to 3800 rpm c/steel straight jacket Hinged top cover with 2" (50mm) sight glass w/light, jacket outlets 2-1" (25mm), 1-2" (50mm) side bottom discharge with manual plug valve. On/off switch, safety cut off switch on top cover

Air actuated discharge. Davit arm Swing-away lid. Top lid openings are one 12", one 7.75", one 3.75", and one 5.5".

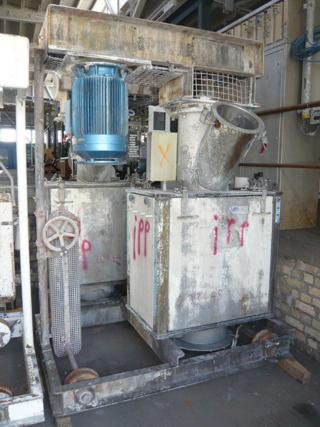

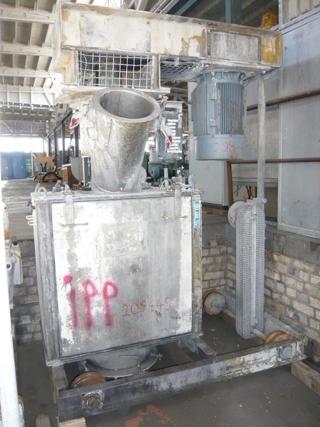

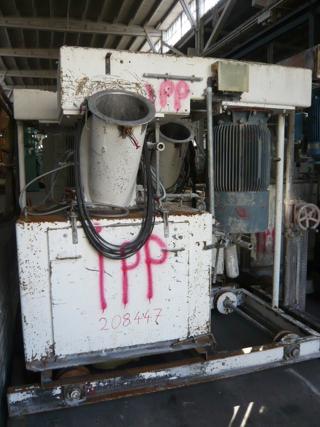

400 Mixer Agglomerator capacity 17 m³/h air consumption 36 m³/h mixing chamber is Neoprene On each shaft are 2 sets with 6 knives each Knives at 360 degrees rotatable belt drive Motor: 100-58 A

1.4541 universal high intensity mixer.

400 Mixer Agglomerator capacity 17 m³/h air consumption 36 m³/h mixing chamber is Neoprene On each shaft are 2 sets with 6 knives each. Knives at 360 degrees rotatable. belt drive Motor: 245-140 A

400 Mixer Agglomerator capacity 17 m³/h air consumption 36 m³/h mixing chamber is Neoprene On each shaft are 2 sets with 6 knives each Knives at 360 degrees rotatable belt drive Motor: 100-58 A

Vertical continuous mixer and agglomerator with vertical clyndrical mixing chamber and vertical rotating shaft. With self cleaning chamber. Capacity rating (bulk density of 0.5 kl/l) is 8000 to 40,000 Kg/H

(317gallons) Vacuum Mixing, Dispersing and Homogenizing Unit with bolted dished top, cone bottom Dispersing and Homogenizing Unit Manufactured by Stainless Fabricators Inc rated FV/25 psi @ 300 degrees F internal fully insulated with SS shroud over insulation. With Top mounted dual motion agitator manufactured by Jaygo, has wide sweep with pitched blades and center shaft with pitched blades that intermesh with counter rotating wide sweep agitator. 3/60/230/460 volt motor Vessel openings include: Top -14" manway with hinged cover, (3) 4"; (3) 1". Vessel discharges into a horizontal DISHO homogenizing mill, multi chamber, driven by a 60 HP 3/60/230/460 volt motor. Complete skid mounted system with Intervac 5 HP water seal vacuum pump, controls and stainless steel enclosure for pump and mill drive.

Type: High intensity mixer 600 liter capacity air pressure 6 bar 350mm feed, 300mm discharge with valve,

Type: High intensity mixer 600 liter capacity 3/50/400/690 volt air pressure 6 bar, 350mm feed, 300mm discharge with valve.

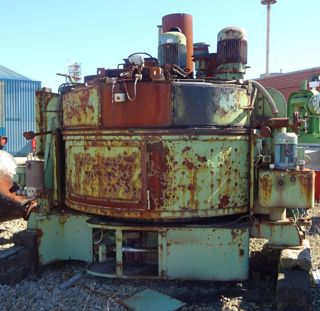

Counter current rapid batch mixer agitator pulley driven by 48/67 kw, 3/50/380 volt, 735-1480 rpm motor (pole changeable), (2) tool mixing rotors each driven by approx 11 kw geared motor, discharge gate driven by hydraulic powerpak with 2-speed motor, 3 kw, 3/50/220/380 volt or 3.45 kw, 3/60/440 volt, pan with bottom and wall scrapper blades, motorised lubrication system, unit includes: (2) carbon steel feed silos with top mounted dust collectors, (one filling mixer while other was being refilled)

high intensive mixer (2) sets of blades under driven by a 2-speed motor 15.5/13.5 kw, 3/50/415 volt, 2880/1420 rpm hinged top cover with manual s/steel plow 1-150mm, 2-50mm, 100mm side discharge with manual plug valve

sanitary jkt high intensity mixer SS 4-blade rotor, manual SS plow Variable speed drive. CS str jkt. Hinged top cover with 2 1/2" (63mm) sight glass w/light, 2-1/2" (12mm) jkt outlets, 1-2 1/4" (57mm) discharge. On/off switch, safety cutoff switch on top cover.

Unit has a 3" side bottom discharge with pneumatic flush valve

high intensity mixer Has 3-blade propellor type mixer. Vert mixing chamber 14" dia x 16" deep. Has manual plow. Manual plow valve on 4" outlet. variable speed motor 530 rpm min W/controls and timers.

Unit has a 3" side bottom discharge with pneumatic flush valve

intensive mixer bowl. 23" dia x 23" str side. Driven by varispeed drive, 40 HP to 1 HP (31.3 KW to 1 KW), 1565 to 50 rpm, 440 to 45 volts. W/spare motor.

high intensity mixer Stainless steel contact parts, jacketed bowl, air cylinder actuated discharge valve and deflector blade.

Trusioma high intensive mixer. Jacket rated 0.05 mPA. 2-tier 2-blade impellor. Total volume 1.0 cu M. Approx working capacity 400 to 600 liters. Top bolt cover with 1/3 hinged opening. 28-40 HP (22 to 30 KW), 3/50/220/380 volt, 740 to 1480 rpm XP motor thru gear reducer. Bowl 44.5 to 87 rpm. 200mm outlet w/manul gate valve.

Jacket high intensity CS/SS mixer Counter motion mixing blades Mixing bowl CS, mixing blades SS Jkt for steam or cooling water Blade speeds 50/80/110 rpm Shell 714mm dia x 485mm high. Mixer walls are 316SS (Mb13/x8CrNiTi18-10N-A3). Double jkt rated 0.5 KP/CM2. Double jkt rated Mixing arms 12CRNi18.8

Top: Bolt flat top Bottom: Weld cone bottom Agitator: 316SS worm type Shaft thickness: 3/4" (19mm) Worm diameter: 4 1/4" (107mm) varispeed gearbox. W/spare agit. Openings: top 1-12" (304mm) x 10 1/2" (266mm) feed chute; btm 1-2" (50mm) discharge.
