This Aquadyne 3300DST is a robust, mobile, Detroit Diesel-powered reciprocating pump built to deliver very high pressure (up to 10,000 psi) at 45 GPM. Its design makes it well-suited for clean-in-place (CIP) operations—such as high-pressure tank washing—where reliability and performance are critical. This system includes a tank pressure washing module for installation on manways to perform CIP operations.

• Ft./hd. (feet of head)

Fire pump Direct Driven by John Deere Diesel engine, with controller and fuel tank.

diesel centrifugal firewater pump system system consists of:(1) skid mounted 625 GPM (2837 ltr/min) @ 230 ft head Mather & Platt c/steel centrifugal pump, size 5"/6" CMBB, serial #690603/1, 2000 rpm, packed gland on shaft, driven by a Leyland diesel engine, unit # CPU-3836, type PU401/21/3, engine # 911288, type UE401/113/3, tappet clearance 020" cold, injection 26 deg before top dead center, firing order 153624, exhaust with a silencer,(1) electric driven back up pump, 625 GPM (2837 ltr/min) @ 230 ft head Mather & Platt c/steel centrifugal pump, size 5"/6" E-NE-B, serial # 690602/1, 3000 rpm, packed gland on shaft, direct driven by 60 hp, 3/50/380/420 volt, 2940 rpm motor,(1) Jockey pump with gauges and valves(1) control panel

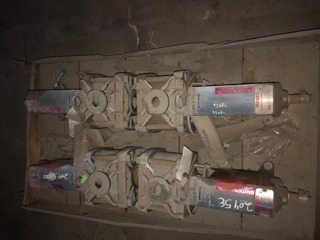

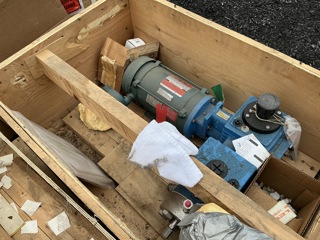

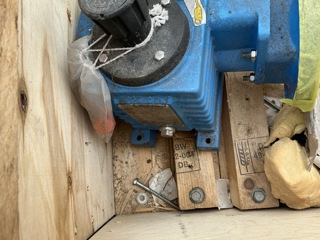

3-step Membrane dosing/metering pump with vent screw on each pump head 1.4571 pulsation absorber 0,5 l, G 3/8’’, Element A: 1100 l/h @ max 10.5 bar Element B and C: 550 l/h @ 4.2 bar

• Volume: 1.500 cm³/rpm
• Tooth wheel pump without motor and gear box,
• order # 40/4357, against pressure max. 300 bar.

3/50/400/690 volt,

1.5 m3/hour at 150 bar 24-64 lift/minute,

2000 to 5000 cubic meter per hour triple head diaphragm pump working pressure 80 bar, max permissible working pressure 100 bar @ -196 degrees C driven by a 2-speed motor 52kw, 3/60/440/480 volt, 1770 rpm motor via a Lenze type 12.602.32.15 (5) 321 stainless steel valves,

25 Ra electropolished internal finish with a silicon carbide double mechanical seal. Viton is the elastomer material.

8" x 6" impellor. Vert split, end suction, top discharge. No motor. takes 900 HP, 3600 rpm motor. 4000 Volts.

0,25 - 45 m³/h liquids injection pump type 22/1 for Hydrogen

Exp zone 1 high pressure magnetic pump Motor: electrical openings (2) DN15, (1) DN25, (1) DN40

• Size 10 x 12 x 22.
• Mechanical seal: A.W.Chesterton #155 (Hast.C), size 3.75
• direct driven,
• Rated for: Explosion proof atmospheres

Size 4 x 6-13H

Size 4 x 6-13H

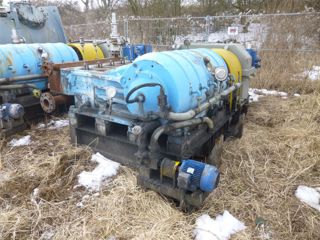

(5) 80mm diameter horizontal pistons 160 mm stroke direct coupled to a Pomini - Farrel S.p.A parallel shaft gear reducer type D800 rated 233 HP, 1460 /116 rpm Motor: 345 A CE stamped Includes shell and tube cooler, and lubricating pump

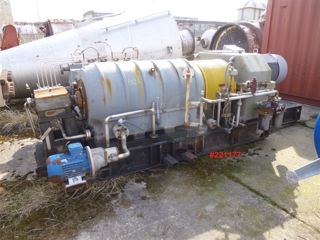

Peroni piston pump (5) 80mm diameter horizontal pistons 160 mm stroke direct coupled to a Pomini - Farrel S.p.A parallel shaft gear reducer type D800 rated 233 HP, 1460 /116 rpm Motor: 345A CE stamped Includes shell and tube cooler, and lubricating pump

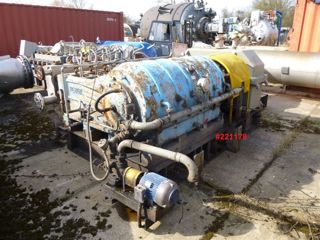

316 stainless steel Peroni piston pump (5) 80mm diameter horizontal pistons 160 mm stroke direct coupled to a Pomini - Farrel S.p.A parallel shaft gear reducer type D800 3~/50Hz/500V/345A/1488rpm motor, Includes shell and tube cooler, and lubricating pump

Peroni piston pump (5) 80mm diameter pistons 160 mm stroke direct coupled to a Pomini - Farrel S.p.A parallel shaft gear reducer type D800 serial#:37406 rated 233 HP, 1460 /116 rpm Motor: 345A Includes shell and tube cooler, and lubricating pump

Peroni piston pump (5) 80mm diameter horizontal pistons 160 mm stroke direct coupled to a Pomini - Farrel S.p.A parallel shaft gear reducer type D800 3~/50Hz/500V/345A/1488rpm motor Includes shell and tube cooler and lubricating pump

1660 TDH Duplex Stainless Steel (A743- 13cr4ni) 7 Stage NEMA Nom Efficiency rated for 95.8% Set up for long term storage both in the vertical position

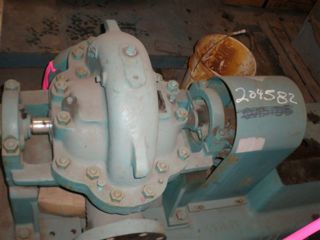

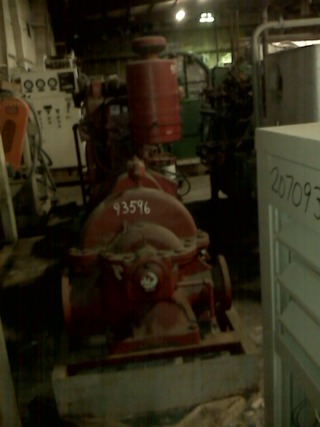

splitcase firewater pump. Has outboard bearings str head 6-cylinder diesel engine S No. 38811, CPL - 028, Date 1 - 73.

8922/7656 GPM 1091/914 ft./hd Tandem mounted centrifugal pumps Two pumps with an intermediate automatic clutch driven between the pumps Single shaft end designed to be driven by a Terry Steam Turbine Item # 02B-P-2A Clutch is manufactured by Marland, Model Cecon, size CEUS-4M. serial # 73025 B. Takes 14 quarts auto transmission fluid. Rated for 1823 HP. Free end pump is a size 12 x 13. Type HT-HVC. Rated for 7656 GPM at 914 ft./hd., RPM=3750. Hydro tested to 1200 psi. Serial # 48685, Item # 02B-HT-2. Both pumps have mechanical seals and forced oil lubrication. Seal flush water requirement is 1.5 GPM(3 GPM both pumps) of clean cool liquid 50 psi over suction pressure. Cooling water required at 2 gpm of 95 degree F. Max. at 75 psi (max). Both pumps and clutch are base mounted.
