Bird/Escher Wyss 2-stage pusher centrifuge mfr #1828, V #358471/503, B #0358028. Slot width both stages .010". Basket dia 2nd stage 28 1/2" (720mm) 3/60/230/460 volt TEFC drive motor.

Duplex/317/316 stainless steel two stage pusher continuous centrifugeTwo stage pusher continuous centrifuge 5.5 ton/hour troughput of solids 10/130 degrees C cake thickness of outer basket 40mm (max) inner basket 40mm, force @ max speed 490/570 G, nominal volumne 15.5 dm3, inner basket screen slot width 0.2mm, outerbasket screen 0.2mm, outer and inner baskets are Duplex stainless steel pusher mechanism belt driven by a 7.5 kW (10hp), 3/50/400/690 volt, 1445 rpm IP55, EFF 1 pusher stroke 40mm, stoke number (frequency) 60 rpm, pusher force 35 kN, solids side discharge, centrifuge main fields of application: fertilisers, plastics, explosives foodstuff, fodder, processing of salts, wherever high product quality, high throughputs, low residual moisture, efficient washing of the solids and long residence times are required along with continuous operation

Basket 20mm thick belt driven Slot width .22mm Openings: 1-3" feed pipe, 18" x 9" side discharge, 2-6" inspection doors on front cover.

Order # M-81852

1000 mm product contact two stage pusher centrifuge Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm) With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)

1000 mmproduct contact two stage pusher centrifuge Plant # 5101-0620-31Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm)Main Drive Horsepower is 125, Rpm is 1800With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum)Book weight 8,900 kg. (19,621 lbs.)

1000 mm product contact two stage pusher centrifuge Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm) With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)

316 stainless steel 5.5 ton/hour troughput of solids 130 degrees C (max) inner diameter of outer basket 412mm, inside diameter of inner basket 356mm cake thickness of outer basket 41mm (max), inner basket 40mm centrifugal force @ max speed 490/570 G nominal volumne 15.4 dm3, inner basket screen slot width 0.2mm, outerbasket screen 0.2mm, outer and inner baskets are Duplex stainless steel (1.4470), slot screens are 317 stainless steel (1.4439), pusher plate is 316 stainless steel (1.4404), housing is 316 stainless steel (1.4404), pusher mechanism belt driven by a 7.5 kW, 3/50/380 volt, 1430 rpm IP55 CE motor, pusher stroke 40mm, stoke number (frequency) 60 rpm, pusher force 35 kN, solids side discharge, centrifuge main fields of application: fertilisers, plastics, explosives, foodstuff, fodder, processing of salts, wherever high product quality, high throughputs, low residual moisture, efficient washing of the solids and long residence times are required along with continuous operation

2-stage pusher centrifuge V #358480, B #355883 Basket dia 2nd stage 24" Slot width: 1st stage .008"; 2nd stage .010" Handbrake 16 HP, 3/50/415 volt flameproof drive motor 7 HP, 3/50/415 volt flameproof pump motor

500/410mm two stage pusher centrifuge 5.5 ton/hour solids throughput, residual moisture 3% by weight, wash medium is pure condensate @ 50 degrees C, pusher driven by 22kw (30hp), 3/50/400/690 volt 2945 rpm IP55 (equivalant to EX class 1 Div 11) motor, basket sieves with 65 slots, slots outer 0.15mm, inner 0.18mm, approximately 86 to 60 strokes per minute, rotary labyrinth seal, feed pipe, wash pipes with nozzles for each basket, bottom solids discharge

500/410mm diameter, two stage pusher centrifuge 5.5 ton/hour solids throughput, residual moisture 3% by weight, wash medium is pure condensate @ 50 degrees C pusher driven by 22kw (30hp), 3/50/400/690 volt 2945 rpm IP55 (equivalant to EX class 1 Div 11) motor, basket sieves with 65 slots, slots outer 0.15mm, inner 0.18mm, approximately 86 to 60 strokes per minute, rotary labyrinth seal, feed pipe, wash pipes with nozzles for each basket, bottom solids discharge

2 stage pusher centrifuge can only be used as a SZ 21 because the 2nd drum is missing with 1.4571 stainless steel housing, belt driven by (2) electrical motors first motor: 4kW, manufactured by Schorch, type KA9132S-BA014-Z, serial number 1913167, 3~/50Hz/380-660V/1415rpm, ExNIIT3, second motor: 5,5kW, manufactured by Schorch, type KA9112M-BA014-Z, serial number 1913157, 3~/50Hz/380-660V/1440rpm, ExNIIT3.

continuous horizontal worm screen Centrifuge operating speed 1121 rpm, 1m inside diameter 316Ti (1.4581) stainless steel basket, 885mm middle diameter 20.7mm wall thickness, 316Ti (1.4571/1.4581) stainless steel worm screw, 316Ti (1.4571) stainless steel sieve plate/element, 316Ti (1.4571) stainless steel housing

H1000-K continuous horizontal worm screen Centrifuge operating speed 1121 rpm 1m inside diameter 316Ti (1.4581) stainless steel basket 885mm middle diameter, 670mm basket interior height, 20.7mm wall thickness, 316Ti (1.4571/1.4581) stainless steel worm screw, 316Ti (1.4571) stainless steel sieve plate/element, 316Ti (1.4571) stainless steel housing

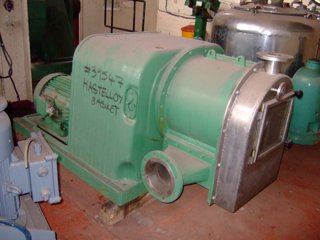

Hastelloy C 2-stage pusher centrifuge 400mm inside diameter 1st stage; 330mm inside diameter 2nd stage Rubber lined casing Basket belt driven by 25 HP, 3/50/415 volt, 2900 rpm non-flameproof motor 1-152mm feed, 1-152mm filtrate, 100mm x 500mm solids Screw conveyor feed

2-stage pusher centrifuge B #357-62 400mm inside diameter 1st stage; 330mm inside diameter 2nd stage Rubber lined casing 316 stainless steel front cover Basket belt driven by 30 HP (22 KW), 3/50/415 volt, 1450 RPM 1-152mm feed, 1-152mm filtrate, 100mm x 500mm solids with hinged 300mm x 250mm sight glass, solids.

1000 mm product contact two stage pusher centrifuge Plant # 5101-0320-32 Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm) Main Drive Horsepower is 125, Rpm is 1800 With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)

1000 mm product contact two stage pusher centrifuge Plant # 5101-0320-31 Basket diameter is 1032 mm, x 315 mm x 315 mm (estimated inner basket of 932 mm) Main Drive Horsepower is 125, Rpm is 1800 With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)

27" single stage pusher type centrifuge Racetrack discharge 20 HP 3/60/550 volt Approximately slot width .012" Handbrake

Multi Stage Pusher Centrifuge

pusher centrifuge parts Screens for basket and shaft

1000 mm product contact two stage pusher centrifuge Plant # 5101-0620-32 Basket diameter is 1032 mm, x 315 mm x 315 mm. (estimated inner basket of 932 mm) With two stage washing Originally designed for maximum feed of 98,000 lbs./hr. of slurry, with 44,100 lbs./hr. of solids and 53,900 lbs./hr. of liquids. At 45 % wt. solids. Exit cake moisture of 6.0 wt.% or less. Vapor tight housing to +27.7” water and -13.8 “ water (vacuum) Book weight 8,900 kg. (19,621 lbs.)

single stage 19 HP (14 KW), 3/50/500 volts pump motor. Handbrake

non-flameproof motor Openings: 1-376mm feed pipe, Basket belt driven by 24 HP, 3/50/400 volt, 1440 rpm non-flameproof motor 1300mm x 431mm discharge, Openings: 1-376mm feed pipe, 1300mm x 431mm discharge, 2-355mm inspection doors on front cover.

single stage 19 HP (14 KW), 3/50/500 volts pump motor Handbrake
