Water Softner

multi-effect WFI water distillation unit. All sanitary construction Unit has 5 distillation columns, all national board rated, 145 psi @ 14 to 362 degrees f in the shell; 145 psi @ 14 to 362 degrees f in the tubes. circulation pumps

Booster Pump skid designed to increase water flow , temperature, and pressure for RO system, and CID system in the following steps of the process. With one approx. 10 sq ft, ITT Industrial plate heat exchanger model P7A, with 316 SS SS plates rated for 150 psi at 302 degrees F on both the process or service side One, 5 HP, 316 SS centrifugal pump rated for 60 psi one 5 micron filter in a 316 SS electropolished housing manufactured by Stainless Fluid systems 0.8" OD x 41" high, with 1.5" inlets and outlets The filter vessel is rated for 150 psi at 300 degrees F. UV lamp, rated for 254 NM, in a 316 SS polished housing With digital flow controls, and a US filter power control panel.

water booster and RO feed skid Contains the following equipment, one 7.5 HP 316 SS booster pump, close coupled, and base mounted, designed to increase the water pressure to 67 GPM for the RO system. One 5 micron rated pre filter contained in a 8" diameter x 24" high filter housing One Trantor Super Changer heat exchanger, 316 SS plates, 6 sq.ft., to increase water temperature to temper at 77 degrees F. One Aquafine UV Light, to reduce bacteria loading on the RO filter With digital controls and local control panel in a NEMA cabinet.

continuous electro deionization system for removing dissolved solids from the water system. (2) medium flow IonPure Technologies modules that use DC current to drive the exchange. Operation is by mixed bed Ion exchange resins sandwiched between an anion and cation exchange module. Feed water needs to be between 30-100 psi at 50-113 degrees F. With a US Filters control panel.

continuous electro deionization system for removing dissolved solids from the water system. (2) medium flow IonPure Technologies modules that use DC current to drive the exchange. Operation is by mixed bed Ion exchange resins sandwiched between an anion and cation exchange module. Feed water needs to be between 30-100 psi at 50-113 degrees F. With a US Filters control panel.

with (6) 4" diameter x 92" long filtration tubes Model SS1832B-12400, Serial number 4878325 mechanical seal on shaft

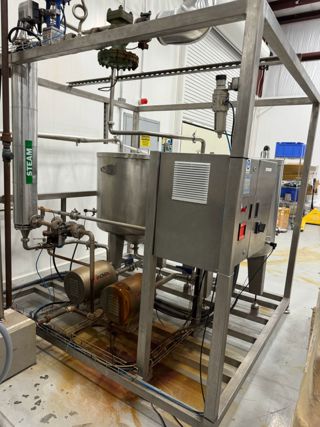

4000 Liter/Hr.(17 GPM) clean in place skid Skid contains the following major pieces, one condenser, two tanks, two pumps, and a on board control panel. Two 400 Liter tanks with open tops and welded slight cone bottoms.(Solution supply & return tanks) two sanitary centrifugal pumps by Inoxpa, and controls with a Siemens HMI. Heating capacity 4000 Liters/hr., Heat transfer area 0.9 m2, Temp rise 50 -60 degrees C, steam consumption per hour 80 kg/hr

Electro polished and passivated Part MP-2-SL. UL UL Listed compact design gives economical UV treatment for low flow applications. With two UV lamps, rated for a total current of 0.80 (at 120vac) and Total power of 96 (at 120 vac).
his system gives a UV Dosage of >30,000 Microwatt seconds per cm2. Inlet and outlet sizes are 1.5" stainless steel flanged. six 0.2 um cartridges, 20" long, in a 316L SS electropolished housing rate for 100 psi and ASME code stamped.

99% UVT for Ozone destruct, Rated for 120 volts, 60 Hz. Quartz # QTZ0023, Lamp # LMP12006-V.

50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet 316L SS Treatment chamber 304 SS control cabinet 2" Flanged inlets and outlets Overall dimensions 40" long x 10" wide x 23" high

Sanitary, Reverse Osmosis system This is a Pharmaceutical and biotech grade machine single pass The system recovery rate is 75% with a membrane salt rejection rate of 99% nominal. Nine membranes are Filmtec RO390FFseries TFC, spiral wound loose wrap, full fit. and the unit has a efficiency pump. The frame is structural CS, polyurethane coated.

US Filter Reverse Osmosis DI water system includes a US Filter system control panel with digital monitors, and a US fiter power control panel with RO pump hour meter. RO pump is a Grundfos "2" inlet and out pump, (3) CodeLine Membrane Housings, model 80A30, rated 300 psi maximum operating pressure, 20 to 120 degrees F.

50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet 316L SS Treatment chamber, 304 SS control cabinet 2" Flanged inlets and outlets Overall dimensions 40" long x 10" wide x 23" high

50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet. 316L SS Treatment chamber. 2" Flanged inlets and outlets. Overall dimensions 40" long x 10" wide x 23" high.

130 (@ 94% UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet. 304SS control cabinet Rated 130 GPM @ 94% disinfection or 156 GPM @ 99% disinfection. 120 psi max. operating pressure. 50°F - 100°F operating temperature. 3" inlets/outlets with optional sanitary fittings. drain and sample port. (Lamps not included).

In Line Sand Media Filter

50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet 316L SS Treatment chamber, 304 SS control cabinet 2" Flanged inlets and outlets. Optional explosion proof control cabinet Overall dimensions 40" long x 10" wide x 23" high.(doesn't include optional cabinet)

50 (@99%UVT) GPM Ultraviolet Water Purifier One piece compact design including UV treatment and electrical cabinet 316L SS Treatment chamber 304 SS control cabinet 2" Flanged inlets and outlets Overall dimensions 40" long x 10" wide x 23" high

1180 Sq ft RomiPure reverse osmosis water filtration sytem with accessories 5" diameter Unit has a combination of Stainless steel and PVC piping for corrosion resistance and ease of cleaning Designed for 2" feed, complete with automatic control valves for fast flush. On board control panel features Flo rates and controls for flush cycles.

ultraviolet disinfectant unit

5 m3/h, water purification system with 4000 liter purified water storage. 316L stainless steel water purification and demineralized water system, generated by reverse osmosis and electrode ionization, purified water flow rate 10 m3/hour, demineralized water flow rate 5 m3/hr, system consists of 2-skids, equipment includes (2) 170 liter resin softener tanks, (1) plate heat exchanger, filters, pumps, UV generators, (1) 4000 liter purified water distribution tank, (1) 1500 liter demineralized water distribution tank, (1) 1000 liter recirculation tank and other ancillaries

material: composite w/P.E. inner shell raw water hardness = 60 ppm system consists of: (2) 170ltr vertical tanks, 15" dia x 58" straight side, dished heads composite with P.E. inner shell, (1) composite salt tank, 24" dia x 24" straight side, open top with removable lid, flat bottom

• Painted frame , Stainless Steel membrane , inlet plumbing PVC .
• Pump Type : Multi-Stage centrifugal
• Material: Stainless steel shell/housing -Noryl internals.
• Casting : Stainless steel inlet/discharge

Electro polished and passivated Part MP-2-SL. UL Listed, A compact design gives economical UV treatment for low flow applications. With two UV lamps, rated for a total current of 0.80 (at 120vac) and Total power of 96 (at 120 vac). This system gives a UV Dosage of >30,000 Microwatt seconds per cm2. Inlet and outlet sizes are 1.5" stainless steel flanged. manufactured by Sartorius, 1.9 cu. ft capacity, manufactured from 316 L SS, electropolished. Rated for 150 psi at 250 degrees F.
