Results 5 items found

Available equipment

Showing 5 of 5 matching equipment.

Featured
Stock Number: #214330
Spiral Heat Exchanger Alpha Laval 3-6 Stainless Steel 316
Heat Transfer Surface Area: 900 ft²
Shell Pressure: 37 psi
Shell Temperature: 450 °F
Shell Material: Stainless Steel 316L
Shell Diameter: 47 in
Head Material: Carbon Steel
Length: 50 in
Nozzle Schedule: Openings include: (2) 4" shell side in each stage; (2) 4" service side.
Cold-side Pressure: 37 psi
Cold-side Temperature: 450 °F
Hot-side Pressure: 37 psi
Hot-side Temperature: 450 °F
Additional Information: 2-stage (2) 450 Sq Ft condensers bolted together, end to end, with same configuration and material in both stages, Upper stage and lower stage each have a 316LSS shell, CS heads. Shell is 0.135" thick, Heads are 1.12" thick CS. Spiral Material: Stainless Steel 316.
More Details ⟶
Stock Number: #248275

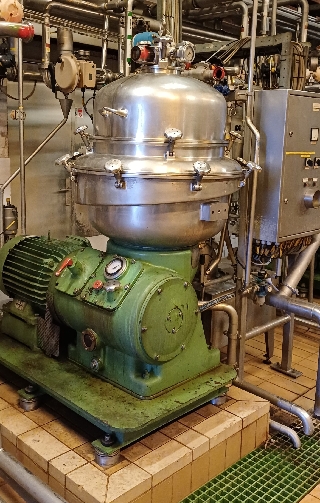

Stainless Steel 316L Alfa Laval HMBRPX 213-35S Disc Bowl Centrifuge
Motor Horsepower: 24.1 HP
Number of Phases: 3
RPM Maximum: 1,500
Additional Information: • de-sludger centrifuge, • liquid/liquid/solids, • worm wheel shaft 1420-1500 rpm, • Tachometer 1420-1500 rpm, • speed counter 118-125 rpm, • driven by 18kW, 3/50/380/220 volt, 1460 rpm motor, • approx 6000 liter/hour,
More Details ⟶
Stock Number: #245828

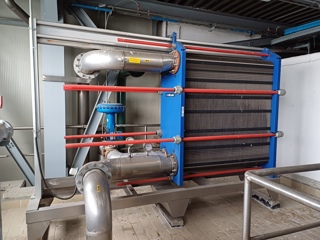

202.7 m² (2,200 ft²) Stainless Steel 304 Plate and Frame Heat Exchanger
Heat Transfer Surface Area: 202.7 m²
Cold-side Pressure: 10 bar
Cold-side Temperature: 90 °C
Hot-side Pressure: 10 bar
Hot-side Temperature: 90 °C
Number of Plates: 327
Additional Information: carbon steel pressure plates and frame,
More Details ⟶
Stock Number: #230520
Stainless Steel 316 Alpha Laval Type SRU3/027/HS Rotary Pump
Flow Rate: 7 GPM
Pressure: 145 psi
Additional Information: Sanitary Rotary Lobe pump with sanitary flanges.
Bare Pump opnly.
More Details ⟶
Stock Number: #230525
1.6 m3/h (7 GPM) Stainless Steel 316 Rotary Pump
Flow Rate: 7 GPM
Pressure: 145 psi
Orientation: Horizontal
Additional Information: Rotary Lobe pump Sanitary with sanitary flanges.
Bare Pump only.
More Details ⟶
