Results 8 items found

Available equipment

Showing 8 of 8 matching equipment.

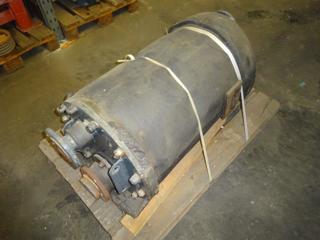

Stock Number: #204174
1.4 m² (15.1 ft²) Graphite Spiral Heat Exchanger
Heat Transfer Surface Area: 1.4 m²
Shell Pressure: 3 bar
Shell Temperature: 165 °C
Vacuum: Yes
Additional Information: ring groove graphite heat exchanger rated both side -1/3bar @ -10/165 degrees C, volume both side 6 liters, weight 300 kg
More Details ⟶

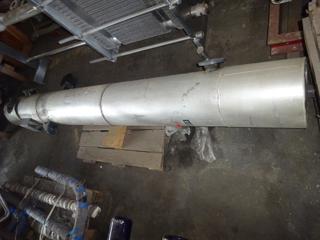

Stock Number: #208282
2.5 m² (26.9 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 2.5 m²
Orientation: Vertical
Shell Pressure: 3 bar
Shell Temperature: 80 °C
Tube Pressure: 3 bar
Tube Temperature: 165 °C
Vacuum: Yes
Nozzle Schedule: - Openings: 3-50mm, 1-100mm
Capacity: 14 L
Additional Information: Height: 995mm service side pressure -1/3bar@ -60/+80 Degrees C, product side -1/+3 bar@-60/+165 Degrees C
More Details ⟶
Stock Number: #208284
2.5 m² (26.9 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 2.5 m²
Orientation: Vertical
Shell Pressure: 3 bar
Shell Temperature: 165 °C
Tube Pressure: 3 bar
Tube Temperature: 80 °C
Vacuum: Yes
Nozzle Schedule: - Openings: 3-50 mm, 1-100 mm
Capacity: 14 L
Additional Information: • Height: 995mm • Service side: -1/3 bar @ -60/+80 Degrees C • Product side: -1/+3 bar @ -60/+165 Degrees C
More Details ⟶
Stock Number: #208225
3 m² (32.3 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 3 m²
Shell Temperature: 80 °C
Tube Temperature: 80 °C
Capacity: 15 L
Additional Information: both sides rated -60/+80 deg C
More Details ⟶
Stock Number: #200836
4 m² (43.1 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 4 m²
Orientation: Vertical
Shell Pressure: 6 bar
Shell Temperature: 165 °C
Shell Material: Carbon Steel
Tube Pressure: 3 bar
Vacuum: Yes
Shell Diameter: 1,950 mm
Length: 3,000 mm
Nozzle Schedule: product nozzles are 120 and 110 mm, service nozzles are 21,3 mm, cooling medium nozzles are Two 60,3 mm.
Additional Information: 4.0 square meter ( 43 square foot) Vertical graphite heat exchanger TUV certified
More Details ⟶
Stock Number: #214126
22.5 m² (242.2 ft²) Graphite Block Heat Exchanger
Heat Transfer Surface Area: 22.5 m²
Shell Pressure: 7 bar
Shell Temperature: 165 °C
Vacuum: Yes
Nozzle Schedule: - Openings product side: (1) DN50, (1) DN100, (1) DN200 - Openings service side: (2) DN80
Additional Information: ( both end plates are glass lined 2000 on product side ) pressure product side -1/6 bar @ -25/165 degrees C ( volume 62 liter ), pressure service side -1/7 bar @ -25/165 degrees C ( volume 125 liter )
More Details ⟶
Stock Number: #211613
Graphite Block Heat Exchanger
Heat Transfer Surface Area: 1.4 m²
Shell Pressure: 3 bar
Shell Temperature: 185 °C
Vacuum: Yes
Process Pressure: 3 bar
Process Temperature: 185 °F
Additional Information: cylindrical volume 6 liter both sides Rated -1/3 bar @ -10 to + 185 degrees C,
More Details ⟶
no image found
Stock Number: #236192
11 m² (118.4 ft²) Graphite Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 11 m²
Orientation: Vertical
Shell Pressure: 3 psi
Shell Temperature: 80 °C
Tube Pressure: 3 bar
Tube Temperature: 180 °C
Vacuum: Yes
Head Material: Carbon Steel
Additional Information: pressure service side -1/3 bar @ -10/80 degrees C (44 liter) process side -1/3 bar @ -10/180 degrees C (44 liter) (2) carbon steel flat heads
More Details ⟶
