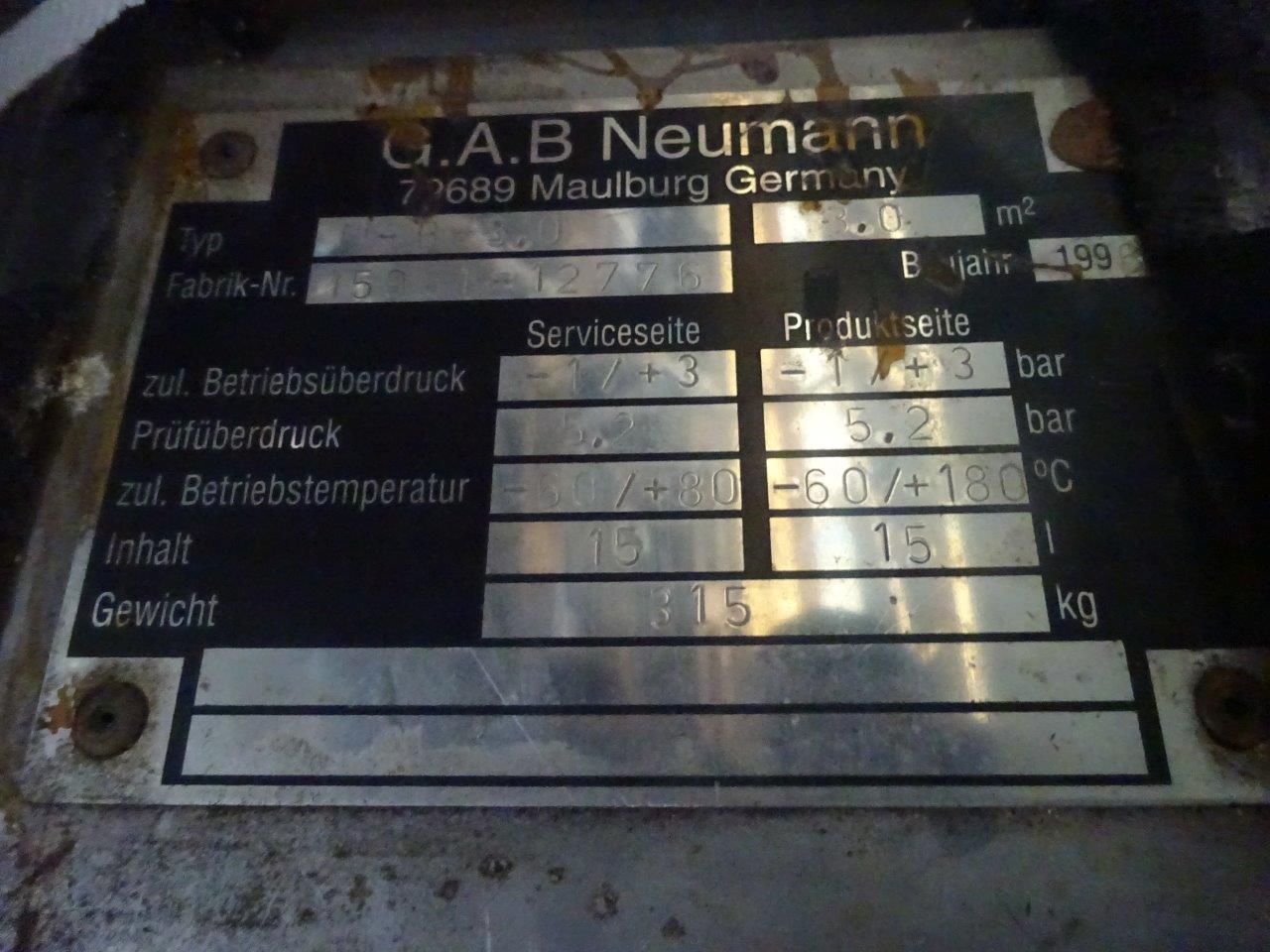

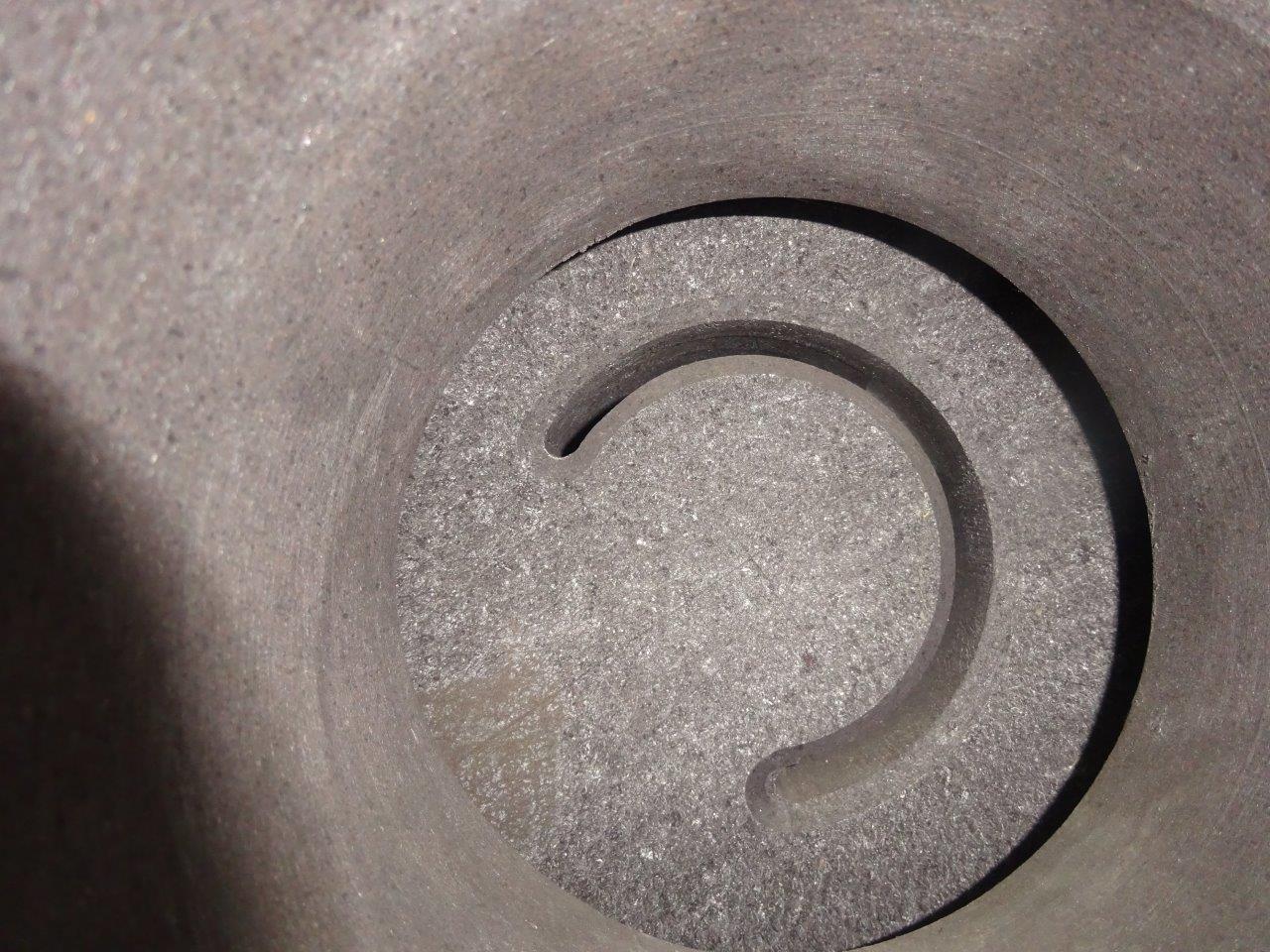

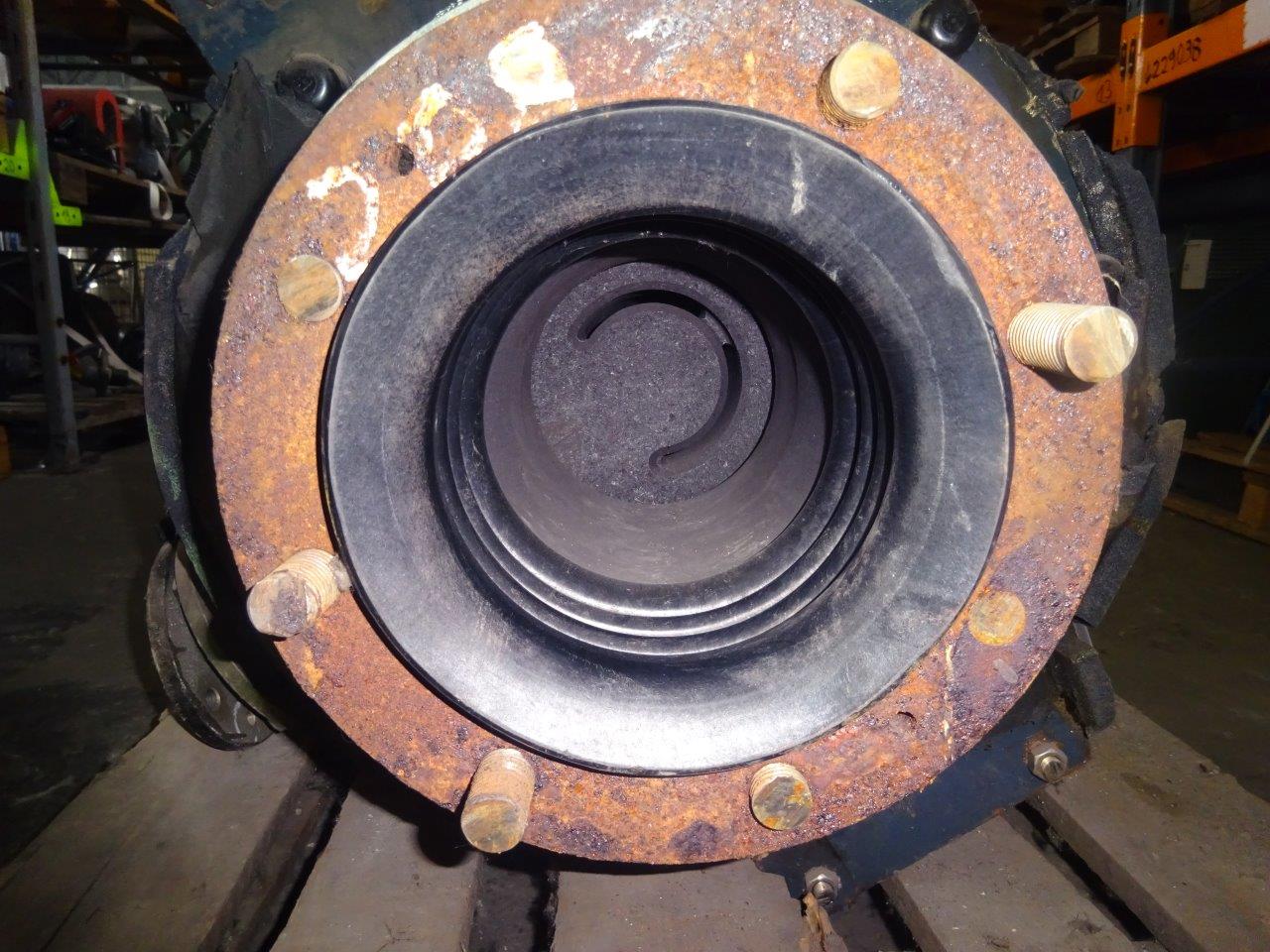

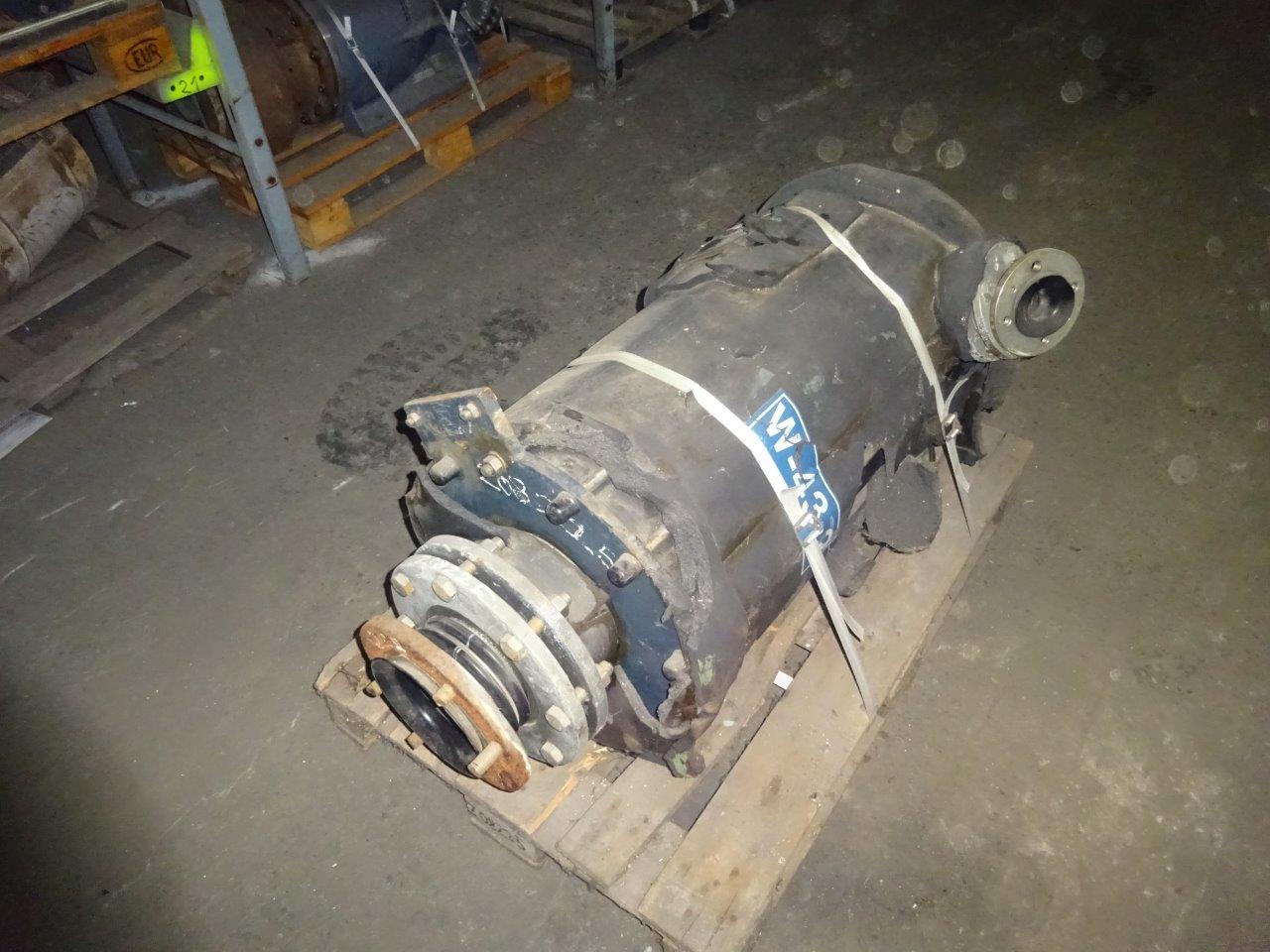

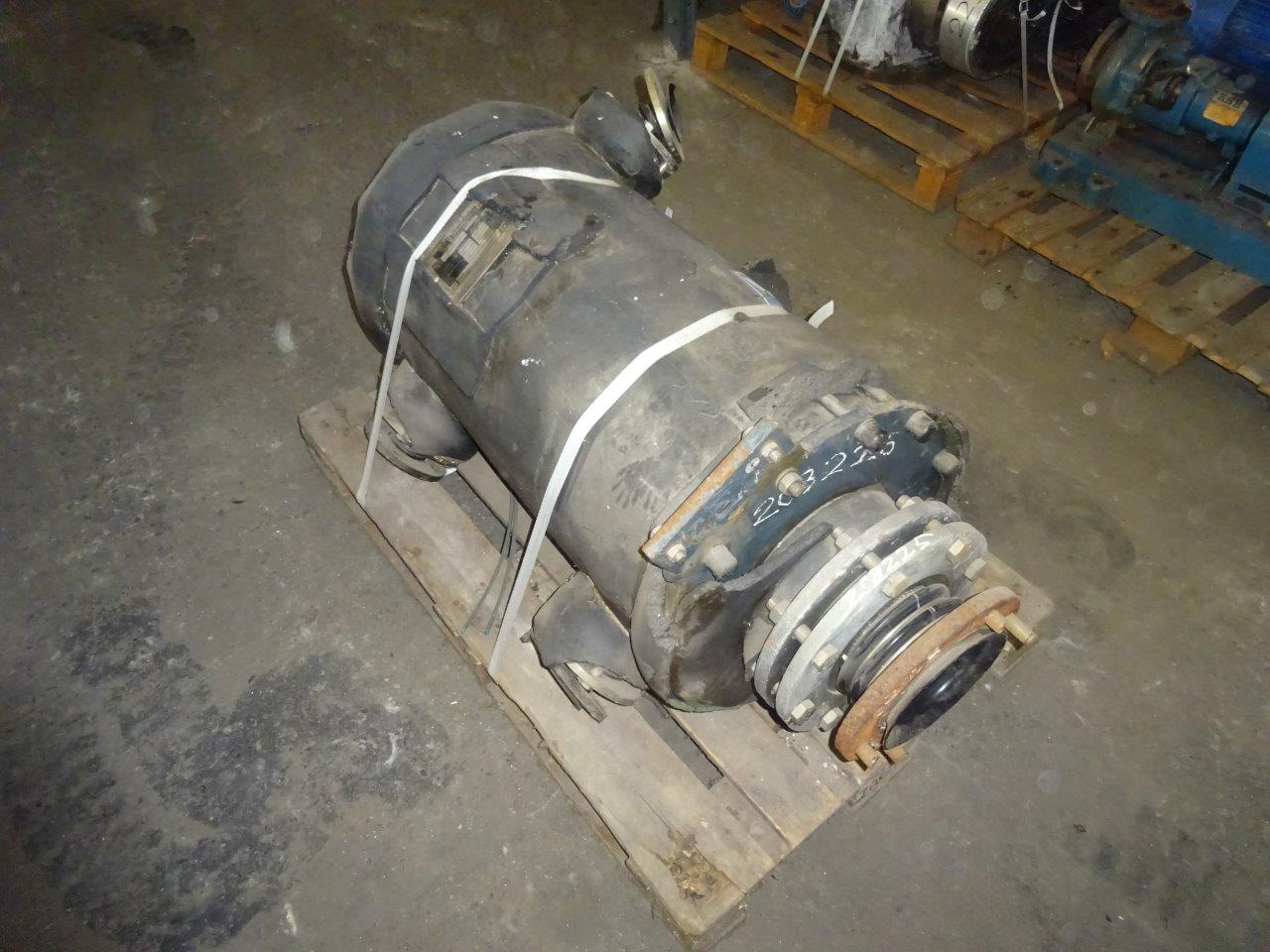

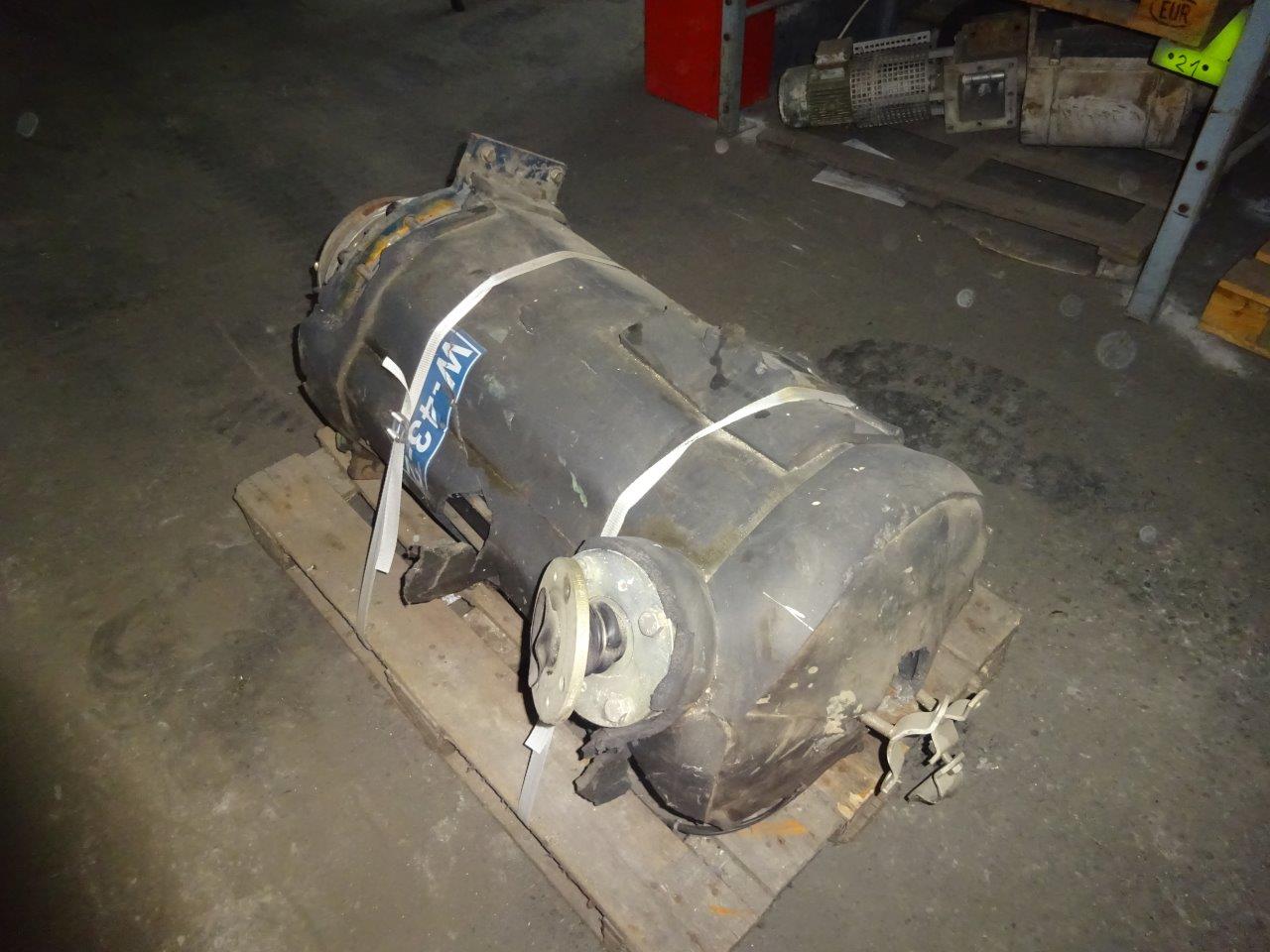

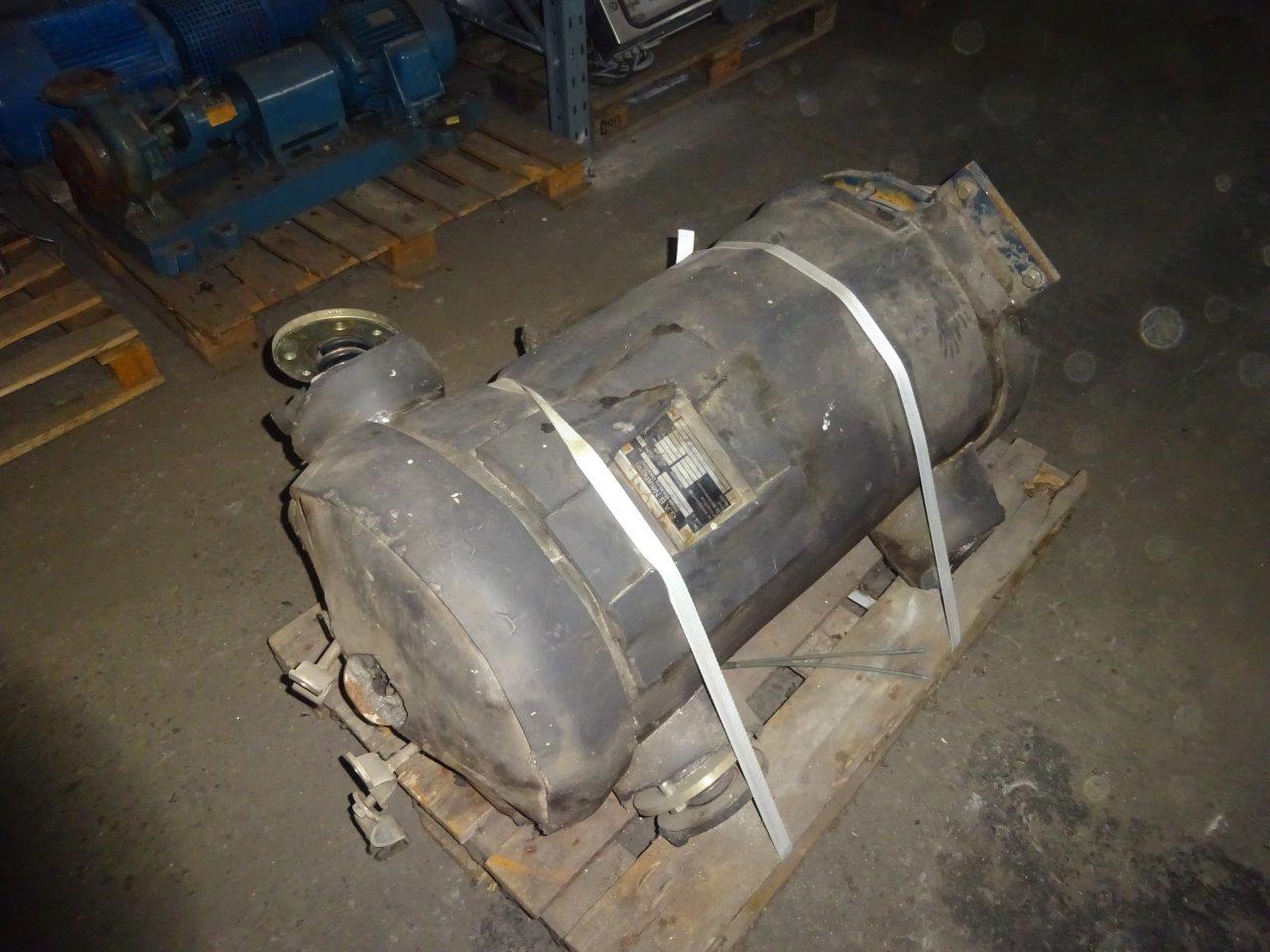

Shell and Tube Heat Exchanger 3 m² (32.3 ft²) Graphite For Sale - IPP# 208225

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GAB Neumann

Model: N-B-2,5

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 2.5 m² (26.9 ft²)

Orientation: Vertical

• Height: 995mm
• Service side: -1/3 bar @ -60/+80 Degrees C
• Product side: -1/+3 bar @ -60/+165 Degrees C

Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 165 °C (329 °F). Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 80 °C (176 °F). Vacuum: Yes. Nozzle Schedule: - Openings: 3-50 mm, 1-100 mm. Capacity: 14 L (3.7 gallons).

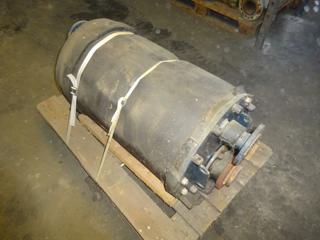

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GAB Neumann

Model: N-B-2,5

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 2.5 m² (26.9 ft²)

Orientation: Vertical

Height: 995mm service side pressure -1/3bar@ -60/+80 Degrees C, product side -1/+3 bar@-60/+165 Degrees C

Shell Pressure: 3 bar (43.5 psi). Shell Temperature: 80 °C (176 °F). Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 165 °C (329 °F). Vacuum: Yes. Nozzle Schedule: - Openings: 3-50mm, 1-100mm. Capacity: 14 L (3.7 gallons).

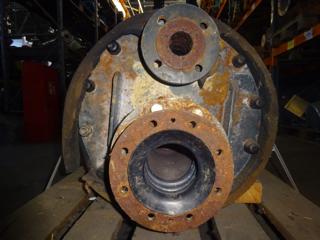

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GAB Neumann

Model: N-B-11.5

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 11 m² (118.4 ft²)

Orientation: Vertical

pressure service side -1/3 bar @ -10/80 degrees C (44 liter) process side -1/3 bar @ -10/180 degrees C (44 liter) (2) carbon steel flat heads

Shell Pressure: 0.21 bar (3 psi). Shell Temperature: 80 °C (176 °F). Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 180 °C (356 °F). Vacuum: Yes. Head Material: Carbon Steel.

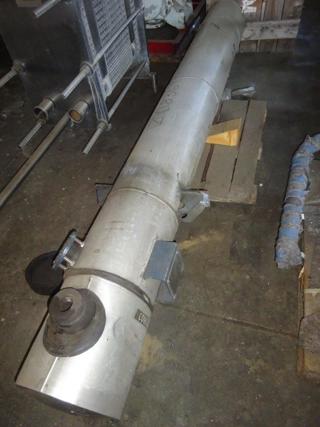

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: GAB Neumann

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 4 m² (43.1 ft²)

Orientation: Vertical

4.0 square meter ( 43 square foot) Vertical graphite heat exchanger TUV certified

Shell Pressure: 6 bar (87 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Carbon Steel. Tube Pressure: 3 bar (43.5 psi). Vacuum: Yes. Shell Diameter: 1,950 mm (76.3 in). Length: 3,000 mm (119.1 in). Nozzle Schedule: product nozzles are 120 and 110 mm, service nozzles are 21,3 mm, cooling medium nozzles are Two 60,3 mm..
