Design Capacity:
130 ft3
Operating Capacity:
98 ft3
Vessel Pressure:
165 psi
Vessel Temperature:
425 °F
Jacket Pressure:
165 psi
Jacket Temperature:
425 °F
Operational mode:
Continuous
Heating Transfer Surface Area:
400 ft²
Heating Type:
Steam
Jacket Type:
Dimple
Ribbon Type:
Paddles
Agitation Shaft Sealing:
Mechanical with Gas
Additional Information:

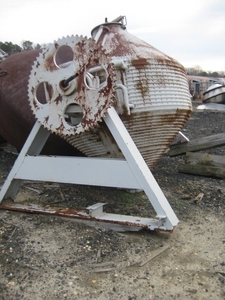

Twin Shaft Nara paddle
Shell WO Number DS-220,
Jacket Serial Number D-258, National Board Number 1102.
Heat Transfer area: Jacket 107 Sq Ft, Agitator 293 Sq Ft, total 400 Square Foot.
twin shaft with discontinous wedge shaped staggard paddles.
Both jacket and agitator rated for 165 psi at 425 degrees F. Indirect heat, by saturated steam heat; rotary joints on shafts with quick disconnects and zero speed switch on end of shaft. Shaft seals are Meco Systems self-aligning externally adjstable, fully split elastomer seal, with purge port. With a 316LSS dome type covered trough rated for 5 psi pressure. With a chain and sprocket drive, SEW Sanasaio Parallel shaft speed reducer and a 75 HP Reliance motor. Motor data, ID # OIMAN 79345 G001 BC Frame 365 T, rated for 1780 rpm, Volts 230/460 amps 172/86 3 ph, Hz 60. Shaft speed approximately 12 RPM.
Openings include: 15" x 36" feed opening, (1) 12" diamter vapor opening, (3) 18" x 24" explosion vent openings, (1) 6" Sweep Gas Inlet, (1) 20" x 20" Access hatch with bolted cover, (2) 6" view ports; trough has (1) 12" x 58" flanged discharg opening, (2) externally adjustable weir gates.
