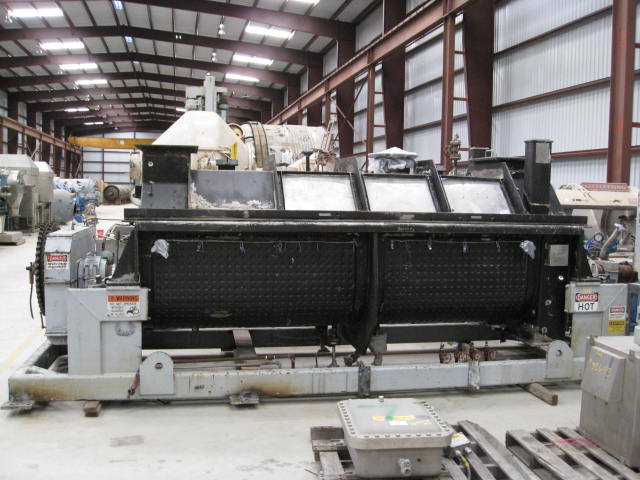

Dryer- Ribbon & Paddle Stainless Steel 316L Komline Sanderson NPD-8W-400 - IPP# 210716

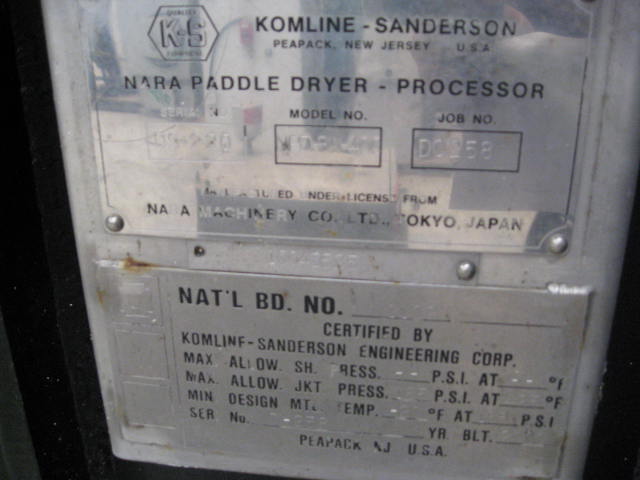

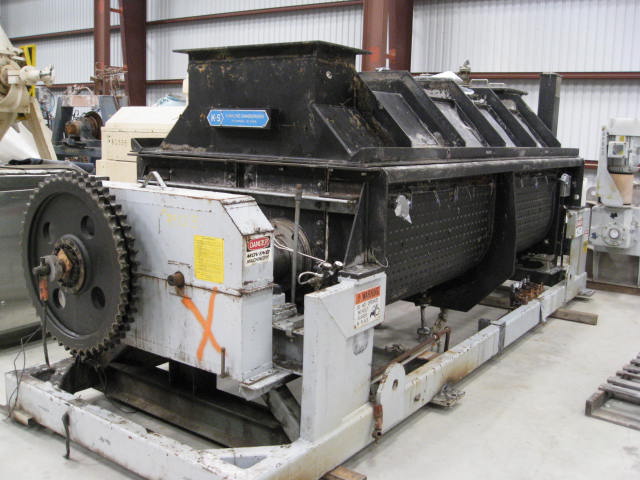

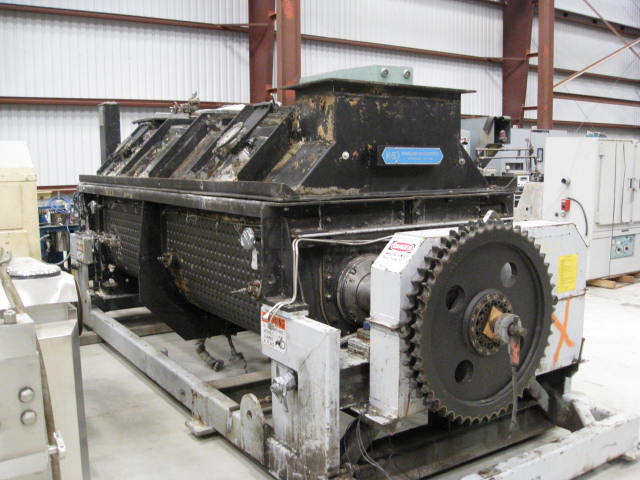

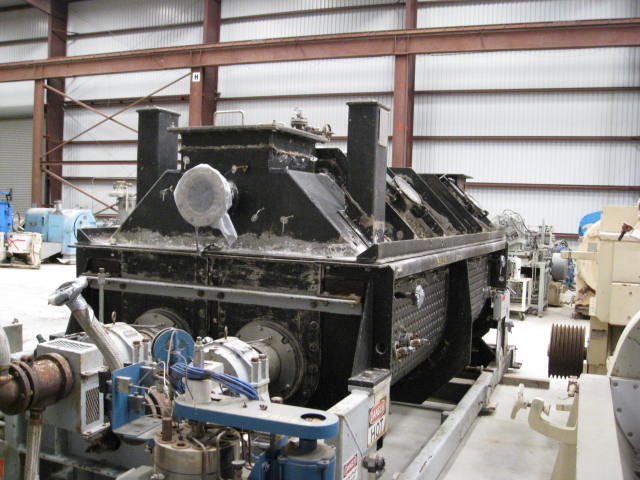

Twin Shaft Nara paddle Shell WO Number DS-220, Jacket Serial Number D-258, National Board Number 1102. Heat Transfer area: Jacket 107 Sq Ft, Agitator 293 Sq Ft, total 400 Square Foot. twin shaft with discontinous wedge shaped staggard paddles. Both jacket and agitator rated for 165 psi at 425 degrees F. Indirect heat, by saturated steam heat; rotary joints on shafts with quick disconnects and zero speed switch on end of shaft. Shaft seals are Meco Systems self-aligning externally adjstable, fully split elastomer seal, with purge port. With a 316LSS dome type covered trough rated for 5 psi pressure. With a chain and sprocket drive, SEW Sanasaio Parallel shaft speed reducer and a 75 HP Reliance motor. Motor data, ID # OIMAN 79345 G001 BC Frame 365 T, rated for 1780 rpm, Volts 230/460 amps 172/86 3 ph, Hz 60. Shaft speed approximately 12 RPM. Openings include: 15" x 36" feed opening, (1) 12" diamter vapor opening, (3) 18" x 24" explosion vent openings, (1) 6" Sweep Gas Inlet, (1) 20" x 20" Access hatch with bolted cover, (2) 6" view ports; trough has (1) 12" x 58" flanged discharg opening, (2) externally adjustable weir gates.
