Results 4 items found

Available equipment

Showing 4 of 4 matching equipment.

Stock Number: #215083

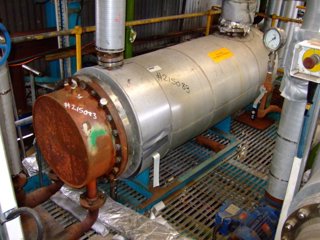

13.5 m² (145.3 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 13.5 m²
Orientation: Horizontal
Shell Pressure: 2 bar
Shell Temperature: 170 °C
Shell Material: Stainless Steel Other
Tube Pressure: 7 bar
Tube Temperature: 100 °C
Tube Material: Stainless Steel 316
Shell Diameter: 552 mm
Head Material: Carbon Steel
Length: 1,750 mm
Tube Number: 56
Additional Information: multi-pass 2-carbon steel flat channel heads Tube Diameter: 50 mm. Tube Length: 1,750 mm. Nozzle Schedule: - Openings: - Tubeside: 2-50mm, 2-12mm sockets - Shell side: 1-150mm, 2-50mm.
More Details ⟶
Stock Number: #248075
Stainless Steel 316 Dryer- Ribbon & Paddle
Design Capacity: 229.5 ft3
Operating Capacity: 141.3 ft3
Vessel Pressure: 7.3 psi
Vessel Temperature: 302 °F
Jacket Pressure: 50.8 psi
Jacket Temperature: 302 °F
Heating Type: Steam
Jacket Type: Standard
Agitation Shaft Sealing: Packing
Additional Information: • weld dished ends. • approximately 1.4m diameter x 3m straight side. • driven by dual purpose motor rated for either 50 or 60 Hz. 30/35kW, 3/50-60/380-415/440-480 volt, 1470/1770 rpm IP55 motor via a reduction gearbox.
More Details ⟶
Stock Number: #248076
Stainless Steel 316 Dryer- Ribbon & Paddle
Design Capacity: 229.5 ft3
Operating Capacity: 141.3 ft3
Vessel Pressure: 7.3 psi
Vessel Temperature: 302 °F
Jacket Pressure: 50.8 psi
Jacket Temperature: 302 °F
Jacket Type: Standard
Agitation Shaft Sealing: Packing
Additional Information: • weld dished ends • approximately 1.4m diameter x 3m straight side, • Driven by a dual purpose motor can run on either 50 or 60 Hertz, 30/35kW, 3/50-60/380-415/440-480 volt, 1470/1770 rpm IP55 motor via a reduction gearbox
More Details ⟶
Stock Number: #247254

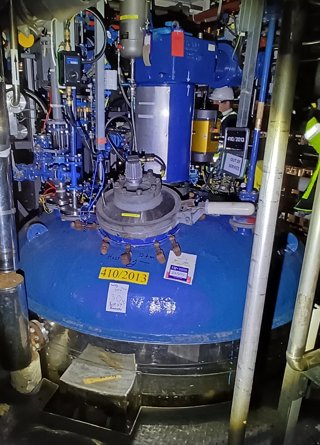

Hastelloy - C22 Batch-Type Agitated Reactor
Capacity (Design): 2,400 gallons
Internal Pressure: 98.8 psi
Internal Full Vacuum: Yes
Internal Temperature: 572 °F
Jacket Pressure: 197.4 psi
Jacket Temperature: 572 °F
Jacket Material of Construction: Stainless Steel 316L
Orientation: Vertical
Agitation: Yes
Diameter: 84 in
Straight Side Length: 97.1 in
Support Type: Lugs
Additional Information: • design pressure internal 6.81 barg + full vacuum @ -60/300 degrees C, jacket 13.61 barg + full vacuum @ -60/300 degrees C, motor is EEx de IIB T4, • design code: BS5500 1997,
More Details ⟶
