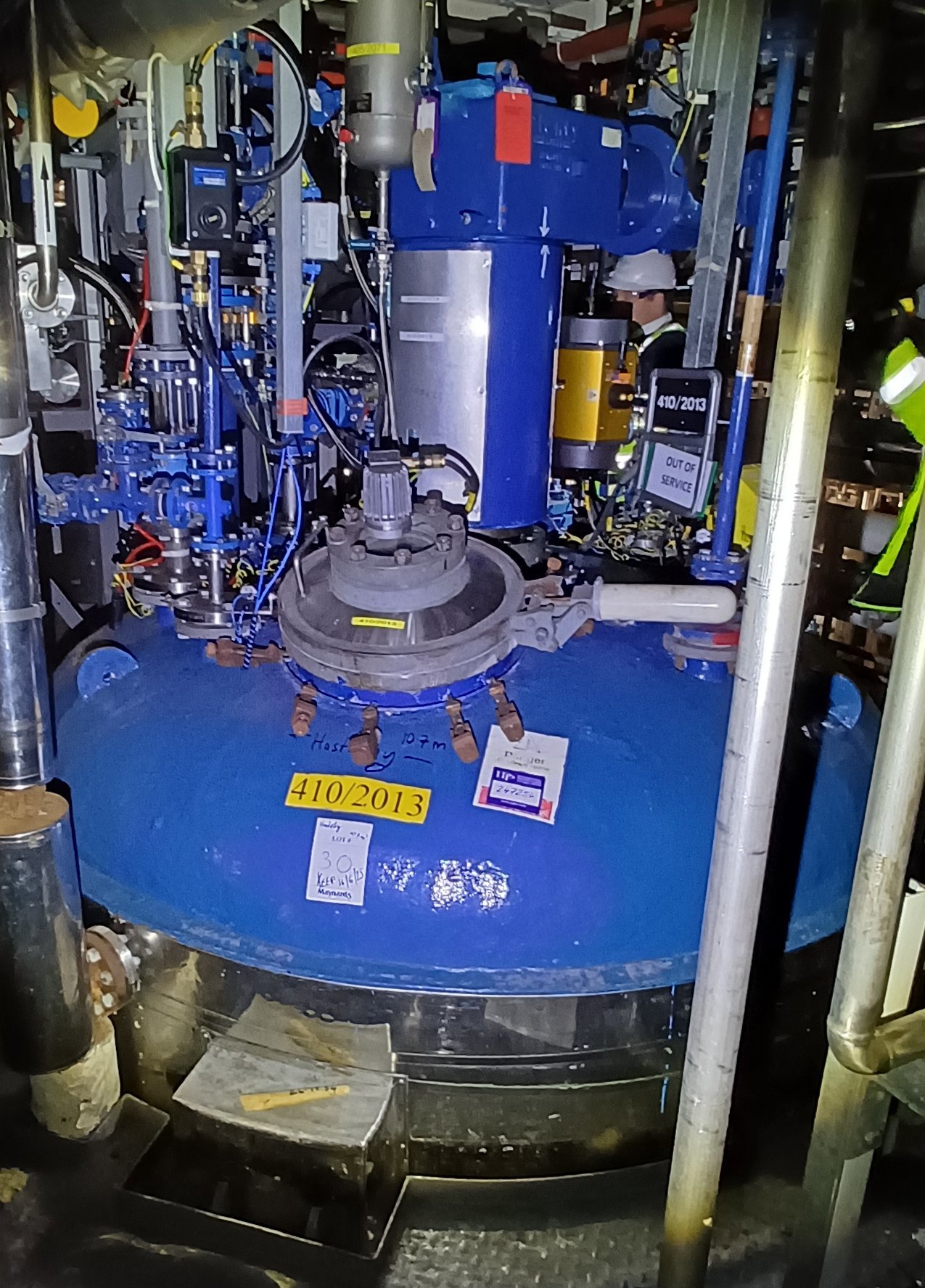

Hastelloy - C22 Batch-Type Agitated Reactor - IPP# 247254

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 1,900 L (500 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and PUF , 304 SS sheathing completely sealed to 0.4 bar
• With Thermowell and dip pipe
• Internal Finish: Buff Polish to 240 grit
• External finish: Buff polish to 180 Grit
• Rev. 4 Includes internal coil 89 Sq. Ft. rated for 145 psi at 450 degrees F

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 1,200 mm (47.2 in). Straight Side Length: 1,650 mm (65 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 22,700 L (6,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering rockwool & PUF insulation , 304 SS sheathing completely sealed to 0.4 bar
• Externals buff polished to 180 grit.
• With thermowell & dip tube.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,800 mm (110.6 in). Straight Side Length: 4,300 mm (170.1 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 15,150 L (4,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering rockwool & PUF insulation, 304 SS sheathing completely sealed to 0.4 bar.
• Externals buff polished to 180 grit.
• With thermowell & dip tube.

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,450 mm (96.5 in). Straight Side Length: 3,150 mm (124 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Gale Process Solutions

Condition: New

Material: Hastelloy - C22

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 10 bar (145 psi)

• Jacket Coverage bottom dish and 7/8 of shell height.
• Motor "Foot Mounted TEFC, UL, EX Proof, 60Hz, 230/460V"
• Sheathing covering Insulation rock wool and puff , 304 SS sheathing completely sealed to 0.4 bar
• With Thermowell and dip pipe
• Internal finish: buff polish 240 grit
• External finish Buff polish 180 grit

Internal Full Vacuum: Yes. Internal Temperature: 232.2 °C (450 °F). Sanitary Construction: Yes. Jacket Pressure: 10 bar (145 psi). Jacket Temperature: 232.2 °C (450 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,000 mm (78.8 in). Straight Side Length: 2,400 mm (94.6 in). Support Type: Lugs.
