Capacity Design:
133 ft3
Capacity Operating:
100 ft3
Jacket Pressure:
30 psi
Jacket Temperature:
350 °F
Full Vacuum:
Yes
Product Density:
75 ft3
Additional Information:

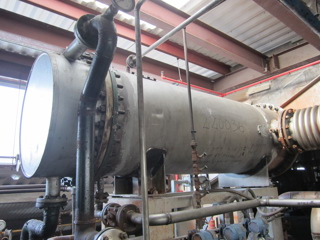

vacuum tumble dryer system.
jacket serial number 199161.
(Jacket side only built to ASME code). Rated density 75 lbs/ cubic foot.
With stainless steel vacuum arm.
Top heads have (2) 8" quick opening manways , bottom has an 18" discharge set up for valve mounting.
Shell turning speed: 0.86- 73 RPM.
Driven by 10 HP 3/60/440 V XP motor V belt driven by Reeves varispeed gear.
Skid mounted vacuum system consists of a 168 square foot condenser manufactured by Yula, serial number 9034, rated 100 PSI & 250 degrees F on shell side, 100 PSI @ 250 degrees F on tube side. National Board number 5118. Tubes, tube sheets and heads made of 304LSS; Shell carbon steel. Shell 10" diameter x 4'10" long. With Graham 316 stainless steel two stage liquid ring vacuum pump model 2V5212 ( rated for 199 cfm) ,mechanical seal on shaft, driven by 15/10 HP 3/60/230/460V, 1760 RPM EX Marathon motor.
With vertical 225 gallon separator tank. Gas contact area's are stainless steel. Also includes a PK Heating /cooling system (250 degrees F at 30 psi), electric immersion with two Chromalux Immersion elements, Model # TM-126015, 60 Kw, 3 ph, 480 volt., Durco Mark II centrifugal pump 1.5 x 1 x 6/50 driven by a 1 hp electric motor, and a 30 gallon expansion tank. W202092 stored at DW12 (S).JB
