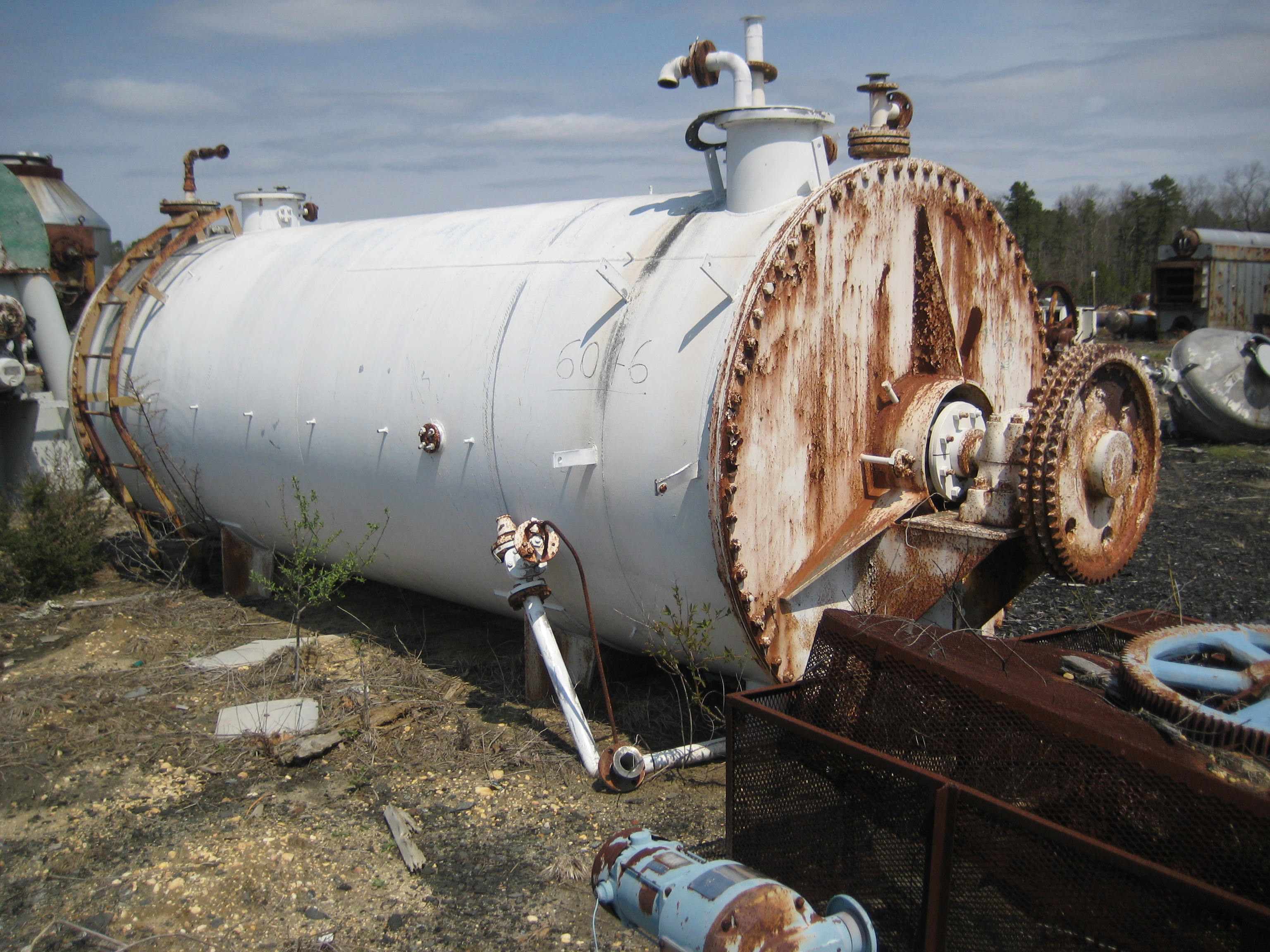

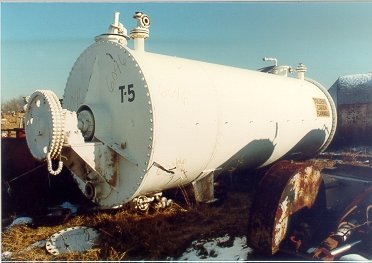

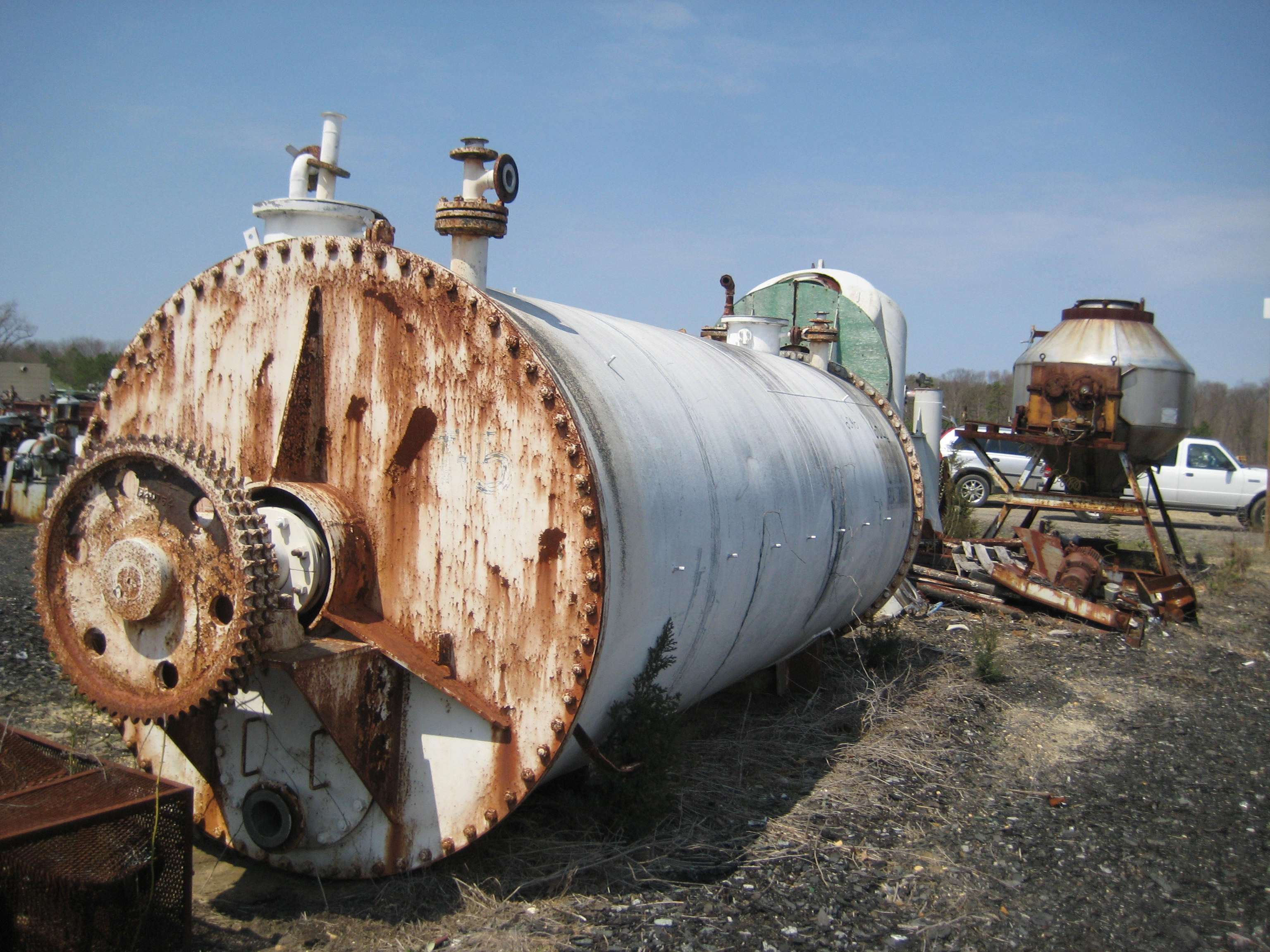

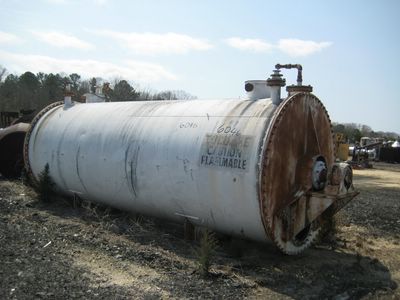

Mixer-Ribbon & Paddle 12.7 m3 (450 ft3) Stainless Steel 304 For Sale - IPP# 6046

Type: Mixer-Ribbon & Paddle

Model: U-700

Condition: Used

Material: Stainless Steel 304

Design Capacity: 1.5 m3 (53 ft3)

Operating Capacity: 1 m3 (35.3 ft3)

stainless steel ribbon blender. Chamber 60" long x 38" wide x 51" deep, Packing glands. Bolt flat top w/17" x 12" hinged manway. Openings: top 3-9"; btm 1-5" w/valve. worm and worm wheel.

Ribbon Type: Interrupted ribbon. Agitation Shaft Sealing: Packing. Length: 1,500 mm (60 in). Width: 965 mm (38 in). Height: 1,300 mm (51 in).

Type: Mixer-Ribbon & Paddle

Manufacturer: Littleford Bros, Inc

Model: FKM-600-D

Condition: Used

Material: Stainless Steel 304

Design Capacity: 0.79 m3 (28 ft3)

Vessel Pressure: -0.97 bar (-14 psi)

• Product contact Designed for batch operation.
• Designed for vacuum operation to -25 "hg.
• Internal finish polished to a 120 grit finish.
• Center bottom discharge 15.5" ID.

Jacket Temperature: -16.1 °C (3 °F). Jacket Pressure: 0.48 bar (7 psi). Jacket Type: Standard. Operational mode: Batch. Paddle/Ribbon MOC: Stainless Steel 304. Agitation Shaft Sealing: Packing. Length: 1,200 mm (48 in). Width: 914 mm (36 in). Height: 914 mm (36 in).

Type: Mixer-Ribbon & Paddle

Manufacturer: The Young Industries, Inc.

Model: 300L

Condition: Used

Material: Stainless Steel 304

Design Capacity: 8.5 m3 (300 ft3)

Operating Capacity: 7.8 m3 (275 ft3)

Ribbon Blender Size 300L, Single ribbon design, packing glands on shaft, removable ribbon design. Ribbon has a large sprocket on end of shaft for chain drive, no drive with unit. Blender trough is 60" wide x 144" long x 72" deep, with a bolted on SS cover The shaft measures 7 1/4" od.

Ribbon Type: Single Helix. Paddle/Ribbon MOC: Stainless Steel Other. Agitation Shaft Sealing: Packing. Length: 3,650 mm (144 in). Width: 1,500 mm (60 in). Height: 1,850 mm (72 in).

Type: Mixer-Ribbon & Paddle

Manufacturer: Loedige Littleford Ploughshare

Model: KM8000

Condition: Used

Material: Stainless Steel 304

Design Capacity: 8 m3 (282.5 ft3)

Operating Capacity: 5 m3 (176.6 ft3)

continuous mixing 25,000 kg/hr 8000 liter(2113 gallon) total capacity with (2) side hatches with hinged covers and hand wheel swing bolts, (1) 16" x 24" ID top drive end charge port, (1) 16" ID vent port top center, and (1) 17" x 20" ID bottom end discharge port. Internal shaft with plows 3/60/230/460 volt 1750 rpm down to 90 rpm Weight 17,200 lbs.

Operational mode: Continuous. Ribbon Type: Plows. Length: 7,400 mm (291 in). Width: 1,750 mm (68 in). Height: 2,300 mm (90 in).
