Results 5 items found

Available equipment

Showing 5 of 5 matching equipment.

Featured

Stock Number: #705658

Graphite Robert Jenkins GEK-BQ-7 Block Heat Exchanger

Heat Transfer Surface Area: 9 m²

Orientation: Horizontal

Shell Pressure: 7 bar

Shell Temperature: 165 °C

Vacuum: Yes

Length: 765 mm

Nozzle Schedule: openings 1-240mm, 2-150mm, 2-100mm

Process Pressure: 7 bar

Process Temperature: 165 °C

Additional Information: cubic block heat exchanger process side is 2-pass with (2160) slots, 9.5mm x 3mm, service side is multi-stage with (756) 9.5mm diameter tubes can be used vertical or horizontal.

More Details ⟶

Stock Number: #90201

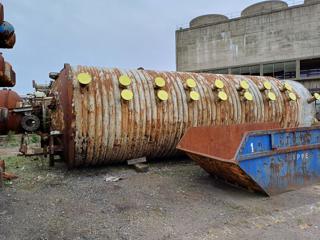

Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor

Capacity (Design): 10,550 gallons

Internal Pressure: 330 psi

Internal Full Vacuum: Yes

Internal Temperature: 85 °C

Jacket Pressure: 60 psi

Jacket Material of Construction: Carbon Steel

Orientation: Vertical

Agitation: Yes

Diameter: 102 in

Straight Side Length: 261 in

Support Type: Skirt

Additional Information: • coil jacket with (42) turns on straight side. • Lightnin mixer • direct coupled to 200 KW, 3/50/415 volt • 4-blade SS impellor.

More Details ⟶

Stock Number: #90200

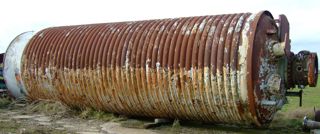

Stainless Steel 316 Clad Robert Jenkins Batch-Type Agitated Reactor

Capacity (Design): 10,500 gallons

Internal Pressure: 330 psi

Internal Full Vacuum: Yes

Internal Temperature: 85 °C

Jacket Pressure: 60 psi

Jacket Material of Construction: Carbon Steel

Orientation: Vertical

Agitation: Yes

Diameter: 102 in

Straight Side Length: 261 in

Additional Information: jkt agit reactor/autoclave. (42) turns on str side. Wall thickness is 15/16" with 10% cladding; Heads are 1 1/8" thick with 15% cladding. bottom driven by Lightnin mixer, 14:1 ratio, direct coupled to 200 KW, 3/50/415 volt, 991 rpm non-flameproof motor.

More Details ⟶

Stock Number: #706274

Unused Carbon Steel Block Heat Exchanger

Orientation: Horizontal

Shell Pressure: 75 psi

Shell Temperature: 180 °C

Vacuum: Yes

Length: 620 mm

Nozzle Schedule: openings 4-50mm, 1-125mm

Process Pressure: 75 psi

Process Temperature: 180 °C

Additional Information: Carbon block heat exchanger Block dimensions 620mm long x 340mm wide x 340mm high. Heat exchanger was refurbished by Ralph Coidan, ref # 31114D, test pressure service side 7.8 bar, process 7.8 bar

More Details ⟶
