Results 6 items found

Available equipment

Showing 6 of 6 matching equipment.

Stock Number: #221504
Graphite Sigri RS77-1-3755.6 Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 17.3 m²
Orientation: Horizontal
Shell Pressure: 7 bar
Shell Temperature: 165 °C
Shell Material: Carbon Steel
Tube Pressure: 5.5 bar
Tube Temperature: 165 °C
Tube Material: Graphite
Vacuum: Yes
Shell Diameter: 332 mm
Head Material: Carbon Steel
Length: 6,350 mm
Additional Information: heads with carbon steel flat plates Shell-side Passes: 1. Tube-side Passes: 6. Tube Number: 37. Tube Diameter: 32 mm. Tube Length: 5,500 mm. Tube Thickness: 5 mm. Nozzle Schedule: - Tube side openings: (1) head with 2-1 1/2", (1) head with none - Shell side openings: 2-1 1/2", 2-1".
More Details ⟶
Stock Number: #221517
Graphite Sigri Packed Column
Diameter (1): 310 mm
Pressure: 1.8 bar
Temperature: 165 °C
Additional Information: 25mm diameter Polyprop pall rings
More Details ⟶
Stock Number: #221558
Graphite Sigri WT-RS77-1-34930-1 Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 81 m²
Orientation: Vertical
Shell Pressure: 7 bar
Shell Temperature: 165 °C
Shell Material: Carbon Steel
Tube Pressure: 1.8 bar
Tube Temperature: 165 °C
Tube Material: Graphite
Vacuum: Yes
Shell Diameter: 856 mm
Length: 5,900 mm
Tube Number: 349
Additional Information: single pass Tube Diameter: 32 mm. Tube Length: 2,850 mm. Tube Thickness: 5 mm. Nozzle Schedule: - Tube side openings: (1) head with 1-12", (1) head with 1-4", 2-3", 1-1 1/2" - Shell side openings: 2-6", 1-1".
More Details ⟶
Stock Number: #221559
Graphite Sigri WT-RS77-1-34930-1 Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 81 m²
Orientation: Vertical
Shell Pressure: 7 bar
Shell Temperature: 165 °C
Shell Material: Carbon Steel
Tube Pressure: 1.5 bar
Tube Temperature: 165 °C
Tube Material: Graphite
Vacuum: Yes
Shell Diameter: 856 mm
Length: 5,900 mm
Tube Number: 349
Additional Information: single pass Tube Diameter: 32 mm. Tube Length: 2,850 mm. Tube Thickness: 5 mm. Nozzle Schedule: - Tube side openings: - (1) head with 1-12" - (1) head with 1-4" - 2-3" - 1-1 1/2" - Shell side openings: - 2-6" - 1-1".
More Details ⟶
Stock Number: #211508
Graphite Block Heat Exchanger
Heat Transfer Surface Area: 76 ft²
Orientation: Vertical
Shell Temperature: 100 °C
Shell Material: Carbon Steel
Vacuum: Yes
Shell Diameter: 240 mm
Head Material: Carbon Steel
Length: 70.9 in
Nozzle Schedule: tube side: (2) DN40; Shell side: (1) DN32, (1) DN40, (1) DN50
Block Type: Karbate
Process Pressure: 72.5 psi
Pack Material: Graphite
Additional Information: • Estimated surface area to be 76 ft 2 • cylindrical pressure service side 5 atu @ 26 degrees C28 liters Process Temperature: 100 °C.
More Details ⟶

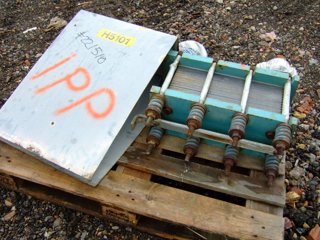

Stock Number: #221510
Graphite Sigri P05-28-2.1-F100 Plate and Frame Heat Exchanger
Heat Transfer Surface Area: 1.3 m²
Nozzle Schedule: 4-1"Openings,
Cold-side Pressure: 6 bar
Cold-side Temperature: 140 °C
Hot-side Pressure: 6 bar
Hot-side Temperature: 140 °C
Housing Material: Carbon Steel
Number of Plates: 28
Additional Information: carbon steel frame
More Details ⟶
