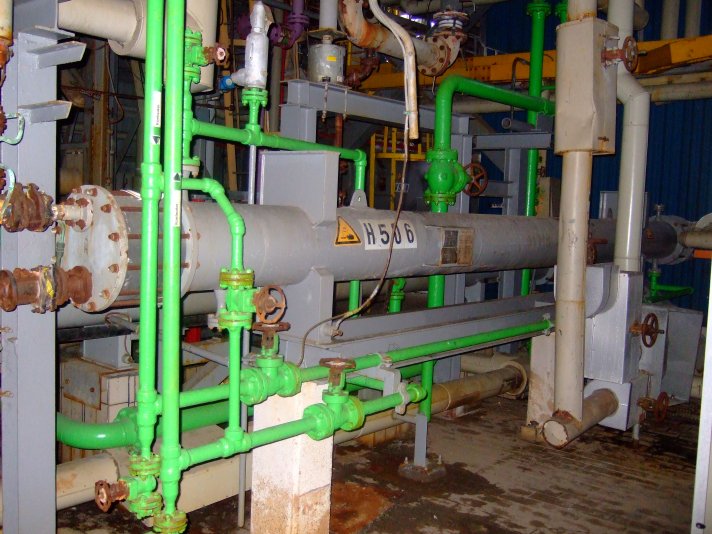

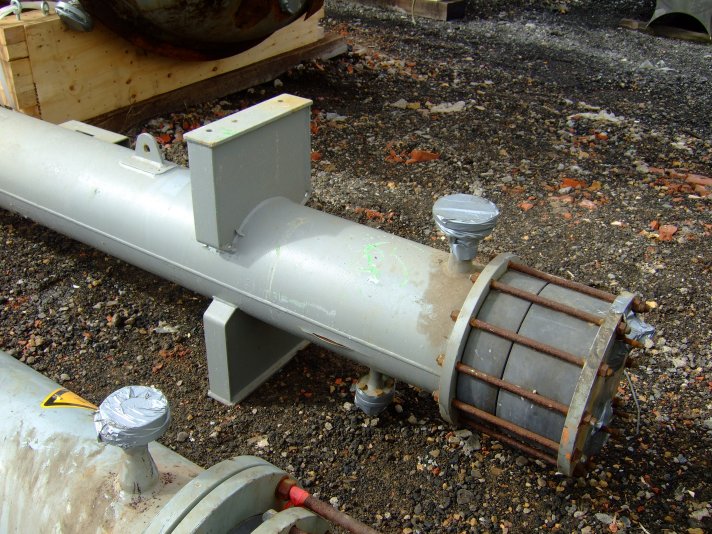

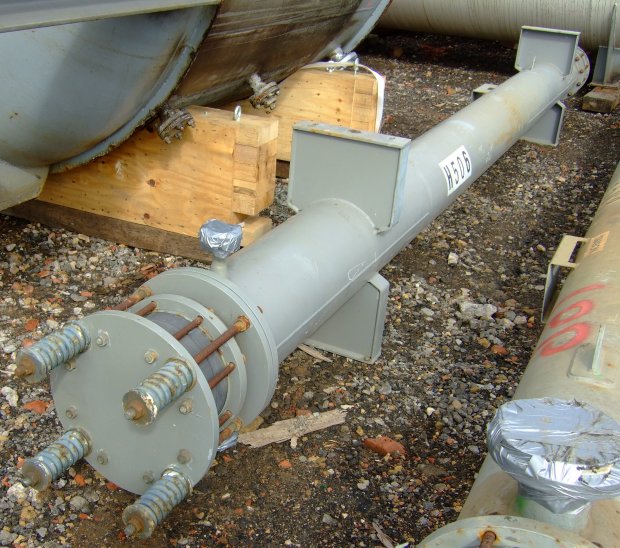

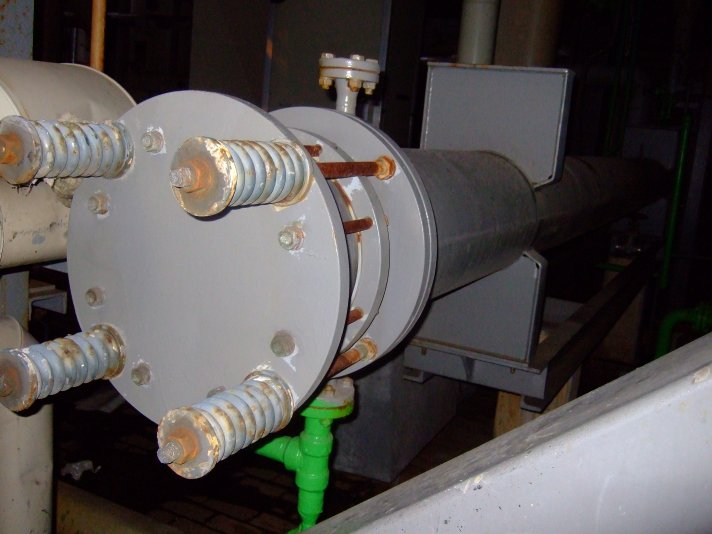

Graphite Sigri RS77-1-3755.6 Shell and Tube Heat Exchanger - IPP# 221504

Type: Heat Exchanger

Subtype: Shell and Tube

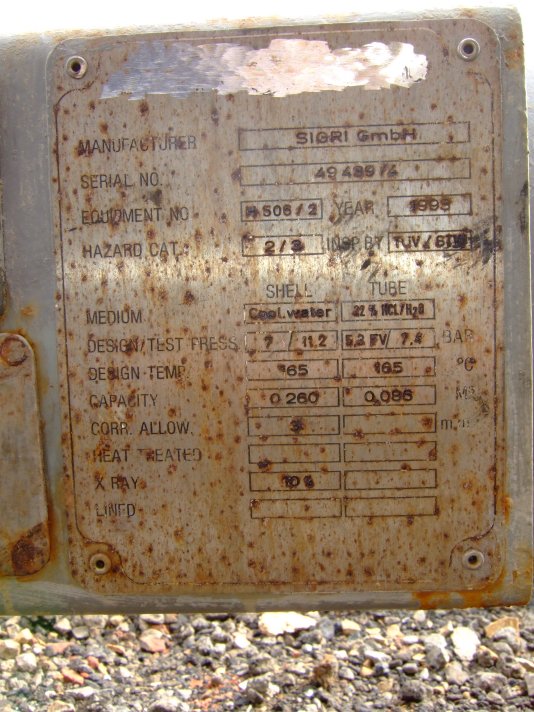

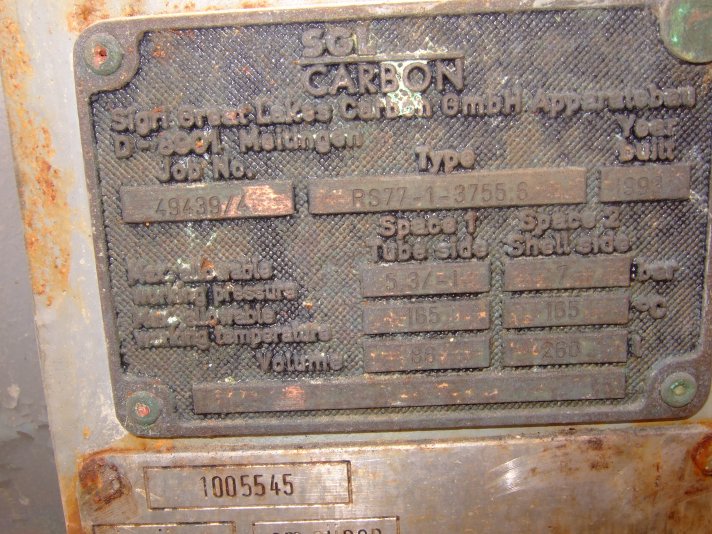

Manufacturer: Sigri GmbH

Model: WT-RS77-1-34930-1

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 81 m² (872 ft²)

Orientation: Vertical

single pass

Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Carbon Steel. Tube Pressure: 1.5 bar (21.8 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Graphite. Vacuum: Yes. Shell Diameter: 856 mm (33.7 in). Length: 5,900 mm (231.8 in). Tube Number: 349. Tube Diameter: 32 mm (1.26 in). Tube Length: 2,850 mm (111.8 in). Tube Thickness: 5 mm (0.2 in). Nozzle Schedule: - Tube side openings: - (1) head with 1-12" - (1) head with 1-4" - 2-3" - 1-1 1/2" - Shell side openings: - 2-6" - 1-1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sigri GmbH

Model: WT-RS77-1-34930-1

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 81 m² (872 ft²)

Orientation: Vertical

single pass

Shell Pressure: 7 bar (101.5 psi). Shell Temperature: 165 °C (329 °F). Shell Material: Carbon Steel. Tube Pressure: 1.8 bar (26.1 psi). Tube Temperature: 165 °C (329 °F). Tube Material: Graphite. Vacuum: Yes. Shell Diameter: 856 mm (33.7 in). Length: 5,900 mm (231.8 in). Tube Number: 349. Tube Diameter: 32 mm (1.26 in). Tube Length: 2,850 mm (111.8 in). Tube Thickness: 5 mm (0.2 in). Nozzle Schedule: - Tube side openings: (1) head with 1-12", (1) head with 1-4", 2-3", 1-1 1/2" - Shell side openings: 2-6", 1-1".

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: Sigri Gmbh

Model: RS77/2/22/3401

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 69.6 m² (749 ft²)

Orientation: Vertical

Total volume: tube side 1600 liter; shell side 960 liter. (2) flat heads Single pass

Shell Pressure: 6 bar (87 psi). Shell Temperature: 170 °C (338 °F). Shell Material: Carbon Steel. Tube Pressure: 3 bar (43.5 psi). Tube Temperature: 170 °C (338 °F). Tube Material: Graphite. Vacuum: Yes. Length: 4,650 mm (184 in). Shell-side Passes: 1. Tube-side Passes: 1. Tube Number: 10. Tube Diameter: 25.4 mm (1 in). Nozzle Schedule: Openings: tubeside 2-14"; shell 1-6", 1-1 1/2", 2-1" spring assisted bolts. .

Type: Heat Exchanger

Subtype: Shell and Tube

Manufacturer: VICARB

Model: HP2/20

Condition: Used

Material: Graphite

Heat Transfer Surface Area: 21 m² (226 ft²)

Orientation: Vertical

design pressure process side 7 bar @ 50/61 degrees C, service 3.6 bar @ 23/34 degrees C, exchanger made up of 8- blocks of HP2/20 elements

Shell Pressure: 2.5 bar (36.3 psi). Shell Temperature: 34 °C (93.2 °F). Shell Material: Carbon Steel. Tube Pressure: 6 bar (87 psi). Tube Temperature: 61 °C (141.8 °F). Tube Material: Graphite. Shell-side Passes: 2. Tube-side Passes: 3. Nozzle Schedule: openings: process 2-100mm, 2-25mm, service 2-100mm,.
