Results 21 items found

Available equipment

Showing 21 of 21 matching equipment.

Stock Number: #211729
1,200 mm (47.2 in) Stainless Steel 316 Packed Column
Diameter (1): 1,200 mm
Pressure: 3.2 bar
Vacuum: Yes
Temperature: 300 °C
Additional Information: 900mm/1200mm (~35"/47") x 8372 (~27 ft) mm OAH Packed Rectification Column Unit bolted in 4 sections: Top section is 900 mm x 1540 mm, with a 5 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 1200 mm diam x 2040 mm long each, with a 1020 mm thick packed beds with 316LSS Sulzer packing in each section. Bottom section has a 5 SqM Falling film evaprator section with 316LSS vertical tubes in this section
More Details ⟶
Stock Number: #211620
Stainless Steel 316 Sulzer Packed Column
Diameter (1): 900 mm
Pressure: 3 bar
Vacuum: Yes
Temperature: 300 °C
Additional Information: 800/900 mm x 8520 mm (~31-35" x 28') /OAH Packed Rectification Column Design operating conditons: 1.2 Torr, @ 245 Degrees C, 225 to 380 kg/h gass flow; 315 to 470 kg/h liter. Unit bolted in 4 sections: Top section is 800 mm x 1700 mm, with a 8 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 900 mm diam x 4400 mm long total, 2200 mm long each, with a 1020 mm thick packed beds with 316LSS Sulzer packing in each section. Bottom section narrows to 800 mm diameter with an 8.2 SqM Falling film evaprator section with 316LSS vertical tubes in this section
More Details ⟶
Stock Number: #211629
400 mm (15.7 in) Stainless Steel 316 Packed Column
Diameter (1): 400 mm
Pressure: 3.2 bar
Vacuum: Yes
Temperature: 300 °C
Additional Information: 316lss Packed Rectification Column Unit bolted in 4 sections: Top section is 400 mm x 1140 mm, with aproz 2.5 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 400 mm diam x 2040 mm long each, with a packed beds with 316LSS Sulzer packing in each section. Bottom section has a Falling film evaprator section with 316LSS vertical tubes in this section
More Details ⟶
Stock Number: #211728
1,200 mm (47.2 in) Stainless Steel 316 Packed Column
Diameter (1): 1,200 mm
Pressure: 3.2 bar
Vacuum: Yes
Temperature: 300 °C
Additional Information: 900mm/1200mm (~35 - 47") x 8372 (~27') mm OAH Packed Rectification Column Unit bolted in 4 sections: Top section is 900 mm x 1540 mm, with a 5 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 1200 mm diam x 2040 mm long each, with a 1020 mm thick packed beds with 316LSS Sulzer packing in each section. Bottom section has a 5 SqM Falling film evaporator section with 316LSS vertical tubes in this section
More Details ⟶
Stock Number: #234971
Carbon Steel Sulzer 2D200-2K Reciprocating Compressor
Compressor Type: Reciprocating
Inlet Pressure: 24.5 psi
Discharge Pressure: 255 psi
Flow Rate: 960 CFM
Speed (RPM): 600
Additional Information: two stage compressor SO # 60.5-7315
More Details ⟶
Stock Number: #214895
Unused Stainless Steel Other Centrifugal Pump
Flow Rate: 387 GPM
Pump Head: 1,650 ft
Pressure: 720 psi
Orientation: Horizontal
Motor Power: 300 HP
Motor Speed (RPM): 3,575
Additional Information: 1660 TDH Duplex Stainless Steel (A743- 13cr4ni) 7 Stage NEMA Nom Efficiency rated for 95.8% Set up for long term storage both in the vertical position
More Details ⟶
Stock Number: #214038
7 m3/h (30.8 GPM) Carbon Steel Centrifugal Pump
Flow Rate: 7 m3/h
Pump Head: 385 m
Orientation: Horizontal
Powered By: Electric
Motor Power: 30 kW
Motor Speed (RPM): 2,945
Temperature: 105 °C
Additional Information: high pressure stage casing centrifugal pump radially split ring section pumps of modular design EExdeIICT4
More Details ⟶
Stock Number: #214041
15 m3/h (66 GPM) Carbon Steel Centrifugal Pump
Flow Rate: 15 m3/h
Pump Head: 235 m
Orientation: Horizontal
Powered By: Electric
Motor Power: 30 kW
Motor Speed (RPM): 2,945
Temperature: 86 °C
Additional Information: Pressure: High pressure horizontal radially split ring section pumps of modular design Ex de II CT 4 openings (1) DN40 and (1) DN80
More Details ⟶
Stock Number: #214042
60 m3/h (264.2 GPM) Stainless Steel 316 Centrifugal Pump
Flow Rate: 60 m3/h
Pump Head: 200 m
Orientation: Horizontal
Powered By: Electric
Motor Power: 90 kW
Motor Speed (RPM): 2,975
Temperature: 75 °C
Additional Information: EExdeIICT4 type KD9280M-AB017-Z openings (1) DN50 and (1) DN100
More Details ⟶
Stock Number: #214043
60 m3/h (264.2 GPM) Stainless Steel Other Centrifugal Pump
Flow Rate: 60 m3/h
Pump Head: 200 m
Orientation: Horizontal
Powered By: Electric
Motor Power: 90 kW
Motor Speed (RPM): 2,975
Temperature: 75 °C
Additional Information: Ex de II CT 4 motor
More Details ⟶
Stock Number: #214894
Unused Stainless Steel Other Centrifugal Pump
Flow Rate: 387 GPM
Pump Head: 1,650 ft
Pressure: 720 psi
Orientation: Horizontal
Motor Power: 300 HP
Motor Speed (RPM): 3,575
Additional Information: • Total dynamic head: 1660 TDH Duplex Stainless Steel (A743- 13cr4ni) 7 Stage • Amperage rating: 323 amps • Efficiency rating: 95.8% • Storage status: Set up for long term storage. NEMA Nom
More Details ⟶
Stock Number: #214896
Unused Stainless Steel Other Centrifugal Pump
Flow Rate: 387 GPM
Pump Head: 1,650 ft
Pressure: 720 psi
Orientation: Horizontal
Motor Power: 300 HP
Motor Speed (RPM): 3,575
Additional Information: Total dynamic head: 1660 TDH Material: Duplex Stainless Steel (A743-13cr4ni) Number of stages: 7 NEMA Nom Efficiency rating: 95.8% both in the vertical position Storage status: Set up for long term storage.
More Details ⟶

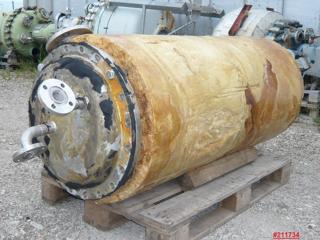

Stock Number: #211734
Stainless Steel Other Spiral Heat Exchanger
Heat Transfer Surface Area: 2.5 m²
Shell Pressure: 3 bar
Shell Temperature: 200 °C
Vacuum: Yes
Shell Diameter: 500 mm
Length: 1,200 mm
Nozzle Schedule: Shell openings: (2) 40mm, (2) 100mm - Coil openings: (2) 25mm
Cold-side Pressure: 3 bar
Cold-side Temperature: 200 °C
Hot-side Pressure: 3 bar
Hot-side Temperature: 200 °C
Spiral Material: Stainless Steel Other
Additional Information: Coil rating: 3 bar @ 200 degrees C Coil diameter: 25mm OD Shell top: bolted dished Shell bottom: dished
More Details ⟶
Stock Number: #214039
7 m3/h (30.8 GPM) Carbon Steel Centrifugal Pump
Flow Rate: 7 m3/h
Pump Head: 385 m
Orientation: Horizontal
Powered By: Electric
Motor Power: 30 kW
Motor Speed (RPM): 2,945
Temperature: 105 °C
Additional Information: high pressure stage casing centrifugal pump radially split ring section pumps of modular design openings (1) DN40 and (1) DN80
More Details ⟶
Stock Number: #211726
600 mm (23.6 in) Stainless Steel 316 Packed Column
Diameter (1): 600 mm
Length (overall): 8,350 mm
Pressure: 3.2 bar
Vacuum: Yes
Temperature: 300 °C
Additional Information: Rectification Column Unit bolted in 4 sections: Top section is 600 mm x 1130 mm, with a 3 SqM internal spiral condensing coil; Mid-section has (2) bolted sections that expand to 600 mm diam x 2040 mm long each, with a 1020 mm thick packed beds with 316LSS Sulzer packing in each section. Bottom section has a 3 SqM Falling film evaporator section with 316LSS vertical tubes in this section
More Details ⟶
Stock Number: #236123
40 m² (430.6 ft²) Stainless Steel 316 Shell and Tube Heat Exchanger
Heat Transfer Surface Area: 40 m²
Orientation: Horizontal
Shell Pressure: 3 bar
Shell Temperature: 200 °C
Shell Material: Stainless Steel 316
Tube Pressure: 6 bar
Tube Temperature: 200 °C
Tube Material: Stainless Steel 316
Vacuum: Yes
Shell Diameter: 638 mm
Head Material: Stainless Steel 316
Length: 3,050 mm
Additional Information: Certification: CE0036 max allowable pressure tube side -1/6 bar @ -10/200 degrees C (265 liter) shell -1/3 bar @ -10/200 degrees C (550 liter) Tube configuration: Multi-pass (2) 316L (1.4404) stainless steel flat heads, Tube Number: 192. Tube Diameter: 25.4 mm. Tube Length: 2,500 mm. Nozzle Schedule: openings: each head with 1-100mm, shell: 1-250mm, 2-80mm.
More Details ⟶
Stock Number: #216305
Carbon Steel Sulzer 4D-225-3A Reciprocating Compressor
Compressor Type: Reciprocating
Inlet Pressure: 14 psi
Discharge Pressure: 680 psi
Flow Rate: 1,050 CFM
Speed (RPM): 325
Additional Information: • Three stage liquid CO2 compressor. No driver available
More Details ⟶
Stock Number: #216306
Carbon Steel Sulzer 4D-250-3B Reciprocating Compressor
Compressor Type: Reciprocating
Inlet Pressure: 14 psi
Discharge Pressure: 680 psi
Flow Rate: 2,600 CFM
Speed (RPM): 420
Additional Information: • Three stage liquid CO2 compressor. No driver available
More Details ⟶
Stock Number: #216307
Carbon Steel Sulzer 4D-250-3B Reciprocating Compressor
Compressor Type: Reciprocating
Inlet Pressure: 14 psi
Discharge Pressure: 680 psi
Flow Rate: 2,600 CFM
Speed (RPM): 420
Additional Information: • Three stage liquid CO2 compressor. No driver available.
More Details ⟶
Stock Number: #216309
Carbon Steel Sulzer 1D-150-1E Reciprocating Compressor
Compressor Type: Reciprocating
Inlet Pressure: 15 psi
Discharge Pressure: 568 psi
Flow Rate: 68 CFM
Speed (RPM): 480
Additional Information: • Two stage liquid CO2 compressor No driver available.
More Details ⟶
Stock Number: #89969
Stainless Steel 316 Miscellaneous Filter
Additional Information: Sulzer Ghelfi filter Clamp dish top Welded cone bottom W/(3) internal scrappers Direct driven by .18 KW, 50 Hz, 1400 rpm non-flameproof motor via 40:1 ratio Atti gearbox Openings: str side 2-1 1/2" (36mm) btm 1-2" (50mm)
More Details ⟶
