Capacity Design:
353.1 ft3
Capacity Working:
233.1 ft3
Diameter:
51.2 in
Length:
238.6 in
Temperature:
752 °F
Rated for Vacuum:
Yes
Heat Transfer Surface Area:
306.8 ft²
Orientation:
Horizontal
Jacket Material:
Stainless Steel 304
Jacket Pressure:
174 psi
Jacket Temperature:
428 °F
Jacket Type:
Standard
Additional Information:

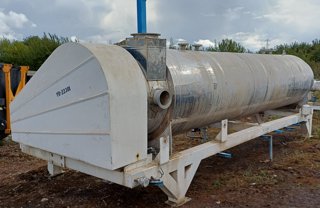

304 stainless steel jacketed turbo dryer, water content of dry product @ 0.5% and a dry particle size of >420 microns capacity, gas fired, steam drum type, 304 stainless steel drum, carbon steel rotor with 304 stainless steel lining, 460 volt, 60Hz, 500 rpm turbine speed, operating pressure of drum is slightly below atmospheric @ 180/100 degrees C, jacket 10 bar g @ 175 degrees C, design pressure of jacket 12 bar g @ 220 degrees C, internal blades to keep product on the sidewall and to push product down the dryer, internal self cleaning is done via reverse rotation of the drum
(1) approx 90m3/hr 304 stainless steel blower/fan, manufactured by Chicago Blower, type MPC-2/18, 1.165 kg/m3 Density, 30 degrees C, 3480 rpm, driven by 15kW, 3/60/460 volt, motor
(1) Superheated air generator with gas burner, manufactured by Babcock Wanson, type Mixbloc 500, 500,000 kcal/h, 150-200 degrees C outlet temperature, 0-30 degrees Inlet temperature, 1150 Ncm/hr combustion air delivery, 3000/5000/6000 Ncm/hr min/nor/max primary air delivery, natural gas fired, 60Hz, 460 volt,
