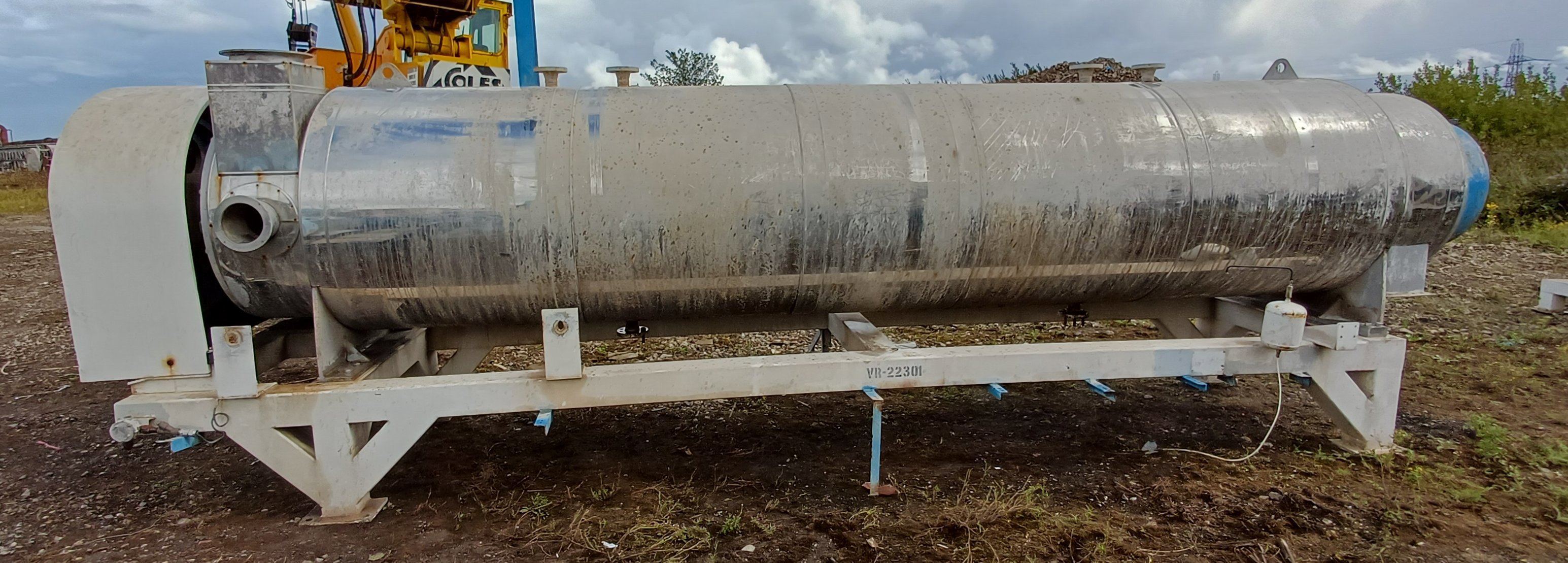

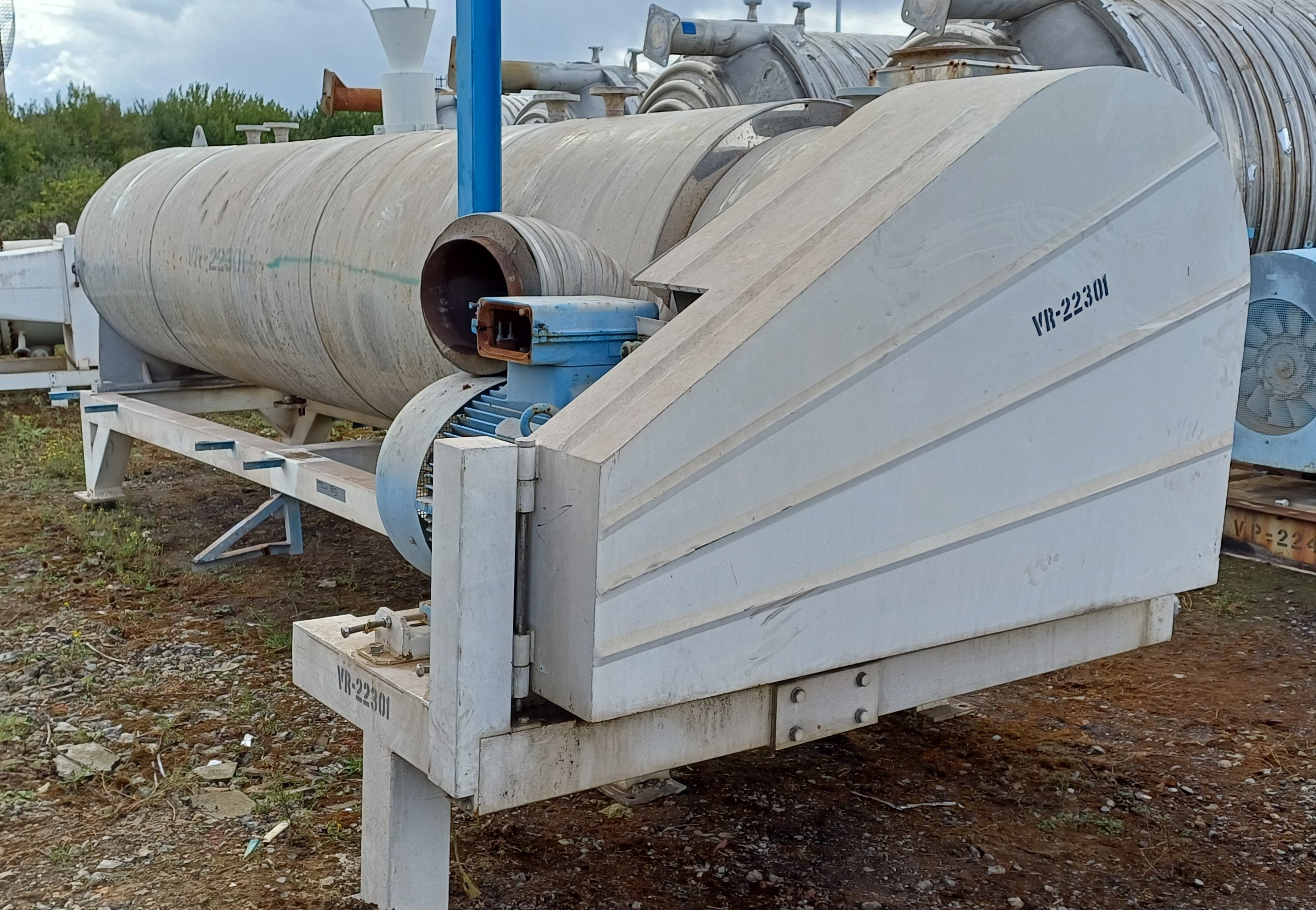

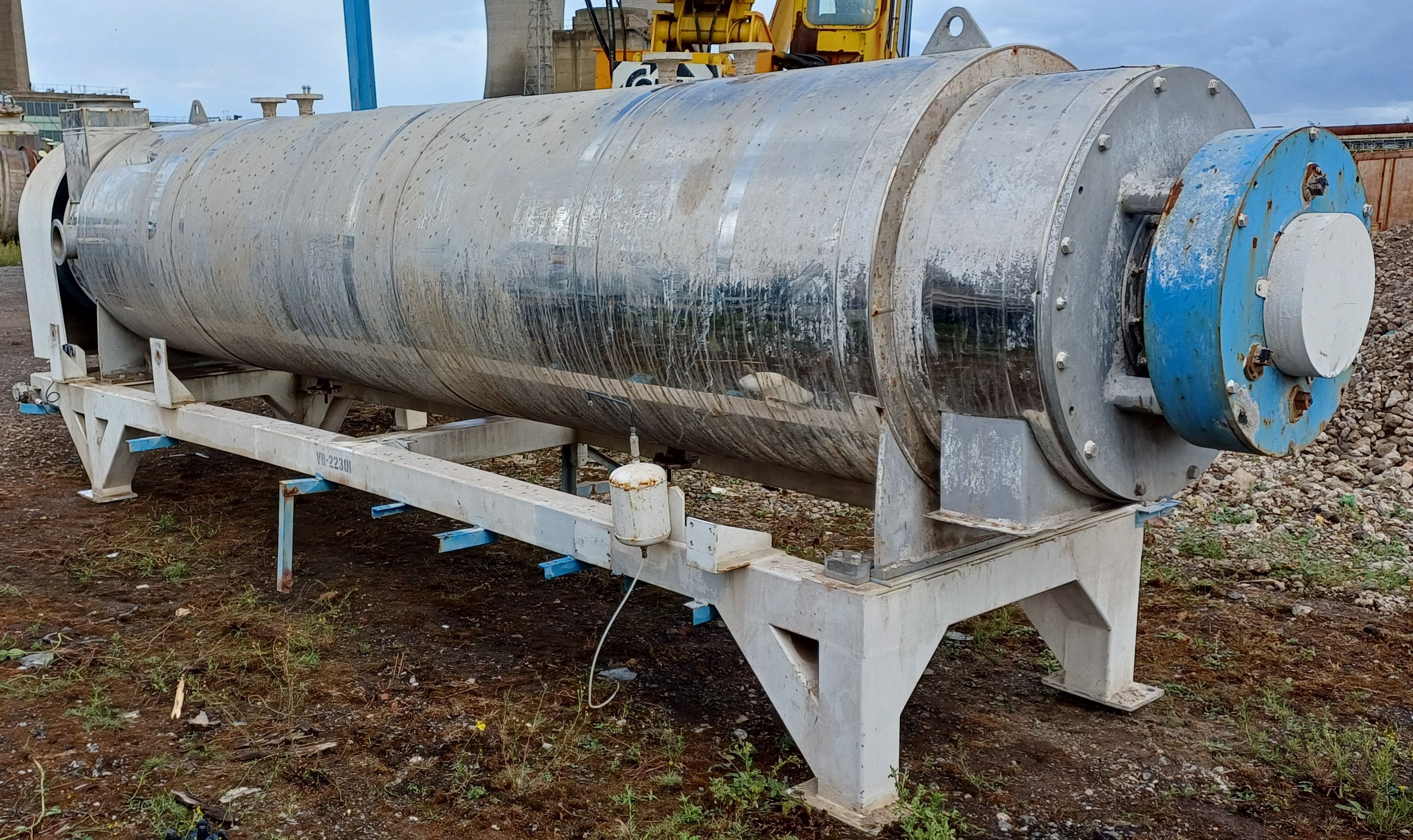

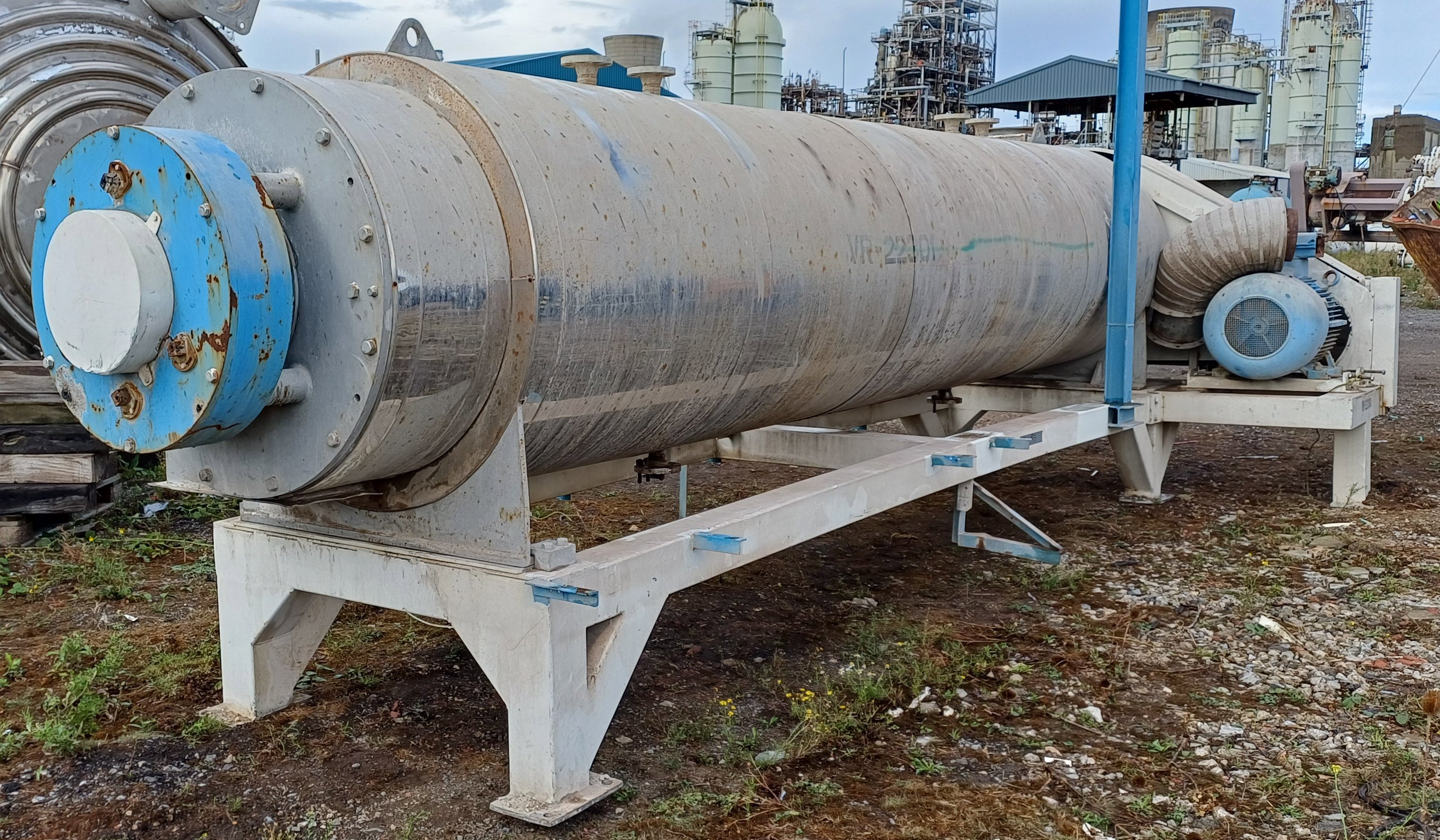

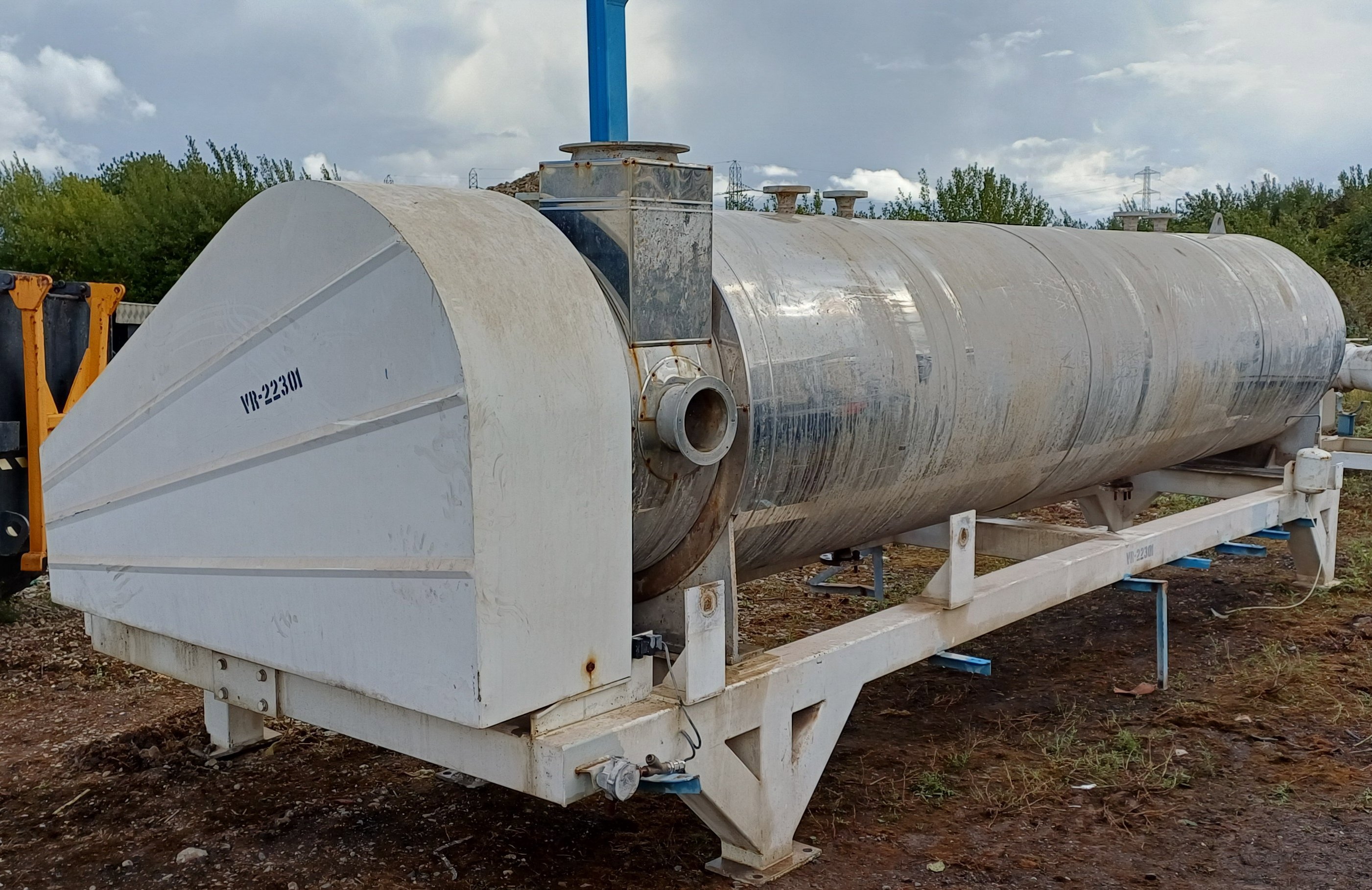

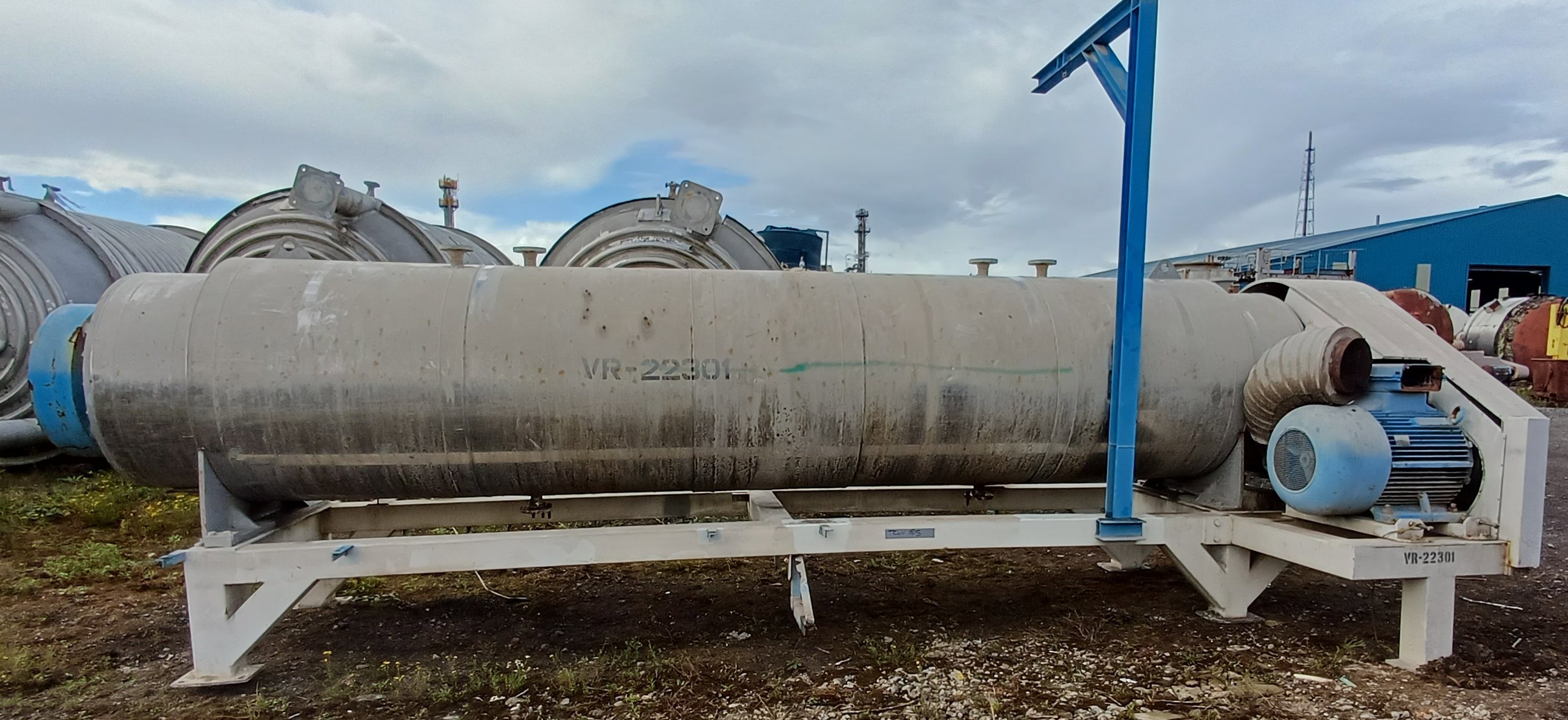

304 stainless steel jacketed turbo dryer, water content of dry product @ 0.5% and a dry particle size of >420 microns capacity, gas fired, steam drum type, 304 stainless steel drum, carbon steel rotor with 304 stainless steel lining, 460 volt, 60Hz, 500 rpm turbine speed, operating pressure of drum is slightly below atmospheric @ 180/100 degrees C, jacket 10 bar g @ 175 degrees C, design pressure of jacket 12 bar g @ 220 degrees C, internal blades to keep product on the sidewall and to push product down the dryer, internal self cleaning is done via reverse rotation of the drum
(1) approx 90m3/hr 304 stainless steel blower/fan, manufactured by Chicago Blower, type MPC-2/18, 1.165 kg/m3 Density, 30 degrees C, 3480 rpm, driven by 15kW, 3/60/460 volt, motor
(1) Superheated air generator with gas burner, manufactured by Babcock Wanson, type Mixbloc 500, 500,000 kcal/h, 150-200 degrees C outlet temperature, 0-30 degrees Inlet temperature, 1150 Ncm/hr combustion air delivery, 3000/5000/6000 Ncm/hr min/nor/max primary air delivery, natural gas fired, 60Hz, 460 volt,
Type: Dryer-Rotary Vacuum
Model: 1.2-4-DBK
Condition: Unused
Material: Stainless Steel 304
Capacity Design: 4 m3 (141 ft3)
Capacity Working: 1.98 m3 (70 ft3)
304SS shell with CS jacket Openings: top 1-14", 1-12", 1-24" w/28" dia x 36" str side air receiver Center btm discharge 1-12" Rotor speed 6 rpm
Diameter: 1,200 mm (48 in). Length: 3,950 mm (156 in). Pressure: 2 bar (29 psi). Heat Transfer Surface Area: 15.1 m² (163 ft²). Shaft Cored and National Board Stamped: Yes. Agitation: Yes. Agitation Seal Type: Packing. Jacket Material: Carbon Steel. Jacket Pressure: 8.1 bar (118 psi).
Type: Dryer-Rotary Vacuum
Manufacturer: Stokes
Condition: Used
Material: Stainless Steel 304
Capacity Design: 9.4 m3 (333 ft3)
Capacity Working: 7.1 m3 (250 ft3)
NS# P-76551-1 Rated FV internal @ 300 degrees F Shell is 5' ID X 20' long
Diameter: 1,500 mm (60 in). Length: 6,100 mm (240 in). Height: 2,150 mm (84 in). Temperature: 148.9 °C (300 °F). Rated for Vacuum: Yes. Heat Transfer Surface Area: 27.8 m² (299 ft²). Orientation: Horizontal. Agitation: Yes. Jacket Material: Carbon Steel. Jacket Pressure: 3.4 bar (50 psi). Jacket Temperature: 148.9 °C (300 °F).
Type: Dryer-Rotary Vacuum
Manufacturer: Blaw Knox
Condition: Used
Material: Stainless Steel 304
Capacity Design: 3.5 m3 (125 ft3)
Capacity Working: 2.3 m3 (82 ft3)
4' diameter x 10' long chamber. as 24" cored shaft with paddles and removable scrapers. No drive available. Unit has chain guards for drive. Top openings one 12", one 10 ". Jacket openings are 2" NPT. 12" bottom discharge.
Diameter: 1,200 mm (48 in). Length: 3,050 mm (120 in). Height: 2,150 mm (84 in). Rated for Vacuum: Yes. Heat Transfer Surface Area: 11.7 m² (126 ft²). Agitation Seal Type: Packing. Jacket Material: Carbon Steel.
Type: Dryer-Rotary Vacuum
Manufacturer: American Process Systems
Model: C060/6660
Condition: Used
Material: Stainless Steel 304
Capacity Design: 2.8 m3 (100 ft3)
Capacity Working: 1.7 m3 (60 ft3)
cylindrical design Vessel designed for 14.9 psi and full vacuum rated at 29.92” Hg. This machine is designed for continues operation but was previously used in a batch process. The jacket is two zone style with 3” half pipe. The manufacturer indicated this machine is designed for sanitary applications. The agitator shaft is not cored for heating, 6” diameter 304 SS, with 12, ¾” thick posts and paddles. Paddles are 12” long x 6.5” wide. Agitator clearance is 1/8” nominal at the lowest point. Rotation of the agitator is counter clockwise at 25 rpm. Agitator is driven by a right angle geardrive manufactured by SEW Eurodrive with a 40 Hp AC motor. Model # KAF157DV200L4. The geardrive has a 70.38:1 ratio rotating the output shaft at 25 rpm. The agitator is sealed by two Woodex, fully spit Meco mechanical seals, and rides on two Dodge expansion type flange bearings. Top connections are one 24” flanged nozzle for vacuum filter, one 24” manway, and one 16” loading flange. Discharge nozzle is 8” flanged. Shell is wrapped with 14 Gauge 304 SS, covering 2” thick Ceramawol insulation designed to limit the dryers exterior temperature to <140 degrees F. The baghouse filter is 304 SS, and is 32” in diameter x 62” high. The bottom of the dust collector bolts directly to the dryer by a flange, and the top has a bolted 28” diameter man way for filter changes.
Diameter: 1,100 mm (44 in). Length: 3,050 mm (120 in). Height: 2,150 mm (84 in). Pressure: 1.03 bar (14.9 psi). Heat Transfer Surface Area: 10.7 m² (115 ft²). Orientation: Horizontal. Operational Mode: Continuous. Agitation: Yes. Agitation Seal Type: Mechanical. Jacket Material: Stainless Steel 304. Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 218.3 °C (425 °F). Jacket Type: Half Pipe/Limpet.
