Results 11 items found

Available equipment

Showing 11 of 11 matching equipment.

Stock Number: #210304
Werner & Pfleiderer ZSK58 F96 Extruder
Diameter: 58 mm
Heating type: Electric
L/D Ratio: 36.9:1
Additional Information: twin screw extruder Electric heated barrel with water cooled jacket 84” long (Consisting of 9 blocks each 9.45"), 2.2” diameter discharge Rated for 96 Kpm torque per shaft or 960Nm Outer screw diameter is 57.8 mm Flight depth is 10,3mm. Maximum torque on nscrew shafts is 1920Nm Unit is base mounted cooling water circulating skid
More Details ⟶
Stock Number: #210323
Werner & Pfleiderer ZSK83 Extruder
Diameter: 83 mm
Number of Heating Zones: 8
Heating type: Electric
L/D Ratio: 20:1
Number of Cooling Zones: 7
Additional Information: twin screw extruder Two 3,27 mm screws Electric heated barrel with water cooled jacket 68” long, 3” diameter discharge Unit is base mounted cooling water circulating skid
More Details ⟶
Stock Number: #78681
Stainless Steel 304 Werner & Pfleiderer Simplex Mixer-Ribbon & Paddle
Design Capacity: 91.8 ft3
Operating Capacity: 70.6 ft3
Ribbon Type: Interrupted ribbon
Length: 122 in
Width: 70.9 in
Height: 94.5 in
Additional Information: jkt ribbon blender. Total capacity 2600 liter. Jkt rated 8 bar. 1470 rpm motor (no motor) 240 rpm input, 36 rpm output. Shaft 6" (150mm) dia. Openings: top 34" long x 16" wide, 1-9"; jkt 2-1", 4-1/2"; center btm outlet approx 8" dia w/pneumatically operated swing valve, discharging into chute 31" x 15". Fitted hinged full cover w/counter weight. Cover has vert charge hole approx 2'6" x 1'6" w/hinged cover.
More Details ⟶
Stock Number: #89444
946 L (250 gallons) Stainless Steel 316 Mixer-Double Arm
Capacity (Design): 250 gallons
Capacity (Working): 100 gallons
Jacket Pressure: 9.8 bar
Jacket Material: Carbon Steel
Blade Type: Sigma
Vacuum: Yes
Additional Information: jacketed sigma blade mixer. bottom discharge with valve. Mixing bowl 1300mm long x 1100mm wide x 900mm deep. 250mm diameter center bottom outlet. 1:1 ratio pulleys, connected to double reduction gear, coupled to another triple reduction gear. Mixer rated for vacuum internal.
More Details ⟶
Stock Number: #71192
946 L (250 gallons) Carbon Steel Mixer-Double Arm
Capacity (Design): 250 gallons
Capacity (Working): 165 gallons
Additional Information: CS double arm jkt mixer Bottom discharge coupled to gear reducer 950 rpm inlet, 110 rpm outlet speed. W/cover.
More Details ⟶
Stock Number: #36127
450 L (118.9 gallons) Stainless Steel 304 Mixer-Double Arm
Capacity (Design): 118.9 gallons
Capacity (Working): 52.8 gallons
Jacket Pressure: 146 psi
Jacket Temperature: 183 °C
Blade Type: 2x cored dispersion blades,
Tilting: Yes
Vacuum: Yes
Hydraulics: Yes
Additional Information: jacketed vacuum blender. With hydraulic tilt discharge. Hydraulically operated compression plate. Geared both ends. 60/100 KW (78/130 HP), 3/50/380 volt motor, 740/1480 rpm Coupled to Wulfel gear reducer Mdl FVKA2II, rated 80/140 PS, SN 79336, 750/106, 1500/211 rpm.
More Details ⟶
Stock Number: #96137

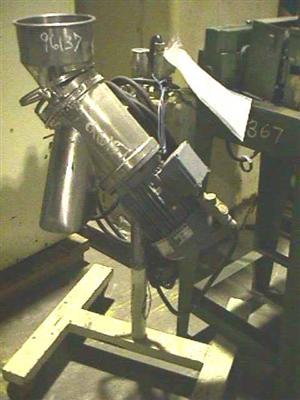

Stainless Steel 316 Werner & Pfleiderer EXPR Granulator/Disintegrator Pulverizer
Inlet Diameter: 8 in
Motor Power (Design): 1.5 kW
Orientation: Vertical
Additional Information: lump breaker Has 5" dia x 6" long perforated rotating chamber. (2) stationary bars inside chamber and (1) stationary bar outside chamber. Gravity feed w/5" feed throat and 8" dia feed hopper, gravity discharge. W/starter box.
More Details ⟶
no image found
Stock Number: #705571
500 L (132.1 gallons) Mixer-Double Arm
Capacity (Design): 500 L
Capacity (Working): 87.2 gallons
Jacket Pressure: 17.7 bar
Jacket Temperature: 230 °C
Jacket Material: Carbon Steel
Blade Type: (2) carbon steel "Z" blades
Tilting: Yes
Hydraulics: Yes
Additional Information: Mixer type: Double arm Trough dimensions: 968mm wide x 826mm long x 764mm deep Blade material: Carbon steel driven by 1.1 kw, 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.
More Details ⟶
no image found
Stock Number: #705574
500 L (132.1 gallons) Carbon Steel Mixer-Double Arm
Capacity (Design): 500 L
Capacity (Working): 87.2 gallons
Jacket Pressure: 17.7 bar
Jacket Temperature: 230 °C
Jacket Material: Carbon Steel
Blade Type: "Z" blades
Tilting: Yes
Hydraulics: Yes
Additional Information: Mixer type: Double arm mixer trough 968mm wide x 826mm long x 764mm deep, by 1.1 kw, 3/50/500V, 1400 rpm motor, driven by (2) hydraulic pumps, driven by 1.1 kw, 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.
More Details ⟶
no image found
Stock Number: #705575
500 L (132.1 gallons) Carbon Steel Mixer-Double Arm
Capacity (Design): 500 L
Capacity (Working): 87.2 gallons
Jacket Pressure: 17.7 bar
Jacket Temperature: 230 °C
Jacket Material: Carbon Steel
Blade Type: "Z" blades
Tilting: Yes
Hydraulics: Yes
Additional Information: Type of mixer: Double arm mixer trough 968mm wide x 826mm long x 764mm deep, by 1.1 kwm 3/50/500V, 1400 rpm motor,
hydraulic tilting mechanism (2) hydraulic pumps, driven by 1.1 kwm 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.
More Details ⟶
no image found
Stock Number: #705576
500 L (132.1 gallons) Carbon Steel Mixer-Double Arm
Capacity (Design): 500 L
Capacity (Working): 87.2 gallons
Jacket Pressure: 17.7 bar
Jacket Temperature: 230 °C
Jacket Material: Carbon Steel
Blade Type: "Z" blades
Tilting: Yes
Hydraulics: Yes
Additional Information: Type of mixer: Double arm mixer trough 968mm wide x 826mm long x 764mm deep hydraulic tilting mechanism (2) hydraulic pumps driven by 1.1 kw, 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.
More Details ⟶
