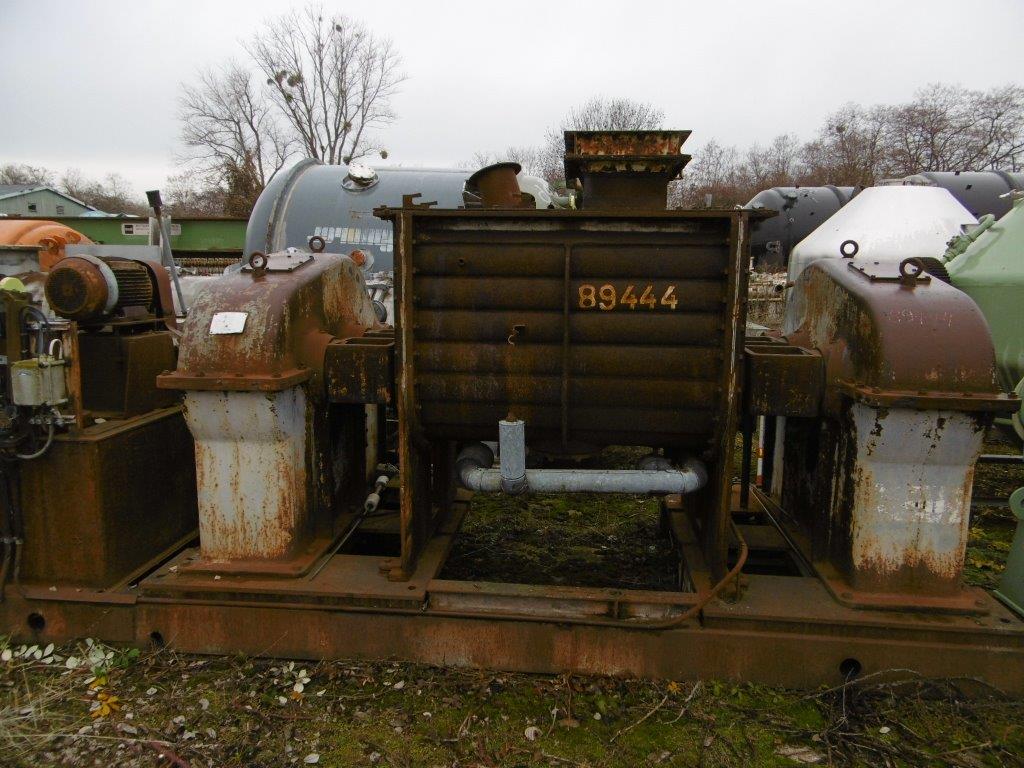

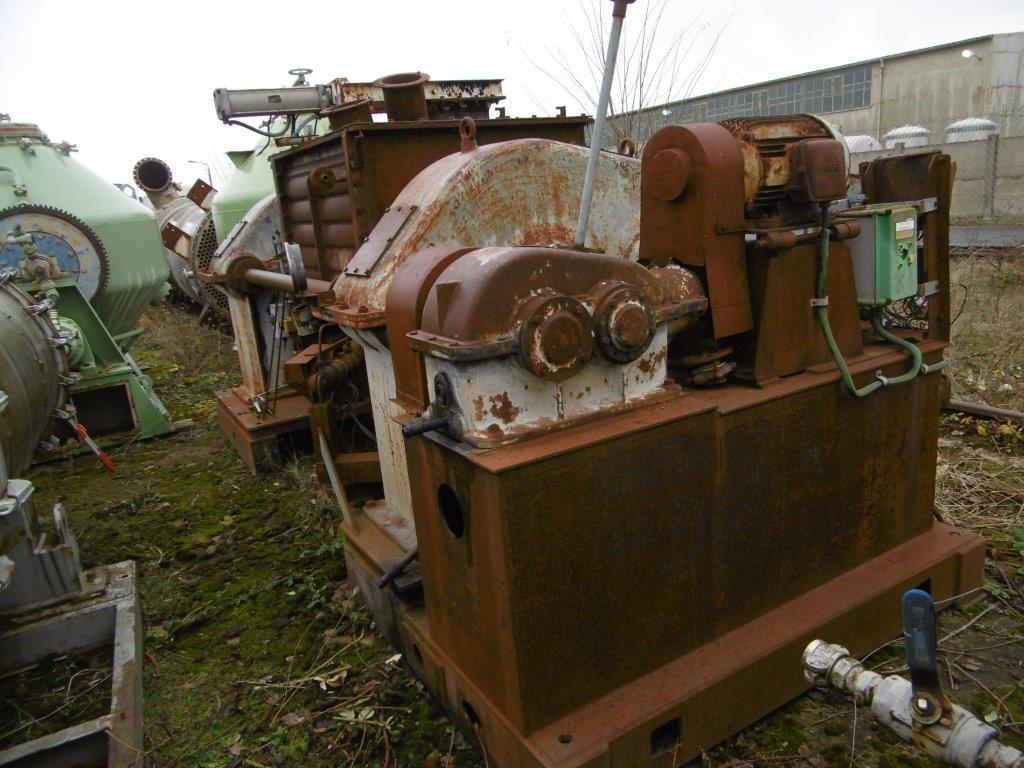

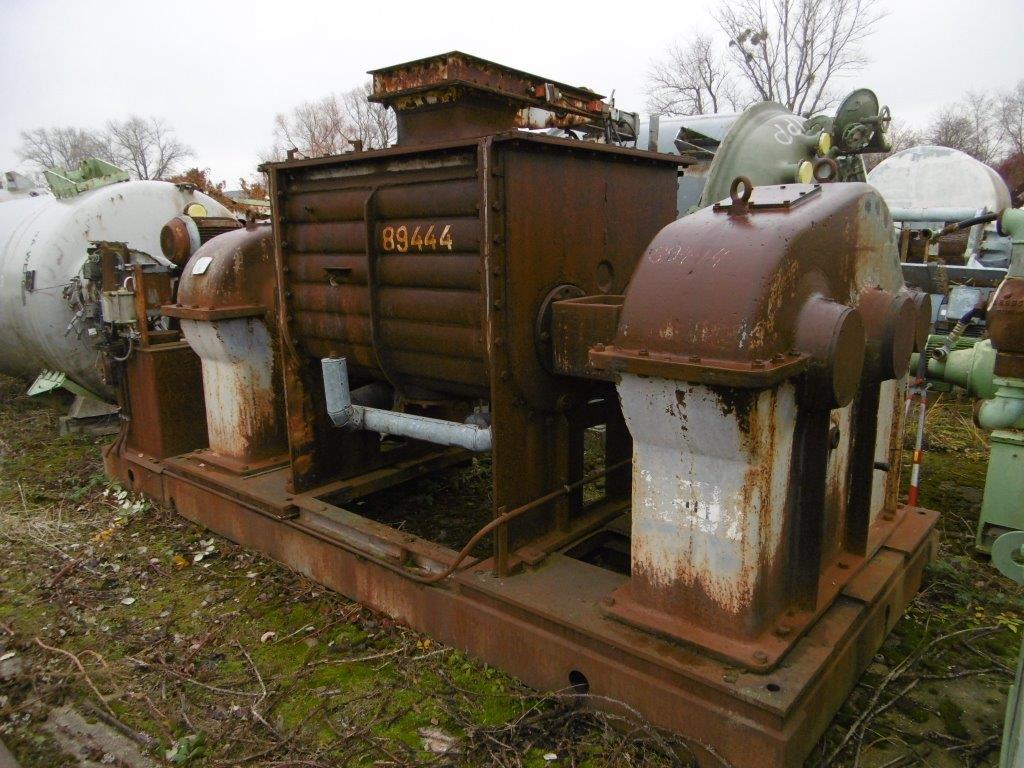

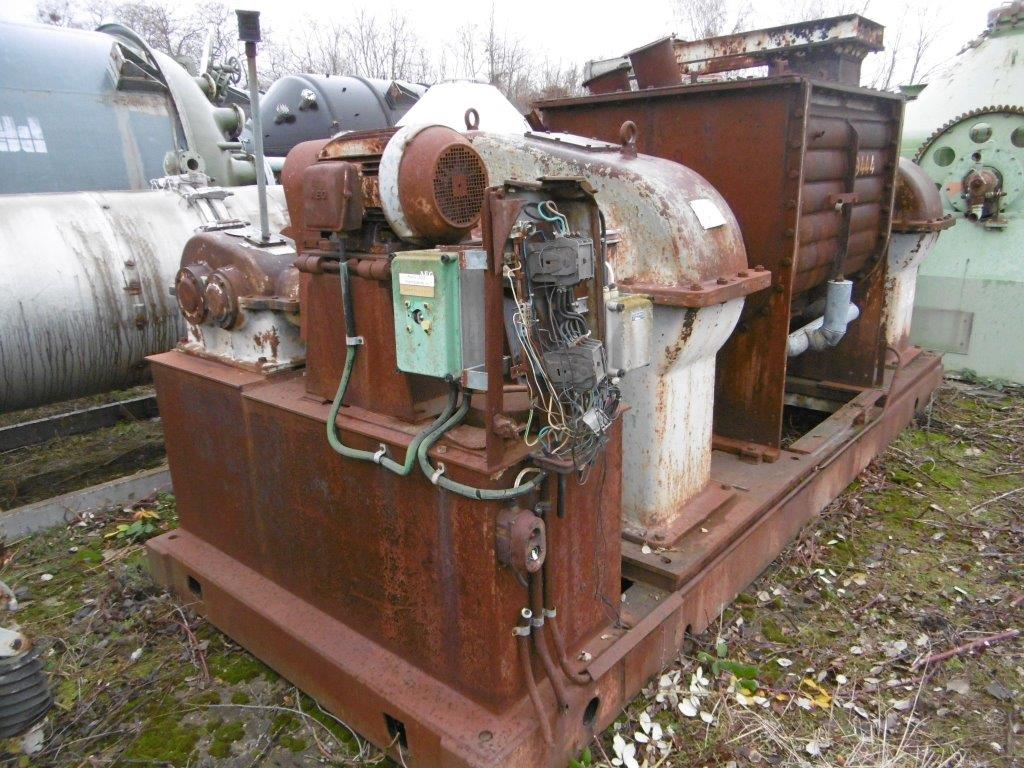

jacketed sigma blade mixer. bottom discharge with valve. Mixing bowl 1300mm long x 1100mm wide x 900mm deep. 250mm diameter center bottom outlet. 1:1 ratio pulleys, connected to double reduction gear, coupled to another triple reduction gear. Mixer rated for vacuum internal.
Type: Mixer-Double Arm
Manufacturer: Werner & Pfleiderer
Condition: Used
Material: Carbon Steel
Capacity (Design): 500 L (132.1 gallons)
Capacity (Working): 330 L (87.2 gallons)
Type of mixer: Double arm mixer trough 968mm wide x 826mm long x 764mm deep hydraulic tilting mechanism (2) hydraulic pumps driven by 1.1 kw, 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.
Jacket Pressure: 17.7 bar (256.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material: Carbon Steel. Blade Type: "Z" blades. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: Werner & Pfleiderer
Condition: Used
Material: Carbon Steel
Capacity (Design): 500 L (132.1 gallons)
Capacity (Working): 330 L (87.2 gallons)
Type of mixer: Double arm mixer
trough 968mm wide x 826mm long x 764mm deep,
by 1.1 kwm 3/50/500V,
1400 rpm motor,
hydraulic tilting mechanism
(2) hydraulic pumps, driven by 1.1 kwm 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.
Jacket Pressure: 17.7 bar (256.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material: Carbon Steel. Blade Type: "Z" blades. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: Werner & Pfleiderer
Condition: Used
Material: Carbon Steel
Capacity (Design): 500 L (132.1 gallons)
Capacity (Working): 330 L (87.2 gallons)
Mixer type: Double arm mixer trough 968mm wide x 826mm long x 764mm deep, by 1.1 kw, 3/50/500V, 1400 rpm motor, driven by (2) hydraulic pumps, driven by 1.1 kw, 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.
Jacket Pressure: 17.7 bar (256.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material: Carbon Steel. Blade Type: "Z" blades. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: Werner & Pfleiderer
Condition: Used
Capacity (Design): 500 L (132.1 gallons)
Capacity (Working): 330 L (87.2 gallons)
Mixer type: Double arm Trough dimensions: 968mm wide x 826mm long x 764mm deep Blade material: Carbon steel driven by 1.1 kw, 3/50/500V, 1400 rpm motor, acoustic cabinets around motor and gearbox.
Jacket Pressure: 17.7 bar (256.1 psi). Jacket Temperature: 230 °C (446 °F). Jacket Material: Carbon Steel. Blade Type: (2) carbon steel "Z" blades. Tilting: Yes. Hydraulics: Yes.
