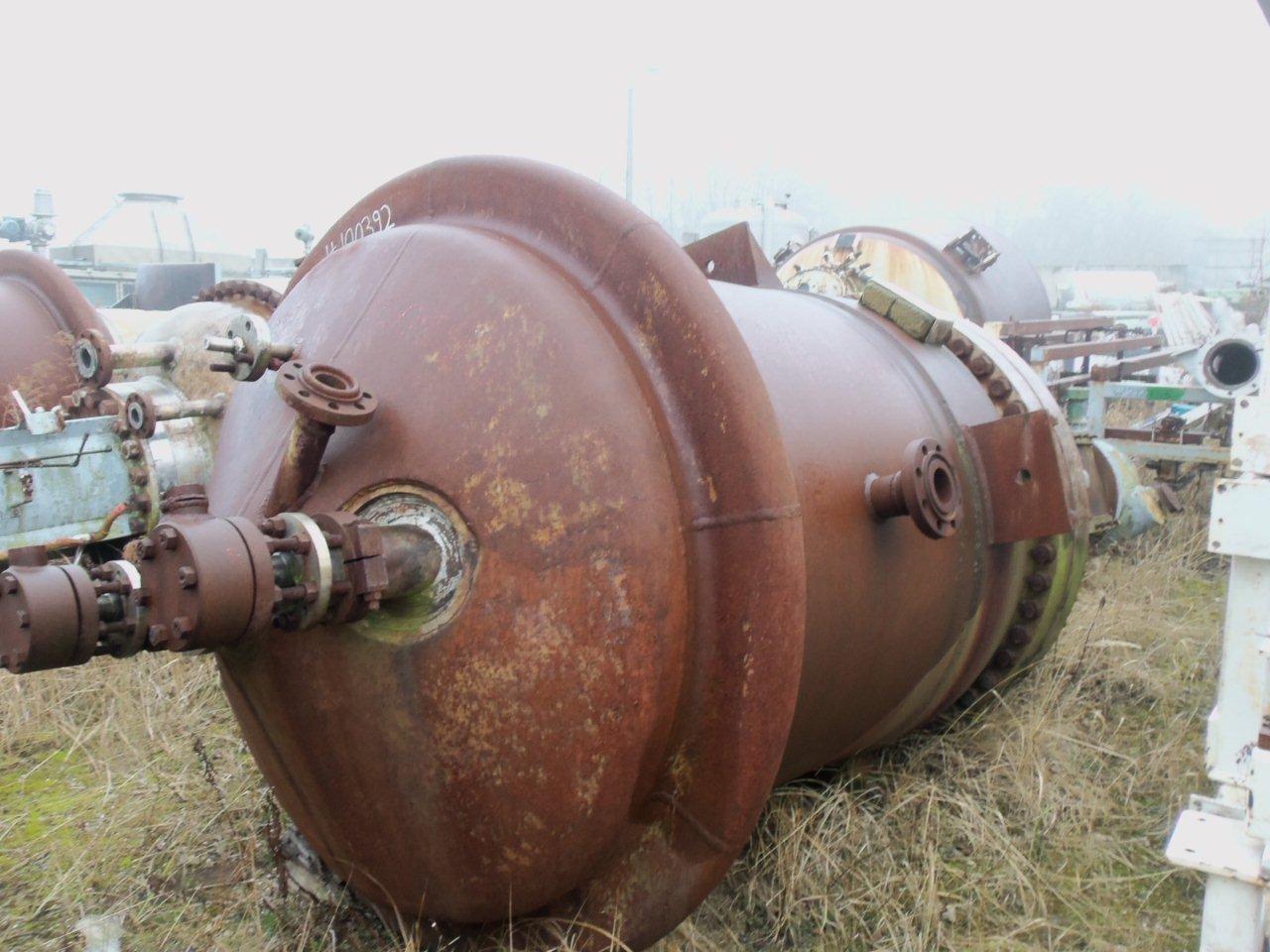

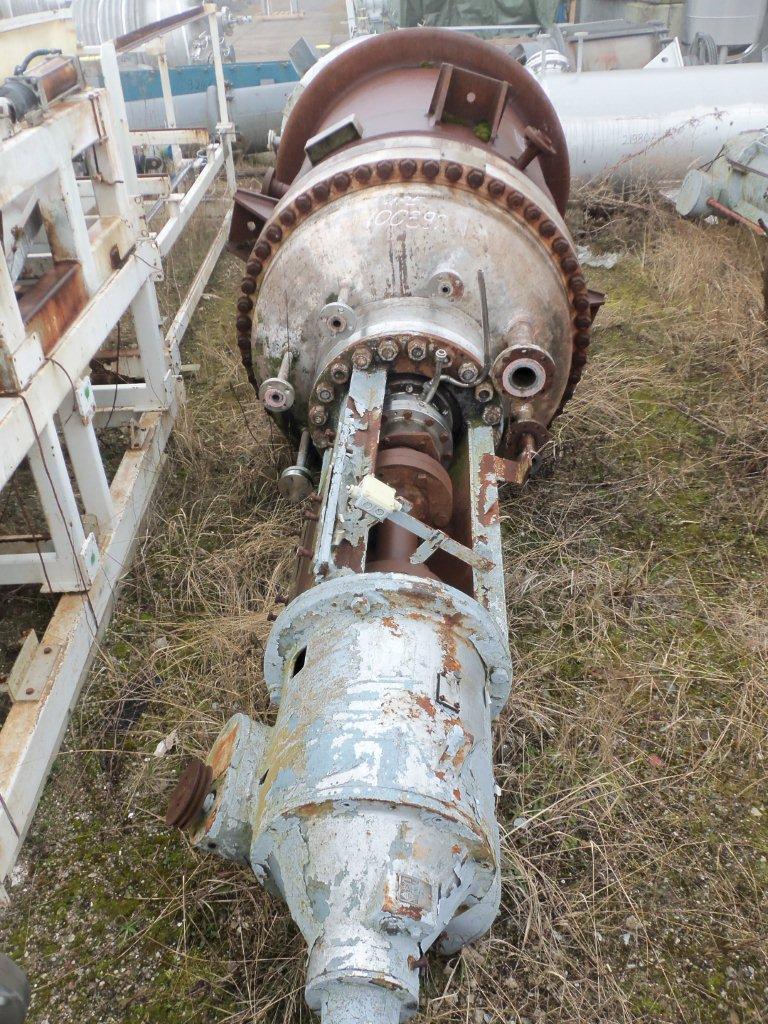

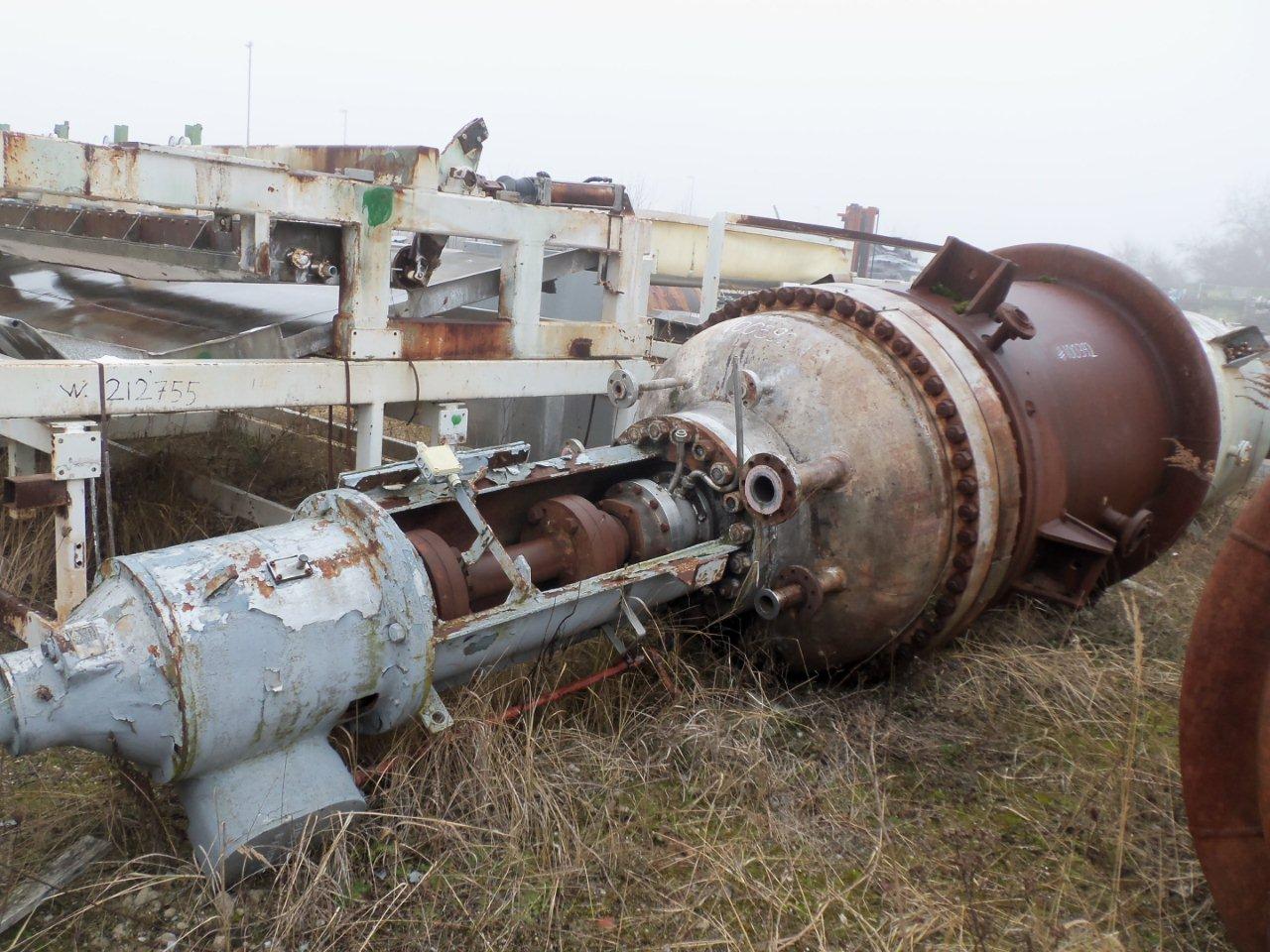

Batch-Type Agitated Reactor 3,500 L (925 gallons) Stainless Steel 321 For Sale - IPP# 100392

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Taylor Reid & Co Ltd

Condition: Used

Material: Stainless Steel 321

Capacity (Design): 3,500 L (925 gallons)

Internal Pressure: 25.9 bar (375 psi)

internal coil 50 psig (3.4 bar) @ 680 degree F (360 degrees C) motor 3/50/400/440V coil 50mm diameter with 10 turns 3/4" (19mm) sidewall thickness, jacket 3/8" (9.5mm) thick

• Steel jacket with expansion joint: yes
• Internal coils: 321SS, 50mm diameter, 10 circles
• Spare shaft and coil: yes

Internal Temperature: 315.6 °C (600 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 360 °C (680 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,200 mm (48.2 in). Straight Side Length: 1,800 mm (70.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Taylor Reid & Co Ltd

Condition: Used

Material: Stainless Steel 321

Capacity (Design): 3,500 L (925 gallons)

Internal Pressure: 25.9 bar (375 psi)

internal coil 50 psig (3.4 bar) @ 680 degree F (360 degrees C.

• Jacket: Steel jacket with expansion joint
• Internal coils: 321SS, 50mm diameter, 10 circles
• Spare parts: Spare shaft and coils included motor 3/50/400/440V

Internal Temperature: 315.6 °C (600 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 360 °C (680 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,200 mm (48.2 in). Straight Side Length: 1,800 mm (70.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Taylor Reid & Co. and Preston Engineering

Condition: Used

Material: Stainless Steel 321

Capacity (Design): 3,500 L (925 gallons)

Internal Pressure: 25.9 bar (375 psi)

agitated reactor/autoclave internal coil 50 psig (3.4 bar) @ 680 degree F (360 degrees C), straight side with expansion joint. 321 stainless steel internal coils, coil 50mm diameter with 10 turns. double spiral agitator 3.75/15HP, 3/50/400/440V, 340-1455 RPM motor Double mechanical seal on shaft jacket 3/8" (9.5mm) thick No Motor.

Internal Temperature: 315.6 °C (600 °F). Jacket Pressure: 5.2 bar (75 psi). Jacket Temperature: 360 °C (680 °F). Jacket Material of Construction: Carbon Steel. Orientation: Vertical. Agitation: Yes. Diameter: 1,200 mm (48.2 in). Straight Side Length: 1,800 mm (70.2 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Portobello Fabrications LTD.

Condition: Used

Material: Stainless Steel 321

Clad: Yes

Capacity (Design): 14,750 L (3,900 gallons)

Internal Pressure: 3.5 bar (50.8 psi)

reactor with internal 904L stainless steel vertical coils, (6) sets of 904L stainless steel vertical internal coils,each with a surface area of 4.52 square meter (27.12 square meter total),total volume lost in tank for 6 coils 0.408 m3, MUT-Tschamber model DIN5XD7F-1 agitator drive, poer input 15 kw, speed 115 rpm, fully insulated and covered with an external cladding.

Internal Full Vacuum: Yes. Internal Temperature: 260 °C (500 °F). Jacket Pressure: 41 bar (595 psi). Jacket Temperature: 370 °C (698 °F). Jacket Material of Construction: Stainless Steel 304. Orientation: Vertical. Agitation: Yes. Diameter: 2,300 mm (90 in). Straight Side Length: 3,500 mm (137.6 in). Support Type: Lugs.
