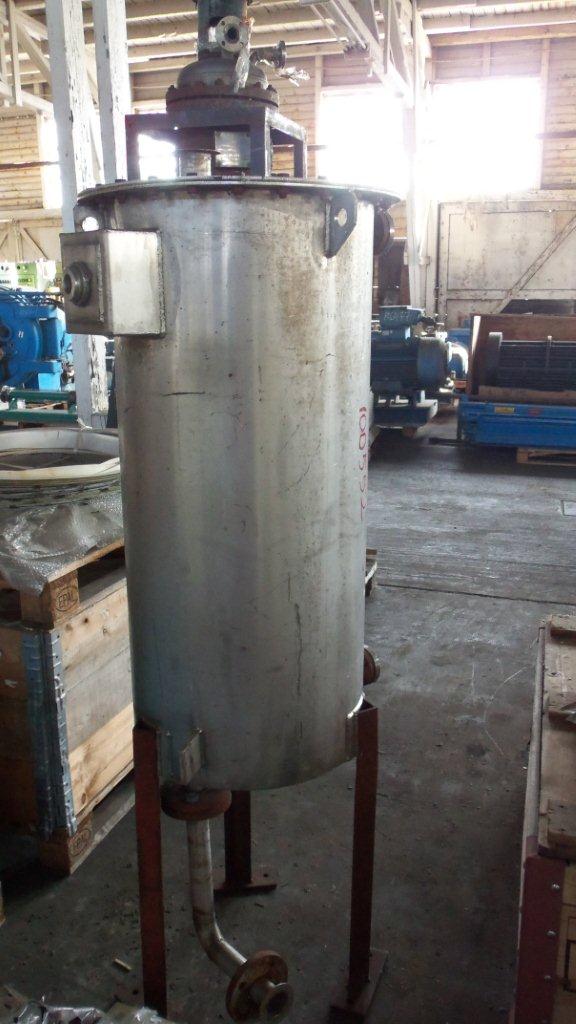

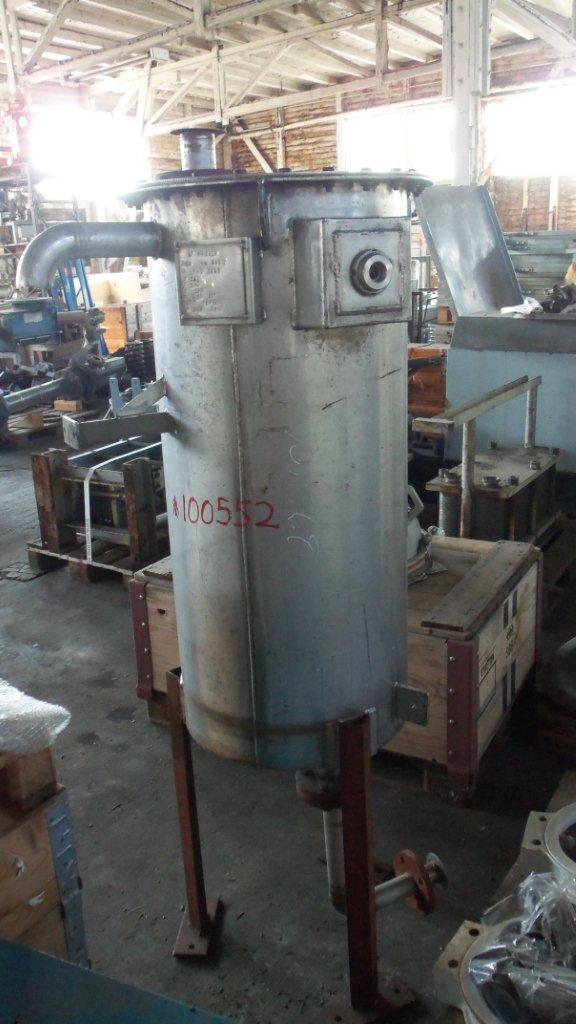

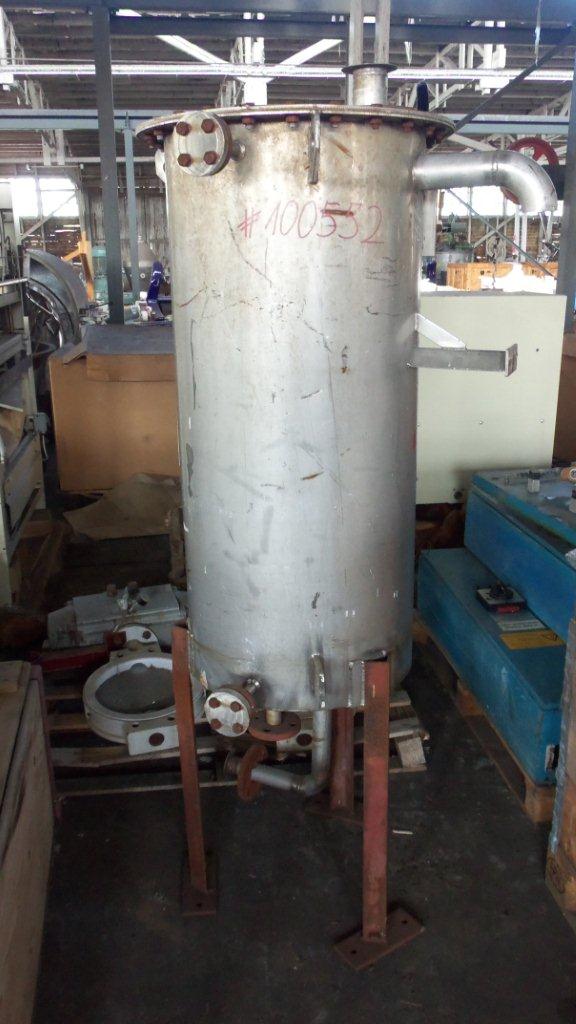

Stainless Steel 304 Webber Tank - IPP# 100552

Type: Tank

Manufacturer: Webber

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 189.3 L (50 gallons)

Orientation: Vertical

Diameter: 508 mm (20 in). Straight-side Length: 1,050 mm (42 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 20 °C (68 °F). Support: Legs.

Type: Tank

Manufacturer: Webber

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 3,400 L (900 gallons)

Orientation: Vertical

Diameter: 1,500 mm (60 in). Straight-side Length: 1,850 mm (72 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 93.3 °C (200 °F). Support: Lugs.

Type: Tank

Manufacturer: Webber

Condition: Used

Material: Stainless Steel 304

Capacity (Design): 378.5 L (100 gallons)

Orientation: Vertical

Diameter: 711 mm (28 in). Straight-side Length: 1,100 mm (44 in). Internal Pressure: 1.01 bar (14.7 psi). Internal Temperature: 25 °C (77 °F). Does it have Agitation ?: Yes. Support: Legs.

Type: Tank

Manufacturer: Combustion Engineering Inc.

Condition: Unused

Material: Stainless Steel 304

Clad: Yes

Capacity (Design): 63,600 L (16,800 gallons)

Orientation: Vertical

• Constructed of ASTM A516 Grade 70 carbon steel, with internal 304 stainless steel cladding.

Diameter: 2,750 mm (108 in). Straight-side Length: 10,050 mm (396 in). Internal Pressure: 48.3 bar (700 psi). Internal Temperature: 93.3 °C (200 °F). Support: Skirt.
