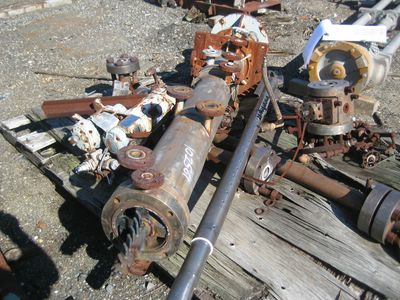

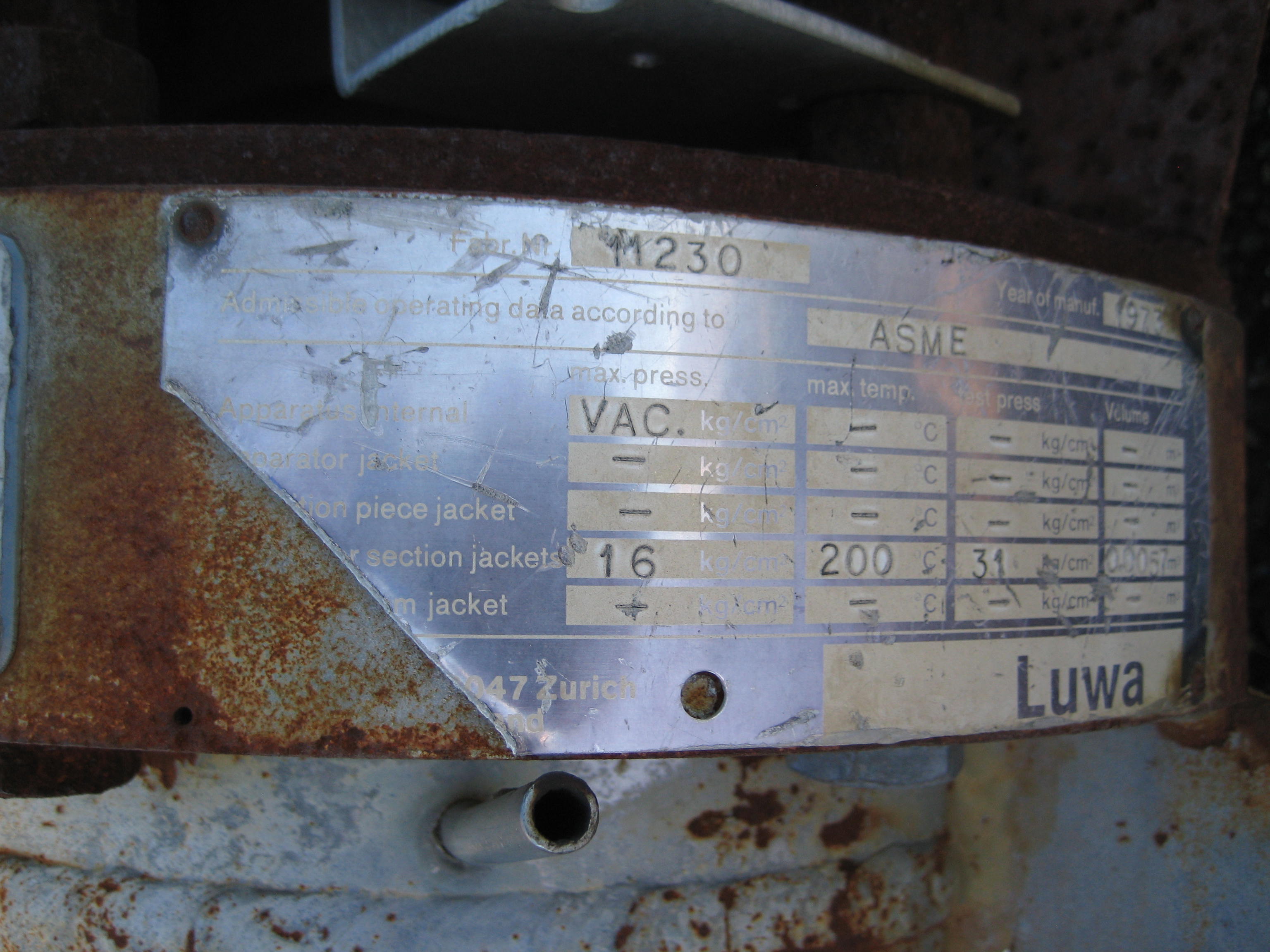

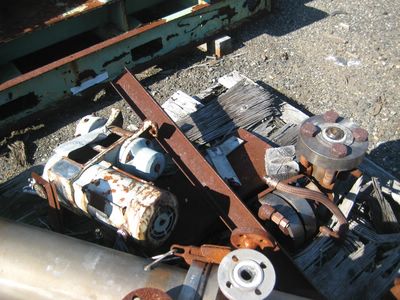

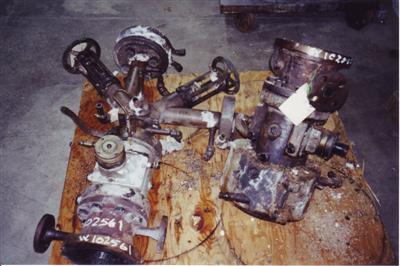

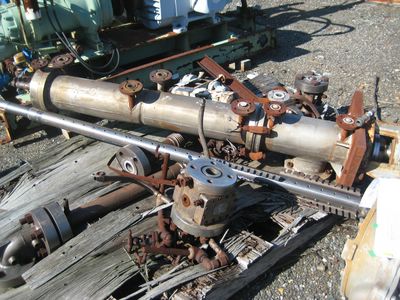

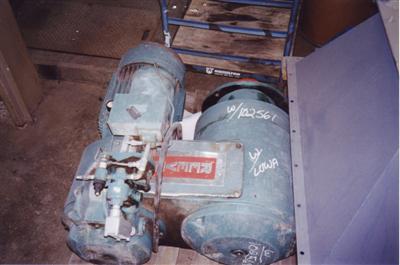

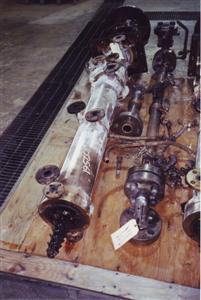

jkt rated 16 kg/sq cm @ 200 deg C. 9 gal capacity W/(2) rows of str blades and (2) rows of positive pitched blades @ 25 deg angle on central core. Driven by 20 HP, 1170 rpm Reeves variable speed drive, 6.2:1 ratio, 64 rpm min, 428 rpm max. C-configuration. Has air operated valve positioner w/mech seal. Has jkt btm cone; rotor extension (removable product propelling rotor section).
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Model: D-850/4700/10
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 267.6 kg/h (590 lb/h)
Total Heat Transfer Surface Area: 11 m² (118.4 ft²)
Jkt rated 13 bar @ 220 deg C Shell 850mm (34") dia x 4800mm (15.8') long, Rotor driven by 30 KW, 3/50/380 volt, 260 rpm output speed.
Orientation: Horizontal. Diameter: 850 mm (33.5 in). Height: 4,800 mm (189 in). Pressure: 0.5 bar (7.3 psi). Temperature: 220 °C (428 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)
wiped film evaporator/filmtruder body only.
jkt rated 227 psi @ 392 deg F.
Diameter: 152.4 mm (6 in). Height: 1,829 mm (72 in). Pressure: 6.9 bar (100 psi). Temperature: 350 °C (662 °F). Vacuum: Yes.
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 11.3 kg/h (25 lb/h)
Total Heat Transfer Surface Area: 0.5 m² (5.4 ft²)
wiped film evaporator/filmtruder body only. Jkt rated 16 psi. 6" dia x 5'6" long.
Orientation: Vertical. Diameter: 152.4 mm (6 in). Height: 1,676 mm (66 in). Pressure: 1.1 bar (16 psi).
Type: Evaporator
Subtype: Wiped/Thin Film
Manufacturer: Luwa SMS
Condition: Used
Material: Stainless Steel 316
Evaporation Rate: 47.6 kg/h (105 lb/h)
Total Heat Transfer Surface Area: 2 m² (21.5 ft²)

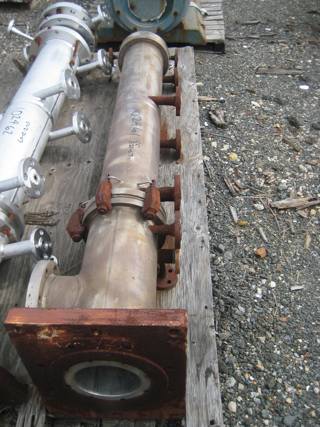

jacket 147 psi (10 bar). Shell 13.5" diameter x 86" long Shell 2-sections with expansion joints Entrainment separator 20" (500mm) x 30" (800mm) long.
Diameter: 342.9 mm (13.5 in). Height: 2,184 mm (86 in). Vacuum: Yes.
