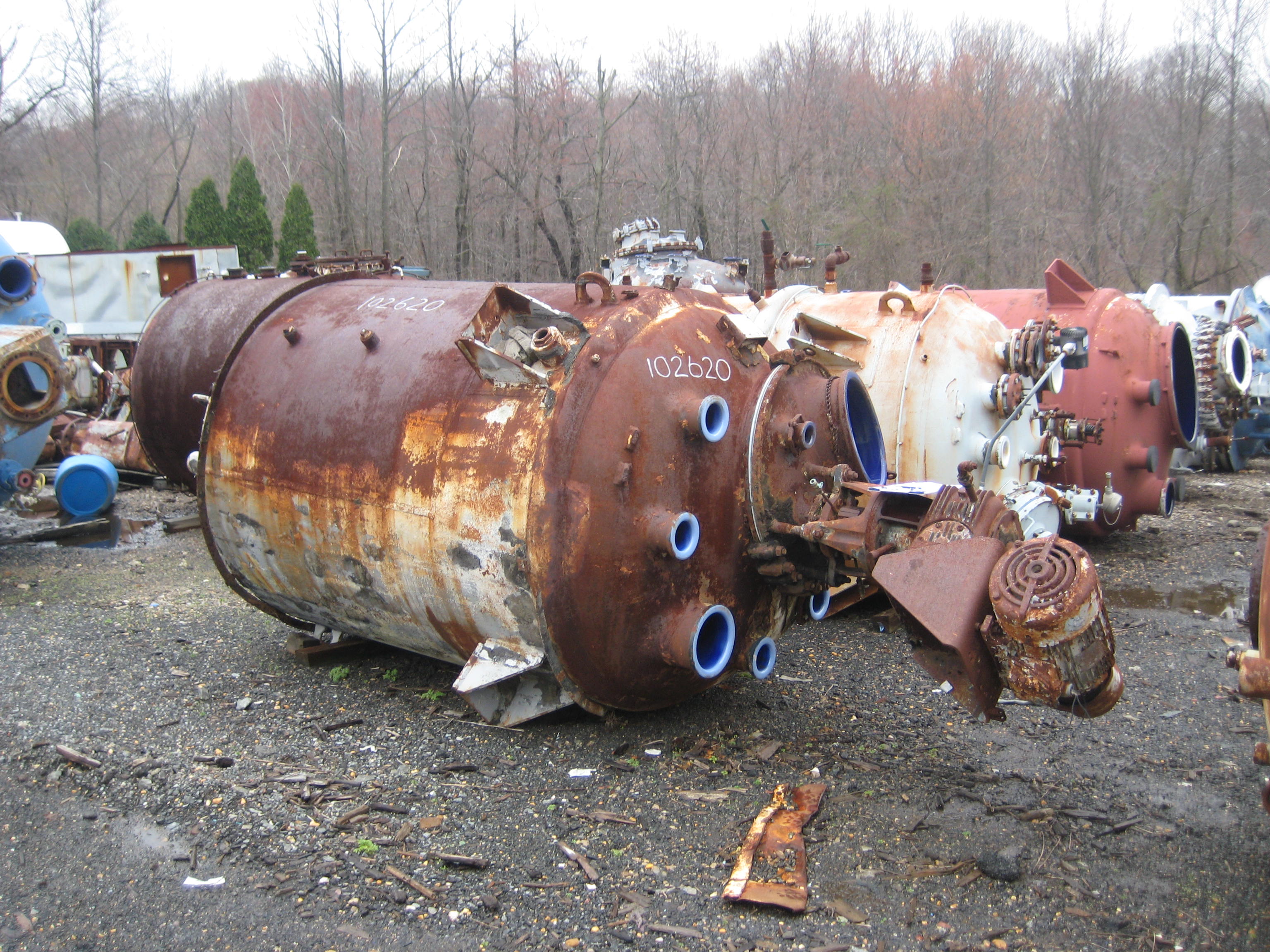

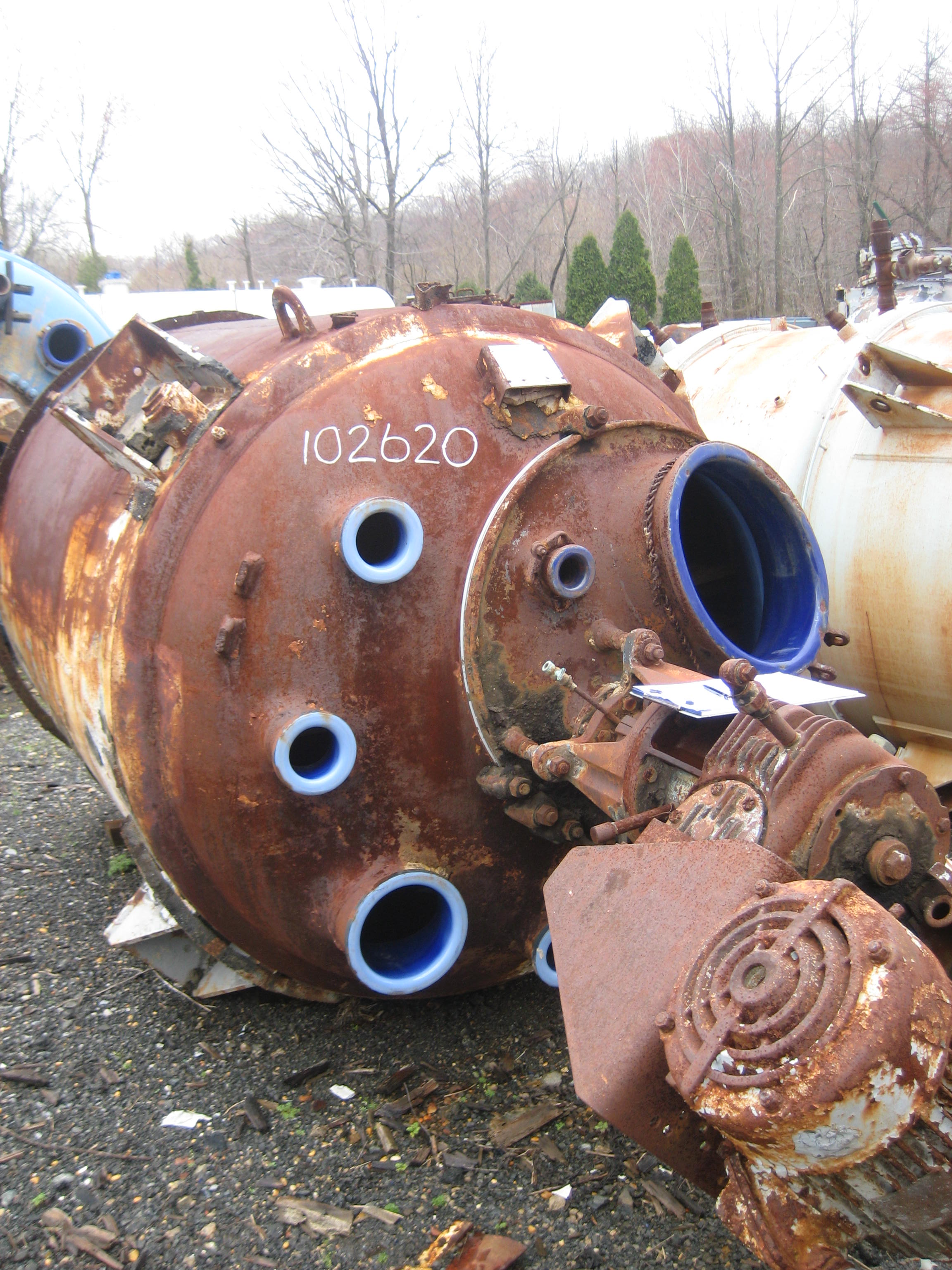

Glasslined Pfaudler RA Batch-Type Agitated Reactor - IPP# 102620

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Re-glassed

Material: Glasslined

Capacity (Design): 4,550 L (1,200 gallons)

Internal Pressure: 6.8 bar (99.1 psi)

reactor assembly mechanical seal with lubricator Reglassed by UGE in 2010.

Internal Full Vacuum: Yes. Jacket Pressure: 6.8 bar (99.1 psi). Body Only: Yes. Agitation: Yes. Diameter: 1,850 mm (72 in). Straight Side Length: 1,550 mm (61 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 4,000 L (1,050 gallons)

Internal Pressure: 6.4 bar (92.5 psi)

Internal pressure 6.38 bar and full vacuum @ -29/+200 degree C; jacket rated 6.83 bar @ -29/+200 degree C, 5.79 bar with full vacuum internal motor : 3/50/380/420 volt

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.8 bar (99.1 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,850 mm (72 in). Straight Side Length: 1,550 mm (61 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 7,550 L (2,000 gallons)

Internal Pressure: 6.9 bar (100 psi)

Glass type: #3315, 5RW drive (no motor),

Internal Full Vacuum: Yes. Internal Temperature: 343.3 °C (650 °F). Jacket Pressure: 6.2 bar (90 psi). Jacket Temperature: 176.7 °C (350 °F). Agitation: Yes. Diameter: 2,000 mm (78 in). Straight Side Length: 2,150 mm (83.9 in). Support Type: Lugs.

Type: Reactor

Subtype: Batch-Type Agitated

Manufacturer: Pfaudler

Model: RA

Condition: Used

Material: Glasslined

Capacity (Design): 2,500 L (660 gallons)

Internal Pressure: 6.8 bar (99.1 psi)

mechanical seal with lubricator agitator shaft driven motor 3/50/415 volt

Internal Full Vacuum: Yes. Internal Temperature: 200 °C (392 °F). Jacket Pressure: 6.8 bar (99.1 psi). Jacket Temperature: 200 °C (392 °F). Agitation: Yes. Diameter: 1,500 mm (60 in). Straight Side Length: 1,100 mm (43 in). Support Type: Lugs.
