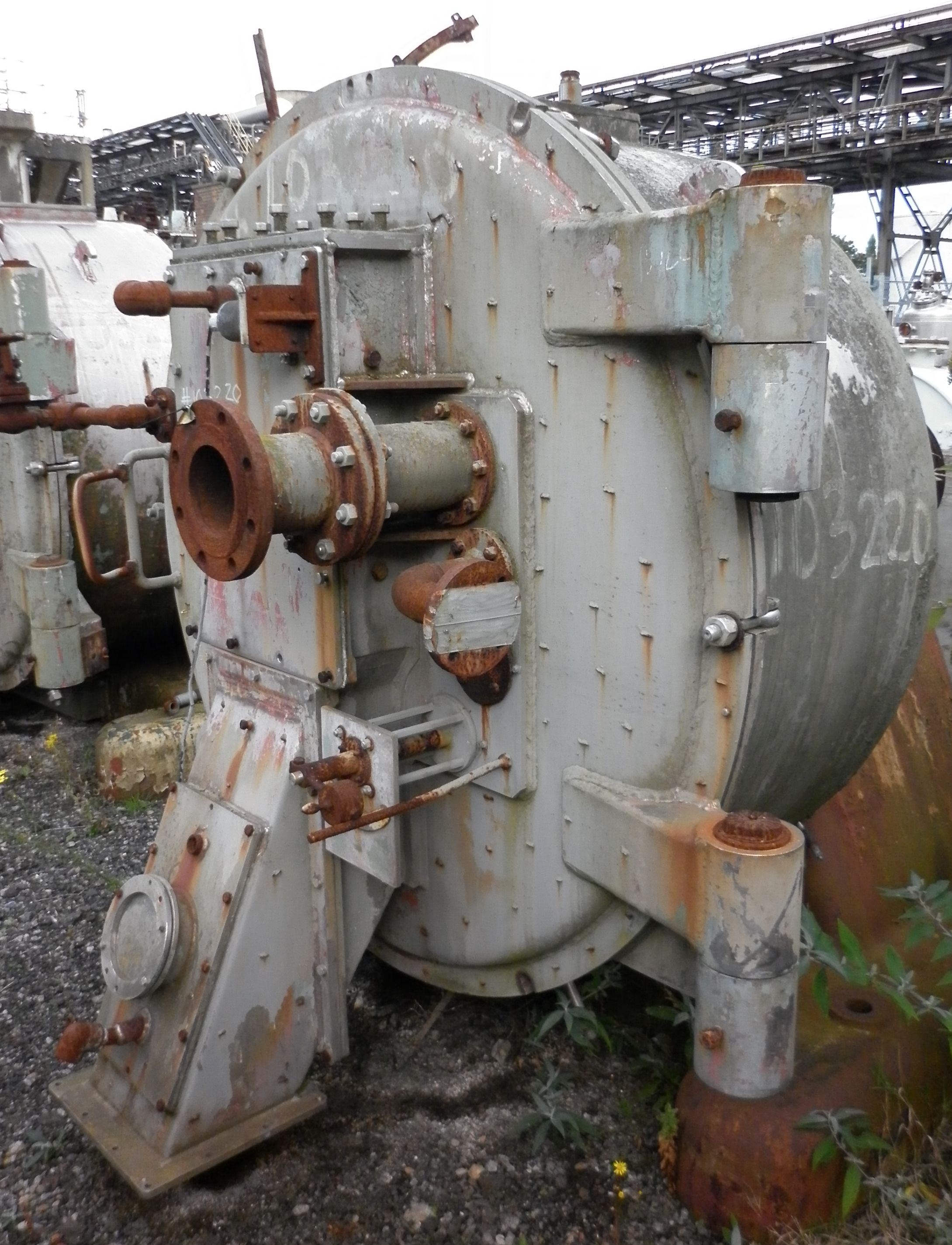

Centrifuge-Peeler 1,300 mm (51.2 in) Stainless Steel 316 For Sale - IPP# 103220

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ1302

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,350 mm (52.4 in)

Basket Depth: 570 mm (22.4 in)

(V4AE) peeler centrifuge. 15mm thick basket 250 liter volume/.3 (160mm) cake capacity With fluid coupling, carbon steel plow discharge mechanism hydraulically driven powerpak powerpak driven by 0.8 KW, 3/50/380 volt, 1415 rpm motor Cake depth indicator Oepnings: 280mm x 250mm product discharge, 125mm carbon feed pipe, 50mm carbon steel wash pipe with (3) spray nozzles, 400mm x 200mm filtrate, 100mm vapour, hinged front door with 1-225mm , 1-75mm, 1-50mm.

Filtration Area: 0.08 m² (0.86 ft²). Motor Power: 74.6 kW (100 HP). Speed-RPM Maximum: 1,430. Load Weight: 350 kg (772 lb).

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ1302

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 1,350 mm (52.4 in)

Basket Depth: 570 mm (22.4 in)

15mm thick basket. 350 liter volume/.3 (160mm) cake capacity With fluid coupling. CS plow discharge mechanism powerpak driven by 0.8 KW, 3/50/380 volt, 1415 rpm motor. Cake depth indicator. Openings: 280mm x 250mm product discharge, 125mm CS deed pipe, 50mm CS wash pipe with (3) spray nozzles, 100mm vapour, hinged front door with 1-225mm, 1-75mm, 1-50mm.

Filtration Area: 0.08 m² (0.86 ft²). Motor Power: 134.2 kW (180 HP). Speed-RPM Maximum: 1,110. Load Weight: 352 kg (776 lb).

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ900

Condition: Refurbished/Rebuilt

Material: Stainless Steel 316

Basket Diameter: 900 mm (35.4 in)

Basket Depth: 329 mm (13 in)

Single motion knife discharge Cake thickness 126mm Solids outlet 177mm x 126mm filtrate 126mm; feed 50mm; wash 2-19mm with (14) spray holes each; vapour 75mm; sight glass 1-100mm. carbon steel outer shell with 316 stainless steel internal lining. (*)

Motor Power: 11 kW (14.8 HP). Speed-RPM Maximum: 950. Load Weight: 150 kg (330.7 lb).

Type: Centrifuge-Peeler

Manufacturer: Krauss Maffei

Model: HZ63

Condition: Used

Material: Stainless Steel 316

Basket Diameter: 630 mm (24.8 in)

Basket Depth: 300 mm (11.8 in)

rubber lined peeler centrifuge, plow feed, rubber lined chamber/front door, Basket driven by hydraulic motor, Driven by via hydraulic powerpak, Type FIV55ELGR, Serial #107421 Openings: 40mm feed pipe, 1-25mm wash pipe, 300mm x 115mm filtrate, 270mm x 100mm discharge, 1-50mm vapour.

Motor Power: 22 kW (29.5 HP). Speed-RPM Maximum: 2,400. Load Weight: 50 kg (110.2 lb).
