Stainless Steel 316 Tank - IPP# 112005

Type: Tank

Manufacturer: Pfaudler

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 378.5 L (100 gallons)

Orientation: Vertical

no motor

Diameter: 762 mm (30 in). Straight-side Length: 1,016 mm (40 in). Does it have Agitation ?: Yes.

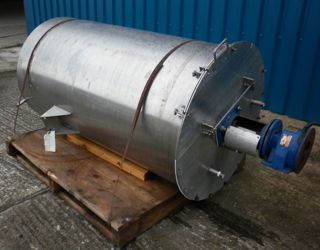

Type: Tank

Manufacturer: Gardner

Model: ESPV00-700

Condition: Used

Material: Stainless Steel 316

Capacity (Design): 621 L (164.1 gallons)

Orientation: Vertical

• With 279mm long x 761mm wide hinged lid on top head.

Diameter: 761 mm (30 in). Straight-side Length: 1,370 mm (53.9 in). Does it have Agitation ?: Yes. Support: Lugs.

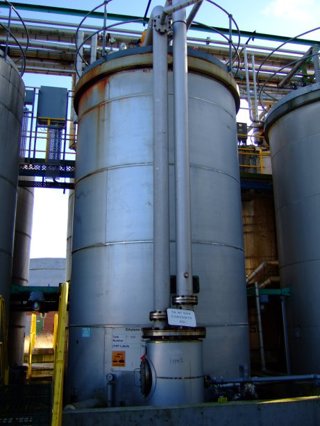

Type: Tank

Manufacturer: J.M. Smith & Sons ltd

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 35,000 L (9,246 gallons)

Orientation: Vertical

• storage tank with internal coil
• Working pressure internal: 10" W.G + vacuum @ 60 degrees C.
• Coil pressure: 75 psig Internal coil: 316 s/steel (steam / hot water) on bottom
• Base mounted, Insulated with 50mm foam glass, and Cladded with aluminum.

Diameter: 2,900 mm (114.2 in). Straight-side Length: 5,500 mm (216.5 in). Internal Pressure: 0.02 bar (0.36 psi). Internal Temperature: 60 °C (140 °F). Does it have an Internal Coil?: Yes. Jacket Pressure: 5.2 bar (75 psi). Vacuum: Yes. Support: Base Mounted.

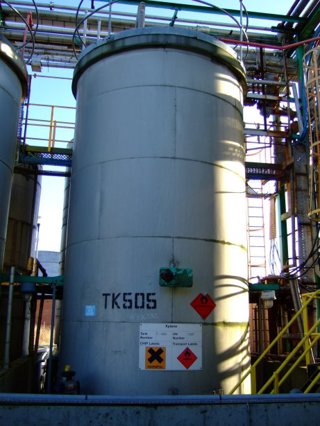

Type: Tank

Manufacturer: J.M. Smith & Sons ltd

Condition: Used

Material: Stainless Steel 316

Clad: Yes

Capacity (Design): 35,000 L (9,246 gallons)

Orientation: Vertical

• storage tank with internal coil
• Working pressure internal: 10" W.G + vacuum @ 60 degrees C.
• Coil pressure: 75 psig Internal coil: 316 s/steel (steam / hot water) on bottom
• Base mounted, Insulated with 50mm foam glass, and Cladded with aluminum.

Diameter: 2,900 mm (114.2 in). Straight-side Length: 5,500 mm (216.5 in). Internal Pressure: 0.02 bar (0.36 psi). Internal Temperature: 60 °C (140 °F). Does it have an Internal Coil?: Yes. Jacket Pressure: 5.2 bar (75 psi). Vacuum: Yes. Support: Base Mounted.
