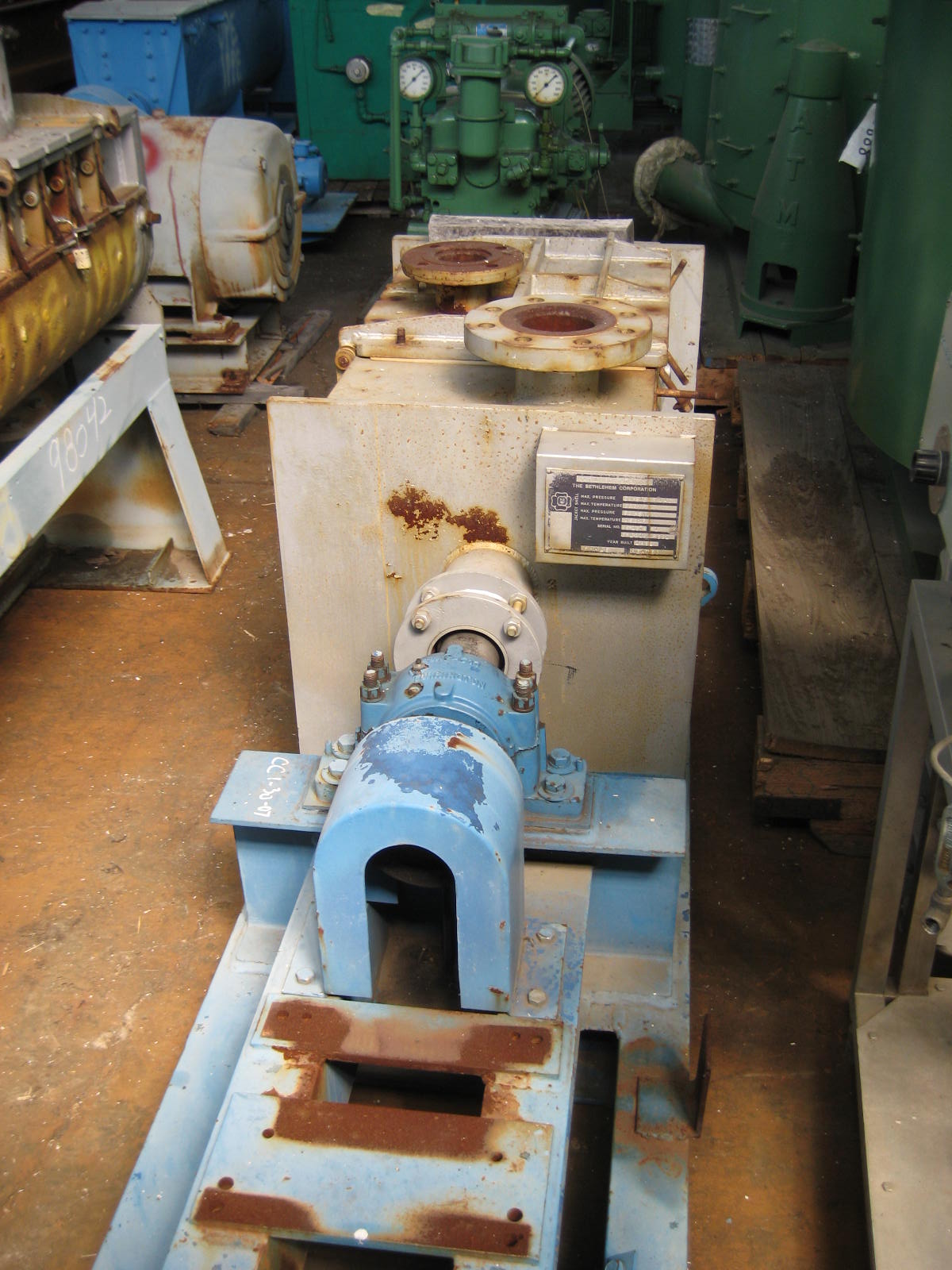

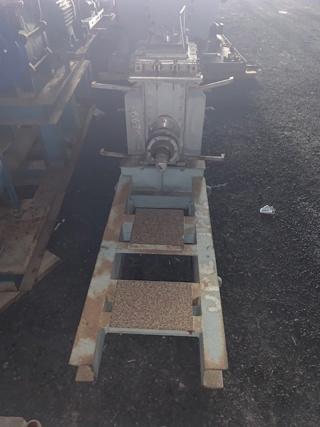

Carbon Steel Gale Process Solutions 1P1203JTB Dryer-Porcupine - IPP# 12783

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• Heating medium is hot oil or steam
• Working volume 2.10 cubic feet

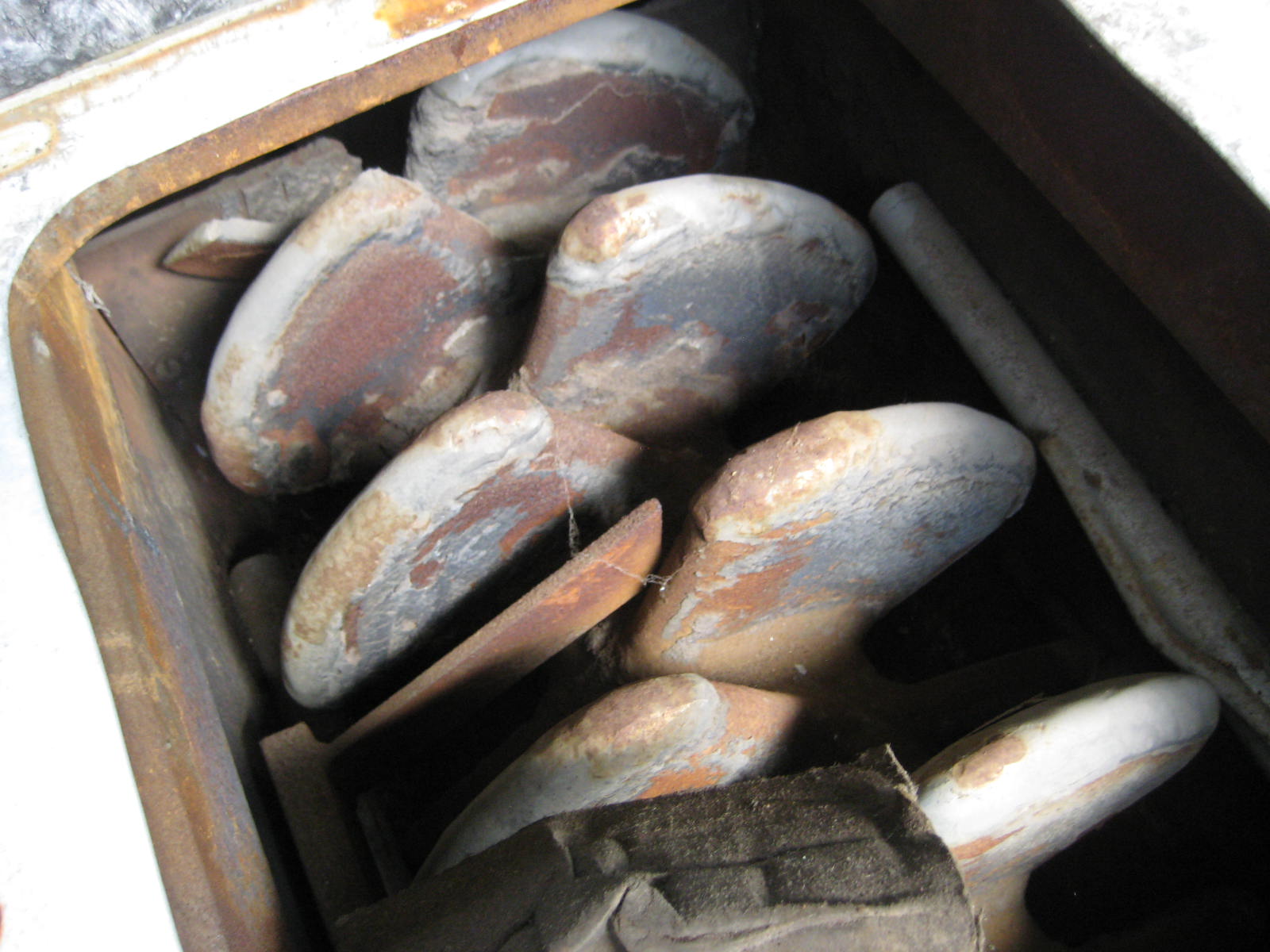

• Agitator 15 square feet of heating area and 9 square feet on the jacket
• Full vaccum
• Vessel rated 50 psig and full vacuum, jacket and agitator rated 150 psig 600 degree F
• Working volume 2.10 cubic feet
• Agitator 15 square feet of heating area and 9 square feet on the jacket
• 3/60/220/440 volt varidrive with UL label
• 5.4 to 54 rpm output

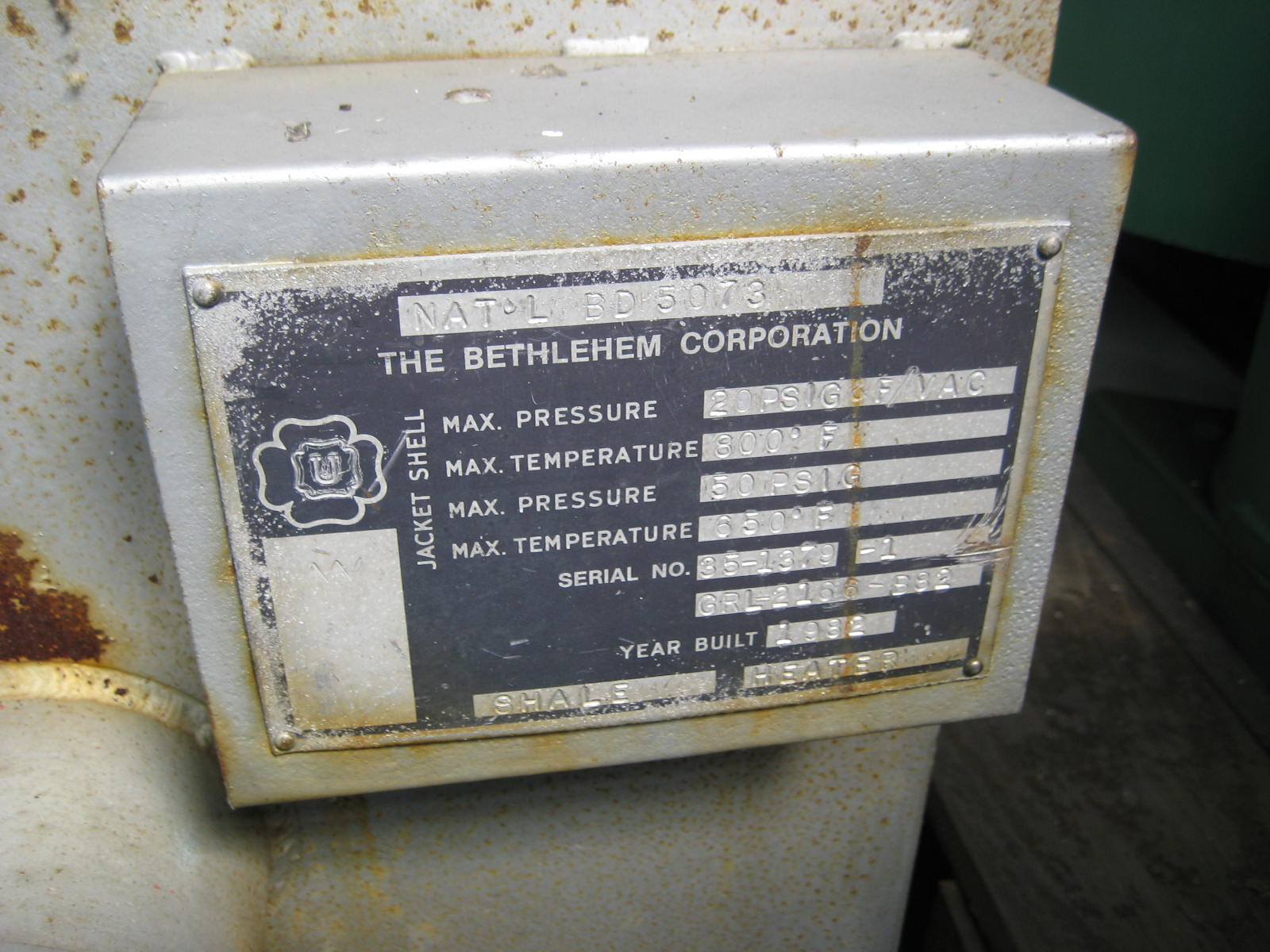

• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.84 m² (9 ft²). Porcupine Surface Area: 1.39 m² (15 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 315.6 °C (600 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 315.6 °C (600 °F). Total Heat Transfer Surface Area: 2.2 m² (24 ft²).

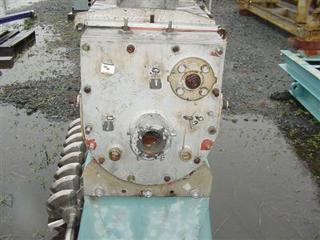

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Unused

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• Agitator 12" diameter, 3' long. (18% Cr, 11% nickel)
• hot oil or steam and full vacuum
• Working volume 1.89 cubic feet
• Agitator 12.4 square feet of heating area and jacket 7.3 square feet
• (requires motor and gear drive)
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.68 m² (7.3 ft²). Porcupine Surface Area: 1.15 m² (12.4 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 1.86 m² (20 ft²).

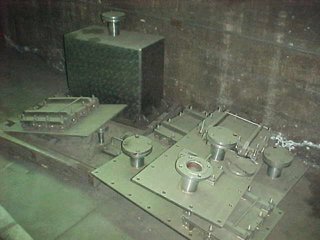

Type: Dryer-Porcupine

Subtype: Complete

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Unused

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• Agitator 12" diameter, 3' long
• Heating medium is hot oil or steam
• Working volume 1.89 cubic feet
• Vesssel rated 15 psig and full vacuum @ 650 degree F, jacket and agitator rated 150 psig @ 650 degree F
• Agitator 12.4 square feet of heating area, jacket 7.3 square feet
• via a gearbox
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.68 m² (7.3 ft²). Porcupine Surface Area: 1.15 m² (12.4 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 1.83 m² (19.7 ft²).

Type: Dryer-Porcupine

Manufacturer: Gale Process Solutions

Model: 1P1203JTB

Condition: Used

Material: Stainless Steel 316

Shell Configuration: Trough

Operational Mode: Batch

• Material of construction 316SS (18% CR, 11% nickel)
• Working volume 1.89 cubic feet
• Heating medium is hot oil or steam.
• Full vaccum
• Agitator 12.4 square feet of heating area
• jacket 7.3 square feet
• Outboard bearings
• Packing gland on shaft
• Manufactured by Gale Process Solutions (legacy Bethlehem Corporation/Advanced Thermal Solutions)

Diameter: 304.8 mm (12 in). Length: 914.4 mm (36 in). Number of Shafts: 1. Has Jacket: Yes. Jacket Surface Area: 0.68 m² (7.3 ft²). Porcupine Surface Area: 1.15 m² (12.4 ft²). Porcupine Operating Pressure: 10.3 bar (150 psi). Porcupine Operating Temperature: 343.3 °C (650 °F). Jacket Operating Pressure: 10.3 bar (150 psi). Jacket Operating Temperature: 343.3 °C (650 °F). Total Heat Transfer Surface Area: 1.83 m² (19.7 ft²).
