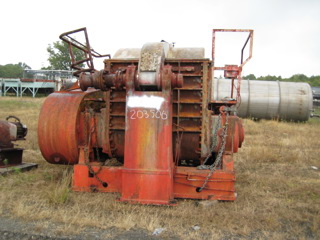

size 20 TUEM, jacketed, Bowl tilting time 35 seconds. Mixing trough 58.5" Front blade output speed 25.5 RPM. Rear blade output speed 14.5 RPM. V belt driven. Base is 16'7" long x 9' 11" wide.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Model: 20 TUEM
Condition: Used
Material: Stainless Steel Other
Capacity (Design): 3,312 L (875 gallons)
Capacity (Working): 1,893 L (500 gallons)

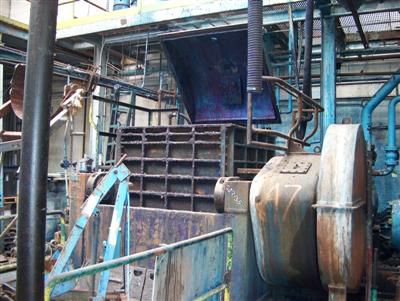

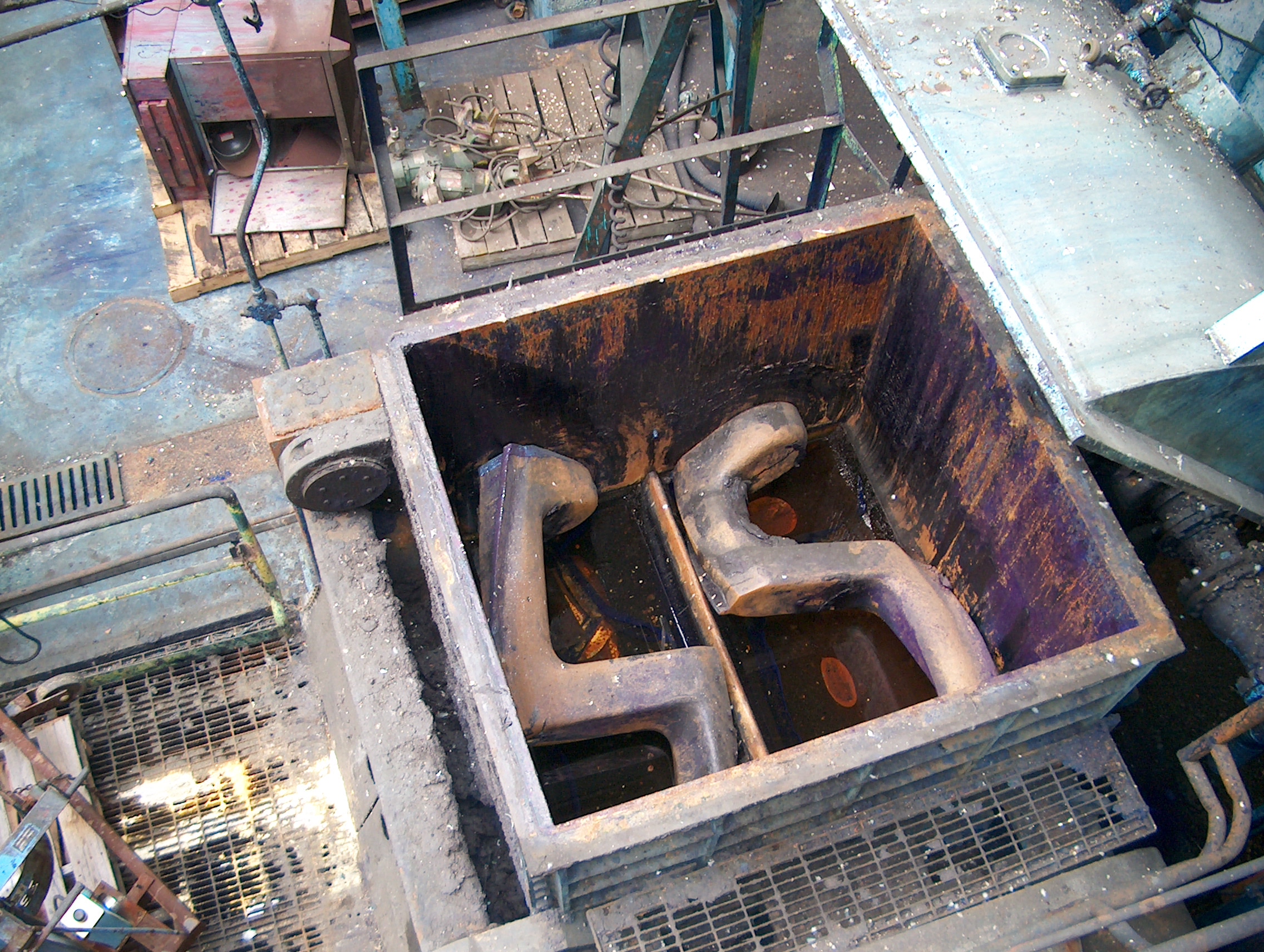

20 TUEM Carbon Steel,double arm (Sigma Blades) Vaccum cover is SS Bowl tilting time 35 seconds. Mixing trough 58.5". Front blade output speed 25.5 RPM. Rear blade output speed 14.5 RPM. Mixing arms
Jacket Pressure: 8.6 bar (125 psi). Blade Type: double arm (Sigma Blades). Blade Speed (RPM): 25.5. Tilting: Yes. Vacuum: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 3,312 L (875 gallons)
Capacity (Working): 1,893 L (500 gallons)

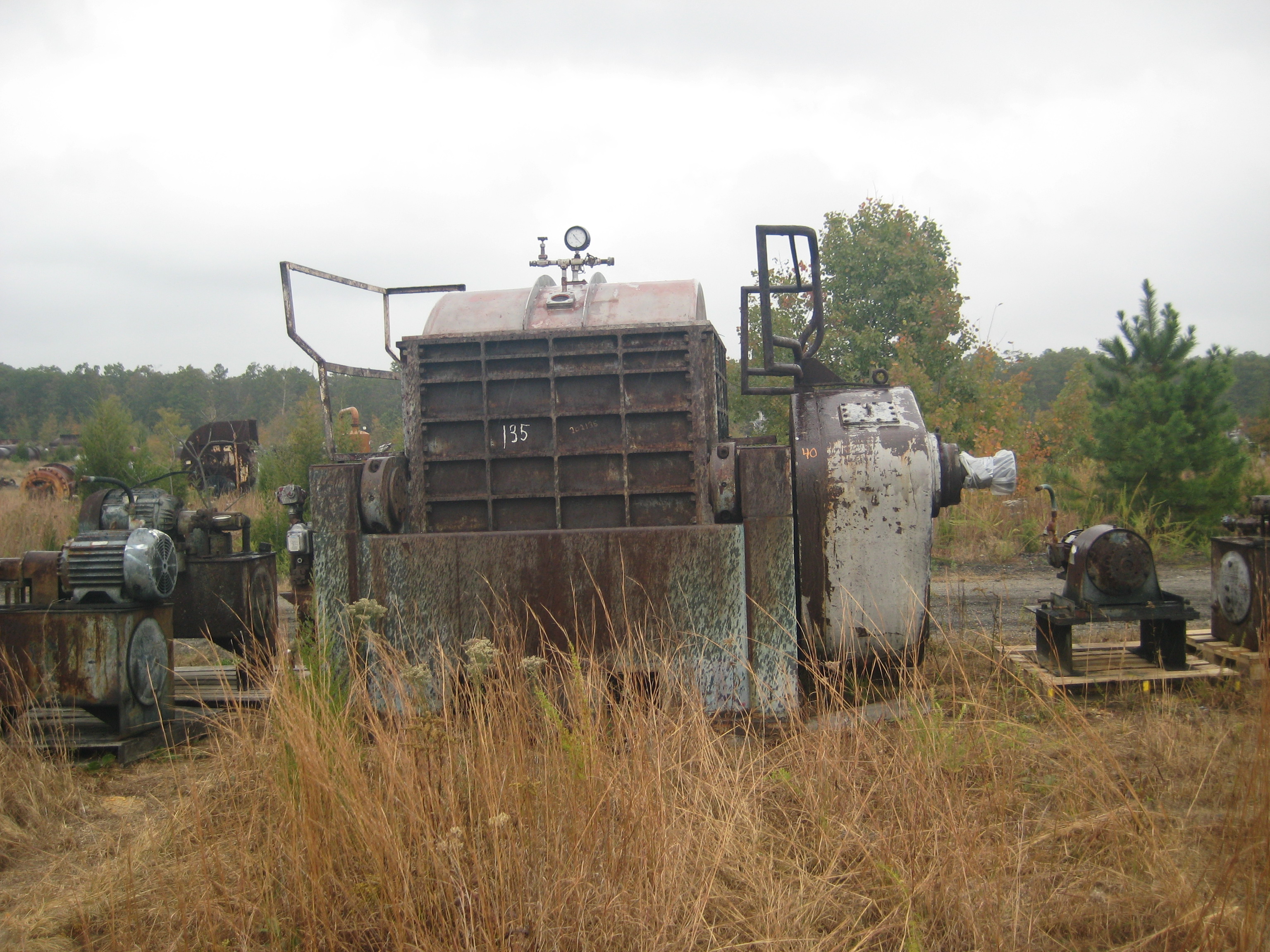

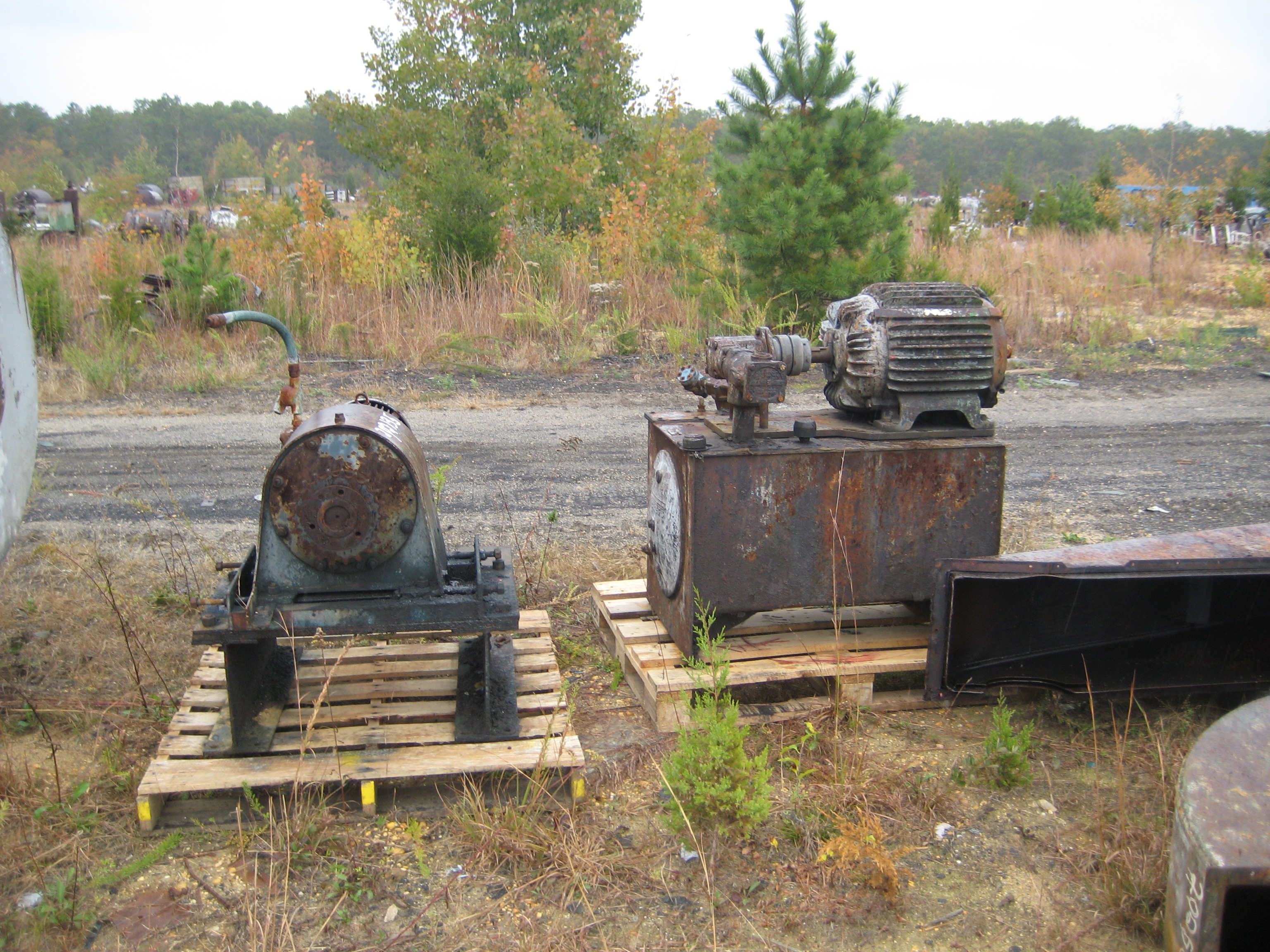

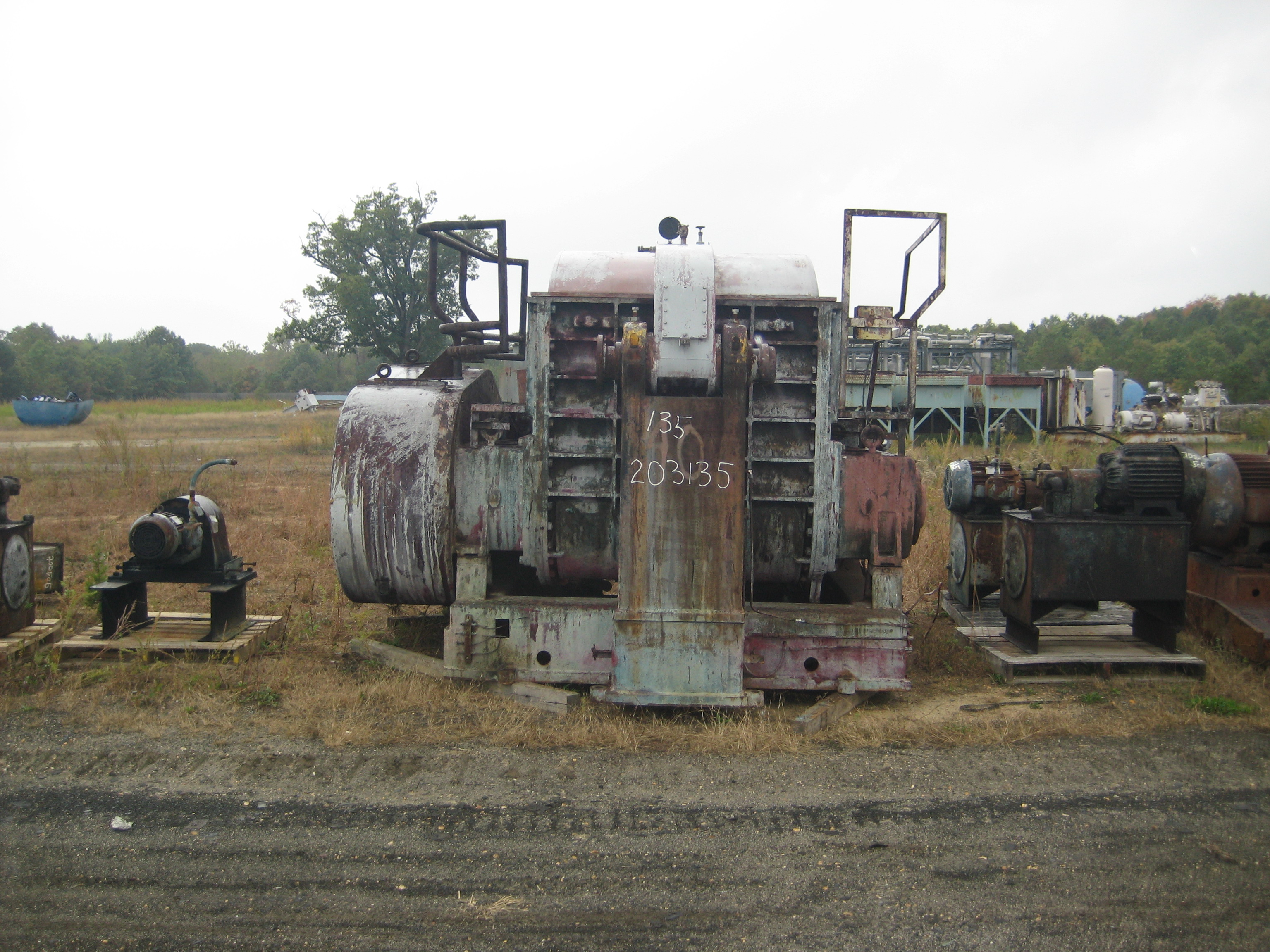

size 20 TUEM jacketed,no cover with unit Bowl tilting time 35 seconds. Mixing trough 58.5" . Front blade output speed 25.5 RPM. Rear blade output speed 14.5 RPM. Mixing arms V belt driven Main drive equipped with auxilliary motor with 45 seconds to start. Base is 16'7" long x 9' 11" wide.
Jacket Pressure: 8.6 bar (125 psi). Blade Type: double arm (Sigma Blades). Blade Speed (RPM): 25.5. Tilting: Yes. Hydraulics: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 757.1 L (200 gallons)
Capacity (Working): 378.5 L (100 gallons)

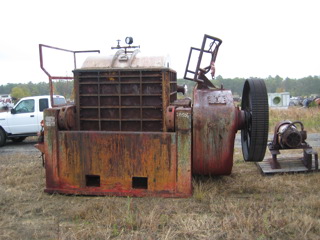

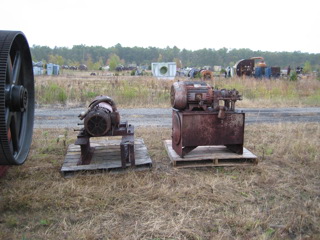

Sigma Blade Mixer jacket trough, tilt discharge packing glands on shaft, rated atmospheric internal, with dust cover With chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge
Blade Type: tangential sigma blades. Tilting: Yes.
Type: Mixer-Double Arm
Manufacturer: Baker Perkins
Condition: Used
Material: Carbon Steel
Capacity (Design): 567.8 L (150 gallons)
Capacity (Working): 378.5 L (100 gallons)
Sigma Blade Mixer jacket trough, tilt discharge. packing glands on shaft, rated atmospheric internal, with dust cover Geared both sides, driven through a jack shaft, with chain and sprocket drive on one end Unit has a seperate power pack for tilt discharge.
Jacket Pressure: 8.6 bar (125 psi). Jacket Temperature: 204.4 °C (400 °F). Blade Type: tangential sigma blades. Tilting: Yes.
